54FCT824AL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54FCT824AL

54FCT824AL: DescriptionD Flip-Flop, 9-Func, CMOS, CQCC28; Categorylogic logic; File Size437KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

54FCT824AL Overview

D Flip-Flop, 9-Func, CMOS, CQCC28

54FCT824AL Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1156961288
package instruction	QCCN, LCC28,.45SQ
Reach Compliance Code	not_compliant
JESD-30 code	S-XQCC-N28
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	71400000 Hz
MaximumI(ol)	0.032 A
Number of functions	9
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
Trigger type	POSITIVE EDGE

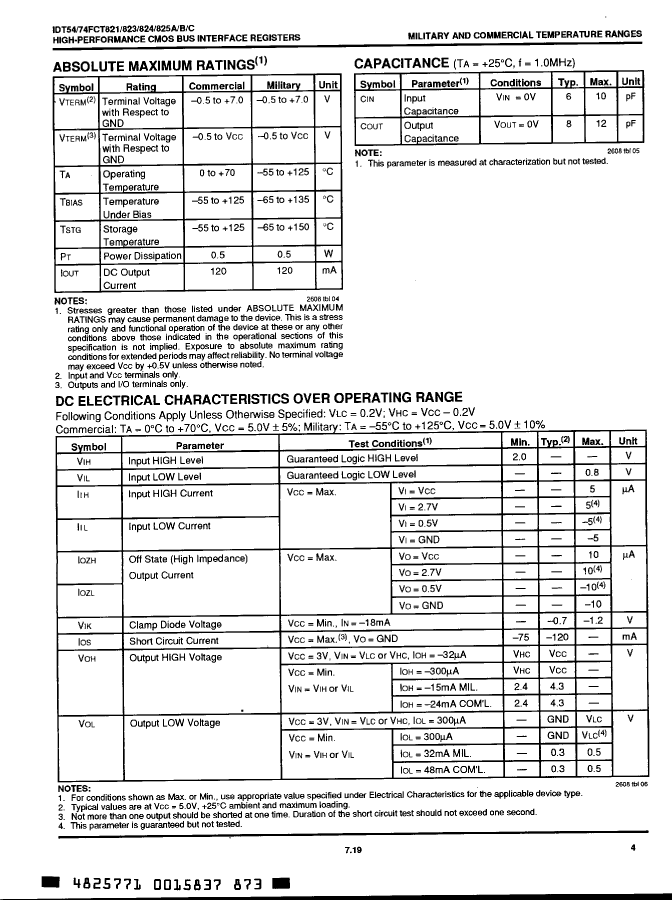

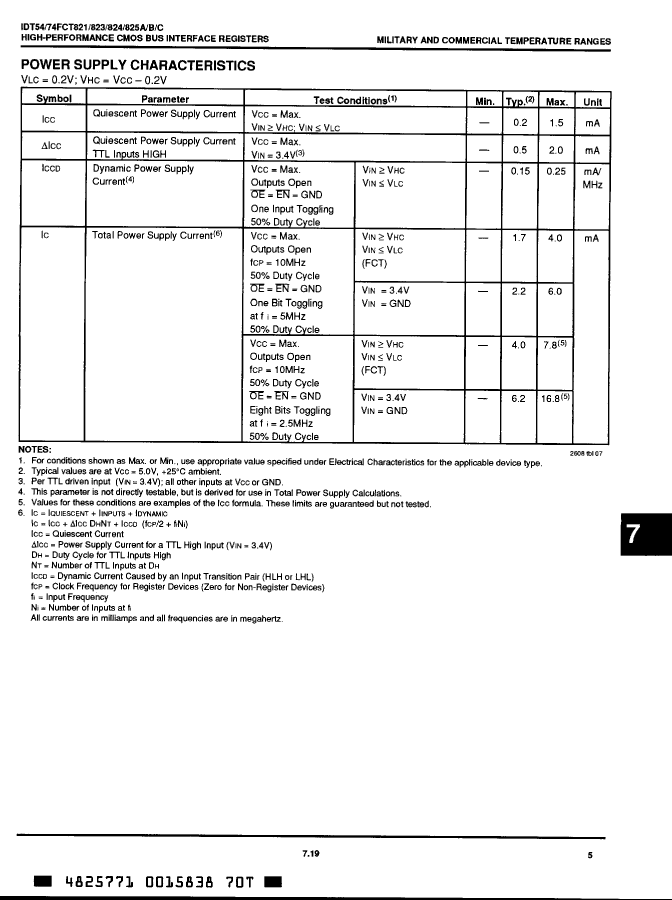

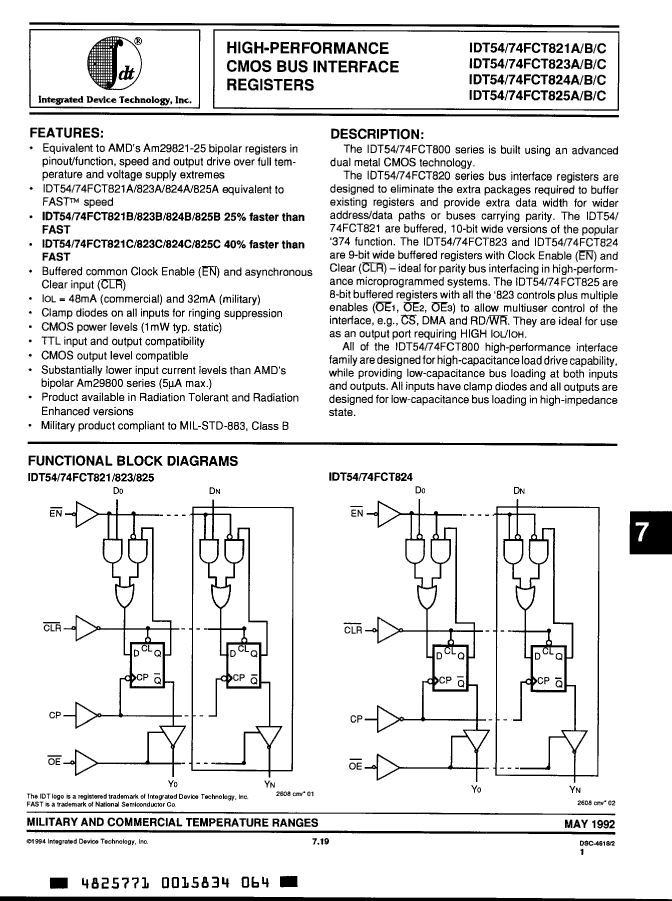

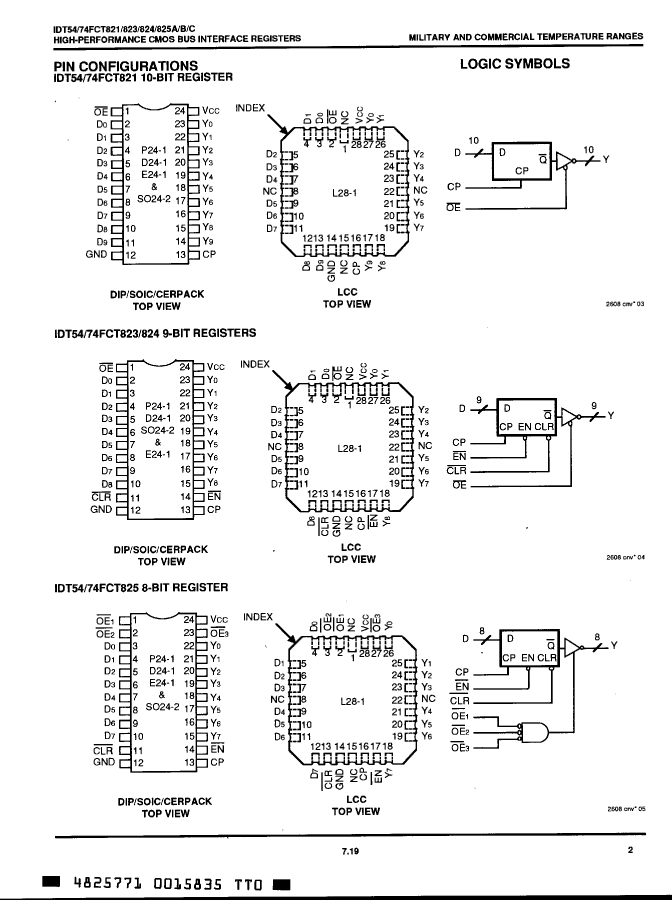

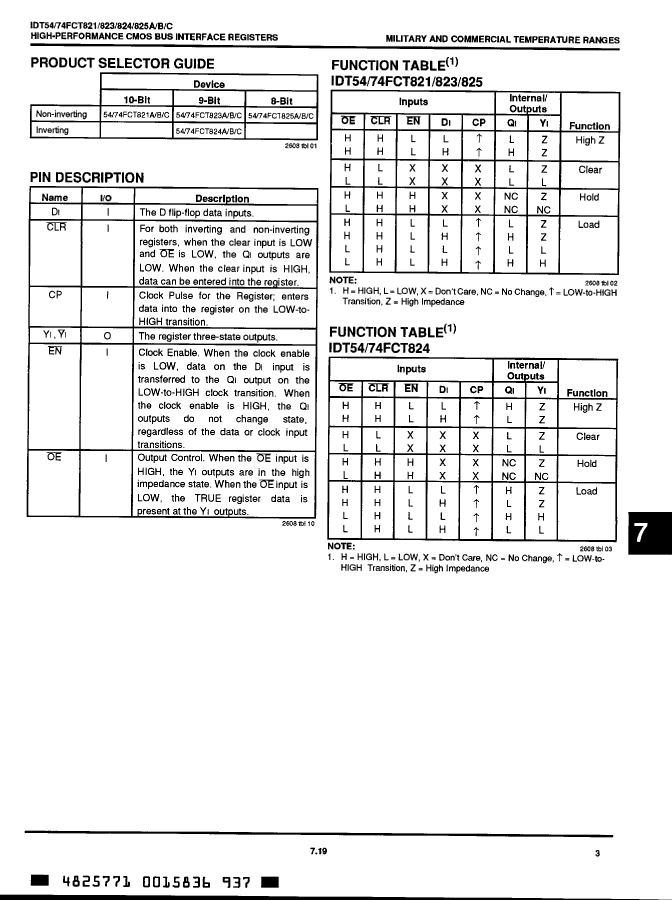

Preview

Download Datasheet

View All

54FCT824AL Related Products

	54FCT824AL	IDT74FCT824AJ	IDT74FCT824BPQ	IDT74FCT824BJ
Description	D Flip-Flop, 9-Func, CMOS, CQCC28	D Flip-Flop, 9-Func, CMOS, PQCC28	D Flip-Flop, 9-Func, CMOS, PDIP24	D Flip-Flop, 9-Func, CMOS, PQCC28
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	S-XQCC-N28	S-PQCC-J28	R-PDIP-T24	S-PQCC-J28
JESD-609 code	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	71400000 Hz	71400000 Hz	83300000 Hz	83300000 Hz
MaximumI(ol)	0.032 A	0.048 A	0.048 A	0.048 A
Number of functions	9	9	9	9
Number of terminals	28	28	24	28
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	QCCJ	DIP	QCCJ
Encapsulate equivalent code	LCC28,.45SQ	LDCC28,.5SQ	DIP24,.3	LDCC28,.5SQ
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225	260	225	260
power supply	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	NO LEAD	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	30	6	30	6
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Certification status	Not Qualified	Not Qualified	-	Not Qualified
Base Number Matches	-	1	1	1
