LFPPXO026295BULK

Description
CMOS Output Clock Oscillator, 12.288MHz Nom
CategoryPassive components    oscillator
File Size707KB,2 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFPPXO026295BULK Overview

CMOS Output Clock Oscillator, 12.288MHz Nom

LFPPXO026295BULK Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8340594880
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time4 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
Installation featuresSURFACE MOUNT
Nominal operating frequency12.288 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeCMOS
Output load50 pF
physical size7.0mm x 5.0mm x 1.7mm
longest rise time4 ns
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountYES
maximum symmetry45/55 %
Fast Make Oscillator Specification
Part No. + Packaging:
LFPPXO026295Bulk
Description
PLL based, one time only factory programmable (for a fast lead
time) crystal oscillator in a hermetically sealed ceramic package
with a metal lid.
This model is not approved for on-board avionics applications;
in such instances our ‘CFPP-72 AVIATION’ version should be
specified.
Model
CFPP-72
Model Issue number
11
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
12.2880MHz
±50.00ppm
-40.00 to 85.00°C
±5ppm max in 1st year @ 25°C
Supply Voltage
Current Draw
Output Details
5.0V ±0.5V
45.00mA
Outline (mm)
CMOS
Output Compatability
Drive Capability
50pF max
Rise and Fall Time
4.0ns max
45/55%
Duty Cycle
Logic ‘1’ to pad 1 enables oscillator output
Logic ‘0’ to pad 1 disables oscillator output; when disabled the
oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Noise Parameters
Jitter pk-pk:
1 to 33MHz 250ps max
>33MHz
175ps max
Jitter pk-pk:
1 to 33MHz 100ps typ
>33MHz
75ps typ
Environmental Parameters

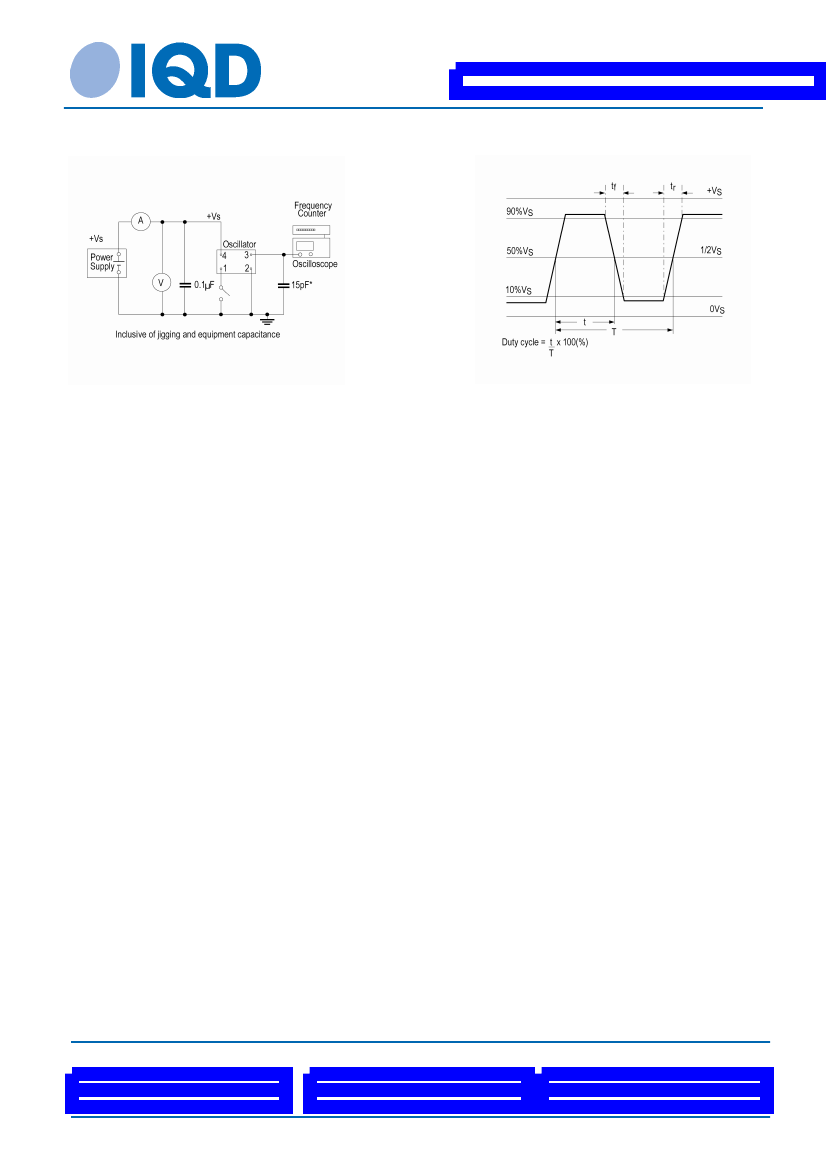

Test Circuit
Storage Temperature Range: –55 to 125°C
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 1
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
