LFSPXO026273REEL

Description
HCMOS Output Clock Oscillator, 4.096MHz Nom
CategoryPassive components    oscillator
File Size1006KB,2 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFSPXO026273REEL Online Shopping

Suppliers Part Number Price MOQ In stock
LFSPXO026273REEL - - View Buy Now

LFSPXO026273REEL Overview

HCMOS Output Clock Oscillator, 4.096MHz Nom

LFSPXO026273REEL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8339771558
Reach Compliance Codecompliant
Other featuresSTANDBY; ENABLE/DISABLE FUNCTION; TR
maximum descent time10 ns
Frequency Adjustment - MechanicalNO
frequency stability25%
Installation featuresSURFACE MOUNT
Nominal operating frequency4.096 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeHCMOS
Output load50 pF
physical size7.2mm x 5.2mm x 1.4mm
longest rise time10 ns
Maximum supply voltage3.63 V
Minimum supply voltage2.97 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry45/55 %

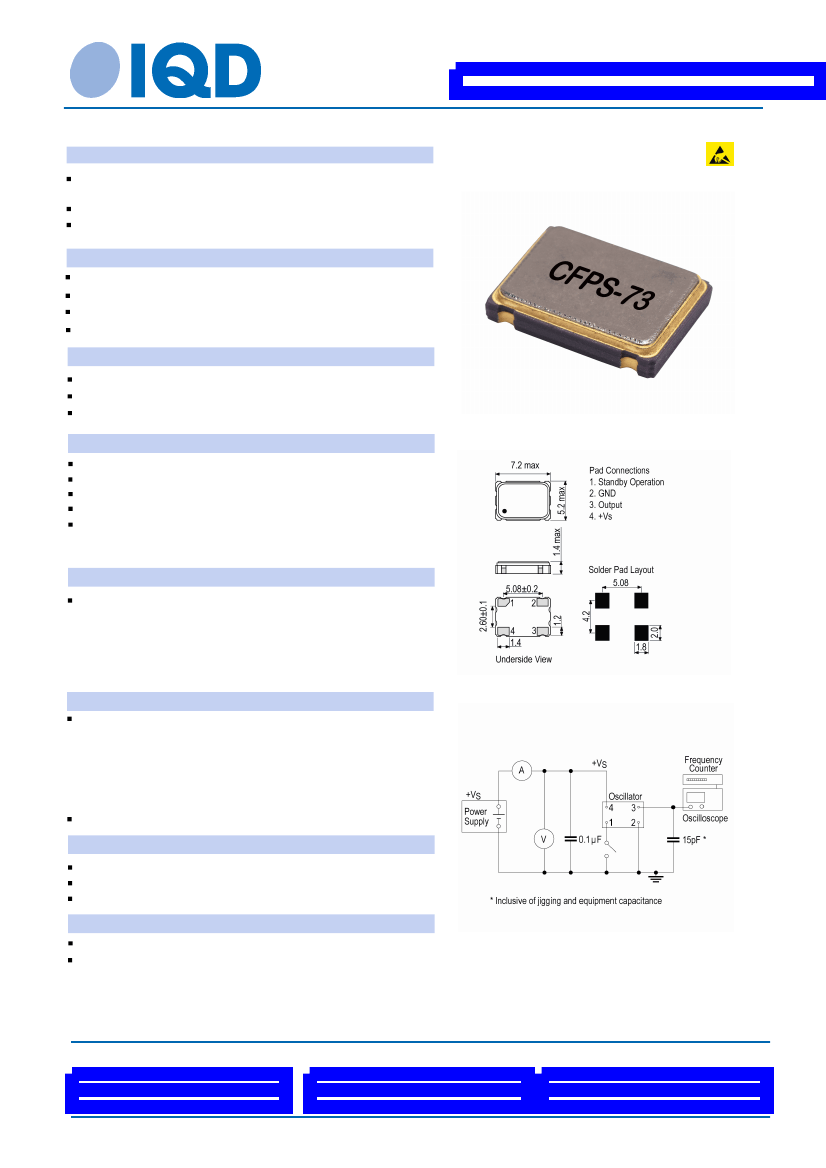

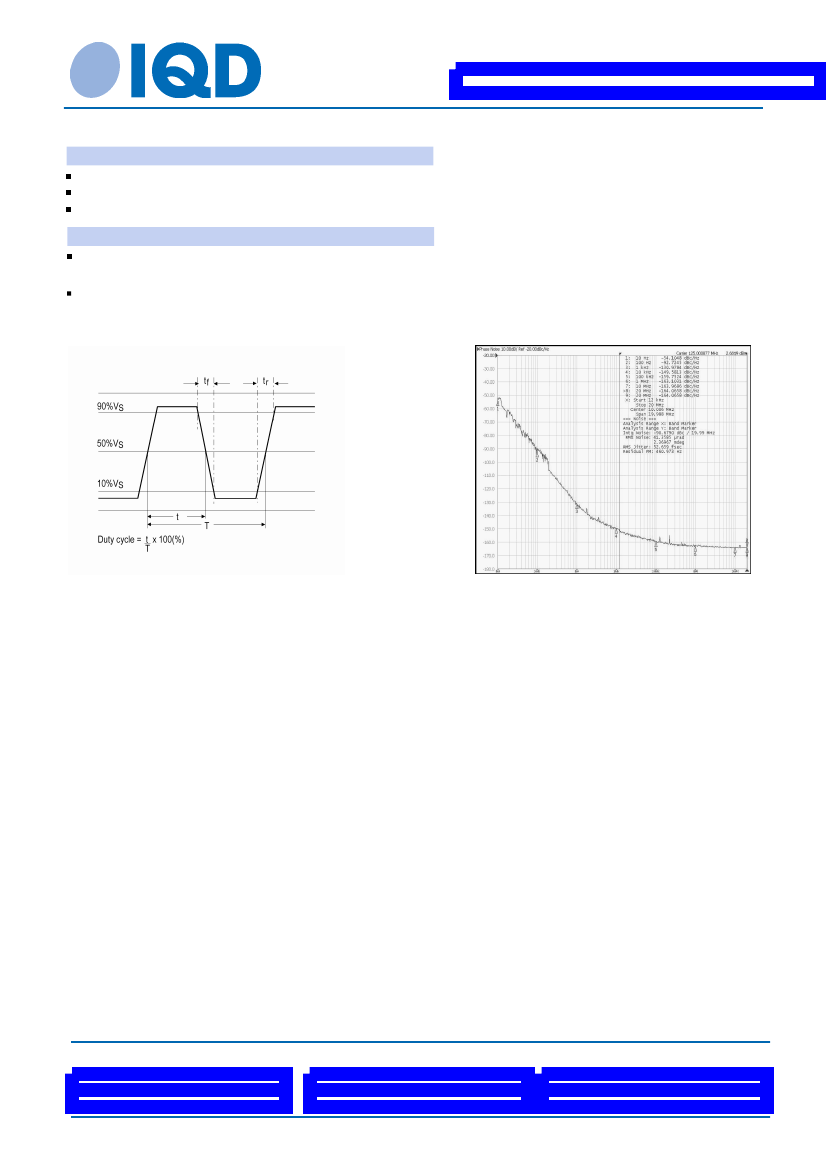

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO026273Reel
Customer Part:
Description
Standard 7 x 5mm crystal oscillator in a ceramic package with a
seam sealed metal lid, hermetically sealed.
Model
CFPS-73
Model Issue number
14
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
4.0960MHz
±25.00ppm
-40.00 to 85.00°C
±3ppm per year max
3.3V ±10%
Supply Voltage
Current Draw
7.000mA
Note: parameters are referenced to 15pF load
Output Details
Outline (mm)
HCMOS
Output Compatibility
Drive Capability
15pF std, 50pF max
Rise and Fall Time
10.0ns max
45/55
Duty Cycle
Start up time: 10ms max.
0.9ms typ to 90% of final amplitude ( under ideal conditions @
25°C)
Output Control
Standby Operation:
Logic ‘1’ (>70% VS) to pad 1 enables oscillator output
Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the
oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Standby Current: 10µA max, 0.9µA typ @ 25°C
Noise Parameters
Test Circuit
Phase Noise @125MHz (typical):
10Hz
-54dBc
100Hz -92dBc
1kHz
-130dBc
10kHz -149dBc
100kHz -159dBc
1MHz -163dBc
RMS Phase Jitter @125MHz: 52fs typical
Environmental Parameters
Shock: MIL-STD-202, Method 213, Condition E
Vibration: MIL-STD-883, Method 2007, Condition A
Storage Temperature Range: -55 to 125°C
Manufacturing Details
RoHS Terminations
RoHS Reflow Temp
NiAu
260degC 10s
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
Printed on 22 Dec 21 23:10 using Part Data Sheet V1.0018
