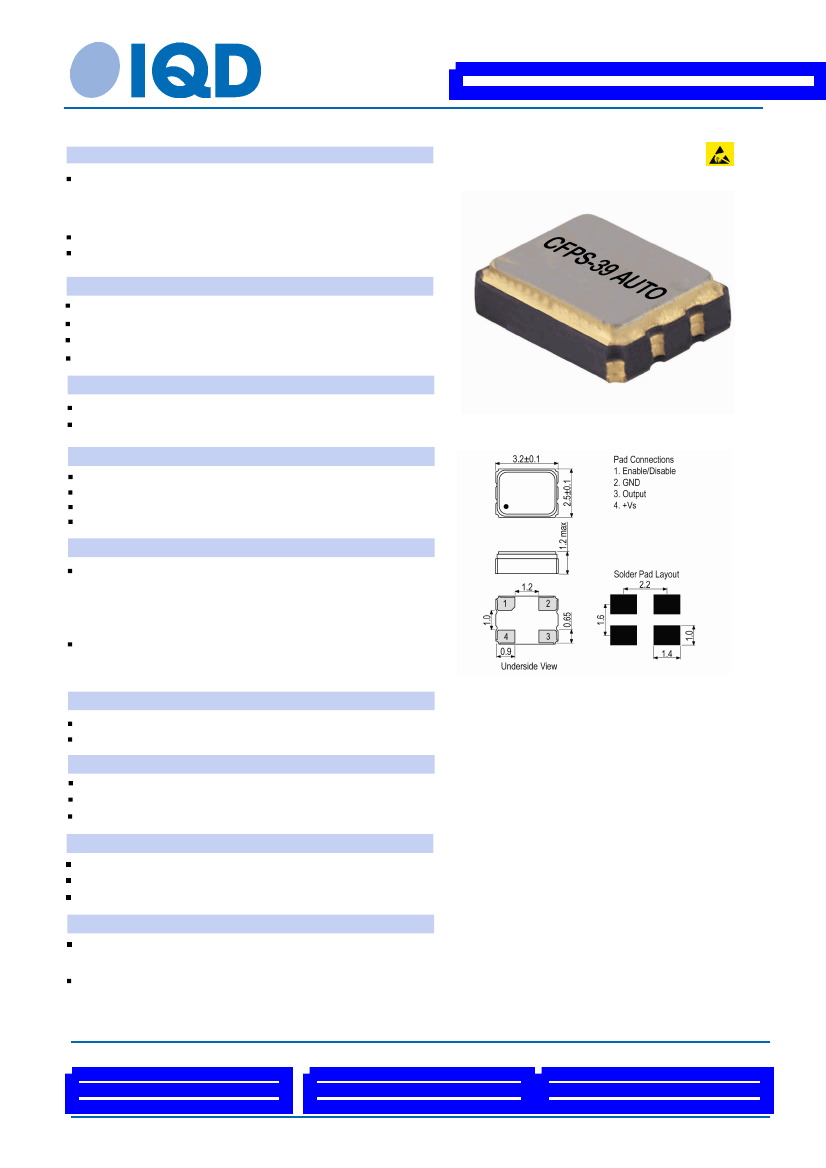

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO072155Reel
Customer Part:
Description
Ceramic package with a hermetically seam sealed metal lid
suitable for automotive applications. Qualified to AEC-Q200 and
with IATF-16949:2016 release.Not suitable for safety critical
applications.
Model
CFPS-39 AUTO
Model Issue number
2
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
20.0MHz
±100.00ppm
-40.00 to 85.00°C
±5ppm max per year @ 25°C
Supply Voltage
Current Draw
Output Details
3.3V ±10%
12.000mA
Outline (mm)
Output Compatibility
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
CMOS
15pF
5.0ns max
40/60%
Enable/Disable Operation:
Logic ‘1’ (>70% Vs) to pad 1 enables oscillator output.
Logic ‘0’ (<30% Vs) to pad 1 disables oscillator output; the
oscillator output goes to the high impedance state.
No connection to pad 1 enables oscillator output.
Standby Current:
-40 to 85°C: 10µA max
-40 to 125°C: 20µA max
Environmental Parameters
Storage Temperature Range: -55 to 150°C
Qualified to AEC-Q200
Manufacturing Details
Maximum Process Temperature: 260°C (10secs max)
RoHS Terminations
NiAu
RoHS Reflow Temp
260degC 10s
Compliance
RoHS Status (2015/863/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 20 Dec 21 3:08 using Part Data Sheet V1.0018
