LFXTAL021529BULK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL021529BULK

Preview

LFXTAL021529BULK: DescriptionParallel - Fundamental Quartz Crystal, 0.032768MHz Nom; CategoryPassive components Crystal/resonator; File Size783KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL021529BULK Overview

Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom

LFXTAL021529BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8339119711
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.016%
frequency tolerance	20 ppm
JESD-609 code	e3
load capacitance	6 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L8.7XB3.8XH2.5 (mm)/L0.343XB0.15XH0.098 (inch)
Series resistance	50000 Ω
surface mount	YES
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

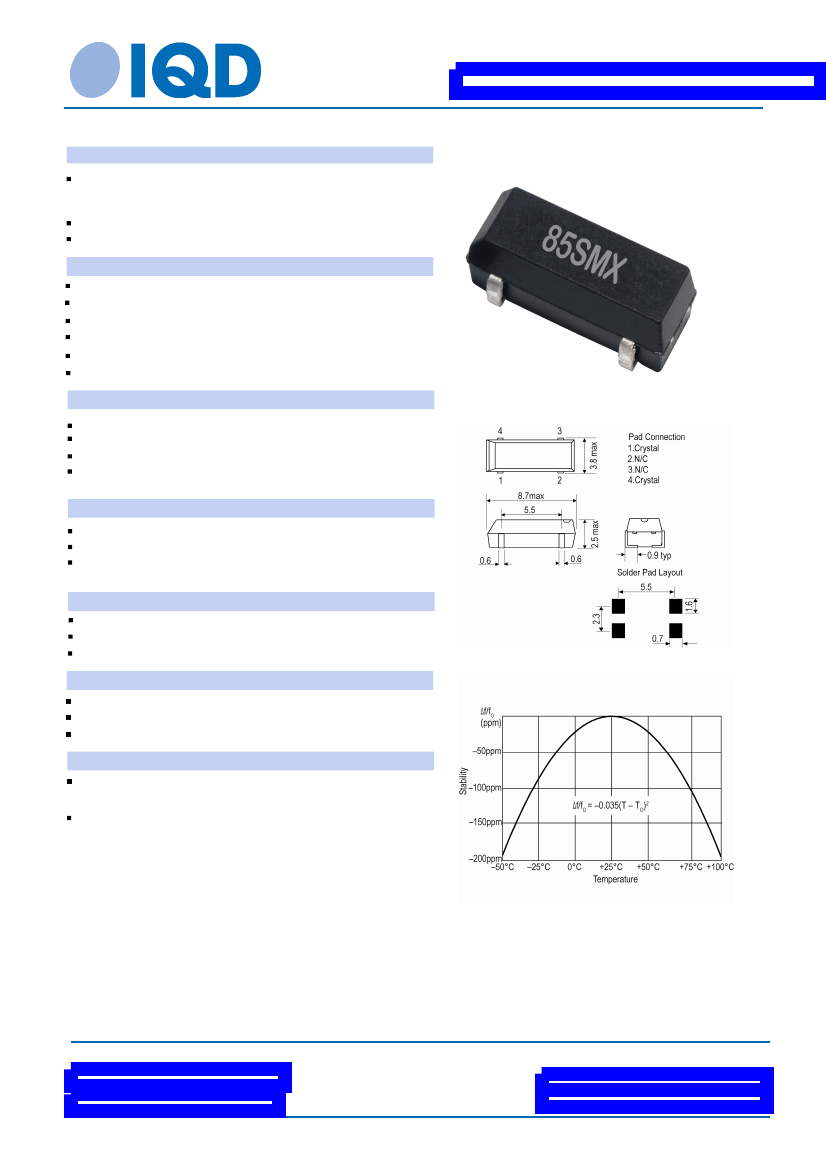

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL021529Bulk

Customer Part:

Description

Industry standard SMD package with 5.5mm lead spacing

Suitable for real time clock applications

Plastic encapsulated

Model

85SMX

Model Issue number

9

Frequency Parameters

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

32.7680kHz

±20.00ppm

±160.00ppm

-20.00 to 70.00°C

Fundamental

±5ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

6.00pF

1pF typ

1.0µW max

50.00kΩ max

Storage Temperature Range: -55 to 125°C

Drop: 75cm drop (3 times) onto hard wooden board

Vibration: 1.5mm amplitude, 10Hz-60Hz, 2-3mins in 3

mutually perpendicular planes, duration 2hrs each plane

Manufacturing Details

Not suitable for use with ultrasonic cleaning techniques

RoHS Terminations

Matte Sn

RoHS Reflow Temp

260°C 10s max

Compliance

Typical Frequency Stability Characteristics

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

USA: +1.760.318.2824

Printed on 8 Jun 22 0:06 using Part Data Sheet V1.0019
