LFXTAL022955BULK

Description
Parallel - 3Rd Overtone Quartz Crystal, 35.328MHz Nom
CategoryPassive components    Crystal/resonator
File Size458KB,1 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL022955BULK Online Shopping

Suppliers Part Number Price MOQ In stock
LFXTAL022955BULK - - View Buy Now

LFXTAL022955BULK Overview

Parallel - 3Rd Overtone Quartz Crystal, 35.328MHz Nom

LFXTAL022955BULK Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8339697608
package instructionHC49/4H, 2 PIN
Reach Compliance Codecompliant
Other featuresBULK
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - 3RD OVERTONE
Drive level500 µW
frequency stability0.005%
frequency tolerance30 ppm
load capacitance15 pF
Installation featuresTHROUGH HOLE MOUNT
Nominal operating frequency35.328 MHz
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
physical sizeL11.05XB4.7XH4.1 (mm)/L0.435XB0.185XH0.161 (inch)
Series resistance100 Ω
surface mountNO

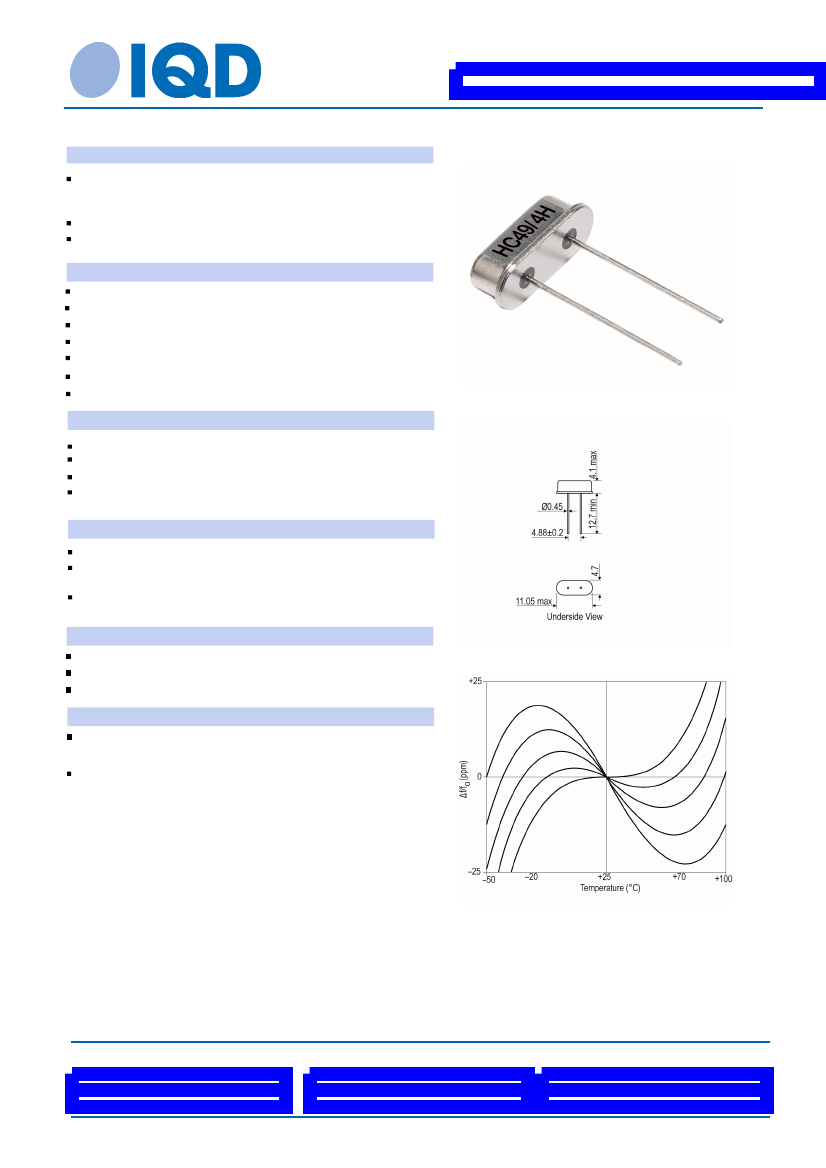

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL022955Bulk
Customer Part:
Description
Industry standard leaded package
Resistance welded, hermetically sealed in an inert atmosphere,
glass to metal seals on leads
Model
HC49/4H
Model Issue number
15
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
35.3280MHz
±30.00ppm
@ 25°C
±50.00ppm
-10.00 to 60.00°C
3RD
±5ppm typical per year at 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
15.00pF
7pF max
500µW max
100.00Ω max
Storage Temperature Range: -55 to 125°C
Shock: 981m/s², 6ms, 3 times in each of 3 mutually
perpendicular planes
Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz,
98.1m/s², 30mins in 3 mutually perpendicular planes
Compliance
RoHS Status (2015/863/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Typical Frequency vs Temperature Curves
Pack Style: Bulk
Pack Size: 100
Loose in Bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 16 Jan 22 13:01 using Part Data Sheet V1.0018
