LFXTAL024717BULK datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL024717BULK

LFXTAL024717BULK: DescriptionParallel - Fundamental Quartz Crystal, 8MHz Nom; CategoryPassive components Crystal/resonator; File Size458KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL024717BULK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL024717BULK	-	-	View	Buy Now

LFXTAL024717BULK Overview

Parallel - Fundamental Quartz Crystal, 8MHz Nom

LFXTAL024717BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8339697709
package instruction	HC49/4H, 2 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	16 pF
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	8 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.05XB4.7XH4.1 (mm)/L0.435XB0.185XH0.161 (inch)
Series resistance	40 Ω
surface mount	NO

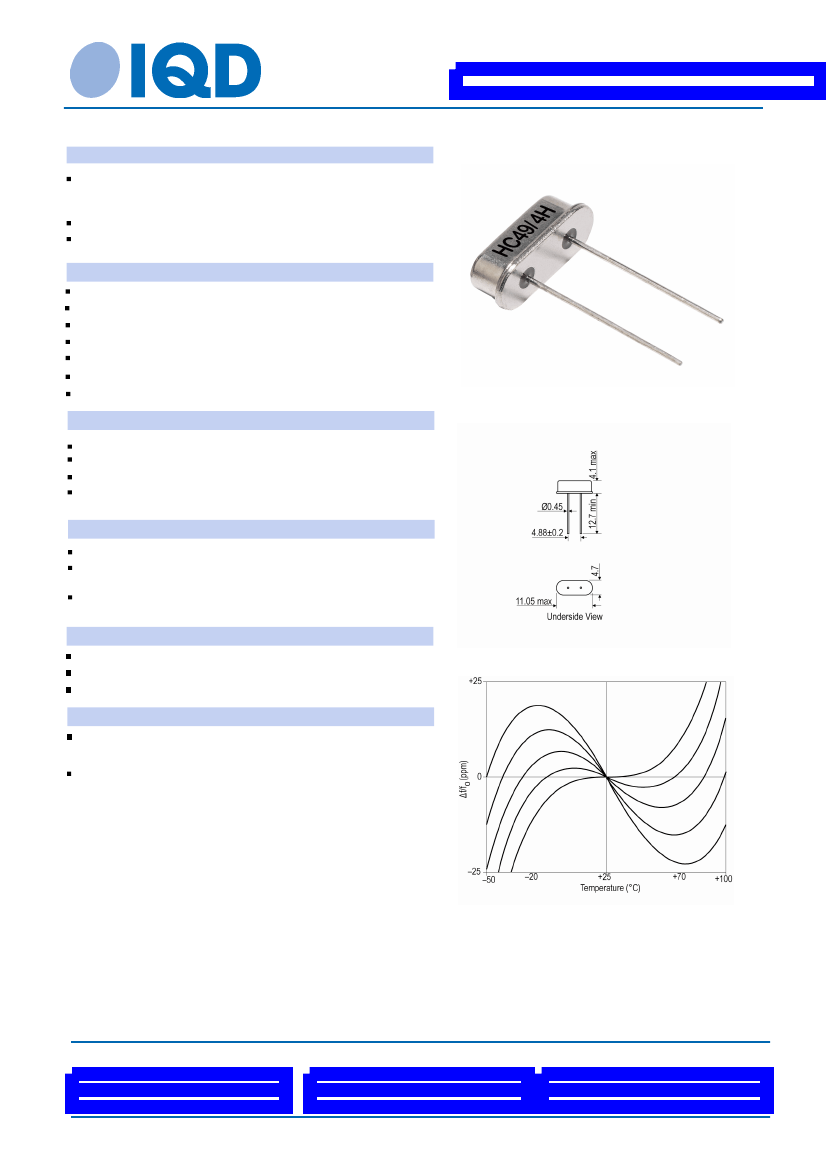

Preview

Download Datasheet

View All

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL024717Bulk

Customer Part:

Description

Industry standard leaded package

Resistance welded, hermetically sealed in an inert atmosphere,

glass to metal seals on leads

Model

HC49/4H

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

8.0MHz

±30.00ppm

@ 25°C

±50.00ppm

-10.00 to 60.00°C

Fundamental

±5ppm typical per year at 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

16.00pF

7pF max

500µW max

40.00Ω max

Storage Temperature Range: -55 to 125°C

Shock: 981m/s², 6ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz,

98.1m/s², 30mins in 3 mutually perpendicular planes

Compliance

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Typical Frequency vs Temperature Curves

Pack Style: Bulk

Pack Size: 100

Loose in Bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 16 Jan 22 18:50 using Part Data Sheet V1.0018
