LW3129-N2CB-C: DescriptionRocker Switch, DPDT, On-off-(on), Momentary, 6A, 30VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size910KB，6 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric View All

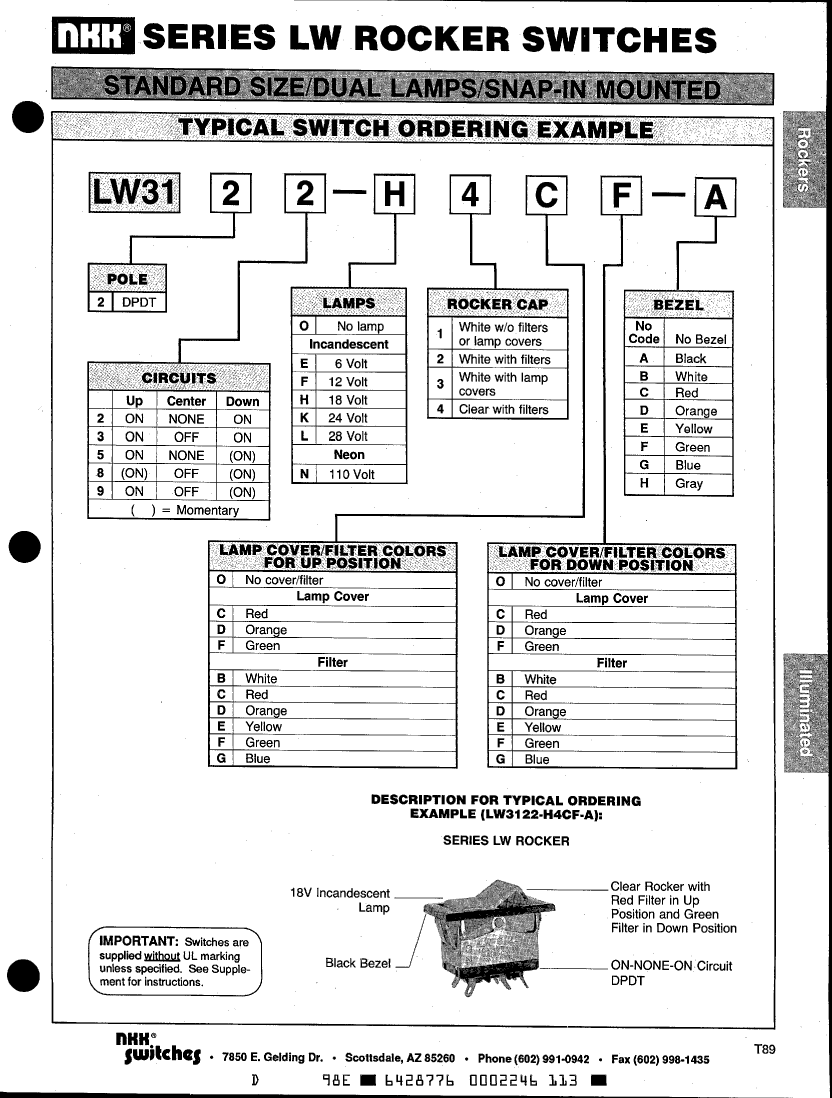

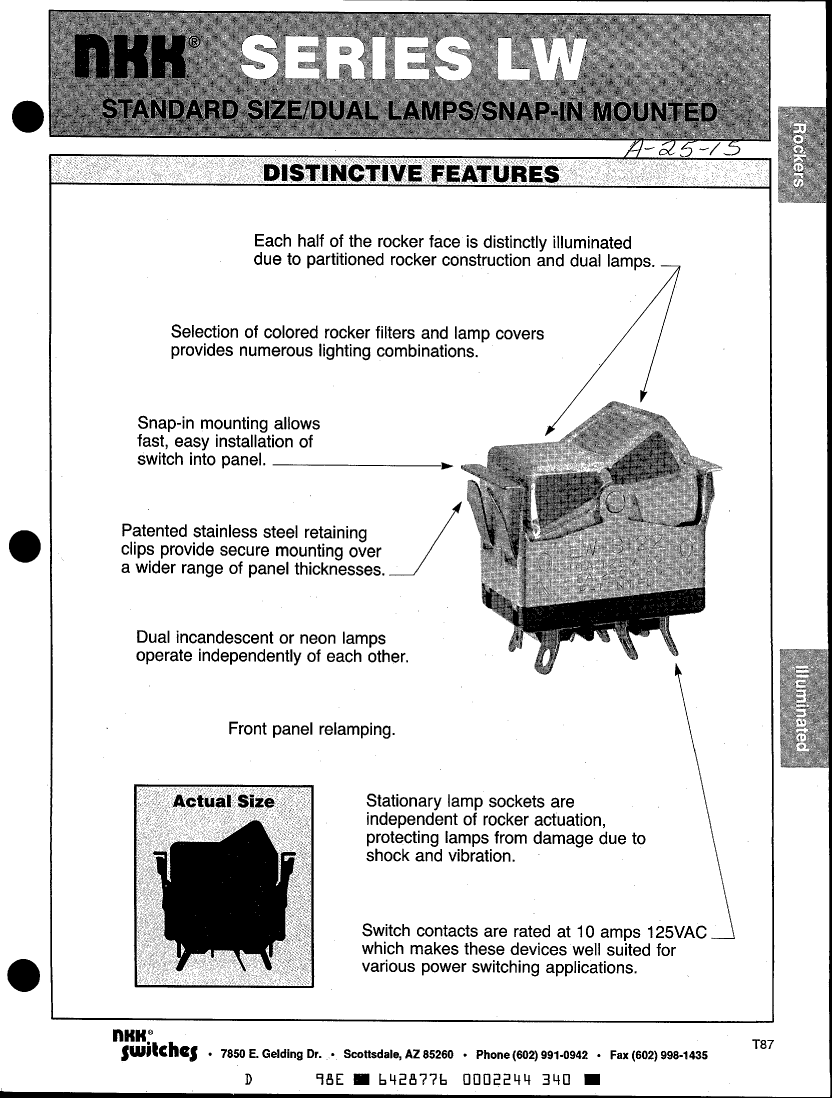

LW3129-N2CB-C Overview

Rocker Switch, DPDT, On-off-(on), Momentary, 6A, 30VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount

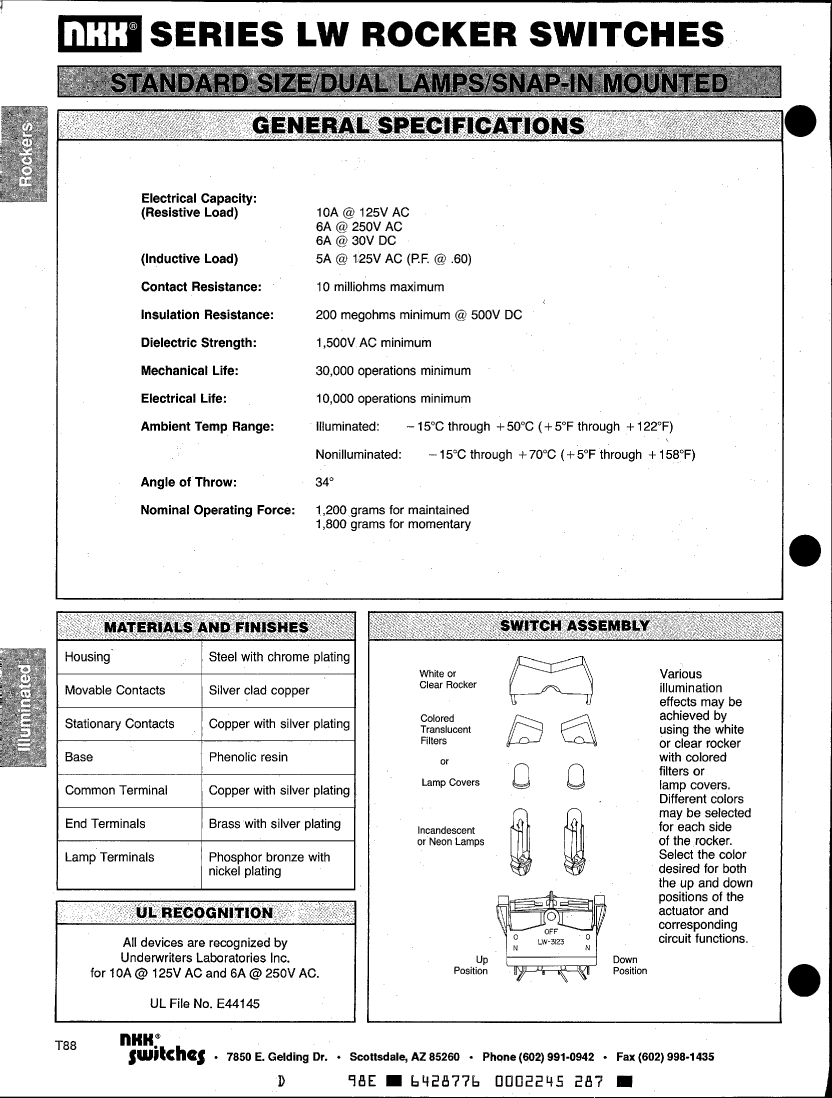

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1171795210
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	34 deg
Actuator color	WHITE
Actuator length	0.394 inch
Actuator type	ROCKER
Other features	RED,WHITE FILT, RED BEZ.
body width	18.9992 mm
Body length or diameter	29.9974 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated load I	5A@125VAC
Contact (AC) maximum rated R load	6A@250VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated R load	6A@30VDC

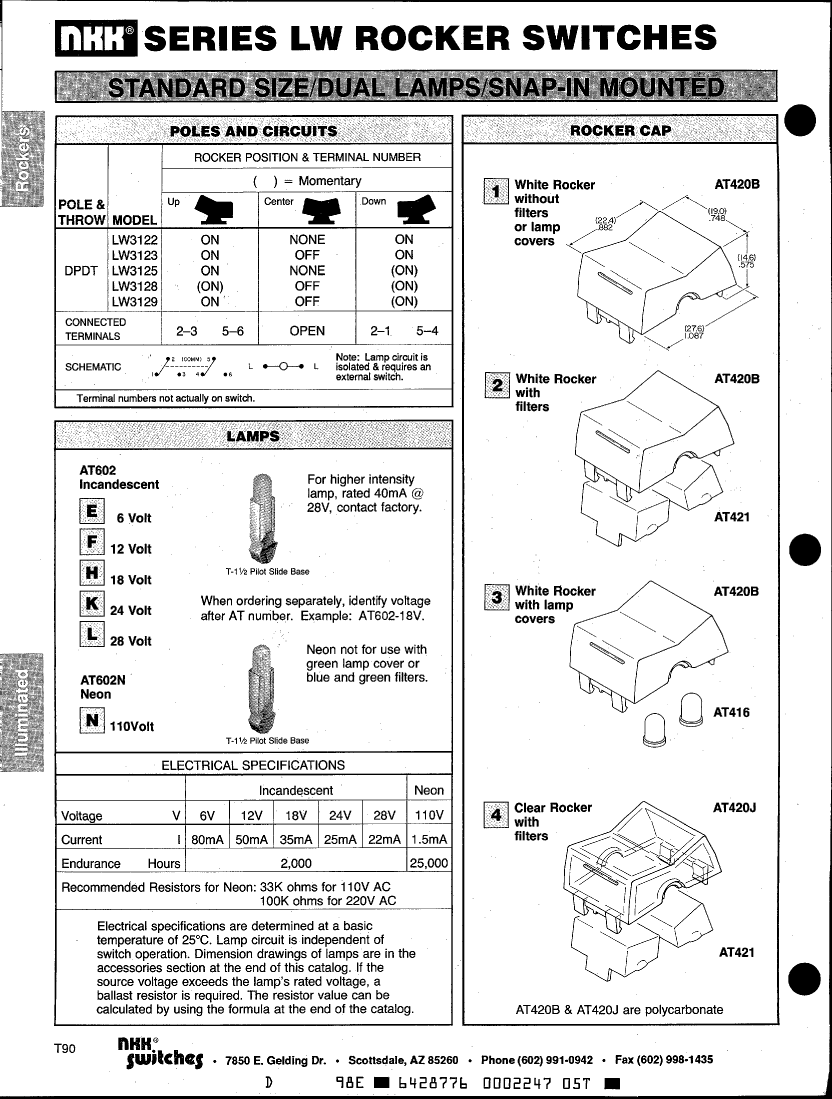

Contact function	ON-OFF-(ON)
Contact resistance	0.01 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1500VAC V
Electrical life	10000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Shell material	STEEL

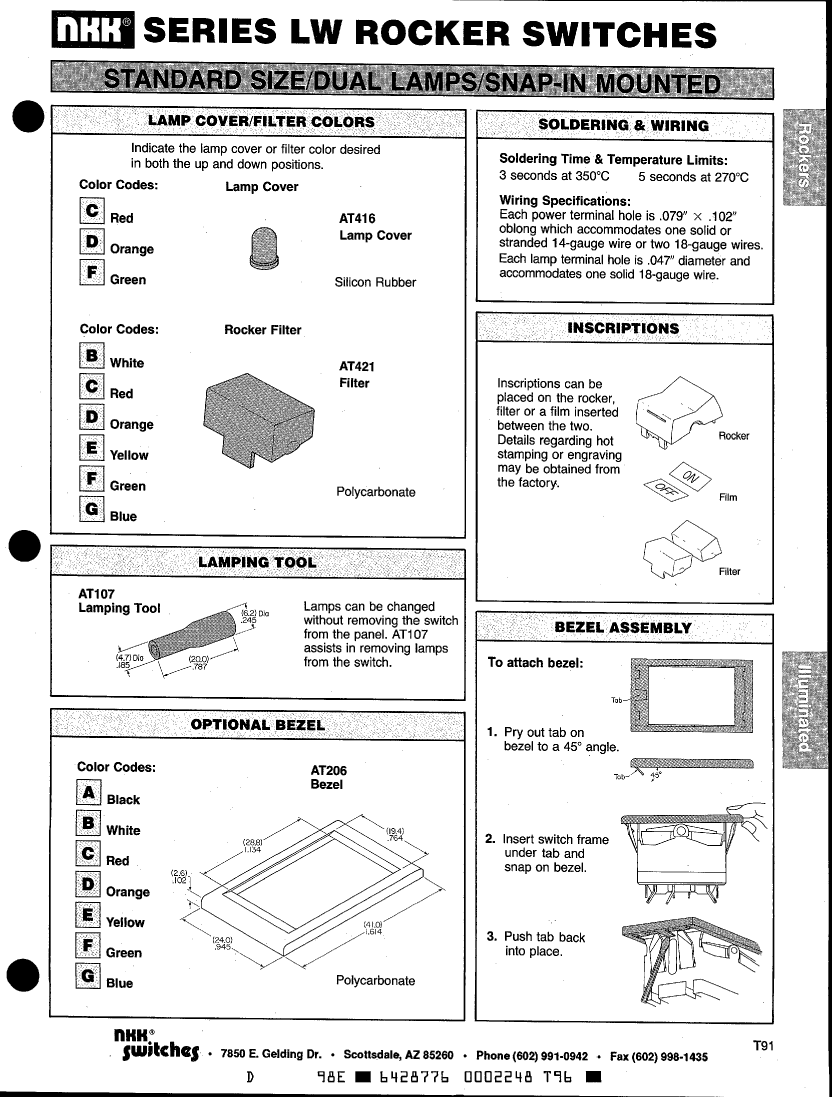

illumination	LAMP
Insulation resistance	200000000 Ω
insulator material	PHENOLIC
JESD-609 code	e4
Installation features	PANEL MOUNT
Maximum operating temperature	50 °C
Minimum operating temperature	-15 °C
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	ROCKER SWITCH
Terminal surface	Silver (Ag)
Terminal material	BRASS
Termination type	SOLDER LUG
