60W Single Output Encapsulated Type
IRM-60
series
( except for 5V )
LPS
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g
www.tuv.com
ID 2000000000
■
Features
Universal AC input / Full range
Compact size
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Isolation ClassⅡ
No load power consumption<0.1W
Pass LPS(Except for 5V)
100% full load burn-in test
High reliability
3 years warranty
■
Applications
Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Handheld electronic device
■
Description

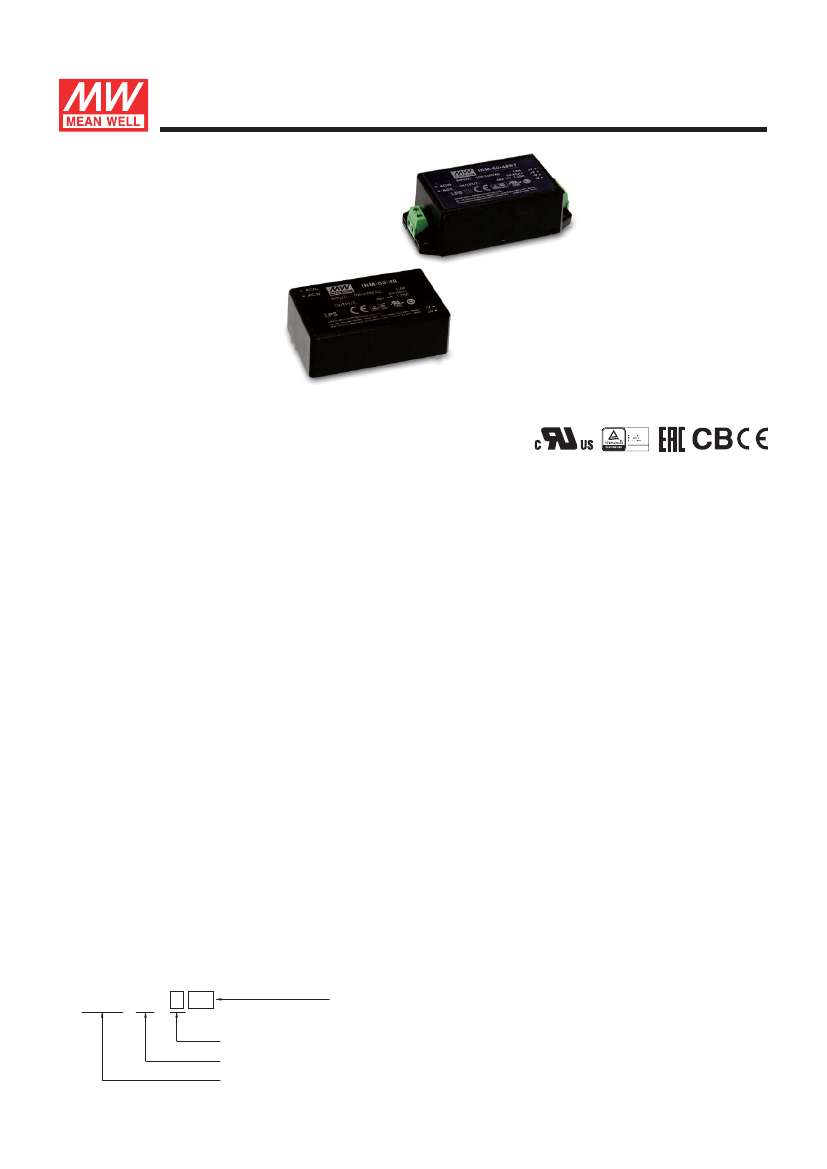

IRM-60 is a 60W miniature (87*52*29.5mm) AC-DC module-type power supply, ready to be soldered onto
the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product
allows the universal input voltage range of 85~264VAC. The 94V-0 flame retardant plastic case and the
fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover,
it provides the fundamental resistance to dust and moisture.
With the high efficiency up to 91% and the extremely low no-load power consumption below 0.1W, IRM-60
series fulfills the worldwide regulation for the low power consumption requirement for electronics. The
entire series is a Class
Ⅱ
design (no FG pin), incorporating the built-in EMI filtering components, enabling
the compliance with EN55032 Class B; the supreme EMC features keep the end electronic units from
electromagnetic interference. In addition to the PCB mounting style model, IRM-60 series also offers the
screw terminal style model (ST).
■
Model Encoding
IRM - 60 - 5 ST
Output voltage
Output wattage
Series name
{
Blank
ST
: PCB mounting style
: Screw terminal style
File Name:IRM-60-SPEC 2018-01-12
60W Single Output Encapsulated Type
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
IRM-60-5
5V
10A
0 ~ 10A
50W
IRM-60-12
12V
5A
0 ~ 5A
60W
120mVp-p
±2.5%
±0.5%
±1.0%
12ms/115VAC at full load
IRM-60-15
15V
4A
0 ~ 4A
60W
120mVp-p
±2.5%
±0.5%
±0.5%
IRM-60
IRM-60-24
24V
2.5A
0 ~ 2.5A
60W
150mVp-p
±2.5%
±0.5%
±0.5%
48V
1.25A
0 ~ 1.25A
60W
series
IRM-60-48
RIPPLE & NOISE (max.)
Note.2
80mVp-p
VOLTAGE TOLERANCE
Note.3
±2.5%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME
(Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
EFFICIENCY
(Typ.)
AC CURRENT
(Typ.)
INRUSH CURRENT
(Typ.)
LEAKAGE CURRENT
OVERLOAD
±0.5%
±1.0%
50ms/230VAC
85 ~ 264VAC
47 ~ 440Hz
84%
1.8A/115VAC
< 0.25mA/240VAC
240mVp-p
±2.5%
±0.5%
±0.5%
1000ms, 30ms/230VAC
2000ms, 30ms/115VAC at full load
INPUT
87.5%
1A/230VAC
60A/230VAC
89%
90%
91%
COLD START 30A/115VAC
115%~160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
5.25 ~ 6.75V
12.6 ~ 16.2V
15.75 ~ 20.25V
25.2 ~ 32.4V
50.4 ~ 64.8V
Protection type : Shut off o/p voltage, clamping by zener diode
-30 ~ +70
℃
(Refer to "Derating Curve")
20 ~ 90% RH non-condensing
±
0.03%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1,
EAC TP TC 004
approved
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
SAFETY &
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25
℃
/ 70% RH
EMC
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS DIMENSION
PACKING
NOTE
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level (surge L-N : 1KV), criteria A, EAC TP TC 020
1226Khrs min.
MIL-HDBK-217F (25
℃
)
Screw terminal style : 109*52*33.5mm (L*W*H)
Screw terminal style :0.228Kg;50pcs/12.4Kg/0.55CUFT
PCB mounting style : 87*52*29.5mm (L*W*H)
PCB mounting style : 0.195Kg;60pcs/12.7Kg/0.97CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher
than 2000m(6500ft).
File Name:IRM-60-SPEC 2018-01-12
