M83723/98S14153: DescriptionMIL Series Connector, 15 Contact(s), Stainless Steel, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric View All

M83723/98S14153 Overview

MIL Series Connector, 15 Contact(s), Stainless Steel, Male, Crimp Terminal, Plug

M83723/98S14153 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1721833375
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-83723 SERIES III, COMPATIBLE CONTACT: M39029/4-110
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	M83723
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	14
Termination type	CRIMP
Total number of contacts	15

Preview

Download Datasheet

View All

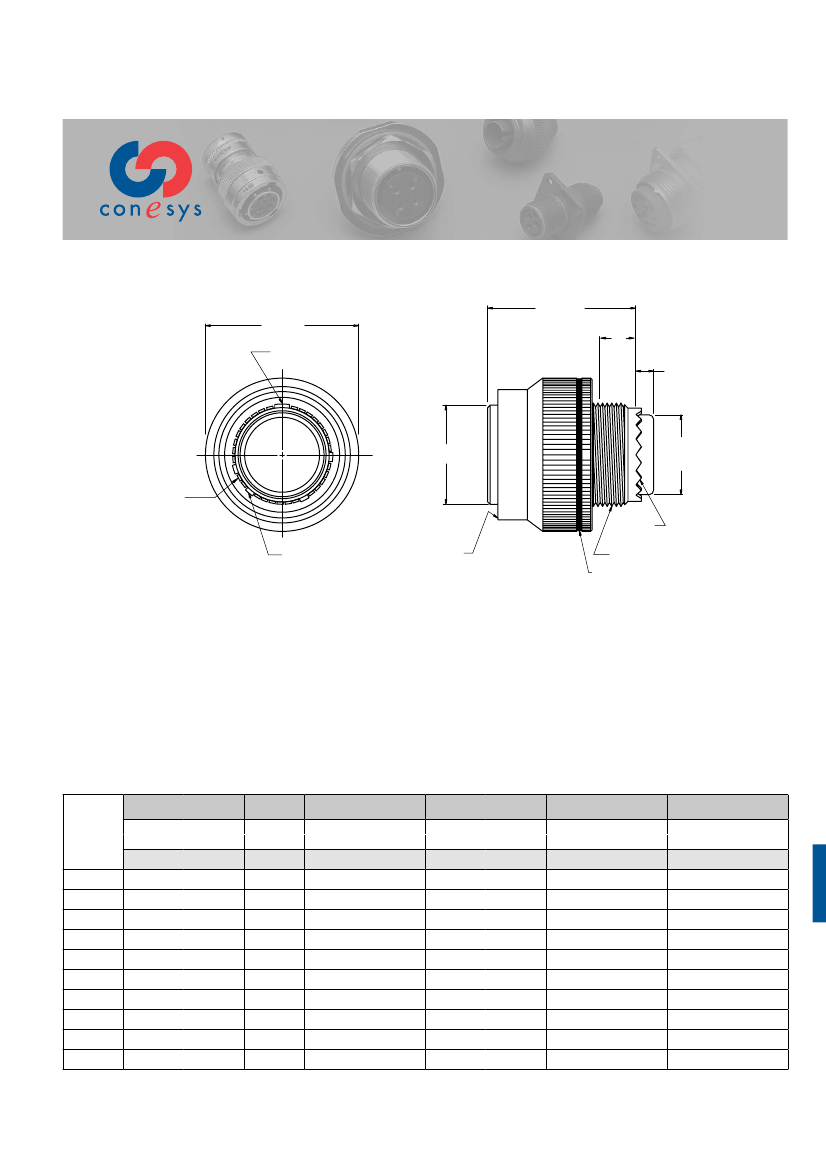

M83723/97, 98

Self-Locking, RFI Grounding Plug

AE83397, 98

Threaded Coupling, Crimp Removable, Rear Release

[

D

MAX

COUPLING NUT

MASTER KEY

1.280(32.51)

MAX

.290(7.37)

MIN

FULL

THREAD

.160(4.06)

.010(0.25)

GROMMET

EXTENSION

[

A

MAX

GROMMET

[

C

RFI STRIP

B

4 MINOR KEYS

NUMBER OF TEETH

E

MATING THREAD

F

ACCESSORY THREAD

BLUE COLOR BAND

Page 129

Page 145

Pages 148,149

Page 128

Page 147

Page 143

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Specifications

Insert Availability and Contact Information

Polarization

Ø

A

+.13

-.10

mm

10.16

13.23

17.55

19.30

22.53

25.22

28.40

31.57

34.75

41.10

B

No. of

Teeth

12

15

21

24

30

33

36

39

42

54

Ø

C

Ø

D

E

Mating Thread

Class 2B

9/16-24UNEF

11/16-24UNEF

7/8-20UNEF

15/16-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

1-9/16-18UNEF

1-13/16-16UN

F

Accessory Thread

Class 2A

1/2-20UNF

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

1-3/4-18UNS

Shell

Size

8

10

12

14

16

18

20

22

24

28

+.005

-.004

inch

.400

.521

.691

.760

.887

.993

1.118

1.243

1.368

1.618

Maximum

inch

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

1.475

mm

7.75

10.29

13.49

16.89

20.07

22.07

25.25

28.42

31.60

37.47

Maximum

inch

.967

1.093

1.170

1.310

1.500

1.562

1.710

1.812

1.948

2.278

mm

24.56

27.76

29.72

33.27

38.10

39.67

43.43

46.02

49.48

57.86

www.conesys.com

– 140 –

sales

@

aero-electric.com

Recommended Resources

A circuit diagram for channel monitoring using AD5380 multi-channel DAC

Multifunctional password controller circuit c

Thyristor AC voltage regulator circuit

Otto QB4 motor soft starter circuit
