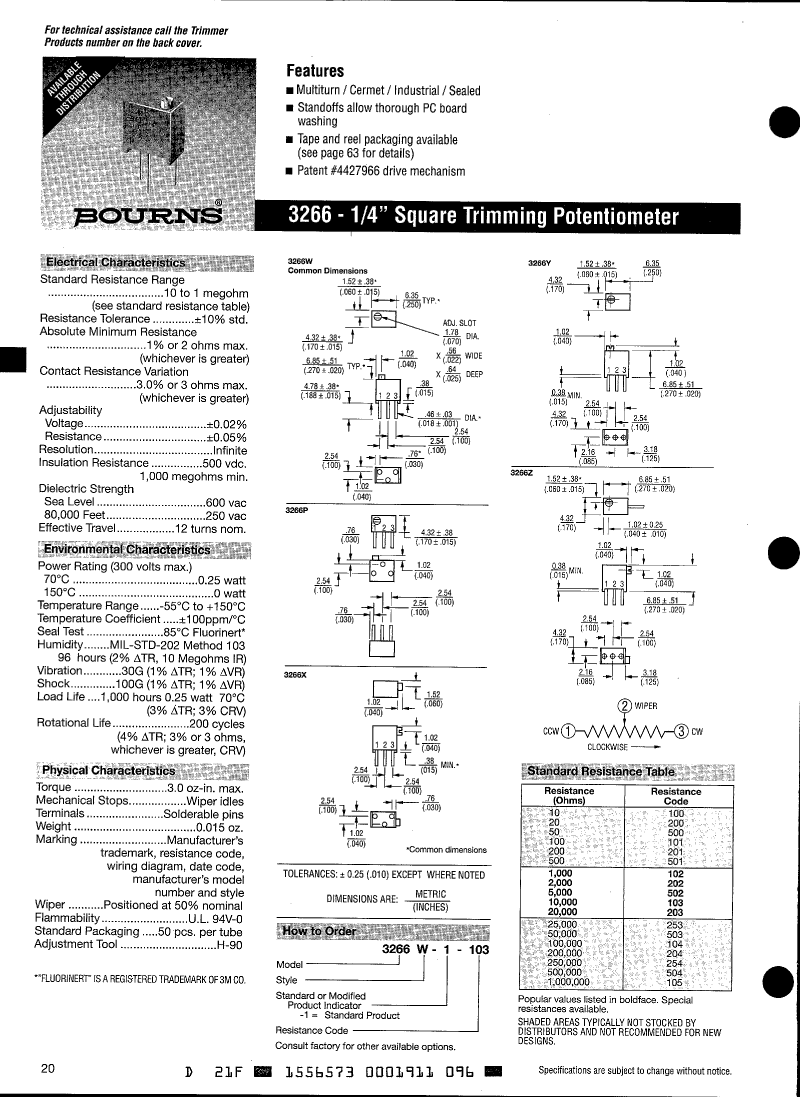

3266X-1-253A datasheet, PDF - EEWORLD Datasheet

3266X-1-253A: DescriptionPotentiometer, Cermet, 0.25W, 25000ohm, 10% +/-Tol, -100,100ppm/Cel, 2517; CategoryPassive components The resistor; File Size165KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

3266X-1-253A Overview

Potentiometer, Cermet, 0.25W, 25000ohm, 10% +/-Tol, -100,100ppm/Cel, 2517

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1224746498
Reach Compliance Code	not_compliant
ECCN code	EAR99
structure	Sealed
JESD-609 code	e0
Lead diameter	0.45 mm
Lead length	4.78 mm
Manufacturer's serial number	3266
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	6.85 mm
Package length	6.35 mm
Package form	PCB Mount
Package width	4.32 mm
Rated power dissipation(P)	0.25 W
resistance	25000 Ω
Resistor type	POTENTIOMETER
rotation angle	4320 deg
series	3266
size code	2517
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Tolerance	10%

	3266X-1-253A	3266X-1-502A	3266P-1-253A	3266P-1-502A
Description	Potentiometer, Cermet, 0.25W, 25000ohm, 10% +/-Tol, -100,100ppm/Cel, 2517	Potentiometer, Cermet, 0.25W, 5000ohm, 10% +/-Tol, -100,100ppm/Cel, 2517	Potentiometer, Cermet, 0.25W, 25000ohm, 10% +/-Tol, -100,100ppm/Cel, 2525	Potentiometer, Cermet, 0.25W, 5000ohm, 10% +/-Tol, -100,100ppm/Cel, 2525
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
structure	Sealed	Sealed	Sealed	Sealed
JESD-609 code	e0	e0	e0	e0
Lead diameter	0.45 mm	0.45 mm	0.45 mm	0.45 mm
Lead length	4.78 mm	4.78 mm	4.78 mm	4.78 mm
Manufacturer's serial number	3266	3266	3266	3266
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package height	6.85 mm	6.85 mm	4.32 mm	4.32 mm
Package length	6.35 mm	6.35 mm	6.35 mm	6.35 mm
Package form	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Package width	4.32 mm	4.32 mm	6.35 mm	6.35 mm
Rated power dissipation(P)	0.25 W	0.25 W	0.25 W	0.25 W
resistance	25000 Ω	5000 Ω	25000 Ω	5000 Ω
Resistor type	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
rotation angle	4320 deg	4320 deg	4320 deg	4320 deg
series	3266	3266	3266	3266
size code	2517	2517	2525	2525
technology	CERMET	CERMET	CERMET	CERMET
Temperature Coefficient	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Tolerance	10%	10%	10%	10%
Objectid	1224746498	-	1224746462	1224746466
