3329U-1-105RLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3329U-1-105RLF

3329U-1-105RLF: DescriptionTrimmer, Cermet, 0.5W, 1000000ohm, 10% +/-Tol, -100,100ppm/Cel,; CategoryPassive components The resistor; File Size210KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

3329U-1-105RLF Overview

Trimmer, Cermet, 0.5W, 1000000ohm, 10% +/-Tol, -100,100ppm/Cel,

3329U-1-105RLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1590191702
Reach Compliance Code	compliant
structure	Trimmer Pot
JESD-609 code	e3
Lead diameter	0.46 mm
Manufacturer's serial number	3329
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package diameter	6.35 mm
Package length	6.35 mm
Package form	PCB Mount
method of packing	TR
Rated power dissipation(P)	0.5 W
resistance	1000000 Ω
Resistor type	TRIMMER
rotation angle	240 deg
series	3329
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Tolerance	10%

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

1/4” Round / Single-Turn / Cermet

Industrial / Sealed

5 standard terminal styles

Tape and reel packaging available

Listed on the QPL for style RJ50 per

MIL-PRF-22097 and RJR50 per

High-Rel MIL-PRF-39035

RoHS compliant* version available

guidelines, click here

For trimmer applications/processing

Electrical Characteristics

Standard Resistance Range

................................. 10 to 1 megohm

(see standard resistance table)

Resistance Tolerance ........... ±10 % std.

(closer tolerance available)

Absolute Minimum Resistance

.................................... 1 % or 2 ohms

(whichever is greater)

Contact Resistance Variation

........................ 3.0 % or 3 ohms max.

(whichever is greater)

Adjustability

Voltage .................................. ±0.05 %

Resistance ............................ ±0.15 %

Resolution ................................... Infinite

Insulation Resistance ............... 500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level................................ 600 vac

80,000 Feet ............................ 250 vac

Adjustment Angle ................. 240 ° nom.

Environmental Characteristics

Power Rating @ 85 °C (300 volts max.)

............................................... 0.5 watt

Power Rating @ 150 °C ................ 0 watt

Temperature Range ... -55 °C to +150 °C

Temperature Coefficient ... ±100 ppm/°C

Seal Test ......................85 °C Fluorinert†

Humidity .......MIL-STD-202 Method 103

96 hours

(3 %

ΔTR,

10 Megohms IR)

Vibration ....... 30 G (1 %

ΔTR;

1 %

ΔVR)

except “P” pin style

Shock ......... 100 G (1 %

ΔTR;

1 %

ΔVR)

Load Life

............ 1,000 hours 0.5 watt @ 85 °C

(3 %

ΔTR;

3 % CRV)

Rotational Life .......................200 cycles

(4 %

ΔTR;

4 % CRV)

Physical Characteristics

Mechanical Angle ................. 260 ° nom.

Torque............................. 5.0 oz-in. max.

Stop Strength ................. 5.0 oz -in. min.

Terminals .......................Solderable pins

Weight ....................................... 0.02 oz.

Marking.........Manufacturer’s trademark,

resistance code, date code,

manufacturer’s model number

and style

Wiper ............... 50 % (Actual TR) ±10 %

Standard Packaging .....50 pcs. per tube

Adjustment Tool..............................H-90

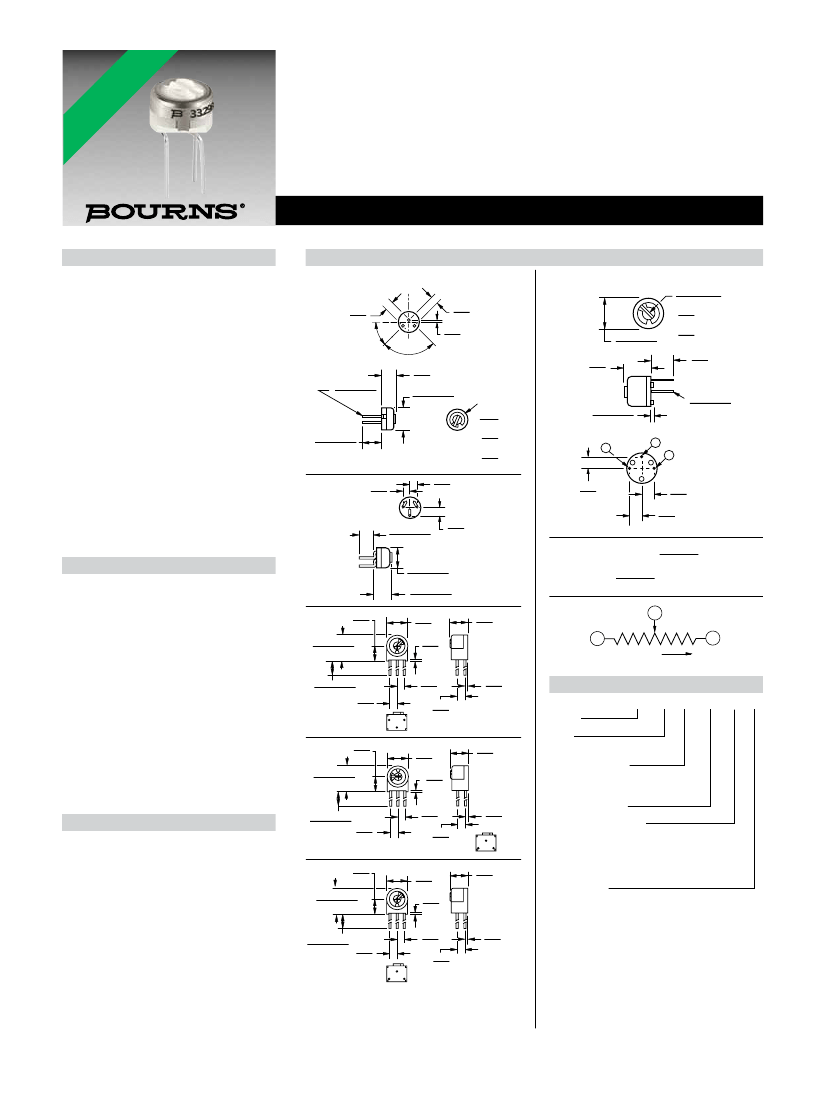

3329 - 1/4 ” Round Trimpot

Trimming Potentiometer

3329H

Product Dimensions

3329P-DK9-RC

2.54

(.100)

.38

(.015)

5.79

(.228)

2.54

(.100)

45° REF.

6.35 ± .51

(.250 ± .020)

ADJ. SLOT

2.79 ± .038

DIA.

(.110 ± ..001)

.64

WIDE

(.025)

.51

DEEP

(.020)

4.75 MIN.

(.187)

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

.46 ± .05

(.018 ± .002)

DIA. TYP.

90° ± 5°

4.57

(.180)

6.35 ± .51

(.250 ± .020)

6.78 ± 2.24

(.267 ± .088)

ADJ. SLOT

3.56 LONG

(.140)

.64

WIDE

(.025)

1.02

DEEP

(.040)

.43 ± .13

(.017 ± .005)

.46 ± .05

(.018 ± .002)

DIA. 3 PINS

3329P

2.54

(.100)

2.54

(.100)

2.54

(.100)

6.78 ± 2.24

(.267 ± .088)

2.54

(.100)

2.54

(.100)

2.54

(.100)

6.35 ± .51

(.250 ± .020)

5.82 ± .25

(.229 ± .010)

DIMENSIONS:

(INCHES)

0.25

TOLERANCES: ±

EXCEPT WHERE NOTED

(.010)

6.10

(.240)

CCW

3329S

5.08

(.200)

6.60

(.260)

.38

(.015)

2.54

(.100)

2.54

(.100)

CLOCKWISE

WIPER

8.38 ± .51

(.330 ± .020)

7.75 ± 2.97

(.305 ± .117)

2.54

(.100)

1 2 3

.89

(.035)

How To Order

Model

3329 M - 1 - 103 __ LF

3329W

5.08

(.200)

8.38 ± .51

(.330 ± .020)

6.60

(.260)

.38

(.015)

2.54

(.100)

2.54

(.100)

6.10

(.240)

Style

Standard or Modified

Product Indicator

-1 = Standard Product

-DK9 = Plastic Spacer

Resistance Code

Packaging Designator

Blank = Tube (Standard)

R = Tape and Reel (M and U Pin Styles

Only)

A = Ammo Pack (M and U Pin Styles Only)

Terminations

LF = 100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

(Standard)

Consult factory for other available options.

Tape and reel material meets Antistatic ANSI/

ESD 5541-2003 packaging standards.

7.75 ± 2.97

(.305 ± .117) 2.54

(.100)

.89

(.035)

3329X

5.08

(.200)

8.38 ± .51

(.330 ± .020)

6.60

(.260)

.38

(.015)

2.54

(.100)

2.54

(.100)

6.10

(.240)

7.75 ± 2.97

(.305 ± .117) 2.54

(.100)

1 2 3

.89

(.035)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

†“Fluorinert” is a registered trademark of 3M Co.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.
