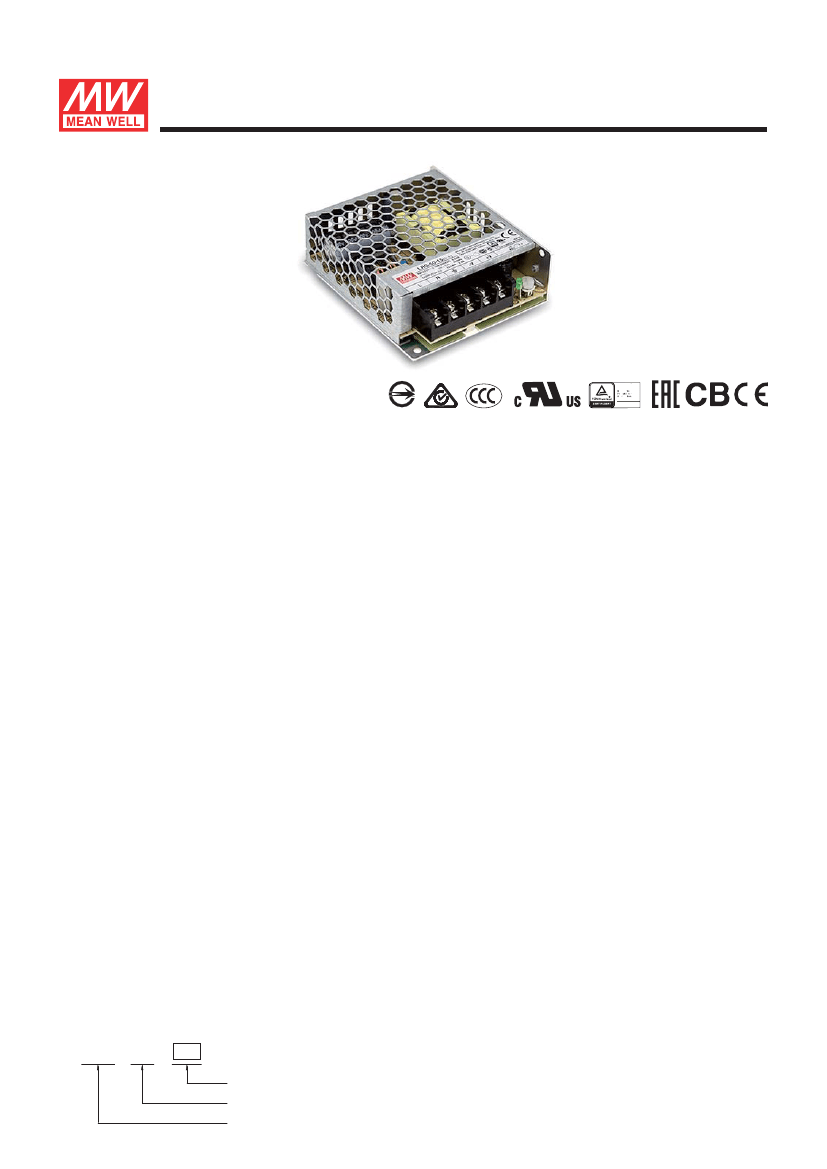

50W Single Output Switching Power Supply
LRS-50
series
S&E
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g
www. tuv.com
ID 2000000000
■
Features
Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.2W
Miniature size and 1U low profile
High operating temperature up to 70℃
R33100
RoHS
■
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or
apparatus
Household appliances
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN 60335-1(PD3) and
IEC/EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters (Note.8)
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Over voltage category
Ⅲ
100% full load burn-in test
3 years warranty
■
Description
LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design. Adopting
the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V,
24V, 36V and 48V.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation
of LRS-50 that the whole series operates from -30
℃
through 70
℃
under air convection without a fan.
Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to
easily meet the worldwide energy requirement. LRS-50 has the complete protection functions and 5G anti-
vibration capability; it is complied with the international safety regulations such as TUV EN60950-1,
EN60335-1,EN61558-1/-2-16, UL60950-1
and GB4943. LRS-50 series serves as a high price-to-
performance power supply solution for various industrial applications.
■
Model Encoding
LRS - 50 - 3.3
Output voltage
Rated wattage
Series name
File Name:LRS-50-SPEC 2017-12-01
50W Single Output Switching Power Supply
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
LRS-50-3.3
3.3V
10A
0 ~ 10A
33W
2.97 ~ 3.6V
LRS-50-5
5V
10A
0 ~ 10A
50W
80mVp-p
4.5 ~ 5.5V
±2.0%
±0.5%
±1.0%
LRS-50-12
12V
4.2A
0 ~ 4.2A
50.4W
120mVp-p
10.2 ~ 13.8V
±1.0%
±0.5%
±0.5%
LRS-50-15
15V
3.4A
0 ~ 3.4A
51W
120mVp-p
13.5 ~ 18V
±1.0%
±0.5%
±0.5%
LRS-50
LRS-50-24
24V
2.2A
0 ~ 2.2A
52.8W
150mVp-p
21.6 ~ 28.8V
±1.0%
±0.5%
±0.5%
LRS-50-36
36V
1.45A
0 ~ 1.45A
52.2W
200mVp-p
32.4 ~ 39.6V
±1.0%
±0.5%
±0.5%
series
LRS-50-48
48V
1.1A
0 ~ 1.1A
52.8W
200mVp-p
43.2 ~ 52.8V
±1.0%
±0.5%
±0.5%
RIPPLE & NOISE (max.)
Note.2
80mVp-p
VOLTAGE TOLERANCE
Note.3
±3.0%
LINE REGULATION
Note.4
±0.5%
LOAD REGULATION
Note.5
±2.0%
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVER LOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT TEMP. COEFFICIENT
VIBRATION
30ms/230VAC
85 ~ 264VAC
47 ~ 63Hz
80%
0.95A/115VAC
1000ms, 30ms/230VAC
2000ms,30ms/115VAC at full load
12ms/115VAC at full load
120 ~ 373VDC
83%
86%
88%
88%
89%
90%
0.56A/230VAC
COLD START 45A/230VAC
<0.75mA / 240VAC
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
3.8 ~ 4.45V
5.9~ 7.3V
13.8 ~ 16.2V
18.75 ~ 21.75V 28.8 ~ 33.6V
41.4 ~ 48.6V
55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
-30 ~ +70℃
(Refer to "Derating Curve")
20 ~ 90% RH non-condensing
±
0.03%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1
/-
2
-
16
,CCC
GB4943 .1, BSMI CNS14336-1,
EAC TP TC 004, AS/NZS 60950.1(by CB) approved
STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
OVER VOLTAGE CATEGORY
Ⅲ;
Compliance to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters
SAFETY STANDARDS
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
SAFETY &
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
EMC
(Note 9) EMC EMISSION
Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020
EMC IMMUNITY
MTBF
OTHERS DIMENSION
PACKING
NOTE
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020
645K hrs min.
MIL-HDBK-217F (25
℃
)
99*82*30mm (L*W*H)
0.23Kg; 60pcs/14.8Kg/0.88CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up
time.
7. 3.3V,5V when the load factor 0~50%, the switching power less is reduced by burst operation, which will cause ripple and ripple noise
to go beyond the specifications.
8. The ambient temperature derating of 5
℃
/1000m is needed for operating altitude greater than 2000m(6500ft).
9. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by
mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
File Name:LRS-50-SPEC 2017-12-01
