CR2512AFX-442REAS datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CR2512AFX-442REAS

CR2512AFX-442REAS: DescriptionFixed Resistor, Metal Glaze/thick Film, 1W, 442ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP; CategoryPassive components The resistor; File Size654KB，11 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

CR2512AFX-442REAS Overview

Fixed Resistor, Metal Glaze/thick Film, 1W, 442ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP

CR2512AFX-442REAS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145072291038
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ANTI-SULFUR
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	6.3 mm
Package form	SMT
Package width	3.2 mm
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	1 W
Rated temperature	70 °C
Guideline	AEC-Q200
resistance	442 Ω
Resistor type	FIXED RESISTOR
size code	2512
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	200 V

CR2512AFX-442REAS Preview

AE **H oHS

C- AL C

Q2 O G OM

00 EN P

CO FR LIA

M EE NT

PL & ,

Features

Thick film technology

Power rating up to 1 watt @ 70 °C

RoHS compliant*

Halogen free**

Sulfur-resistant design (ASTM B-809)

AEC-Q200 compliant

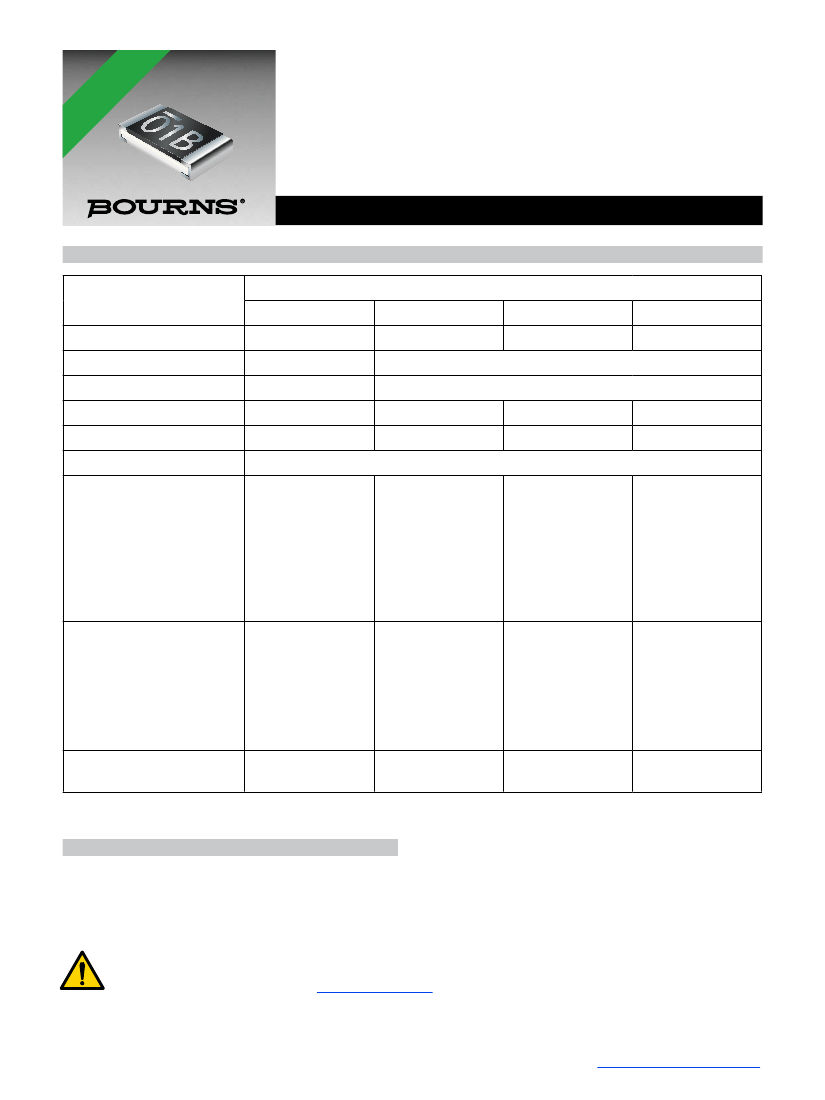

CRxxxxA-AS - Sulfur-Resistant, AEC-Q200 Compliant Chip Resistors

Electrical Characteristics

Characteristic

Power Rating @ 70 °C

Operating Temp. Range

Derated to Zero Load at

Maximum Working Voltage (1)

Maximum Overload Voltage

Resistance Tolerance

Model No.

CR0201A-AS

0.05 W

-55 to +125 °C

+125 °C

25 V

50 V

100 V

±1 %, ±5 %

1 Ω ~ 9.76 Ω

-200 ~ +500 ppm/°C

100 Ω ≤ R ≤ 1M Ω

±100 ppm/°C

10 Ω ≤ R < 100 Ω

1M Ω < R ≤ 10M Ω

±200 ppm/°C

1 Ω ~ 9.1 Ω

-200 ~ +500 ppm/°C

10 Ω ≤ R ≤ 10M Ω

±200 ppm/°C

10M Ω ≤ R ≤ 20M Ω

±400 ppm/°C

1 A / 2.5 A

1 Ω ~ 9.76 Ω

±400 ppm/°C

10 Ω ≤ R ≤ 1M Ω

±100 ppm/°C

1M Ω < R ≤ 10M Ω

±200 ppm/°C

1 Ω ~ 9.76 Ω

±400 ppm/°C

10 Ω ≤ R ≤ 1M Ω

±100 ppm/°C

1M Ω < R ≤ 10M Ω

±200 ppm/°C

CR0402A-AS

0.063 W

CR0603A-AS

0.1 W

-55 to +155 °C

+155 °C

50 V

100 V

150 V

300 V

CR0805A-AS

0.125 W

Temperature Coefficient @ 1 %

(E24 + E96)

1 Ω ~ 9.76 Ω

-200 ~ +600 ppm/°C

10 Ω ~ 3M Ω

+200 ppm/°C

Temperature Coefficient @ 5 %

(E24)

1 Ω ~ 9.1 Ω

-200 ~ +600 ppm/°C

10 Ω ~ 10M Ω

+200 ppm/°C

1 Ω ~ 9.1 Ω

10M < R ≤ 20M Ω

±400 ppm/°C

10 Ω ≤ R ≤ 10M Ω

±200 ppm/°C

1 Ω ~ 9.1 Ω

10M < R ≤ 20M Ω

±400 ppm/°C

10 Ω ≤ R ≤ 10M Ω

±200 ppm/°C

Zero Ohm Jumper ≤ 0.05 Ω

Rated / Max. Current

(1)

0.5 A / 1 A

1 A / 2.5 A

2A/5A

Maximum Working Voltage is calculated with formula V= √P*R with the maximum value from the Electrical Characteristics table.

Environmental Characteristics

Moisture Sensitivity Level .......................................................... 1

ESD Classification (HBM) ........................................................1A

WARNING Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

** Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less;

and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less.

Specifications are subject to change without notice.

Users should verify actual device performance in their specific applications.

The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.

CRxxxxA-AS - Sulfur-Resistant, AEC-Q200 Compliant Chip Resistors

Electrical Characteristics (continued)

Characteristic

Model No.

CR1206A-AS

CR1210A-AS

CR2010A-AS

CR2512A-AS

Power Rating @ 70 °C

Operating Temp. Range

Derated to Zero Load at

Maximum Working Voltage

(1)

Maximum Overload Voltage

Resistance Tolerance

0.25 W

0.33 W

-55 to +155 °C

+155 °C

200 V

400 V

±1 %, ±5 %

1 Ω ~ 9.76 Ω

±400 ppm/°C

0.5 W

Temperature Coefficient @ 1 %

(E24 + E96)

10 Ω ≤ R ≤ 1M Ω

±100 ppm/°C

1M Ω < R ≤ 10M Ω

±200 ppm/°C

1 Ω ~ 9.1 Ω

10M < R ≤ 20M Ω

±400 ppm/°C

10 Ω ≤ R ≤ 10M Ω

±200 ppm/°C

2A/5A

Temperature Coefficient @ 5 %

(E24)

Zero Ohm Jumper ≤ 0.05 Ω

Rated / Max. Current

(1)

Maximum Working Voltage is calculated with formula V= √P*R with the maximum value from the Electrical Characteristics table.

Specifications are subject to change without notice.

Users should verify actual device performance in their specific applications.

The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.

CRxxxxA-AS - Sulfur-Resistant, AEC-Q200 Compliant Chip Resistors

Product Dimensions

DIMENSIONS:

(INCHES)

Model

CR0201A-AS

CR0402A-AS

CR0603A-AS

CR0805A-AS

CR1206A-AS

CR1210A-AS

CR2010A-AS

CR2512A-AS

0.60 ± 0.03

(.024 ± .001)

1.00 ± 0.10

(.039 ± .004)

1.60 ± 0.10

(.063 ± .004)

2.00 ± 0.10

(.079 ± .004)

3.10 ± 0.10

(.122 ± .004)

3.10 ± 0.10

(.122 ± .004)

5.00 ± 0.15

(.197 ± .006)

6.30 ± 0.20

(.248 ± .008)

0.30 ± 0.03

(.012 ± .001)

0.50 ± 0.05

(.020 ± .002)

0.80 ± 0.10

(.031 ± .004)

1.25 ± 0.10

(.049 ± .004)

1.55 ± 0.10

(.061 ± .004)

2.55 ± 0.10

(.100 ± .004)

2.50 ± 0.15

(.098 ± .006)

3.20 ± 0.20

(.126 ± .008)

0.10 ± 0.05

(.004 ± .002)

0.20 ± 0.10

(.008 ± .004)

0.30 ± 0.20

(.012 ± .008)

0.40 ± 0.20

(.016 ± .008)

0.50 ± 0.30

(.020 ± .012)

0.50 ± 0.30

(.020 ± .012)

0.60 ± 0.30

(.024 ± .012)

0.60 ± 0.30

(.024 ± .012)

0.15 ± 0.05

(.006 ± .002)

0.25 ± 0.10

(.010 ± .004)

0.30 ± 0.20

(.012 ± .008)

0.40 ± 0.20

(.016 ± .008)

0.40 ± 0.20

(.016 ± .008)

0.40 ± 0.20

(.016 ± .008)

0.50 ± 0.25

(.020 ± .010)

0.50 ± 0.25

(.020 ± .010)

0.23 ± 0.03

(.009 ± .001)

0.32 ± 0.05

(.013 ± .002)

0.45 ± 0.10

(.018 ± .004)

0.50 ± 0.10

(.020 ± .004)

0.55 ± 0.10

(.022 ± .004)

0.60 ± 0.10

(.024 ± .004)

0.60 ± 0.10

(.024 ± .004)

0.60 ± 0.10

(.024 ± .004)

Specifications are subject to change without notice.

Users should verify actual device performance in their specific applications.

The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.

CRxxxxA-AS - Sulfur-Resistant, AEC-Q200 Compliant Chip Resistors

Recommended Pad Layout

RESISTOR

Model

0.25 ~ 0.30

(.010 ~ .012)

0.50 ~ 0.60

(.020 ~ .024)

0.70 ~ 0.90

(.028 ~ .035)

1.00 ~ 1.40

(.039 ~ .055)

2.00 ~ 2.40

(.079 ~ .094)

2.00 ~ 2.40

(.079 ~ .094)

3.30 ~ 3.70

(.130 ~ .146)

3.60 ~ 4.00

(.142 ~ .157)

0.70 ~ 0.90

(.028 ~ .035)

1.40 ~ 1.60

(.055 ~ .063)

2.00 ~ 2.20

(.079 ~ .087)

3.20 ~ 3.80

(.126 ~ .150)

4.40 ~ 5.00

(.173 ~ .197)

4.50 ~ 5.00

(.177 ~ .197)

5.70 ~ 6.50

(.224 ± .256)

7.60 ~ 8.60

(.299 ~ .339)

0.30 ~ 0.40

(.012 ~ .016)

0.40 ~ 0.60

(.012 ~ .024)

0.80 ~ 1.00

(.031 ~ .039)

0.90 ~ 1.40

(.035 ~ .055)

1.20 ~ 1.80

(.047 ~ .071)

2.30 ~ 3.50

(.091 ~ .138)

2.30 ~ 3.50

(.091 ~ .138)

2.30 ~ 3.50

(.091 ~ .138)

CR0201A-AS

CR0402A-AS

DIMENSIONS:

(INCHES)

CR0603A-AS

CR0805A-AS

CR1206A-AS

CR1210A-AS

CR2010A-AS

CR2512A-AS

Soldering Profile

275

<1>

Maximum of 20 seconds between

+255 °C and +260 °C

260 °C peak

<1>

255 °C

225

Temperature (°C)

220 °C

190 °C

175

150 °C

60 - 90

seconds

Ramp Down

6 °C/second

60 - 120 seconds

10 seconds minimum

Ramp Up

3 °C/second maximum

125

100

150

200

250

300

Time (Seconds)

Specifications are subject to change without notice.

Users should verify actual device performance in their specific applications.

The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.

CRxxxxA-AS - Sulfur-Resistant, AEC-Q200 Compliant Chip Resistors

Performance Characteristics (AEC-Q200)

Test

Short Time Overload

Method

IEC 60115-1 4.13

Procedure

2.5 X rated voltage for 5 sec.

Test Limits ∆R

± (1 % + 0.05 Ω )

Remarks:

0201: ± (3 % + 0.1 Ω)

0402: ± (2 % + 0.1 Ω)

0 Ω : 50 mΩ or less

1 %: ± (1.0 % + 0.05 Ω)

5 %: ± (2.0 % + 0.1 Ω)

0201: ± (3 % + 0.1 Ω)

0 Ω: 50 mΩ or less

± (1.0 % + 0.1 Ω)

0201: ± (2 % + 0.1 Ω)

0 Ω: 50 mΩ or less

1 %: ± (1.0 % + 0.05 Ω)

2 %, 5 %: ± (2.0 % + 0.1 Ω)

0201: ± (3 % + 0.1 Ω)

0 Ω: 50 mΩ or less

High Temperature Exposure

(Storage)

AEC-Q200-REV D-Test 3

MIL-STD-202 Method 108

1000 hrs. @ T=155 °C. Unpowered.

Measurement at 24 ±2 hours after test conclusion.

1000 cycles (-55 °C to +125 °C)

Measurement at 24 ±4 hours after test conclusion.

30 min. maximum dwell time at each temperature extreme.

1 min. maximum transition time.

T=24 hours / Cycle,10 Cycles.

Notes: Steps 7a & 7b not required. Unpowered.

1000 hours 85 °C / 85 % RH. Note: Specified conditions:

10 % of operating power (not exceeding max. working voltage).

Measurement at 24 ±2 hours after test conclusion.

1000 hours T

=125 °C at 35 % rated power. Measurement at 24 ±4

hours after test conclusion.

Electrical test not required. Inspect device construction, marking and

workmanship.

Verify physical dimensions to the applicable device detail spec.

Note: User(s) and Suppliers spec. Electrical test not required.

a: Isopropyl Alcohol : Mineral Spirits = 1:3

b: Terpene Defluxer (Bioact EC-7R)

c: Deionized water : Propylene Glycol

Monomethyl Ether : monoethanolamine = 42:1:1

Wave Form: Tolerance for half sine shock pulse. Peak value is

100 grams. Normal duration (D) is 6 ms.

5 grams for 20 min., 12 cycles each of 3 orientations.

Note: Test from 10-2000 Hz.

Condition B: Immerse the specimens in and eutectic solder at

260 ±5 ℃ for 10 ±1 S.

-55 °C / +155 °C. Note: Number of cycles required: 1000, Maximum

transfer time: 20 seconds,

Dwell time: 15 minutes. Air to Air.

Verify the voltage setting at 500 V

Method B, aging 4 hours at 155 °C dry heat

Lead-free solder bath at 235 ±3 °C

Dipping time: 3 ±0.5 seconds

V-0 or V-1 are acceptable.

Electrical test not required.

The duration of the applied forces shall be 60 (±5) seconds.

3 mm deflection (0201~1210)

2 mm deflection (2010~2512)

Force of 1.8 kg for 60 seconds.

Note: 0201= N/A

Temperature Cycling

AEC-Q200-REV D-Test 4

JESD22 Method JA-104

Moisture Resistance

AEC-Q200-REV D-Test 6

MIL-STD-202 Method 106

AEC-Q200-REV D-Test 7

MIL-STD-202 Method 103

AEC-Q200-REV D-Test 8

MIL-STD-202 Method 108

AEC-Q200-REV D-Test 9

MIL-STD-883 Method 2009

AEC-Q200-REV D-Test 10

JESD22 Method JB-100

AEC-Q200-REV D-Test 12

MIL-STD-202 Method 215

AEC-Q200-REV D-Test 13

MIL-STD-202 Method 213

AEC-Q200-REV D-Test 14

MIL-STD-202 Method 204

AEC-Q200-REV D-Test 15

MIL-STD-202 Method 210

AEC-Q200-REV D-Test 16

MIL-STD-202 Method 107

AEC-Q200-REV D-Test 17

AEC-Q200-REV D-Test 18

J-STD-002

AEC-Q200-REV D-Test 17

UL-94

AEC-Q200-REV D-Test 21

Biased Humidity

± (3 % + 0.1 Ω)

0201: ± (5 % + 0.1 Ω)

0 Ω: 100 mΩ or less

Operational Life

1 %: ± (1 % + 0.1 Ω)

5 %: ± (3 % + 0.1 Ω)

0201: ± (5 % + 0.1 Ω)

0 Ω: 100 mΩ or less

External Visual

Physical Dimension

Resistance to Solvents

Marking and protective layer

cannot be detached

± (1 % + 0.1 Ω)

0 Ω: 50 mΩ or less

± (1 % + 0.1 Ω)

0 Ω: 50 mΩ or less

Mechanical Shock

Vibration

Resistance to

Soldering Heat

Thermal Shock

ESD

Solderability

Flammability

Board Flex

(Bending)

Terminal Strength

(SMD)

± (1 % + 0.1 Ω)

0201: ± (2 % + 0.1 Ω)

0 Ω: 50 mΩ or less

± (1 % + 0.1 Ω)

0201: ± (2 % + 0.1 Ω)

1 %: ± (0.5 % + 0.05 Ω)

5 %: ± (1 % + 0.1 Ω)

0201: ± (2 % + 0.1 Ω)

0 Ω: 50 mΩ or less

> 95 % area covered with tin

V-0 or V-1

1 %: ± (0.5 % + 0.05 Ω)

5 %: ± (1 % + 0.1 Ω)

0201: ± (1 % + 0.1 Ω)

0 Ω: 50 mΩ or less

± (0.5 % + 0.05 Ω)

0 Ω: 50 mΩ or less

1 %: ± (1 % + 0.05 Ω)

5 %: ± (2 % + 0.05 Ω)

0201:

1 %: ± (2 % + 0.05 Ω)

5 %: ± (3 % + 0.05 Ω)

0 Ω: 100 mΩ or less

IEC 60115-1 4.32

Sulfuration Test

ASTM-B-809-95

Sulfur (saturated vapor) 1,000 hours,

105 ±2 °C, unpowered

Specifications are subject to change without notice. Users should verify actual device performance in their specific applications.

The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Add LM336 circuit diagram to improve voltage regulation rate

Pocket switching power supply charger circuit

CNC monostable multivibrator circuit

Three-phase square wave signal oscillator circuit

810E computer motherboard circuit diagram_32

820e computer motherboard circuit diagram_72

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
