[AK9240]
=
Preliminary
=
AK9240
AFE with Dual 12-Bit 1MSPS SAR ADC
General Description
The AK9240 is an Analog Front End with 12-bit 1MSPS A/D converter. It integrates a programmable
gain amplifier (PGA) that is able to select the input current and the input voltage realizing to control the
input range. An LED driver and auto power control circuits are also integrated, making the device
suitable for compact optical encoders. The AK9240 is housed in a space-saving 20-pin QFN package.
Features
Simultaneous Sampling 12-bit SAR A/D Converter
Sampling Rate: 1MSPS
Differential Inputs
Current Input or Voltage Input Selectable
PGA Function
LED driver
Automatic Power Control Circuit
Low Pass Filter
S/(N+D): 71dB (Typ.) at 10kHz Input.
INL: ±1.25LSB (Max.)
DNL: ±1.0LSB (Max.)
Power Consumption: 17 mA (Typ.) at Voltage Input Mode, fs= 1MSPS
Power Supply: 2.7 ~ 5.5V
Operational Temperature Range (Ta): -40 ~ 105ºC
Small Package: 20-pin QFN (3mm x 3mm)
LVDD LEDLPF
LEDREF
VREFP
VREFN
LEDO
LED
Driver
Auto Power
Controller
2.5V
Reference
RSTN
Current
Input
AIN0P
Voltage
Input
Current
Input
AIN0N
Voltage
Input
Current
Input
AIN1P
Voltage
Input
Current
Input
AIN1N
Voltage
Input
VDD
VSS
DRVDD
SAR
PGA1
ADC1
Serial I/F
&
Control
Logic
SAR
CSN
PGA0
SCLK
ADC0
SDO0
SDO1
SDATI
SDATO

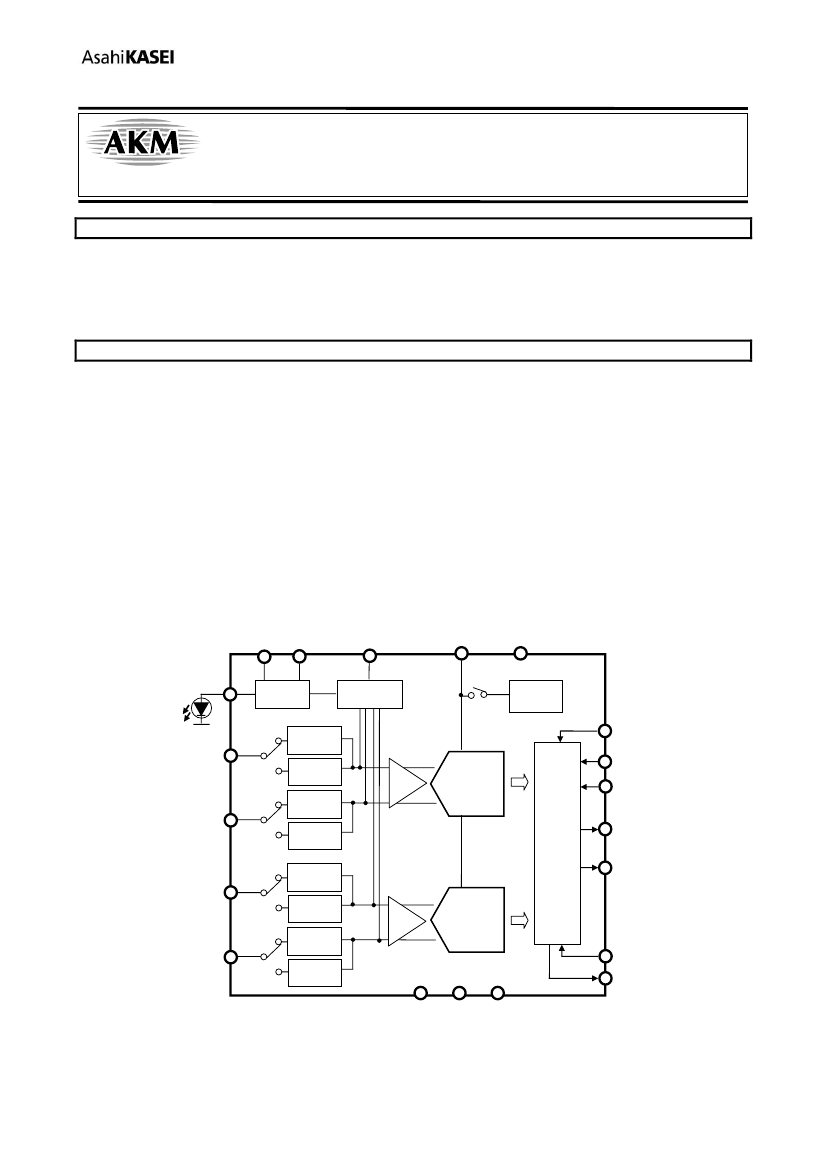

Figure 1. AK9240 Block Diagram
Rev. 0.7
-1-
2015/7
