VTCB921-101M-RC

Description
Toroidal Chokes
File Size3MB,1 Pages
ManufacturerALLIED [Allied Electronics]
Download Datasheet Compare View All

VTCB921-101M-RC Overview

Toroidal Chokes

RoHS

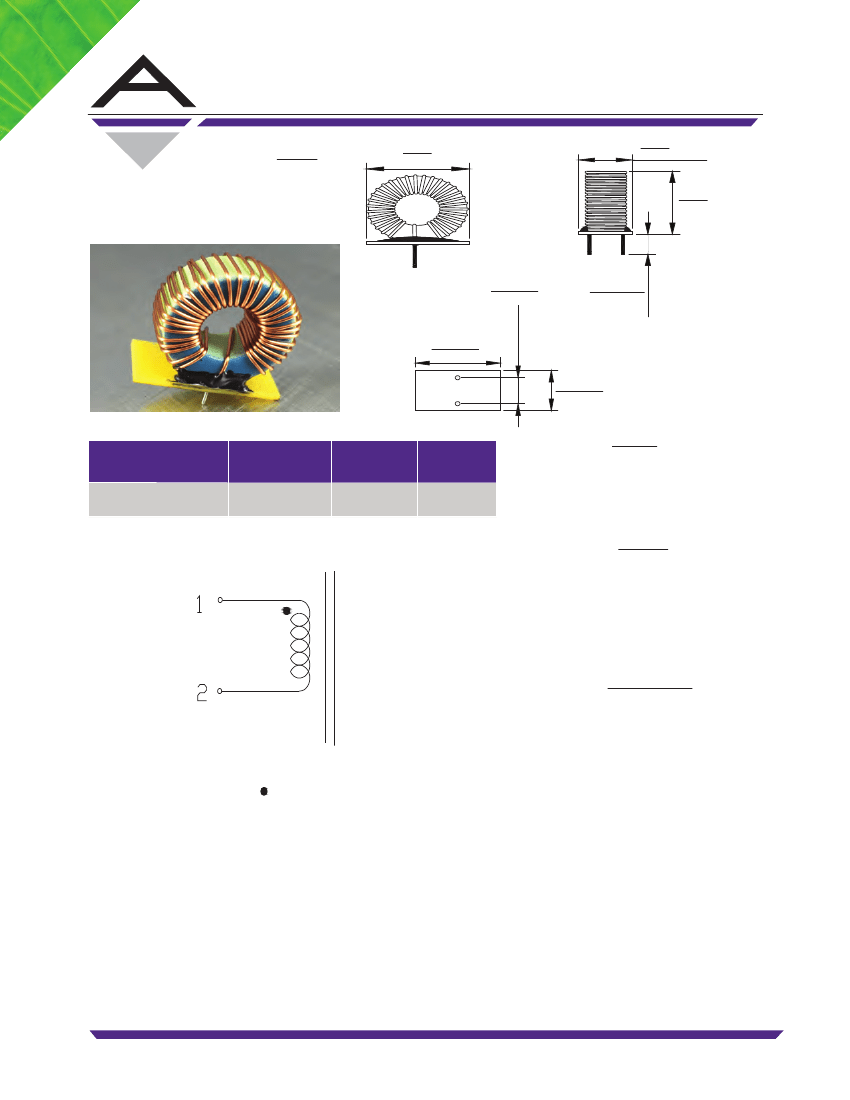

Toroidal Chokes
Dimensions:
Inches
(mm)
VTCB921
.472
MAX
12.0
.850
MAX
21.6
.850 MAX
21.6
1
2
1
.30±.019
7.62±0.5
.129±.019
3.3±0.5
.826±.019
21±0.5
.43±.019
11±0.5
Allied
Part
Number
L (µH)
@ 1KHZ
20%
Features
ISAT
ADC
DCR
(mΩ)
Max
VTCB921-101M-RC
100
2.6
100
Low Magnetic Radiation
Low Core Loss
High current capacity
All specifications subject to change without notice.
Electrical
Inductance Range:
100µh
Tolerance:
20%
Test Frequency:
1KHz
Operating Temp:
-20ºC ~ 100ºC
N1
HiPot:
500VAC 50Hz 2 Sec, winding to core
Test Equipment
(L):
HP4132
DCR:
ZT-3250
: WINDING START
949-356-1780
ALLIED COMPONENTS INTERNATIONAL
REVISED 11/20/2015
www.alliedcomponents.com
