RMCS1/2755%R datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> RMCS1/2755%R

Preview

RMCS1/2755%R: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.75W, 75ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size212KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RMCS1/2755%R Overview

Fixed Resistor, Metal Glaze/thick Film, 0.75W, 75ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT

RMCS1/2755%R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1725490974
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ANTI-SULFUR
JESD-609 code	e3
Manufacturer's serial number	RMCS
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TAPE, EMBOSSED
Rated power dissipation(P)	0.75 W
Rated temperature	70 °C
resistance	75 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	200 V

Preview

Download Datasheet

View All

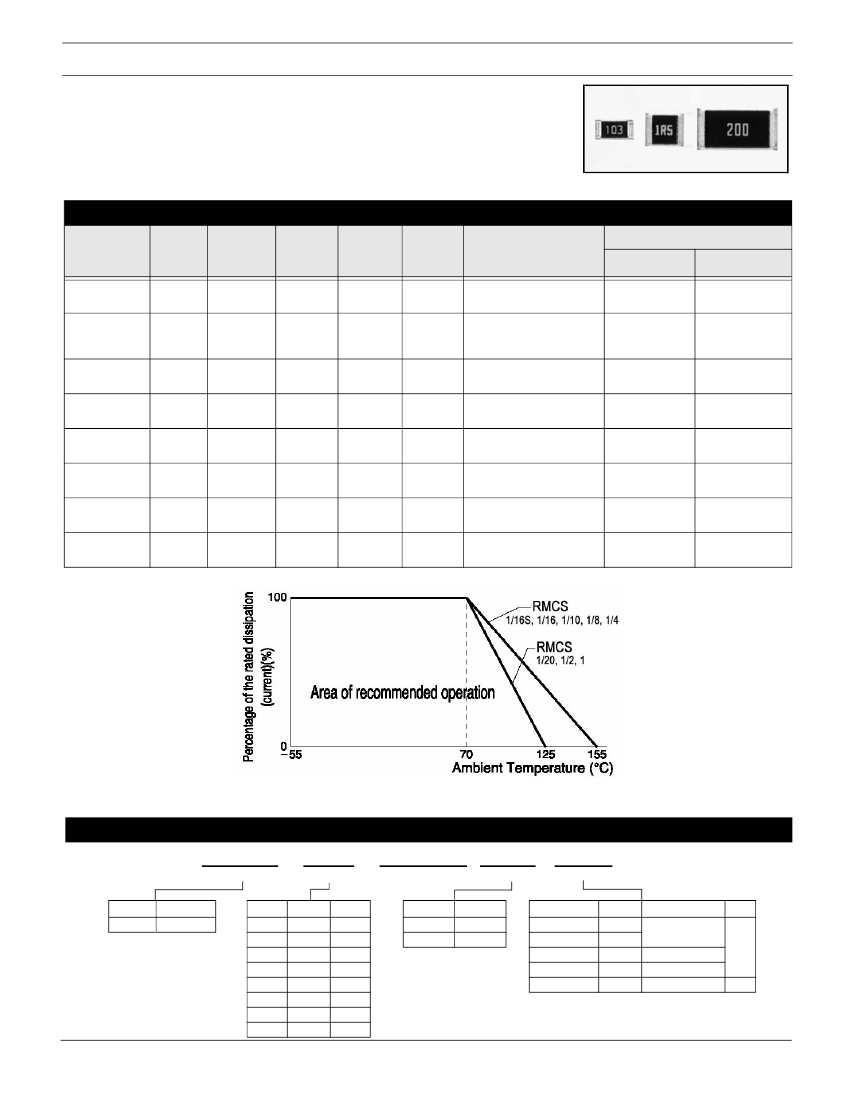

RMCS Series — Sulfur Resistant Thick Film Chip Resistors

Features

• Barrier terminations engineered to deter

sulfur contamination

• Additional values available upon request

• RoHS compliant / lead-free

• Operating temp range from -55°C to

+155°C (0402 - 1210 sizes)

• Zero ohm available (max resistance 0.05Ω)

Electrical Specifications

Type / Code

Package

Size

Power

Rating

(Watts)

@ 70°C

0.050W

Maximum

Working

Voltage*

25V

Maximum

Overload

Voltage

50V

Max.

Current

(Jumper)

1 Amp

Resistance Temperature

Coefficient

±300 ppm/°C

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

±100 ppm/°C

±200 ppm/°C

Ohmic Range and Tolerance

1%

10Ω – 97.6Ω

100Ω – 1MΩ

10Ω – 97.6Ω

100Ω – 1MΩ

1.02MΩ – 10MΩ

10Ω – 1MΩ

1.02MΩ – 10MΩ

10Ω – 2.2MΩ

2.21MΩ – 10MΩ

10Ω – 1MΩ

1.02MΩ – 10MΩ

10Ω – 1MΩ

1.02MΩ – 10MΩ

10Ω – 1MΩ

–

10Ω – 1MΩ

–

5%

10Ω – 91Ω

100Ω – 10MΩ

10Ω – 10MΩ

–

10Ω – 22MΩ

–

10Ω – 22MΩ

–

10Ω – 24MΩ

–

10Ω – 22MΩ

–

10Ω – 22MΩ

–

10Ω – 22MΩ

RMCS 1/20

0201

RMCS 1/16S

0402

0.063W

50V

100V

1 Amp

RMCS 1/16

RMCS 1/10

RMCS 1/8

RMCS 1/4

RMCS 1/2

RMCS 1

0603

0805

1206

1210

2010

2512

0.100W

0.125W

0.250W

0.330W

0.750W

1.000W

50V

150V

200V

100V

300V

400V

1 Amp

2 Amp

* Lesser of

√

PR or maximum working voltage.

When the ambient temperature exceeds 70°C, the power (current for jumper chips) shall be derated according to this curve

How to Order

RMCS

SEI Type

SEI Type Description

RMCS

Anti Sulfur

Code

1/20

1/16S

1/16

1/10

1/8

1/4

1/2

1

1/16

Code

Wattage

0.050W

0.100W

0.125W

0.250W

0.500W

1.000W

Size

0201

0402

0603

0805

1206

1210

2010

2512

4.7K

Nominal Resistance

Tolerance

1%

5%

Tolerance

R

Packaging

SEI Types

1/20

1/16S

1/16, 1/10, 1/8

1/4, 1/2, 1

All

Pkg Qty

15,000

10,000

5,000

4,000

1,000

Description

Tape - 2mm Pitch

Paper Tape

Embossed Tape

Bulk

A

R

Code

Values

E96,E24

E24

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

5

email: marketing@seielect.com

Rev 06/07

RMCS1/2755%R Related Products

	RMCS1/2755%R	RMCS1/2125%A	RMCS1/2125%R	RMCS1/210K5%A	RMCS1/210K5%R	RMCS1/29105%A	RMCS1/2625%R
Description	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 75ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 12ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 12ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 10000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 10000ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 910ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 62ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	CHIP, ROHS COMPLIANT	, 2010	CHIP, ROHS COMPLIANT	, 2010	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compliant	compli	compli	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ANTI-SULFUR	ANTI-SULFUR	ANTI-SULFUR	ANTI-SULFUR	ANTI-SULFUR	ANTI-SULFUR	ANTI-SULFUR
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	RMCS	RMCS	RMCS	RMCS	RMCS	RMCS	RMCS
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TAPE, EMBOSSED	BULK	TAPE, EMBOSSED	BULK	TAPE, EMBOSSED	BULK	TAPE, EMBOSSED
Rated power dissipation(P)	0.75 W	0.75 W	0.75 W	0.75 W	0.75 W	0.75 W	0.75 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
resistance	75 Ω	12 Ω	12 Ω	10000 Ω	10000 Ω	910 Ω	62 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	2010	2010	2010	2010	2010	2010	2010
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C	200 ppm/°C
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	5%	5%	5%	5%	5%	5%	5%
Operating Voltage	200 V	200 V	200 V	200 V	200 V	200 V	200 V
Maker	-	SEI(Stackpole Electronics Inc.)	SEI(Stackpole Electronics Inc.)	SEI(Stackpole Electronics Inc.)	SEI(Stackpole Electronics Inc.)	-	-
