DC/DC Converter; Product Weight (grams): 13; Input voltage min (V): 9; Input voltage max (V): 36; Output voltage min: 24; Output voltage max: 24; Output voltage dual assymetric (y/n): Single; Output Power (W): 6; Max Output current (A): 0.25; Efficiency (%): 84; Max Capacitive load (µF): 47; Package type: DIP24; Mounting: PCB; W (in): 0.84; L (in): 1.25; H (in): 0.4; W (mm): 20.32; L (mm): 31.75; H (mm): 10.16; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1500; EMC compliance 1: EN 55032 Class A; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; MTBF (h): 800000; Derating : 60; Voltage Accuracy (%): ±2; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±1.2; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous
DC/DC Converter; Product Weight (grams): 13; Input voltage min (V): 9; Input voltage max (V): 36; Output voltage min: 24; Output voltage max: 24; Output voltage dual assymetric (y/n): Single; Output Power (W): 6; Max Output current (A): 0.25; Efficiency (%): 84; Max Capacitive load (µF): 47; Package type: DIP24; Mounting: PCB; W (in): 0.84; L (in): 1.25; H (in): 0.4; W (mm): 20.32; L (mm): 31.75; H (mm): 10.16; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1500; EMC compliance 1: EN 55032 Class A; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; MTBF (h): 800000; Derating : 60; Voltage Accuracy (%): ±2; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±1.2; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous
Click on Series name for product info on aimtec.com
Series AM6TIW-RZ
6 Watt | DC-DC Converter
FEATURES:
•
•
•
•
•
Under Voltage Lockout
High efficiency up to 84%
24 Pin DIP Package
Wide 4:1 input range
Over Load Protection
•
•
•
•
•
Operating temperature -40
o
C to + 85
o
C
Continuous short circuit protection
Input / Output Isolation 1500 and 3000VDC
Pin compatible with multiple manufacturers
Input Under Voltage Protection
Models
Single output
Model
AM6TIW-2403S-RZ
AM6TIW-2405S-RZ
AM6TIW-2412S-RZ
AM6TIW-2415S-RZ
AM6TIW-2424S-RZ
AM6TIW-4803S-RZ
AM6TIW-4805S-RZ
AM6TIW-4812S-RZ
AM6TIW-4815S-RZ
AM6TIW-4824S-RZ
AM6TIW-2403SH30-RZ
AM6TIW-2405SH30-RZ
AM6TIW-2412SH30-RZ
AM6TIW-2415SH30-RZ
AM6TIW-2424SH30-RZ
AM6TIW-4803SH30-RZ
AM6TIW-4805SH30-RZ
AM6TIW-4812SH30-RZ
AM6TIW-4815SH30-RZ
AM6TIW-4824SH30-RZ
Input
Voltage
(V)
9-36
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
18-75
9-36
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
18-75
Output
Voltage (V)
3.3
5
12
15
24
3.3
5
12
15
24
3.3
5
12
15
24
3.3
5
12
15
24
Output Current
max (mA)
1400
1200
500
400
250
1400
1200
500
400
250
1400
1200
500
400
250
1400
1200
500
400
250
Efficiency
(%)
78
80
84
84
84
76
82
84
84
84
78
80
84
84
84
76
82
84
84
84
Capacitive
load, max (μF)
470
470
100
100
47
470
470
100
100
47
470
470
100
100
47
470
470
100
100
47
Isolation
(VDC)
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
Models
Dual output
Model
AM6TIW-2403D-RZ
AM6TIW-2405D-RZ
AM6TIW-2412D-RZ
AM6TIW-2415D-RZ
AM6TIW-2424D-RZ
AM6TIW-4803D-RZ
AM6TIW-4805D-RZ
AM6TIW-4812D-RZ
AM6TIW-4815D-RZ
AM6TIW-4824D-RZ
AM6TIW-2403DH30-RZ
AM6TIW-2405DH30-RZ
AM6TIW-2412DH30-RZ
AM6TIW-2415DH30-RZ
AM6TIW-2424DH30-RZ
AM6TIW-4803DH30-RZ
www.aimtec.com
F 051e R12.B
Input
Voltage
(V)
9-36
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
18-75
9-36
9-36
9-36
9-36
9-36
18-75
Output
Voltage (V)
±3.3
±5
±12
±15
±24
±3.3
±5
±12
±15
±24
±3.3
±5
±12
±15
±24
±3.3
Output Current
max (mA)
±909
±600
±250
±200
±125
±909
±600
±250
±200
±125
±909
±600
±250
±200
±125
±909
Tel: +1 514 620 2722
1 of 4
Efficiency
(%)
78
82
84
84
82
78
82
84
84
80
78
82
84
84
82
78
Capacitive
load, max (μF)
±220
±220
±100
±100
±47
±220
±220
±100
±100
±47
±220
±220
±100
±100
±47
±220
Isolation
(VDC)
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
3000
3000
3000
3000
3000
3000
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM6TIW-RZ
6 Watt | DC-DC Converter
Models
Dual output (continued)
Model
AM6TIW-4805DH30-RZ
AM6TIW-4812DH30-RZ
AM6TIW-4815DH30-RZ
AM6TIW-4824DH30-RZ
Input
Voltage
(V)
18-75
18-75
18-75
18-75
Output
Voltage (V)
±5
±12
±15
±24
Output Current
max (mA)
±600
±250
±200
±125
Efficiency
(%)
82
84
84
80
Capacitive
load, max (μF)
±220
±100
±100
±47
Isolation
(VDC)
3000
3000
3000
3000
Input Specifications
Parameters
Voltage range
Filter
Start up time
Absolute Maximum Rating
Peak Input Voltage time
Under Voltage Lockout (ON / OFF)
Input Reflected Ripple Current
24 Vin
48 Vin
24 Vin
48 Vin
Nominal
24
48
Typical
9-36
18-75
π
(Pi) Network
20
-0.7-50
-0.7-100
100
8.5 / 7.0
16.5 / 14.5
20
Maximum
Units
VDC
ms
VDC
ms
VDC
mA p-p
Isolation Specifications
Parameters
Tested I/O voltage
Resistance
Capacitance
Conditions
3 sec
Typical
> 1000
1000
Rated
1500 or 3000
Units
VDC
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Voltage balance
Short Circuit protection
Short circuit restart
Over current protection
Line voltage regulation
Cross regulation (Dual)
Load voltage regulation
Temperature coefficient
Ripple & Noise
Rising time
Transient Recovery Time
Transient Response Deviation
Conditions
Vin nom, 100% load
Balanced Load
Typical
±2
±2
Continuous
Auto recovery
160% Iout
Maximum
Units
%
%
LL – HL, 100% load
1 load=25-100%, other
load=100%
0 – 100% load
At 20MHz Bandwidth
Vin nom, 25% step
±0.5
±5
±1.2
±0.02
60
80
300
±3
%
%
%
o
%/ C
mV p-p
ms
µs
%
General Specifications
Parameters
Start-up Time
Switching frequency
Operating temperature
Storage temperature
Max Case temperature
Cooling
Humidity
Case material
Weight
www.aimtec.com
F 051e R12.B
Conditions
100% load
(See Derating Chart)
Typical
20
330
Maximum
Units
ms
KHz
o
C
o
C
o
C
%
g
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
-40 to +85
-55 to +125
+100
Free air convection
90
Non-Conductive Black Plastic (UL94V-0)
13
Tel: +1 514 620 2722
2 of 4
Series AM6TIW-RZ
6 Watt | DC-DC Converter
General Specifications (continued)
Parameters
Dimensions(L x W x H)
MTBF
Conditions
Typical
Maximum
Units
Tolerance ±0.5 mm or ±0.02 inches
1.25 x 0.84 x 0.41 inches 31.75 x 21.35 x 10.50 mm
o
>800,000 hrs (MIL-HDBK -217F, Ground Benign, t=+25 C)
NOTE: All specifications noted in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal
input voltage and at rated output load unless otherwise specified.
Safety Specifications
Parameters
Agency Approval
CE, UL
IEC/EN 60950-1
EN 55022 Class A
EN 55024 Class A
IEC61000-4-2, Perf. Criteria A
IEC61000-4-3, Perf. Criteria A
IEC61000-4-4, Perf. Criteria A
IEC61000-4-5, Perf. Criteria A
IEC61000-4-6, Perf. Criteria A
IEC61000-4-8, Perf. Criteria A
Standards
Pin Out Specifications
Pin
2
3
9
11
14
16
22
23

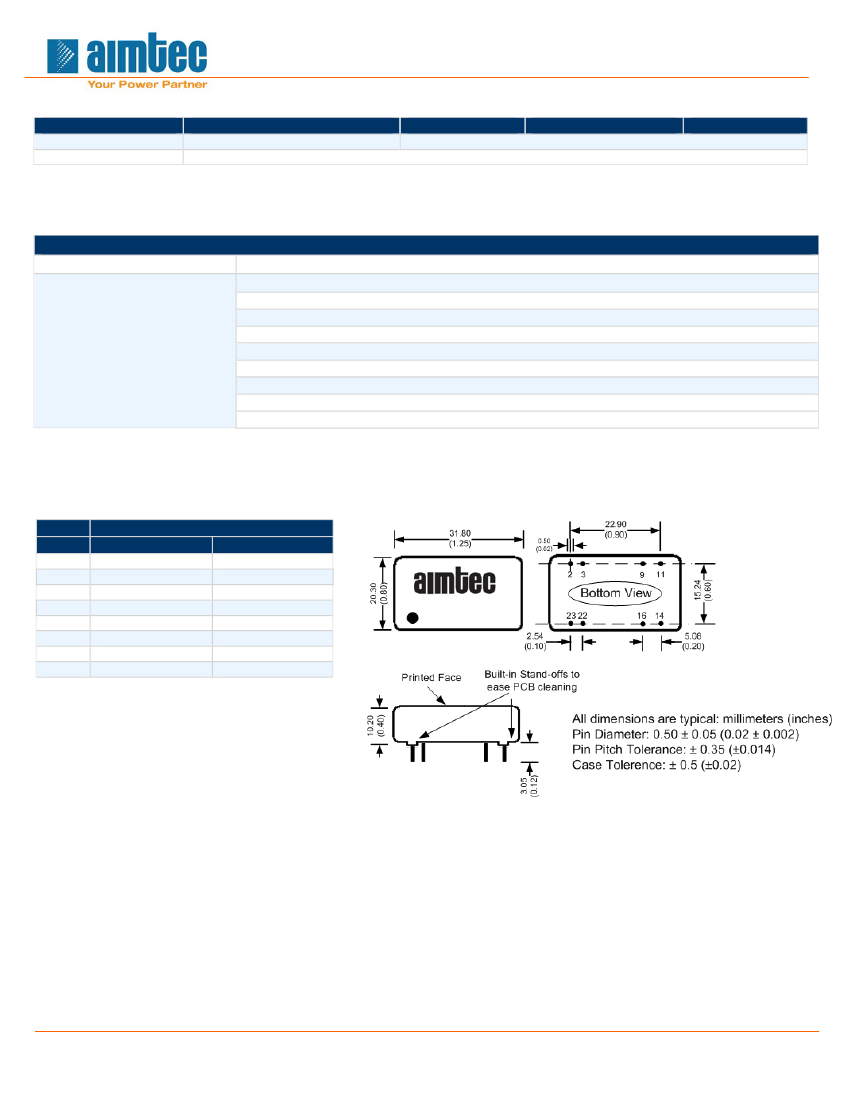

Dimensions
1500 & 3500VDC
Single
Dual
-V Input
-V Input
NO PIN
N. C.
+V Output
-V Output
+V Input
+V Input
-V Input
-V Input
Common
-V Output
+V Output
Common
+V Input
+V Input
www.aimtec.com
F 051e R12.B
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM6TIW-RZ
6 Watt | DC-DC Converter
Derating
Free Air Convection
60 ºC
100
Output Power %
80
60
Safe Operating Area
40
20
0
-40
-25
0
20
40
60
80
85
100
Ambient Temperature
º C
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
