Series AME1-JZ
1Watt | AC-DC / DC-DC Converter
FEATURES:
Picture coming soon
•
•
•
•
Models
Single output
Model
AME1-3.3SJZ
AME1-5SJZ
AME1-9SJZ
AME1-12SJZ
AME1-15SJZ
AME1-24SJZ
I/O Isolation 3000VAC
Operating Temp: -25
°
C to +70
°
C
Input: 85-305VAC, 47-63Hz, or 120-430 VDC
Over current, Short Circuit Protection
•
Class II Power supply
•
Energy Star compliant
•
Ultra-small package
Input Voltage
(VAC/Hz)
85-305/47-63
85-305/47-63
85-305/47-63
85-305/47-63
85-305/47-63
85-305/47-63
Input
Voltage
(VDC)
120-430
120-430
120-430
120-430
120-430
120-430
Temperature
range
(ºC)
-25 to +70
-25 to +70
-25 to +70
-25 to +70
-25 to +70
-25 to +70
Output
Voltage
(V)
3.3
5
9
12
15
24
Output
Current max
(mA)
300
200
111
83
67
42
Maximum
capacitive
Load
(µF)
4000
4000
2200
2200
1000
680
Efficiency
(%)
230
VAC
63
68
72
73
74
75
Input Specifications
Parameters
Current (full load)
Inrush current <2ms (cold start)
Leakage current
External fuse
Conditions
115 VAC
230 VAC
115 VAC
230 VAC
Recommended slow blow type
Typical
Maximum
30
17
Units
mA
mA
A
A
mA
A
5
11
0.15
1
Output Specifications
Parameters
Voltage accuracy
Line regulation
Load regulation
Minimum load
Ripple & Noise*
Conditions
Full load, nominal input
LL-HL, Full Load
10% - 100% load, nominal input
3.3/5 VDC With 560µF E/C
Typical
±6
±2
±5
10
100
Maximum
Units
%
%
%
%
mV p-p
200
*Ripple &Noise measured at 20MHz bandwidth with 1µF C/C and 10µF E/C and 115/230VAC with Full Load.
Isolation Specifications
Parameters
Tested I/O voltage
Isolation Resistance
Conditions
60 sec
Typical
>1000
Rated
3000
Units
VAC
MΩ
General Specifications
Parameters
Switching frequency
Over Current protection
Short circuit protection
Operating temperature
Storage temperature
Maximum Case temperature
Humidity
Case material
Weight
Cooling
Dimensions (L x W x H)
MTBF
Conditions
Auto recovery
With derating above 55°C
Typical
100
≥110%
Auto recovery
-25 to +70
-40 to +85
Maximum
Units
KHz
100
Non condensing
20 ~ 90
Plastic resin (flammability to UL 94V-0)
20
Free air convection
1.33 x 0.87 x 0.71 (33.70 x 22.20 x 18.00mm)
> 300,000 hrs (MIL-HDBK -217F, t=+25oC)/Full Load
°C
°C
°C
% RH
g
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load
unless otherwise specified.
www.aimtec.com
F 052e R8
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AME1-JZ
1Watt | AC-DC / DC-DC Converter
Safety Specifications
Parameters
Approvals
cULus, CE pending
Information technology Equipment
EMI - Conducted and radiated emission
Electrostatic Discharge Immunity
RF, Electromagnetic Field Immunity
Electrical Fast Transient/Burst Immunity
Surge Immunity(1KV)
RF, Conducted Disturbance Immunity
Power frequency Magnetic Field Immunity
Voltage dips, Short Interruptions Immunity
Meets IEC/EN/UL 60950-1:2006+A11:2009
EN55022, class B, with application circuit
IEC 61000-4-2, Contact:±4KV/Air:±8KV, Criteria B
IEC 61000-4-3, 10V/m, Criteria A
IEC 61000-4-4, ±2KV, Criteria B, with EMC recommended circuit
IEC 61000-4-5, ±1KV/±2KV, Criteria B, with EMC recommended circuit
IEC 61000-4-6, 10Vrms, Criteria A
IEC 61000-4-8, 10A/m, Criteria A
IEC 61000-4-11, 0-70%, Criteria B
Standards

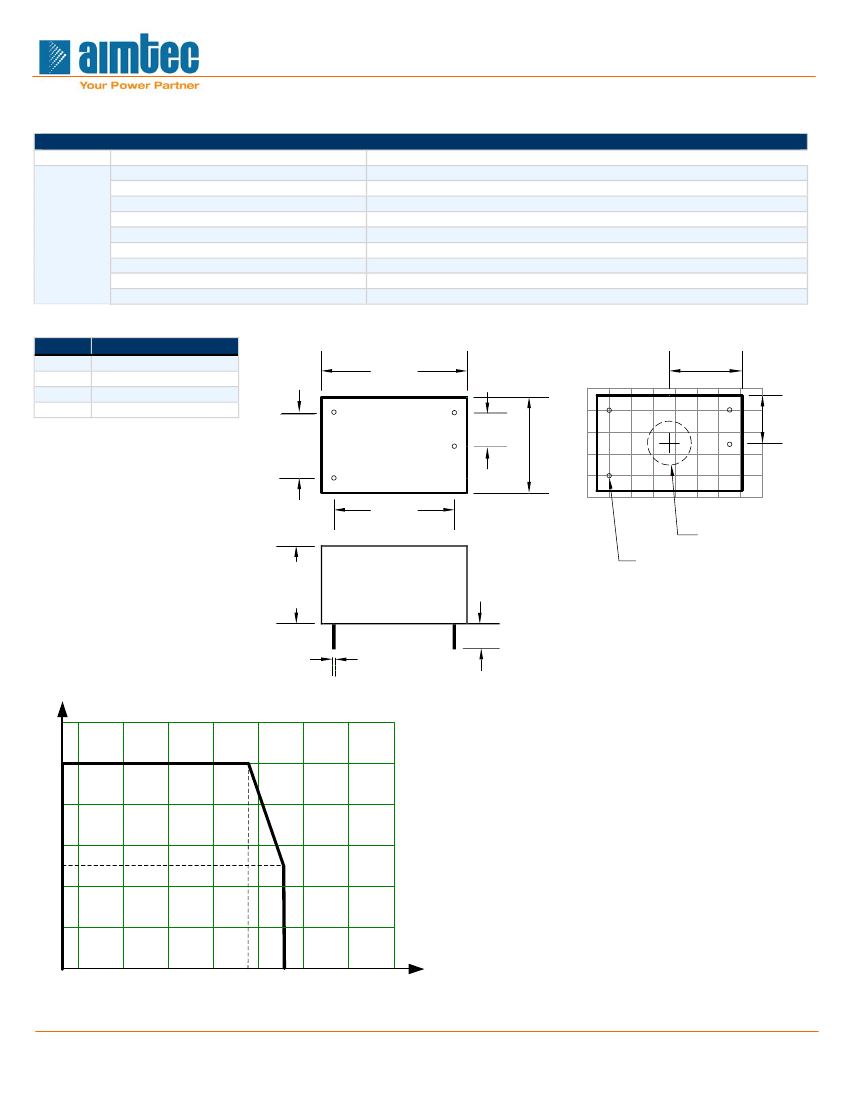

Pin Out Specifications
Pin
Single
1
2
3
4
AC Input (N)
AC Input (L)
-V Output
+V Output
15.24
(0.60)
2
Dimensions
33.70
(1.33)
Top Vi ew
1
3
1
Temperature m
easuring
point
3
16.85
(0.66)
11.00
(0.43)
Top View
7.60
(0.29)
4
22.00
(0.87)
2
4
28.00
(1.10)
DIV: 5.00(0.20)
Ø
10.0 (
Ø
0.40)
Ø
0.60 (
Ø
0.02)
18.00
(0.71)
6.00
(0.24)
Dimensions mm (inch)
Case Tolerance ±0.50 (±0.02)
Pin Diameter ±0.10 (±0.004)
Pin Pitch Tolerance ±0.50 (±0.02)
Side View
Derating
Free Air Convection
0.60
(0.02)
100
80
60
50
Safe Operating Area
40
20
0
- 25
-20
55
70
0
20
40
60
80
100
Ambient Temperature
º C
www.aimtec.com
F 052e R8
Tel: +1 514 620 2722
2 of 3
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AME1-JZ
1Watt | AC-DC / DC-DC Converter

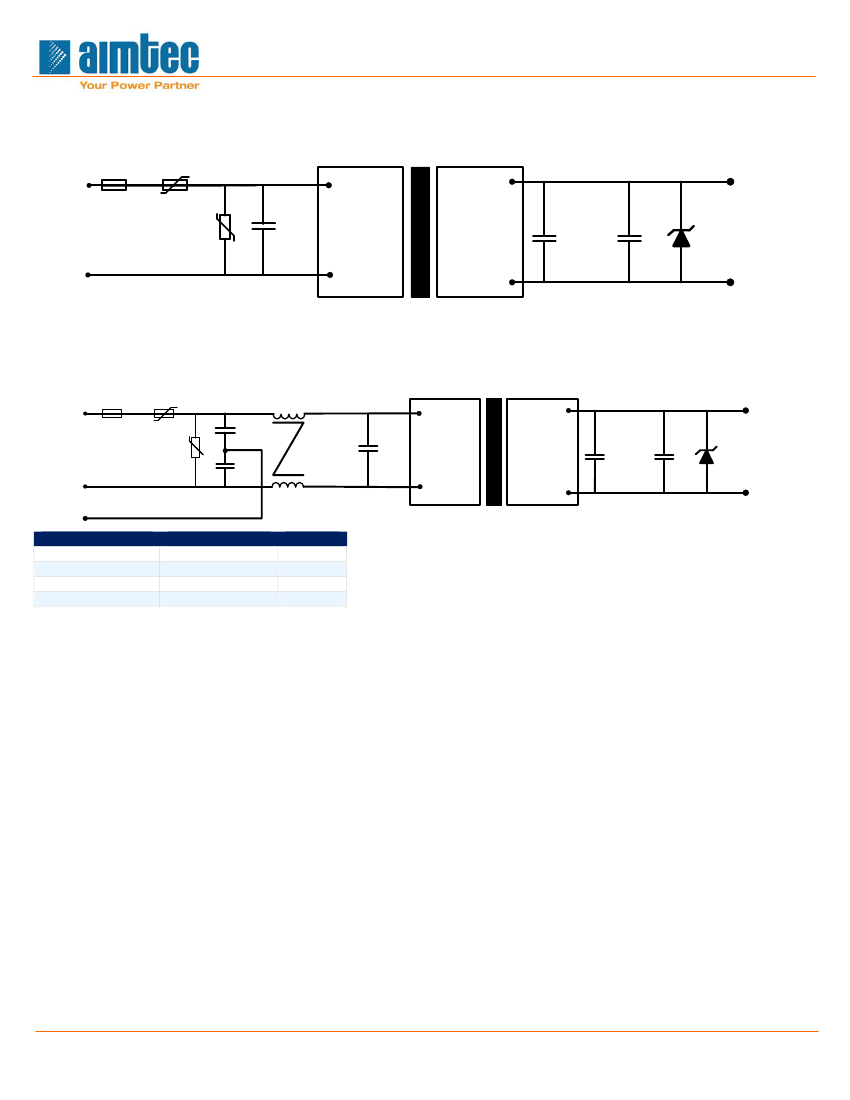

Application circuit
FUSE
1A/300V
Single Output
NTC
AC L
MOV
S14K350
AC N
*GND connection not allowed
AC L
4
+
TVS
+ Vout
CX
0.1µF/
305VAC
AC
AC N
DC
C1
C2
1µF/50V
3
- Vout
EMC recommended circuit
FUSE
1A/300V
NTC
CY1
2.2nF/
400VAC
CY2
2.2nF/
400VAC
AC L
LCM
10mH
Single Output
AC L
CX
0.1µF/
305VAC
4
+
C2
TVS
+ Vout
MOV
S14K350
AC N
GND
AC
AC N
DC
C1
1µF/50V
3
- Vout
Model
3.3 & 5 Vout
9 Vout
12 & 15 Vout
24 Vout
C2
220 µF / 35V
120 µF / 35V
120 µF / 35V
68 µF / 35V
TVS
7V
12V
20V
30V
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
