AMEOR60C-24250AZ datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AMEOR60C-24250AZ

AMEOR60C-24250AZ: DescriptionAC/DC LED Driver; Product Weight (grams): 220; Input voltage min (V): 90; Input voltage max (V): 305; Input frequency (Hz): 47-440; Output voltage min: 12; Output voltage max: 24; Output voltage dual assymetric (y/n): Single; Output Power (W): 60; Max Output current (A): 2.5; Efficiency (%): 83; Package type: Open Frame; Mounting: Wire terminal; W (in): 1.3; L (in): 5.83; H (in): 1.97; W (mm): 33; L (mm): 148; H (mm): 50; Min Operating temperature: -40; Max operating temperature (°C): 80; Isolation (VAC): 3000; EMC compliance 1: EN 55022 Class B; Case material: Open frame; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; Application 6 (Lighting): 1; MTBF (h): 400000; Derating : 60; Voltage Accuracy (%): ±3; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 75; Switching Frequency typ (KHz): 130; Short circuit protection: Continuous; Leakage current (mA): 0.75; Active power factor correction: 1; Dimming: 1; Mode of operation: CC/CV; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size682KB，14 Pages; ManufacturerAimtec; Websitehttp://www.aimtec.ca/; Environmental Compliance

Download Datasheet Compare View All

AMEOR60C-24250AZ Overview

AC/DC LED Driver; Product Weight (grams): 220; Input voltage min (V): 90; Input voltage max (V): 305; Input frequency (Hz): 47-440; Output voltage min: 12; Output voltage max: 24; Output voltage dual assymetric (y/n): Single; Output Power (W): 60; Max Output current (A): 2.5; Efficiency (%): 83; Package type: Open Frame; Mounting: Wire terminal; W (in): 1.3; L (in): 5.83; H (in): 1.97; W (mm): 33; L (mm): 148; H (mm): 50; Min Operating temperature: -40; Max operating temperature (°C): 80; Isolation (VAC): 3000; EMC compliance 1: EN 55022 Class B; Case material: Open frame; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; Application 6 (Lighting): 1; MTBF (h): 400000; Derating : 60; Voltage Accuracy (%): ±3; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 75; Switching Frequency typ (KHz): 130; Short circuit protection: Continuous; Leakage current (mA): 0.75; Active power factor correction: 1; Dimming: 1; Mode of operation: CC/CV

Preview

Download Datasheet

View All

Click on Series name for product info on aimtec.com

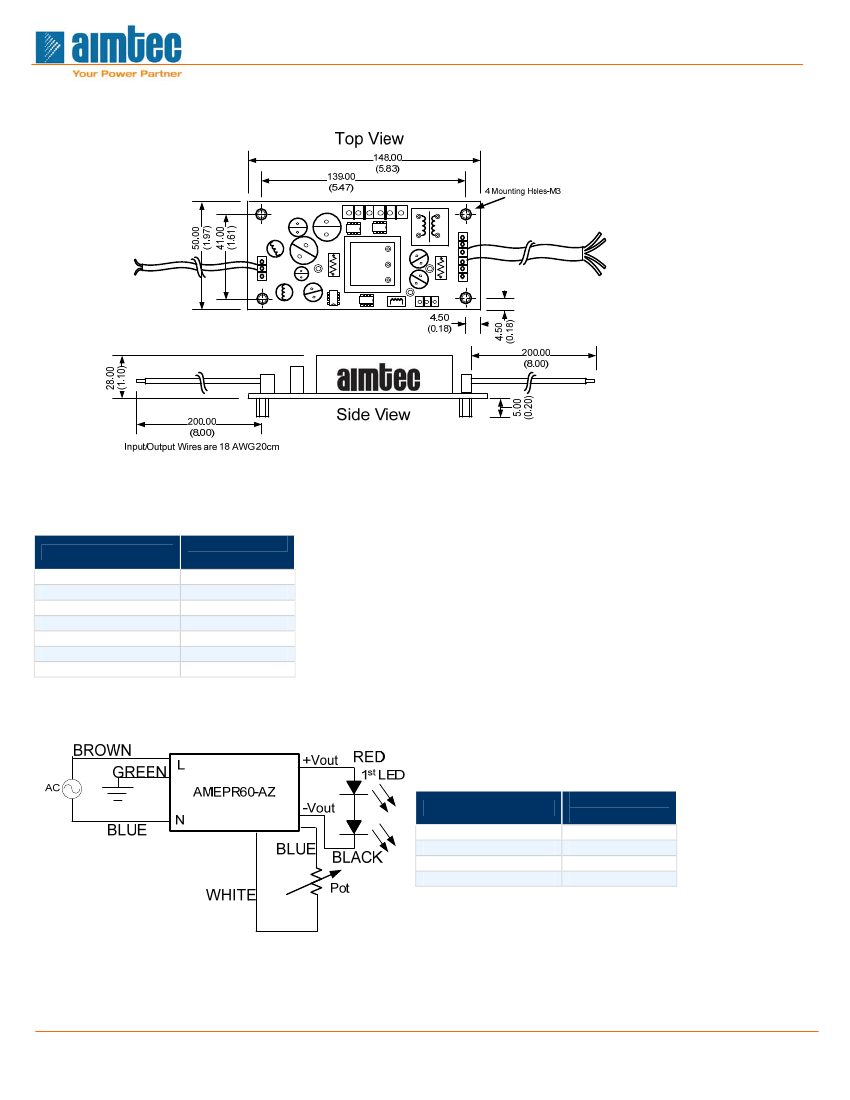

Series AMEOR60C-AZ

up to 5A | AC-DC / DC-DC LED driver

FEATURES:



AC-DC Constant current LED Driver

Input range 90-305VAC/47-440Hz

High Efficiency up to 89%

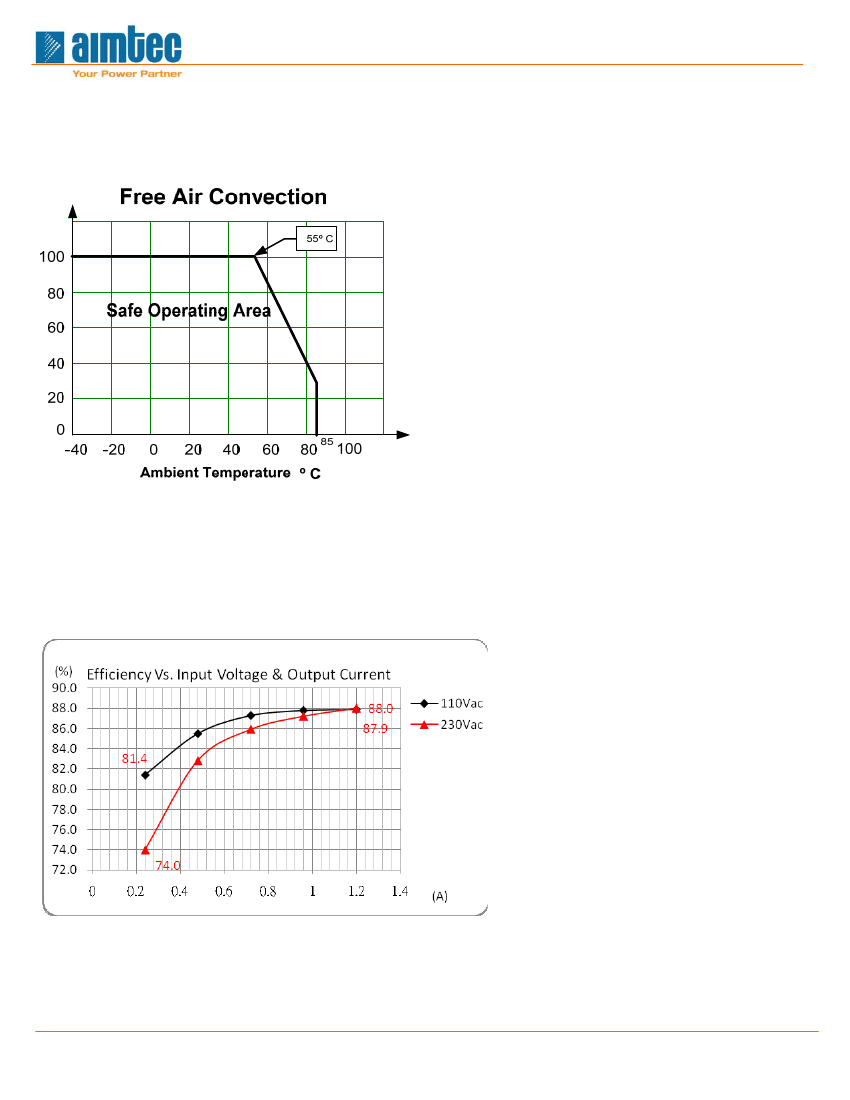

Operating temperature -40 to 80°C

Dimmable via Analog / 0-10Vdc / PWM



Over Temperature Protection

Open frame

Power Factor Correction

SCP, Over Current Protection

5 Year Limited Warranty

Models

Single output

Model

AMEOR60C-50120AZ

AMEOR60C-36170AZ

AMEOR60C-24250AZ

AMEOR60C-12500AZ

Max

Output

Power

(W)

59.8

Output

Voltage

Range

(V)

36-50

24-36

12-24

5-12

Output

Current

(A)

1.2

1.66

2.5

Input Voltage

(VAC/Hz)

90-305/47-440

Input Voltage

(VDC)

130-430

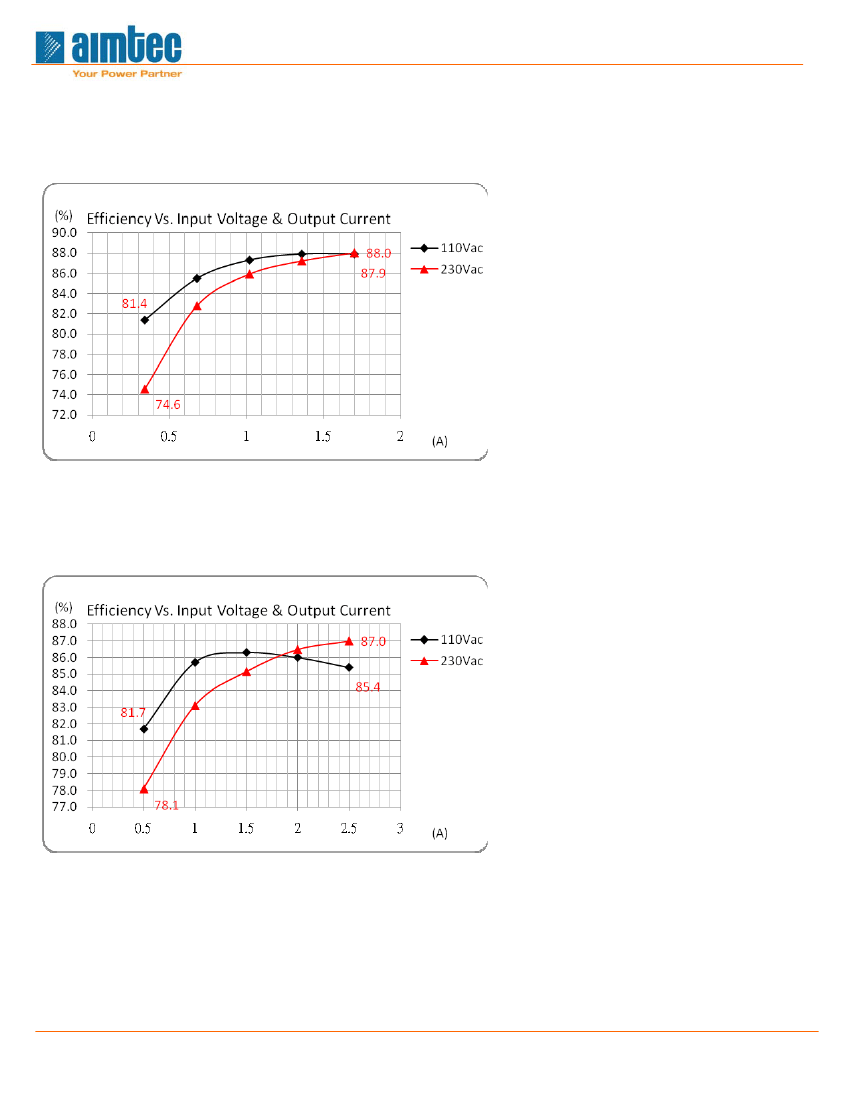

Efficiency

(%)

Exceeding the maximum output power will permanently damage the converter

All models can be ordered with optional North American colour input wires (black (L), white (N), green (GND)). Add “–NA” to

part number when ordering.

NOTE: Aimtec limited warranty of 5 years is valid based on product operation at datasheet specifications at ambient temperature of 25°C,

humidity<75%, nominal input voltage (115/230/305VAC) and at rated output load unless otherwise specified. See

http://www.aimtec.com/terms-sale

AMEOR60C-AZ’s AC/DC LED drivers have electrical safeguards designed within to protect it from conventional electrical abnormalities with

the levels listed in the safety table. Applications for use within rural agricultural, heavy industrial, and other areas or regions which are

prone to ‘dirty’ electrical conditions which would subject any of the above models to excessive voltages surges or spikes, may damage or

cause early life failure of product. In this case consideration should be made by the end user to ensure that adequate line or mains surge

suppression is installed in front of Aimtec device to ensure the longevity of the products. Failure to identify excessive line surges violations

prior to installation may damage sensitive equipment permanently.

Input Specifications

Parameters

Inrush current <2ms

Leakage current

AC current

Power Factor

External fuse

Start up time

Surge voltage

Conditions

115VAC

230VAC

115VAC

230VAC

115VAC

230VAC

115VAC

230VAC

Typical

0.5

0.75

0.67

0.33

Maximum

Units

0.99

0.97

250V/1.5A

250

440

2sec

Output Specifications

Parameters

Current accuracy

Line regulation

Load regulation

Ripple & Noise

Hold-up time

Current adjustment range

Minimum Load Voltage

Conditions

LL-HL

0-100% load

20MHz Bandwidth

Typical

±3

±1

±3

100-0

Maximum

Units

mV p-p

See the models table

Tested with 0.1µF (M/C) or (C/C) and 10µF (E/C) parallel capacitors at the end.

www.aimtec.com

F 052.1e R3.D

Tel: +1 514 620 2722

1 of 14

Toll free: + 1 888 9 AIMTEC

(924 6832)

North America only

AMEOR60C-24250AZ Related Products

	AMEOR60C-24250AZ	AMEOR60C-12500AZ	AMEOR60C-36170AZ	AMEOR60C-50120AZ	AMEOR60C-AZ
Description	AC/DC LED Driver; Product Weight (grams): 220; Input voltage min (V): 90; Input voltage max (V): 305; Input frequency (Hz): 47-440; Output voltage min: 12; Output voltage max: 24; Output voltage dual assymetric (y/n): Single; Output Power (W): 60; Max Output current (A): 2.5; Efficiency (%): 83; Package type: Open Frame; Mounting: Wire terminal; W (in): 1.3; L (in): 5.83; H (in): 1.97; W (mm): 33; L (mm): 148; H (mm): 50; Min Operating temperature: -40; Max operating temperature (°C): 80; Isolation (VAC): 3000; EMC compliance 1: EN 55022 Class B; Case material: Open frame; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; Application 6 (Lighting): 1; MTBF (h): 400000; Derating : 60; Voltage Accuracy (%): ±3; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 75; Switching Frequency typ (KHz): 130; Short circuit protection: Continuous; Leakage current (mA): 0.75; Active power factor correction: 1; Dimming: 1; Mode of operation: CC/CV	Over Temperature Protection	Over Temperature Protection	Over Temperature Protection	Over Temperature Protection
