Air to Air Thermoelectric Assembly

ATS PART# ATS-FF-100W-24-C

ATS’ air to air thermoelectric assemblies are heat exchangers that

remove heat from an enclosure and are designed for temperature

regulation of small electronic cabinets or enclosures. They are often

used when it is better to circulate cooled air rather than use direct

contact with a cold plate.

FEATURES & BENEFITS

Compact and lightweight

Can be mounted in any orientation

No compressor

Virtually maintenance free

Simple quick installation

Air to air heat exchanger

Quiet operation

Uses thermoelectrics

SPECIFICATION

Max Cooling power

TEC Voltage

TEC Current

Fan Voltage

59W @ ∆T = 0°C

24 VDC

7 - 8.5A

24 VDC

All images for Illustration Purposes ONLY.

APPLICATIONS

Enclosure or cabinet cooling

Electronics cooling

Medical, surgical and biological process cooling

Thermal management

Medical equipment

Refrigerators and water coolers

Industrial storage and food transportation

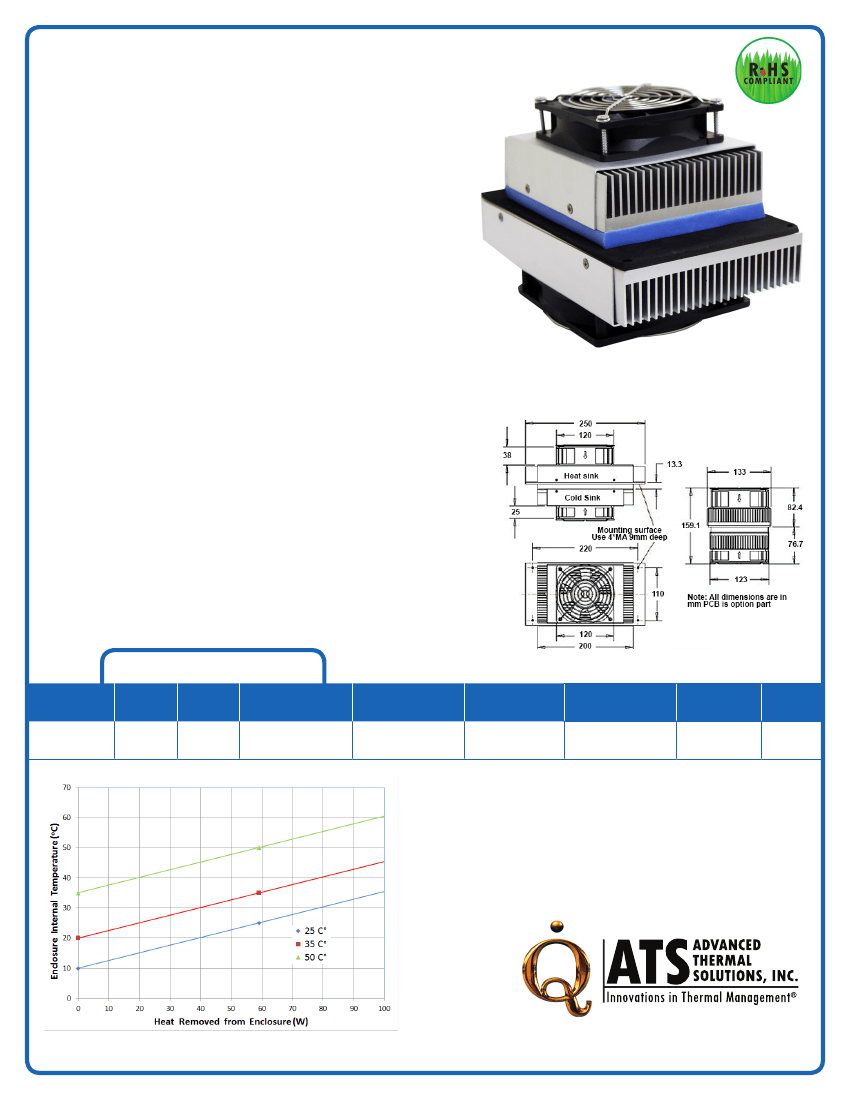

Product Detail

Max Cooling

TEC

Power

Voltage Current

59W

24V

Hot Side

Fan

Cold Side

Fan

Operating

Temperature

-10° – 70°

Dimensions

(mm)

250x133x159.1

Mounting

Holes (mm)

110x220

Weight

3.7 Kgs

120x120x38 mm 120x120x25 mm

24V, 0.5A

24V, 0.25A

NOTES:

Please use the 24 VDC power with the ripple less than 10%

Please do not drop, otherwise component can crack and dameage the TECs.

Please keep 10cm distance from walls for proper ventilation when mounting.

Please do not use it when the temperature of the assembly or environment is higher

than 70°C.

Graph shows an example of when cabinet temperature is 50°C and the environment

temp is 50°C, the cooler can transfer 59W from the cabinet to the ambient.

∆T = T

enclosure

- T

ambient
