XC6209/XC6212
Series
■GENERAL
DESCRIPTION
ETR0306_003
High Speed LDO Regulators Low ESR Cap.Compativle,Output ON/OFFControl
The XC6209/XC6212 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS
processes. The series achieves high ripple rejection and low dropout and consists of a voltage reference, an error amplifier, a
current limiter and a phase compensation circuit plus a driver transistor.
Output voltage is selectable in 50mV increments within a range of 0.9V ~ 6.0V.
The series is also compatible with low ESR ceramic capacitors which give added output stability. This stability can be
maintained even during load fluctuations due to the excellent transient response of the series. The current limiter's foldback
circuit also operates as a short protect for the output current limiter and the output pin.
The CE function enables the output to be turned off, resulting in greatly reduced power consumption.
■APPLICATIONS
●Mobile
phones, Cordless phones
●Wireless
communication equipment
●Portable
games
●Cameras,
Video recorders
●Portable
AV equipment
●Reference
voltage
●Battery
powered equipment
■FEATURES
Maximum Output Current
: 150mA
(300mA=XC6209 E to H types)
Dropout Voltage
: 60mV @ 30mA
: 200mV @ 100mA
Maximum Operating Voltage
: 2.0V ~ 10V
Output Voltage Range
: 0.9V ~ 6.0V(50mV Step)
Highly Accurate
:
±2%
(V
OUT
>1.5V)
±30mV
(V
OUT≦
1.5V)
Low Power Consumption
: 25μA (TYP.)
Standby Current
: Less than 0.1μA (TYP.)
High Ripple Rejection
: 70dB (10kHz)
Operating Temperature Range
: -40℃~ +85℃
Low ESR Capacitor
: Ceramic capacitor
Compatible
Ultra Small Packages
: SOT-25
: USP-6B (XC6209)
SOT-89-5 (XC6209)

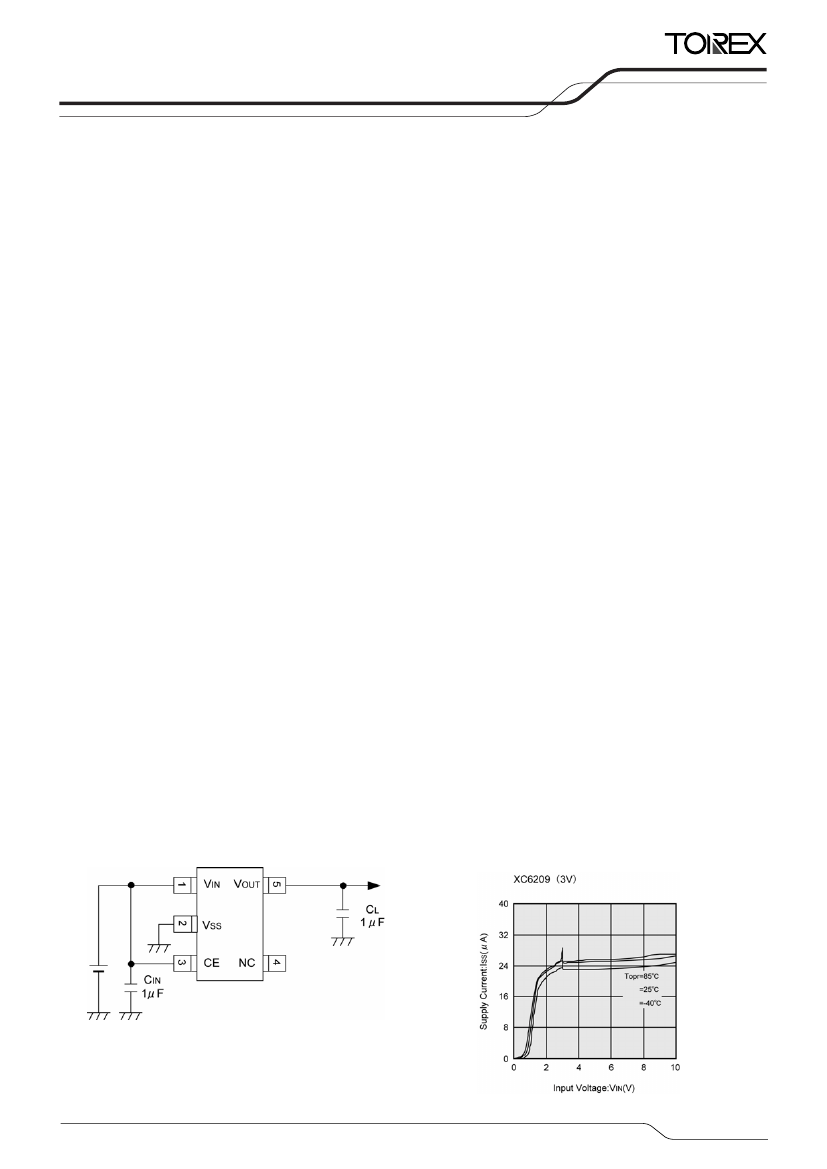

■TYPICAL
APPLICATION CIRCUIT
■TYPICAL
PERFORMANCE
CHARACTERISTICS
1/25
XC6209/XC6212
Series

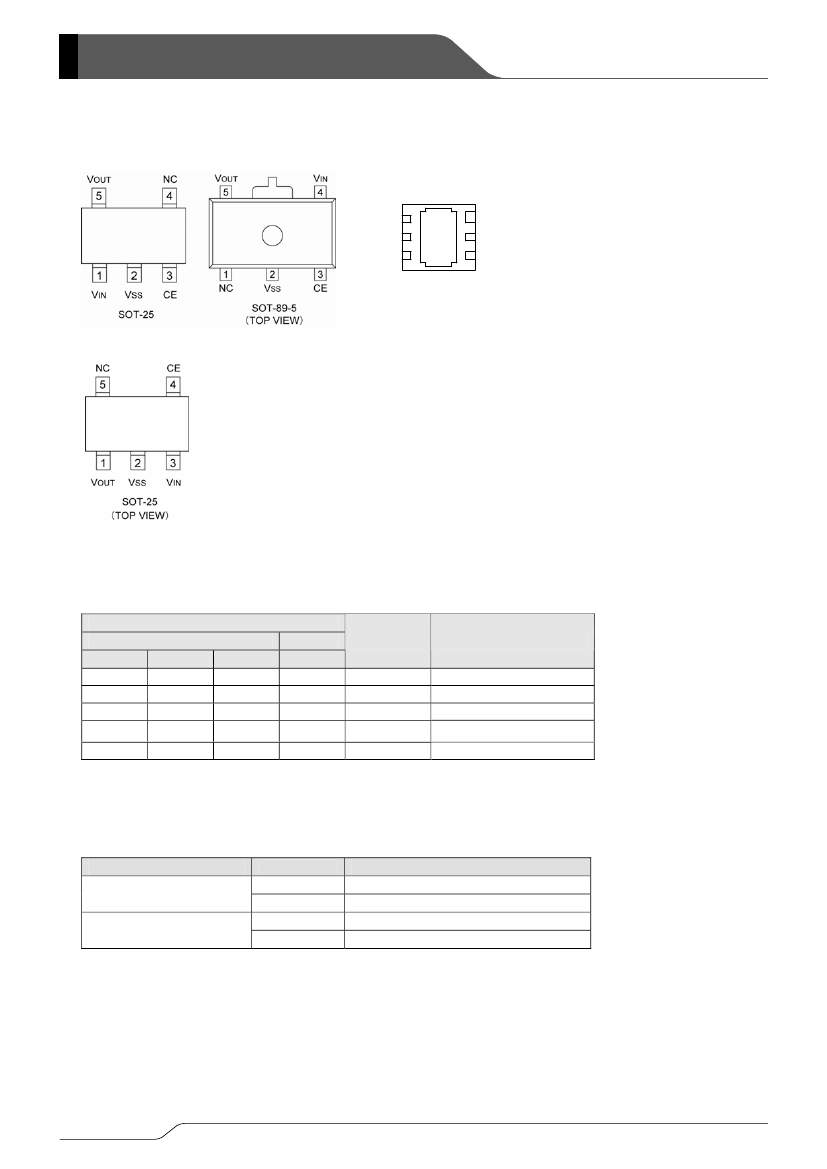

■PIN
CONFIGURATION
[XC6209]
CE 6
VSS 5
NC 4
1 VIN
2 NC
3 VOUT
USP-6B
(BOTTOM VIEW)
*The dissipation pad for the USP-6B
package should be solder-plated in
recommended mount pattern and metal
masking so as to enhance mounting
strength and heat release. If the pad
needs to be connected to other pins, it
should be connected to the V
SS
pin.
[XC6212]
■PIN
ASSIGNMENT
PIN NUMBER
XC6209
SOT-89-5 USP-6B
4
1
2
5
3
6
1
5
2,4
3
XC6212
SOT-25
3
2
4
5
1
PIN NAME
V
IN
V
SS
CE
NC
V
OUT
FUNCTION
Input
Ground
ON/OFF Control
No Connection
Output
SOT-25
1
2
3
4
5
■FUNCTIONS
TYPE
A, B, E, F Series
C, D, G, H Series
H=High Level
L=Low Level
CE
H
L
H
L
OPERATIONAL STATE
ON
OFF
OFF
ON
2/25
XC6209/XC6212
Series
■PRODUCT
CLASSIFICATION
●Selection
Guide
The following options for the CE pin logic and internal pull-up/down are available:
High Active + no pull-down resistor built-in (standard)
High Active+ 2MΩ pull-down resistor built-in <between CE-V
SS
> (semi-custom)
Low Active + no pull-up resistor built-in (semi-custom)
Low Active + 2MΩ pull-up resistor built-in <between V
IN
-CE> (semi-custom)
Note: *With the pull-up resistor or pull-down resistor built-in types, the supply current during operation will increase by
VIN / 2MΩ (TYP.).
●Ordering
Information
XC6209/12①②③④⑤⑥
DESIGNATOR
①
(*1)
DESCRIPTION
Type of Regulator
CE Pin Logic
SYMBOL
A/E
B/F
C/G
D/H
②
③
Output Voltage
09~60
2
1
A
B
M
⑤
Package
P
D
⑥
Device Orientation
R
L
DESCRIPTION
: High Active (pull-down resistor built-in, semi-custom)
: High Active (no pull-down resistor built-in, standard)
: Low Active (pull-up resistor built-in, semi-custom)
: Low Active (no pull-up resistor built-in, standard)
: e.g. 20:2.0V,
30:3.0V,
: 100mV increments,
±2%
accuracy (*2)
e.g.
②=2, ③=8, ④=2 →
2.80V,
±2%
: 100mV increments,
±1%
accuracy (*2)
e.g.
②=2, ③=8, ④=1 →
2.80V,
±1%
: 50mV increments,
±2%
accuracy (*2)
e.g.
②=2, ③=8, ④=A →
2.85V,
±2%
: 50mV increments,
±1%
accuracy (*2)
e.g.
②=2, ③=8, ④=B →
2.85V,
±1%
: SOT-25 (SOT-23-5)
: SOT-89-5 (for XC6209 series only)
: USP-6B (for XC6209 series only)
: Embossed tape, standard feed
: Embossed tape, reverse feed
④
Output Voltage
Accuracy
(*1) Maximum output current of XC6209 E to H series depend on the setting voltage.
(*2) Within
±30mV
(V
OUT
≦
1.5V)
3/25
XC6209/XC6212
Series
■BLOCK
DIAGRAM
■ABSOLUTE
MAXIMUM RATINGS
Ta=25℃
PARAMETER
Input Voltage
Output Current
Output Voltage
CE Input Voltage
SOT-25
SOT-89-5
Power Dissipation
USP-6B
Operating Temperature Range
Storage Temperature Range
Topr
Tstg
SYMBOL
V
IN
I
OUT
V
OUT
V
CE
Pd
RATINGS
12.0
500
V
SS
- 0.3 ~ V
IN
+ 0.3
V
SS
- 0.3 ~ V
IN
+ 0.3
250
500
100
-40 ~ +85
-55 ~ +125
℃
℃
UNITS
Ｖ
mA
Ｖ
Ｖ
mW
* Note: Within the range of I
OUT
= Pd/(V
IN
-V
OUT
)
4/25
XC6209/XC6212
Series
■ELECTRICAL
CHARACTERISTICS
XC6209/6212A, B Series
PARAMETER
Output Voltage
Maximum Output Current
Load Regulation
Dropout Voltage (*4)
Supply Current (A series)
I
DD
Supply Current (B series)
Standby Current
Istby
SYMBOL
V
OUT(E)
I
OUTMAX
△V
OUT
Vdif1
Vdif2
CONDITIONS
2% accuracy (*7)
I
OUT
=30mA
1% accuracy (*8)
1mA< I
OUT
<100mA
I
OUT
=30mA
I
OUT
=100mA
V
IN
=V
CE
= V
OUT(T)+
1.0V
(V
OUT
<0.95V)=(V
IN
=V
CE
=2.0V)
V
IN
=V
CE
=V
OUT(T)+
1.0V
(V
OUT
<0.95V)=(V
IN
=V
CE
=2.0V)
V
IN
=V
OUT(T)+
1.0V, V
CE
=V
SS
(V
OUT
<0.95V)=(V
IN
=2.0V)
V
OUT(T)+
1.0V<V
IN
<10V
(V
OUT
<0.95V)=(2.0V<V
IN
<10V)
I
OUT
=30mA
(V
OUT
<1.75V)=(I
OUT
=10mA)
I
OUT
=30mA
-40℃<Topr<85℃
V
IN
={V
OUT(T)+
1.0}V+1.0Vp-pAC,
(V
OUT
<1.5V)=(V
IN
=2.5V+1.
0Vp-pA
C
), I
OUT
=50mA, f=10kHz
V
IN
=V
OUT(T)+
1.0V, V
CE
=V
IN
,
(
V
OUT<
1.75V
)=(
V
IN=
V
OUT(T)+
2.0V
)
V
IN
=V
OUT(T)+
1.0V, V
CE
=V
IN
,
(
V
OUT<
1.75V
)=(
V
IN=
V
OUT(T)+
2.0V
)
MIN.
×0.98
×0.99
150
-
TYP.
V
OUT(T)
V
OUT(T)
-
15
E-1
E-2
28
25
-
0.01
MAX.
×1.02
×1.01
-
50
Ta=25℃
UNITS CIRCUIT
V
mA
mV
mV
1
1
1
1
-
55
μA
50
0.10
μA
2
2
Line Regulation
Input Voltage
Output Voltage
Temperature Characteristics
Ripple Rejection Rate
Current Limiter
Short-circuit Current
CE "High" Voltage
CE "Low" Voltage
CE "High" Current (A series)
CE "High" Current (B series)
CE "Low" Current
NOTE :
△V
OUT
△V
IN
½V
OUT
V
IN
△V
OUT
△Topr½V
OUT
PSRR
I
lim
Ishort
V
CEH
V
CEL
I
CEH
I
CEH
I
CEL
-
2
-
-
-
-
1.6
-
0.01
-
100
70
300
50
-
-
-
0.20
10
-
-
-
-
V
IN
0.25
5.0
0.10
％/V
V
ppm
/℃
dB
mA
mA
V
V
μA
1
-
1
4
1
1
1
2
2
V
IN
=V
CE
=V
OUT(T)+
1.0V
(V
OUT
<0.95V)=(V
IN
=V
CE
=2.0V)
V
IN
=V
CE
=V
OUT(T)+
1.0V
(V
OUT
<0.95V)=(V
IN
=V
CE
=2.0V)
V
IN
=
VOUT(T)+
1.0V, V
CE
=V
SS
(V
OUT<
0.95V)=(V
IN
=2.0V)
If V
OUT
is less than 0.95V, V
IN
= 2.0V.
0.60
-0.10
-0.10
-
0.10
μA
2
* 1: Unless otherwise stated, V
IN
=V
OUT(T)+
1.0V.
* 2: V
OUT(T)=
Specified output voltage
* 3: V
OUT(E)=
Effective output voltage
(I.e. the output voltage when "V
OUT(T)+
1.0V" is provided at the V
IN
pin while maintaining a certain I
OUT
value).
* 4: Vdif={V
IN1
(*6)
-V
OUT1
(*5)
}
* 5: V
OUT1
=A voltage equal to 98% of the output voltage whenever an amply stabilized I
OUT
{V
OUT(T)+
1.0V} is input.
* 6: V
IN1
=The input voltage when V
OUT1
appears as Input Voltage is gradually decreased.
* 7: If V
OUT(T)
is less than 1.45V, V
OUT(T)
-30mV (MIN.),
V
OUT(T)
+ 30mV (MAX.)
* 8: Only for the V
OUT(T)
more than 3.0V products.
5/25
