337LBB160M2BC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 337LBB160M2BC

337LBB160M2BC: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, ROHS COMPLIANT; CategoryPassive components capacitor; File Size646KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric Compare View All

337LBB160M2BC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	337LBB160M2BC	-	-	View	Buy Now

337LBB160M2BC Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, ROHS COMPLIANT

337LBB160M2BC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4000906712
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	22 mm
dielectric materials	ALUMINUM (WET)
ESR	502.38 mΩ
JESD-609 code	e3
leakage current	0.6893 mA
length	25 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	160 V
ripple current	1400 mA
surface mount	NO
Delta tangent	0.1
Terminal surface	Matte Tin (Sn)
Terminal pitch	10 mm
Terminal shape	SNAP-IN

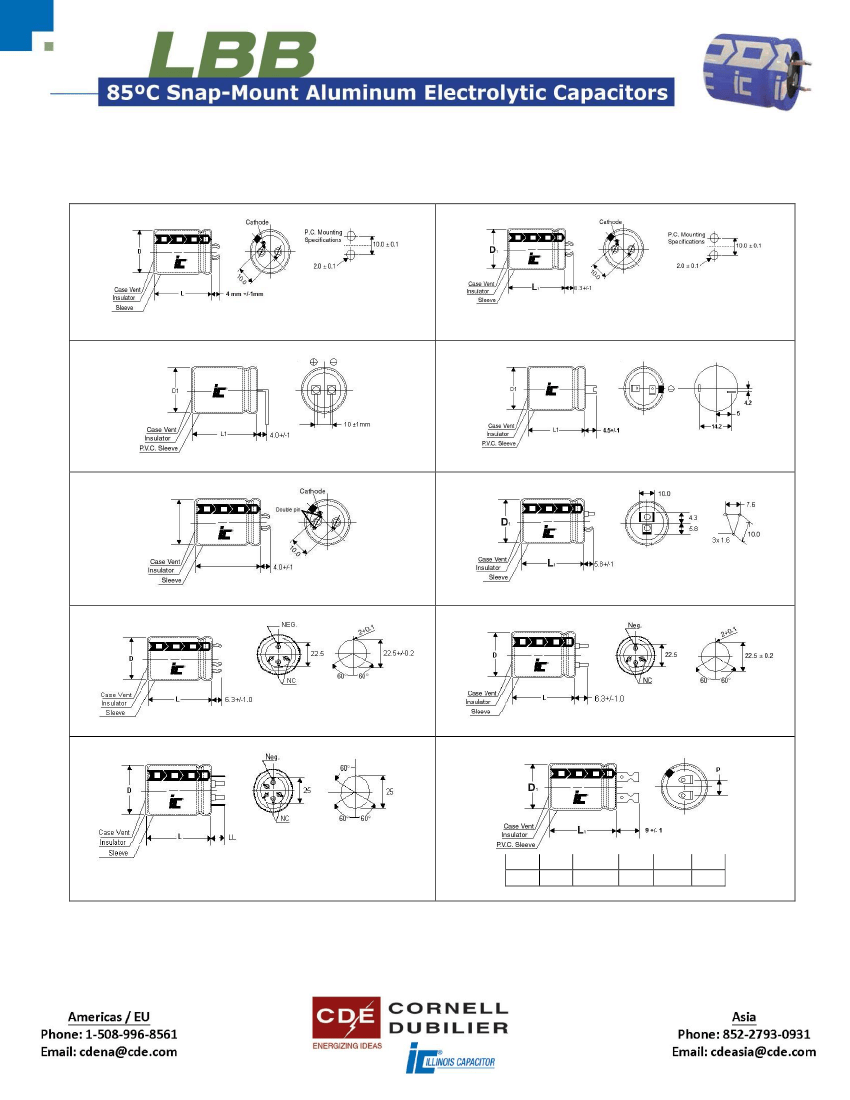

Preview

Download Datasheet

View All

FEATURES

Multiple Case Sizes

High Voltage

–

High Current

APPLICATIONS

Filtering

–

Switching Power Supplies

Operating Temperature

Range

Capacitance Tolerance

Surge Voltage

Dissipation

Factor tan

(120 Hz)

WVDC

SVDC

WVDC

D<30

D=35

D>40

-40°C to +85°C

+20% at 120 Hz, 20°C

100 160 200 250 350

400

100

120 200 250 300 400

450

100 160 200 250 350

400

.25

.15

.25

.15

.45

.35

.25

For capacitances above 33000uF, add to DF value (Capacitance-33000) *0.1

10000

450

500

450

.15

Leakage Current @20C,

Rated WVDC applied

Time

5 Minutes

3√CV

100

160

200

250

350

400

450

Impedance

Ratio

(120 Hz)

WVDC

-25°C/+20°C

-40°C/+20°C

3000 hours with rated voltage and rated ripple current applied at 85°C

Load Life

Capacitance Change

Dissipation Factor

Leakage Current

Capacitance Change

Dissipation Factor

Leakage Current

<20% of initial measured value

<200% of maximum specified value

<100% of maximum specified value

<20% of initial measured value

<200% of maximum specified value

<100% of maximum specified value

1000 hours at 85°C with no voltage applied

Shelf Life

Ripple Current

Multipliers

WVDC

<100

>160

Frequency (Hz)

0.8

120

1.0

400

1.1

1.15

10k+

1.25

1.47

1.8

Temperature (°C)

1.4

1.2

Sep-21

337LBB160M2BC Related Products

	337LBB160M2BC	158LBB160M2EE	108LBB160M2DD	277LBB250M2BD	827LBB200M2CF
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 1500uF, Through Hole Mount, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 820uF, Through Hole Mount, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Objectid	4000906712	4000912899	4000906730	4000916509	4000916510
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	330 µF	1500 µF	1000 µF	270 µF	820 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	502.38 mΩ	165.786 mΩ	165.79 mΩ	614.02 mΩ	202.18 mΩ
JESD-609 code	e3	e3	e3	e3	e3
leakage current	0.6893 mA	4.8 mA	1.2 mA	0.7794 mA	1.2149 mA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	160 V	160 V	160 V	250 V	200 V
ripple current	1400 mA	4260 mA	2980 mA	1570 mA	3170 mA
surface mount	NO	NO	NO	NO	NO
Delta tangent	0.1	0.15	0.1	0.1	0.1
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN
diameter	22 mm	-	30 mm	22 mm	25 mm
length	25 mm	-	30 mm	30 mm	40 mm
Package form	Snap-in	-	Snap-in	Snap-in	Snap-in
Terminal pitch	10 mm	-	10 mm	10 mm	10 mm
