B061-0412-119-Z: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size285KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B061-0412-119-Z Overview

Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

B061-0412-119-Z Parametric

Parameter Name	Attribute value
Objectid	304393473
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	0.197 inch
body length	0.22 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	B061
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

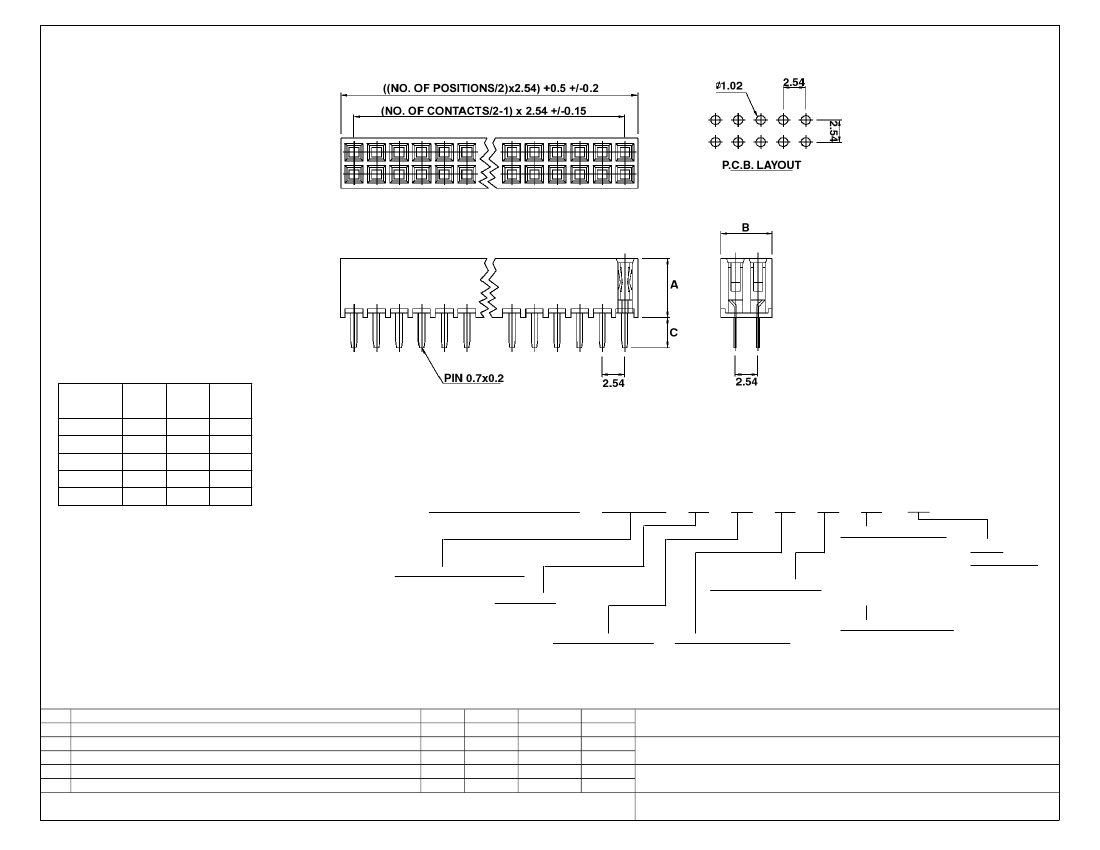

DIMENSION(mm)

DIMENSION

NUMBER

1

2

3

4

5

A

5.00

6.80

7.10

8.00

10.80

B

5.08

5.90

5.00

5.50

C

3.00

3.50

3.00

3.50

3.00

HOW TO ORDER:

B

O

6

1

-

X

1

2

-

1

X

-

Z

RoHS

COMPLIANT

* STRAIGHT DEFINITION ONLY

ELECTRICAL:

CURRENT RATING: 3A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

CONTACT: PHOSPHOR BRONZE

INSULATOR: GLASS FILLED POLYESTER, UL94V-0

NUMBER OF CONTACTS:

04 thru 80

DEFINITION:

1 - STRAIGHT

NUMBER OF ROWS:

2 - DOUBLE ROW

DIMENSION NUMBER:

SEE DIMENSION

NUMBER ABOVE

PIN STYLE CONTACT:

1 - CANTILEVER BEAM

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Rev

0 Issued

A Revised for RoHS Compliance

Drawn

S.E.

B.S.

Checked

S.M.

Approved

S.M.

Date

10/01/97

08/08/08

SMP TECHNOLOGY, INC.

RECEPTACLE ASSEMBLY, 2.54mm PITCH

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SERIES: B061

Pg: 1
