B165-0812-207-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B165-0812-207-Z

B165-0812-207-Z: DescriptionBoard Connector, 32 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Wire Wrap Terminal, Plug; CategoryThe connector The connector; File Size193KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B165-0812-207-Z Overview

Board Connector, 32 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Wire Wrap Terminal, Plug

B165-0812-207-Z Parametric

Parameter Name	Attribute value
Objectid	304394705
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.315 inch
subject depth	0.368 inch
body length	0.642 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	B165
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	10u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.476 inch
Terminal pitch	2.0066 mm
Termination type	WIRE WRAP
Total number of contacts	32

Preview

Download Datasheet

View All

HOW TO ORDER:

ELECTRICAL:

CURRENT: 2.0 AMP MAX.

CONTACT RESISTANCE: 30mΩ Max.

INSULATOR RESISTANCE: 1000MΩ Min. @ 500V DC

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS / ROW:

3 CONTACTS (Min.)

30 CONTACTS (Max.)

BODY HEIGHT:

PLATING OVERALL:

0 - FULL TIN

2 - 9.35mm

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

ORIENTATION:

1 - STRAIGHT

TAIL LENGTHS:

2 - PRESS FIT (12.0mm)

RoHS

COMPLIANT

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER (UL94V-0) ; NYLON 9T

CONTACT: PHOSPHOR BRONZE

Rev

0 Reissue w/ new Compliant Section

Drawn Checked Approved

A.M.

S.M.

D.H.

S.M.

B.S.

S.M.

Date

7/28/03

8/02/04

1/7/07

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

SCALE:n/a

TOL. DEC.

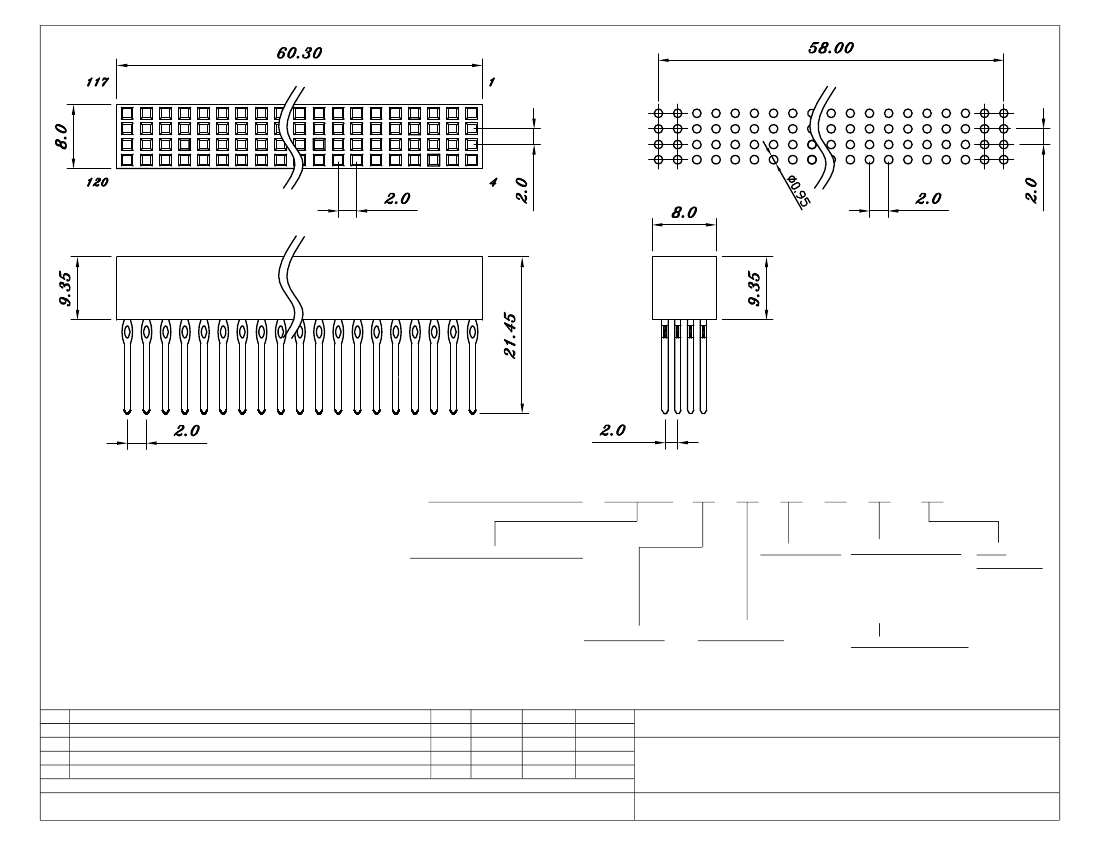

Receptacle Assembly, Stacking, 2.00mm Pitch, 4 Row,

Vertical Press Fit, PC/104

SERIES: B165-XX12-20X-Z

.X +/- 0.25

.XX +/- 0.10

.XXX +/- 0.5

ANGLE +/- 5°

UNIT: mm

Pg: 1
