SDP7912AJDAWD1 datasheet, PDF - EEWORLD Datasheet

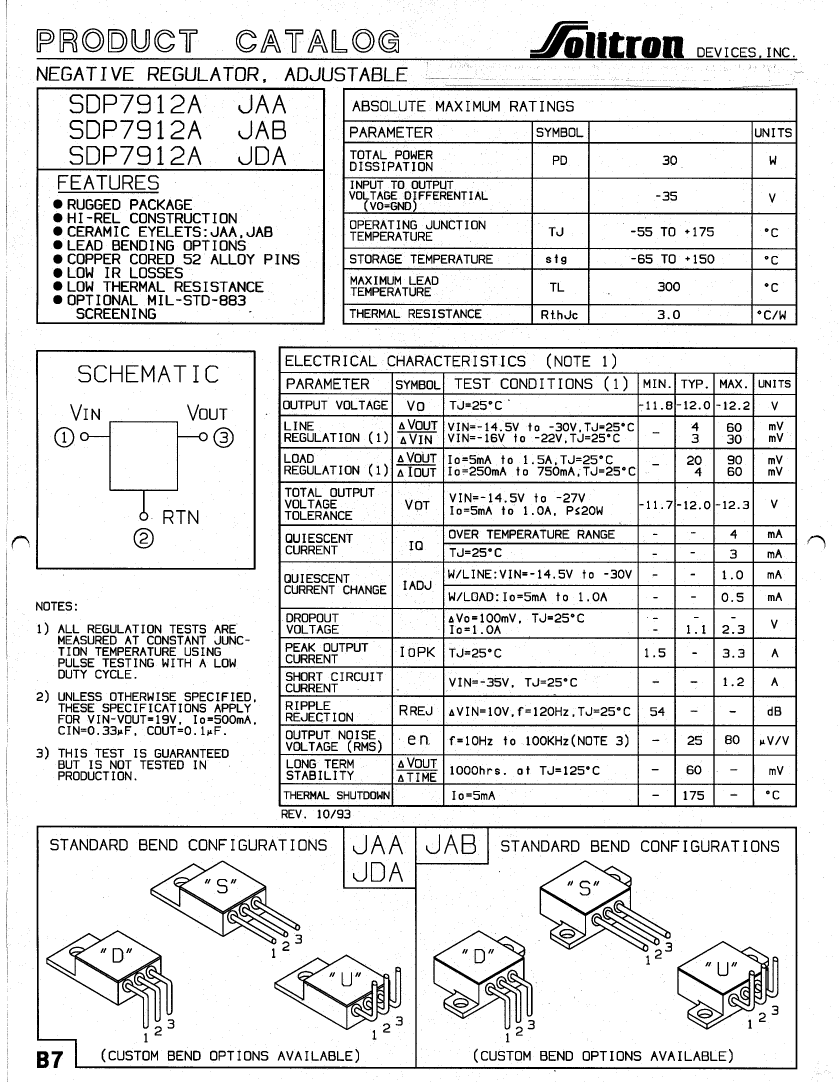

SDP7912AJDAWD1: DescriptionRegulator, 1 Output, BIPolar,; CategoryPower/power management The power supply circuit; File Size153KB，1 Pages; ManufacturerSolitron Devices Inc.

Download Datasheet Parametric Compare View All

SDP7912AJDAWD1 Overview

Regulator, 1 Output, BIPolar,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	100067163
package instruction	, SIP3,.1TB
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	2.3 V
Maximum absolute input voltage	35 V
JESD-609 code	e0
Maximum grid adjustment rate	0.06%
Maximum load regulation	0.09%
Output times	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-55 °C
Maximum output current 1	1.5 A
Nominal output voltage 1	-12 V
Package body material	METAL
Encapsulate equivalent code	SIP3,.1TB
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	2.5%

	SDP7912AJDAWD1	SDP7912AJDAWU1	SDP7912AJDAZD1	SDP7912AJDAZS
Description	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,	Regulator, 1 Output, BIPolar,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Objectid	100067163	100067165	100067176	100067177
package instruction	, SIP3,.1TB	, SIP3,.1TB	, SIP3,.1TB	, SIP3,.1TB
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Adjustability	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	2.3 V	2.3 V	2.3 V	2.3 V
Maximum absolute input voltage	35 V	35 V	35 V	35 V
JESD-609 code	e0	e0	e0	e0
Maximum grid adjustment rate	0.06%	0.06%	0.06%	0.06%
Maximum load regulation	0.09%	0.09%	0.09%	0.09%
Output times	1	1	1	1
Number of terminals	3	3	3	3
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C
Working temperature TJ-Min	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current 1	1.5 A	1.5 A	1.5 A	1.5 A
Nominal output voltage 1	-12 V	-12 V	-12 V	-12 V
Package body material	METAL	METAL	METAL	METAL
Encapsulate equivalent code	SIP3,.1TB	SIP3,.1TB	SIP3,.1TB	SIP3,.1TB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535V;38534K;883S	38535V;38534K;883S
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum voltage tolerance	2.5%	2.5%	2.5%	2.5%
