2PH2-26-SG-SMT-.075-10: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerAdam Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

2PH2-26-SG-SMT-.075-10 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

2PH2-26-SG-SMT-.075-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305013959
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.076 inch
body length	1.027 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	2PH
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.0894 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	26

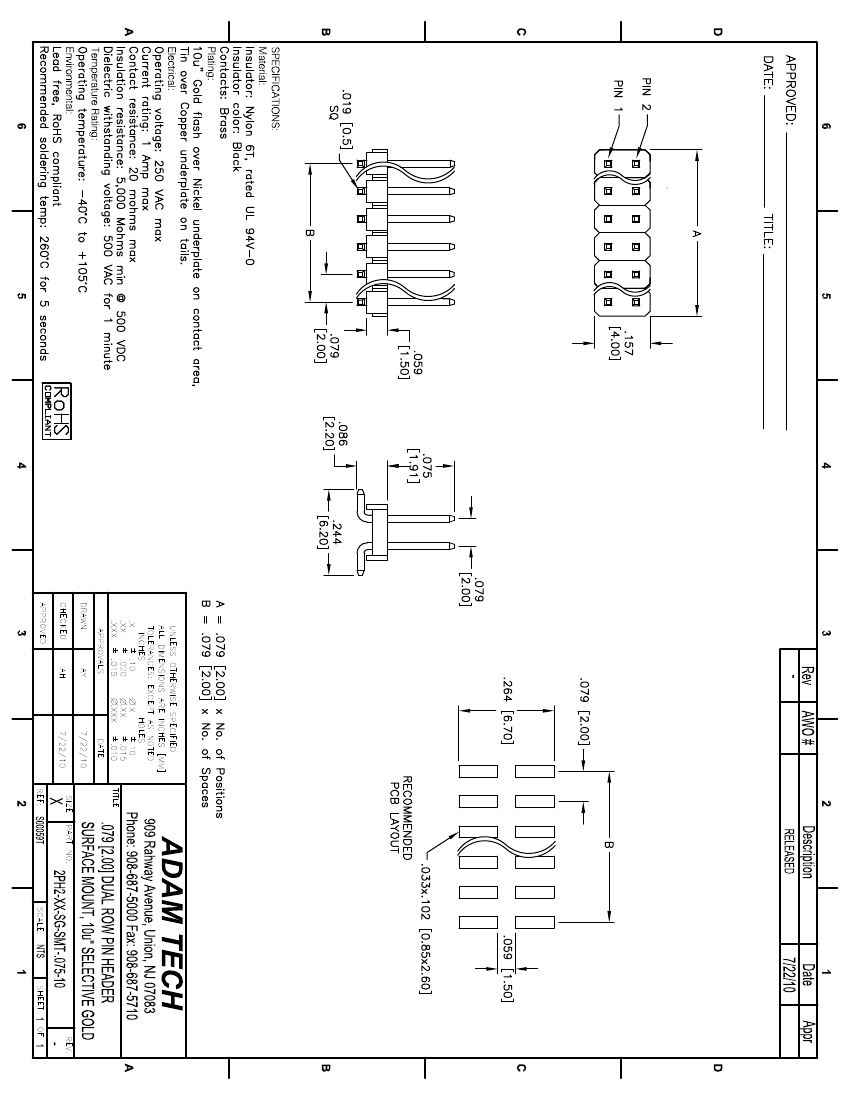

2PH2-26-SG-SMT-.075-10 Preview
