M83723/65H204110

Description
MIL Series Connector, 41 Contact(s), Carbon Steel, Female, Crimp Terminal
CategoryThe connector    The connector
File Size119KB,4 Pages
ManufacturerDefense Logistics Agency
Download Datasheet Parametric View All

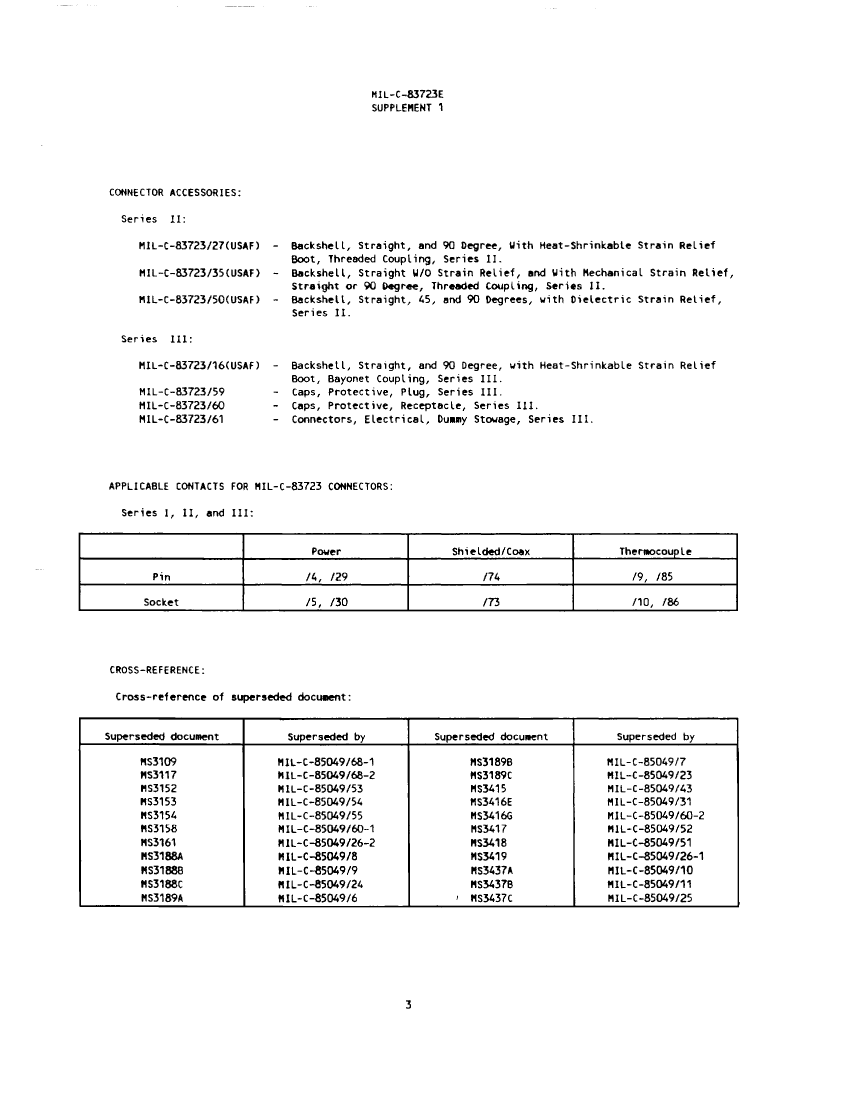

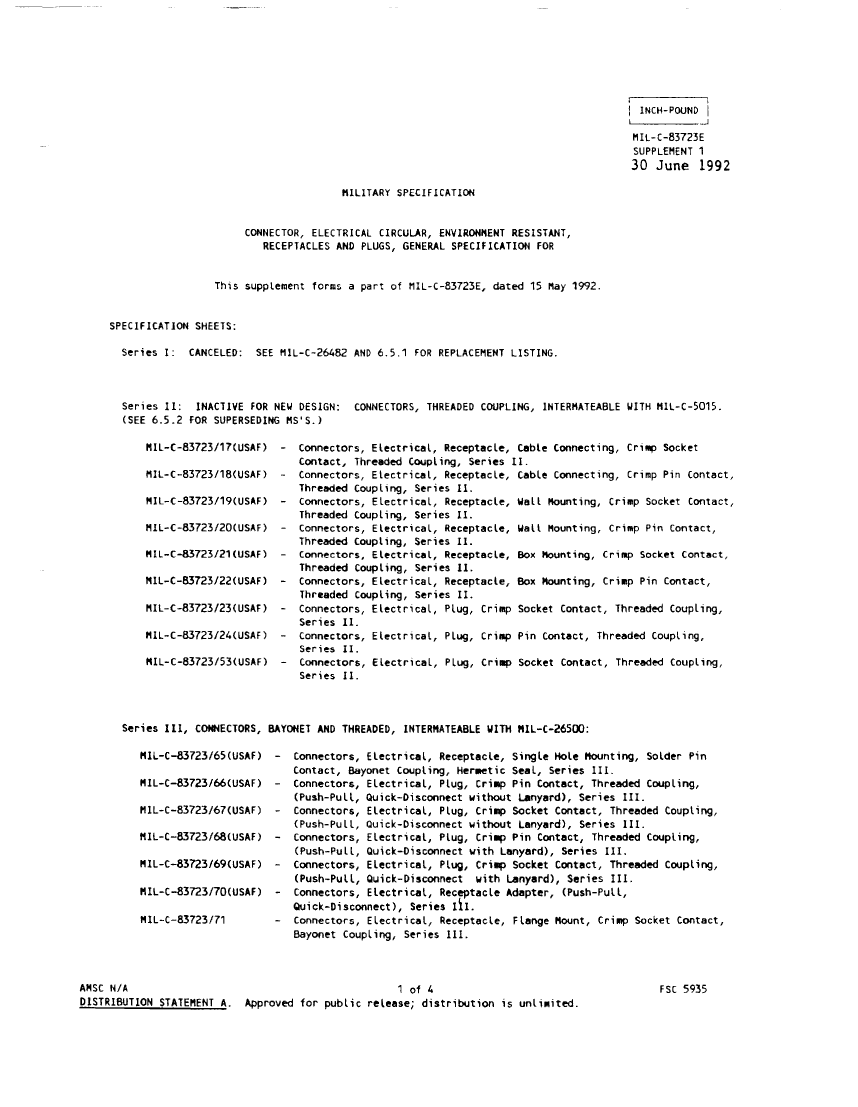

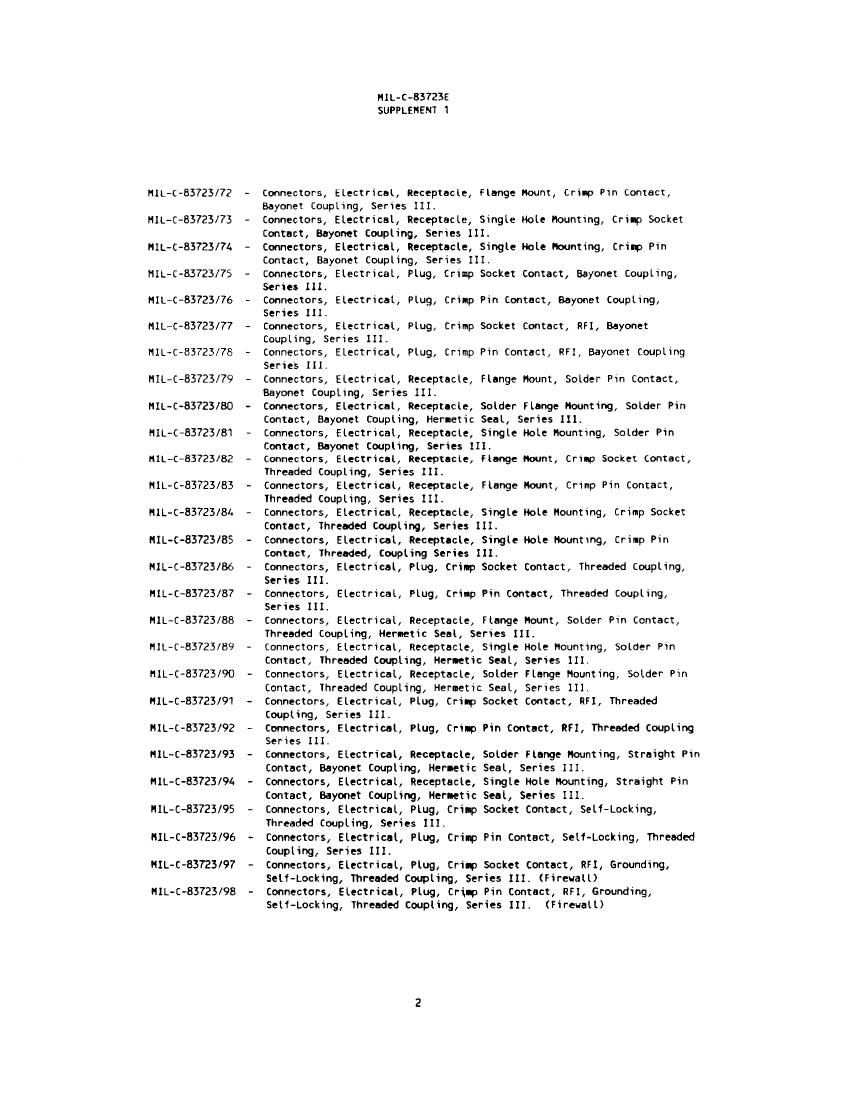

M83723/65H204110 Overview

MIL Series Connector, 41 Contact(s), Carbon Steel, Female, Crimp Terminal

M83723/65H204110 Parametric

Parameter NameAttribute value
Objectid1131037417
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSTANDARD: MIL-C 83723
Rear interface of connectorMS3155 Per Spec=3Teeth
Connector insertion detailsI246
Connector typeMIL SERIES CONNECTOR
Contact point genderFEMALE
Contact part numberM39029/5-115
Number of contacts41
Contact size20
Contact typeCrp Rear Rlse
Coupling typeBAYONET
other instructionsReceptacle, Jam Nut
Drawing date and revision17DEC91,C
Environmental characteristicsHERM, CRP TERMINATED
waterproof levelComplete
MIL complianceYES
Manufacturer's serial numberM83723/65
Military connector housing0188B
Mixed contactsNO
Maximum operating temperature200 °C
Minimum operating temperature-55 °C
Maximum plug diameter1.51 inch
polarization10
Shell surfaceTIN PLATED
Shell materialCARBON STEEL
Housing size20
Termination typeCRIMP
Total number of contacts41
Unique insertion number20-41
