AR11-3728: DescriptionSingle Port RJ45 Connector; File Size380KB，2 Pages; ManufacturerALLIED [Allied Electronics]

Download Datasheet View All

AR11-3728 Overview

Single Port RJ45 Connector

Preview

Download Datasheet

View All

RoHS

Single Port RJ45 Connector

AR11-3728

10/100 Base T Gigabit for Ethernet Applications

RJ45 jack cavity conforms to FCC rules

and regulations Part 68, SUB Part F

Operating Temp: 0ºC to +70ºC

Contact Factory for Industrial Temp.

Available in other Circuit Designs

Optional Gold Plating Thickness

Other LED Patterns available

Electrical Speciﬁcations @ 25°C

Part

Number

AR11-3728

OCL(uH Min)

@ 100kHz, 0.1V

With 8mA DC Bias

350

Turns Ratio

(± 2%)

1:1

Insertion Loss

(dB Max)

100-125MHz

1-100MHz

10/100/1000MHz

-1.0

Return Loss

(dB Min) @ Load 100 Ohm

80-100MHz

1-30MHz 30-50MHz 60MHz 60-80MHz

10/100/1000MHz

-14

-10

-18

-12

-16

Electrical Speciﬁcations @ 25°C

0.5-10MHz

-50

Cross Talk

(dB Min)

50MHz

30MHz

-35

-40

HI-POT

1.0mA (V)

100MHz

-30

Without Capacitance

1500 AC

With Capacitance

2250 DC

CMR

(dB Min)

1-100 MHz

-30

All specifications subject to change without notice.

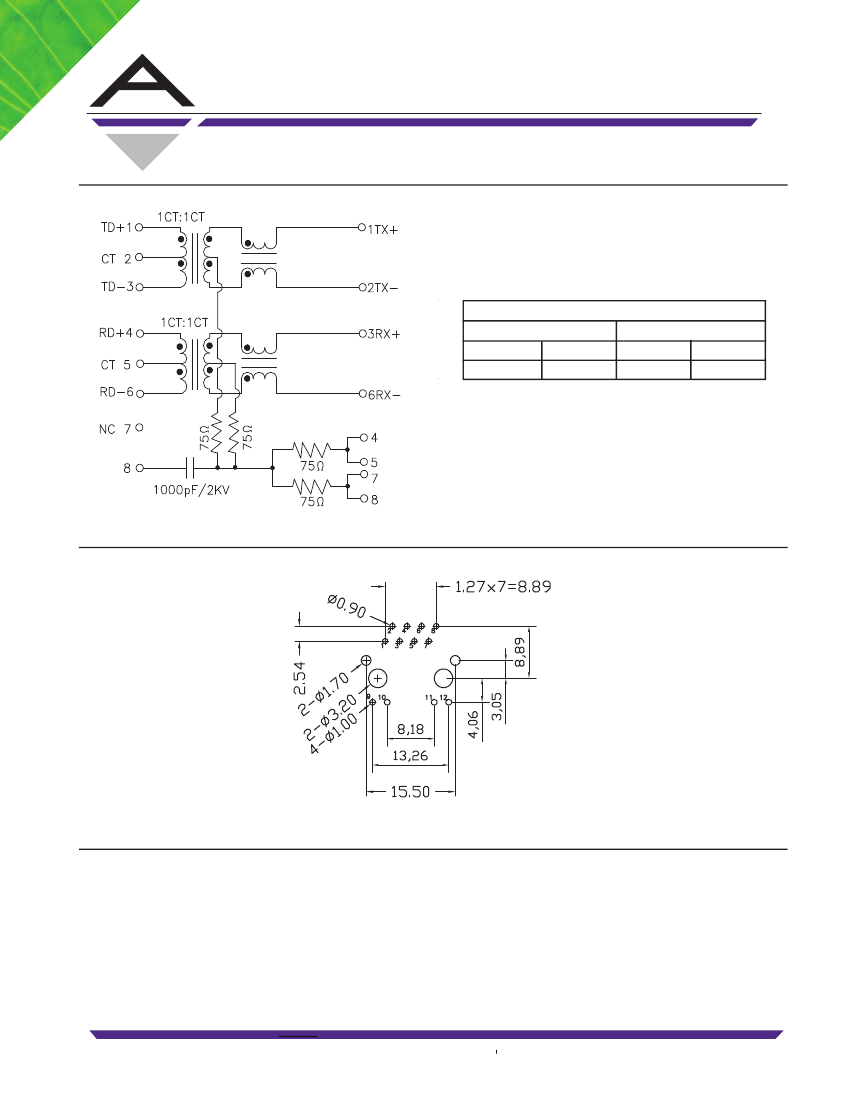

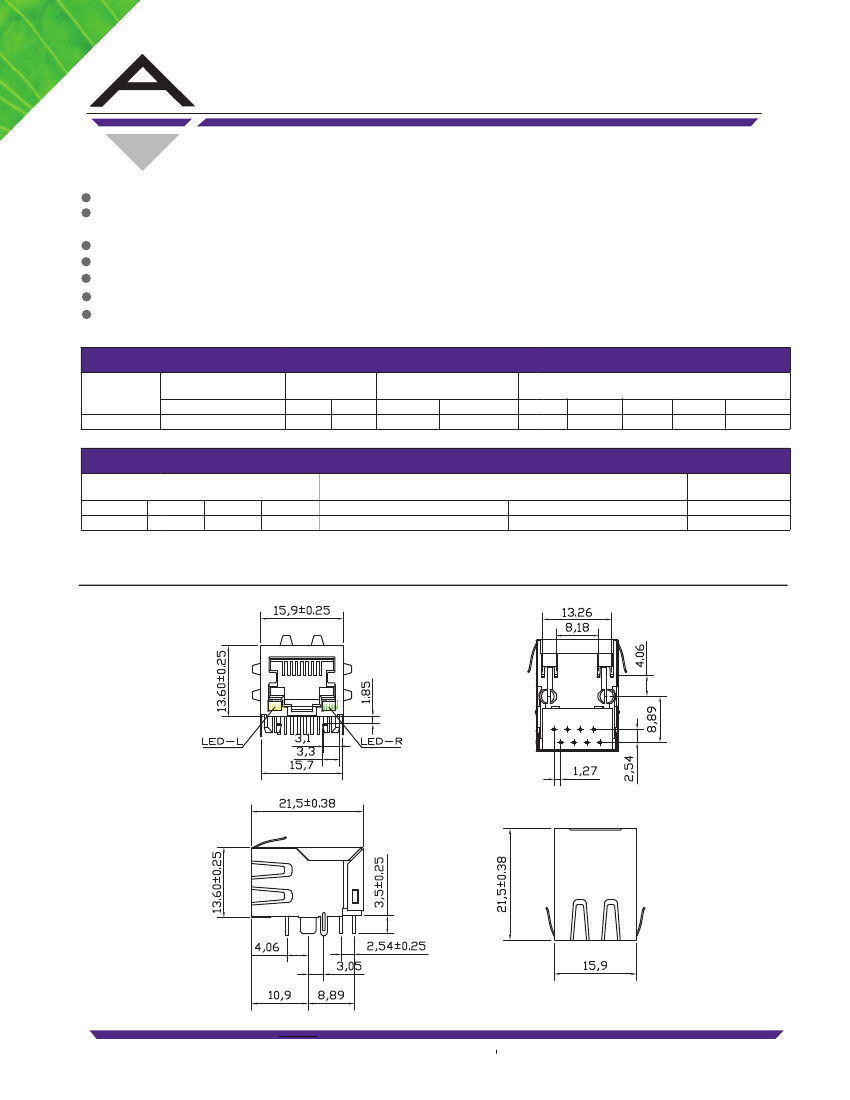

MECHANICAL

949-356-1780

ALLIED COMPONENTS INTERNATIONAL

03/24/2014

www.alliedcomponents.com
