AR1USB1-4068 Overview

Single Port RJ45 and Single Port USB Combo

RoHS

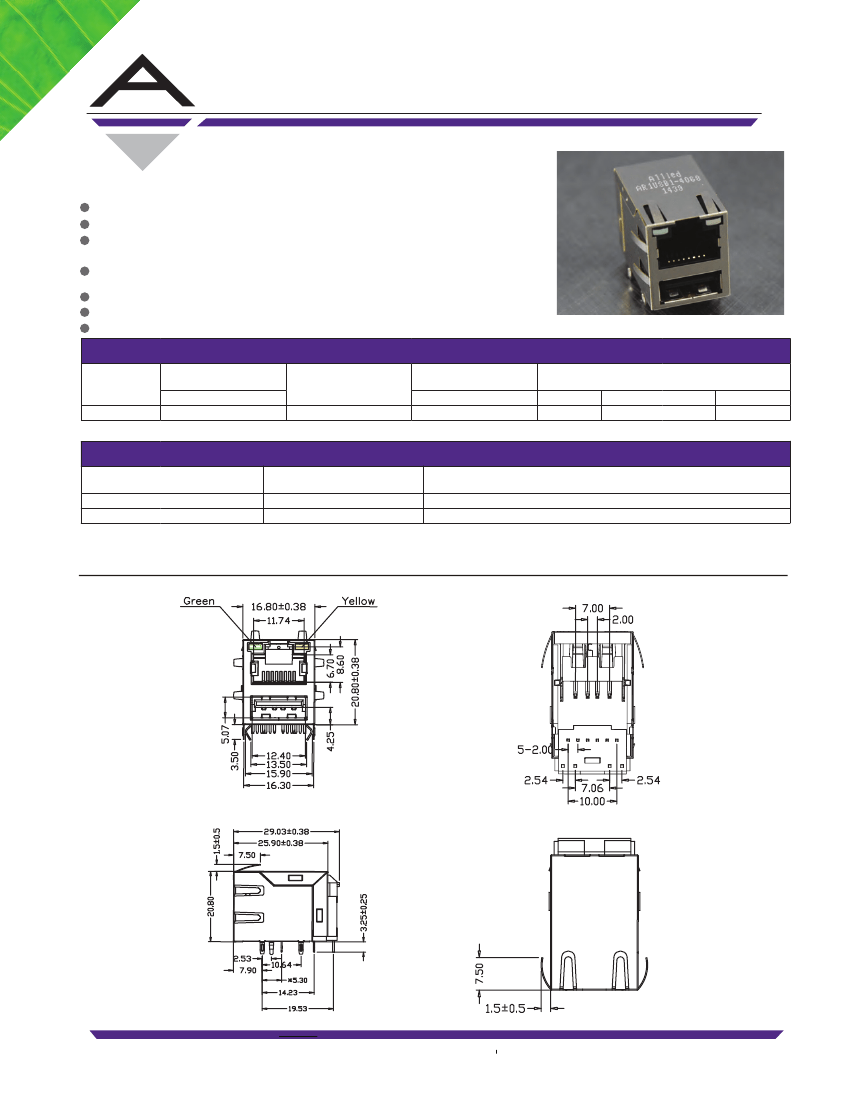

Single Port RJ45 & Single Port USB Combo
AR1USB1-4068
10/100 BaseT For Ethernet and other Networking Application
Single Port USB 2.0
Transmit open circuit inductance (OCL):
350uH (MIN) @100KHz,0.1VRMS with 8mA DC Bias
RJ45 jack cavity conforms to FCC rules and regulations
Part 68, SUB Part F
Standard Operating Temp: 0ºC to +70ºC
Contact Factory for Industrial Temp.
Storage temperature range: -40ºC to +85ºC
Electrical Specifications @ 25°C
Part
Number
AR1USB1-4068
OCL(uH Min)
@ 100kHz, 0.1V
With 8mA DC Bias
350
Turns Ratio
chip: cable
1:1
Insertion Loss
(dB Max)
1-100MHz
1.0
1-30MHz
-18
Return Loss
(dB Min 100Ω)
30-60MHz
-16
60-80MHz
-12
Electrical Specifications @ 25°C
Commom Mode Rejection
(dB Min)
1-100MHz
-30
Cross Talk
(dB Min)
1-100MHz
-30

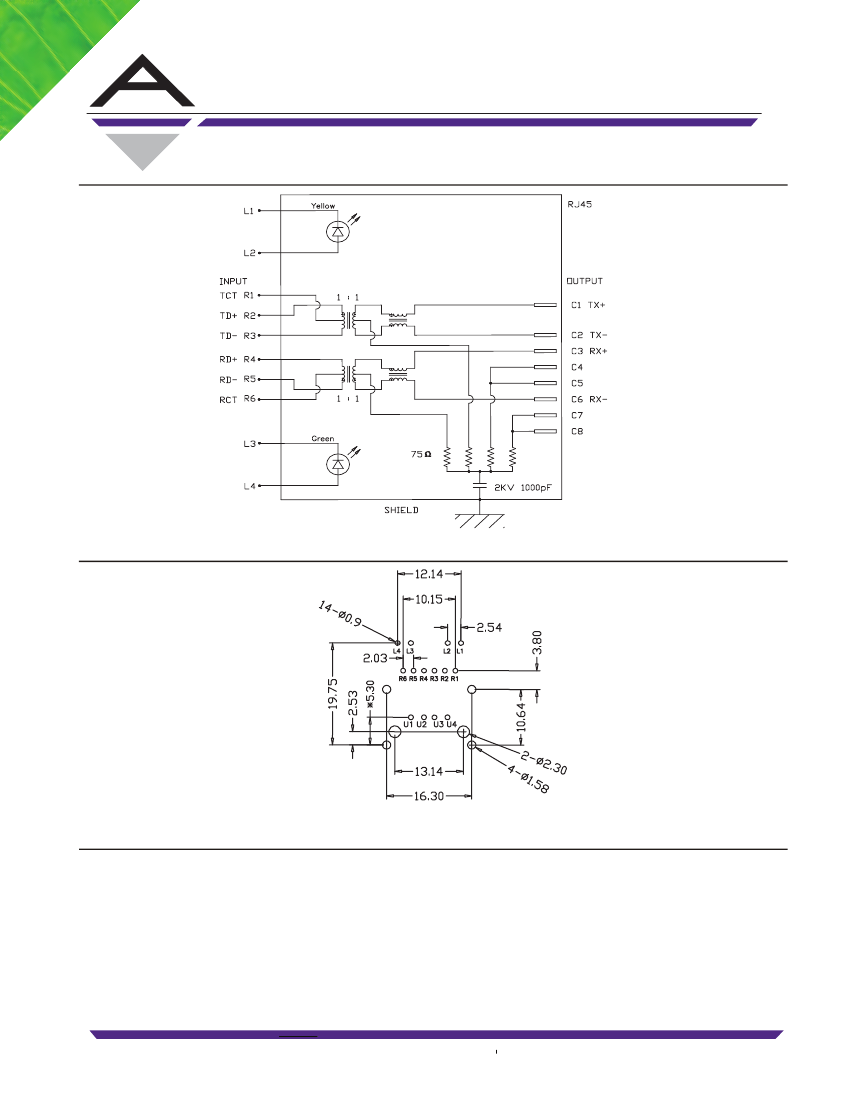

HiPot Test
Inpout (R2-R3) to Output (C1-C2) : 1500 VAC, 60 Sec or 2250VDC, 60 sec
Inpout (R2-R3) to Output (C1-C2) : 1500 VAC, 60 Sec or 2250VDC, 60 sec
All specifications subject to change without notice.
MECHANICAL
949-356-1780
ALLIED COMPONENTS INTERNATIONAL
01/21/2015
15
www.alliedcomponents.com
