DOMINANT
Innovating Illumination
TM
DATA SHEET :
Opto Technologies
Primax
TM
150 InGaN : NAx-FSG
Primax
TM

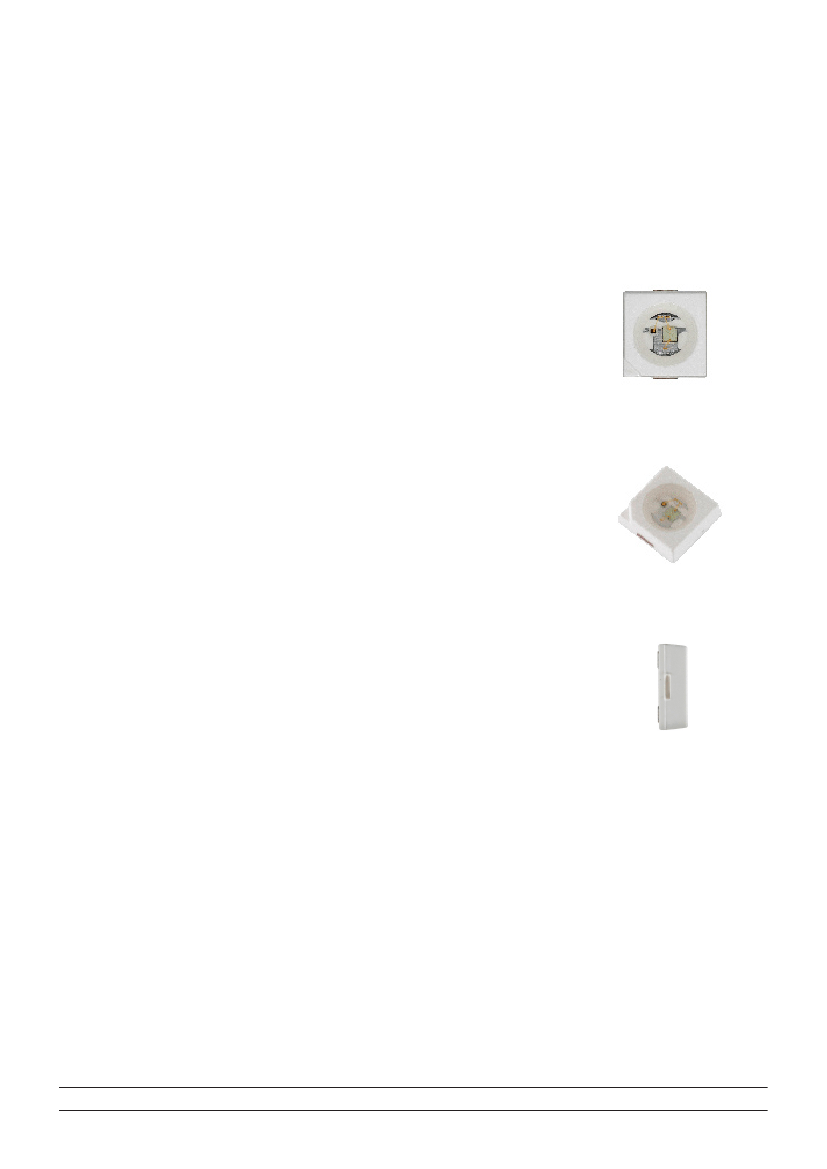

Synonymous with function and performance, enter the Primax, the new
era of high intensity illumination in LED. With its high flux output and high
luminous intensity, Primax transcends today LED lightings technology and
how we perceive it. The small package outline (3.5 x 3.5 x 1.2 mm) and
high intensity make it an ideal choice for backlighting, signage, exterior
automotive lighting and decorative lighting.
Features:
>
>
>
>
>
>
>
Super high brightness surface mount LED
120° viewing angle.
Compact package outline (LxW) of 3.5 x 3.5 mm.
Ultra low height profile - 1.2mm.
Low thermal resistance.
Compatible to IR reflow soldering.
Environmental friendly; RoHS compliance.
Applications:
> Lighting: garden light, architecture lighting, general lighting. etc
> Backlighting (TFT LCD display), flash light, architectural lighting.
> Automotive: interior applications, eg: switches, telematics, climate control
system, dashboard, etc.
All rights reserved. Product specifications are subject to change without notice.
1
25/11/2013 V5.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
150 InGaN: NAx-FSG
Optical Characteristics at Tj=25
0
C
Part Ordering
Number
NAB-FSG-HJ-1
NAB-FSG-JK-1
NAT-FSG-NP-1
Not for new design
NOTE
1. Luminous flux is measured with an accuracy of ± 11%.
2. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
Color
Blue
Blue
True Green
Viewing
Angle˚
120
120
120
Luminous Flux @ IF = 150mA (lm) Intensity @ IF = 150mA (cd)
Min.
Typ.
Max.
Typ.
4.9
6.3
18.1
6.0
8.2
22.0
8.2
10.7
30.6
2.2
3.0
8.1
Electrical Characteristics at Tj=25
0
C
Part Number
NAB-FSG
NAT-FSG
Vf @ If = 150 mA
Min. (V)
3.0
3.0
Typ. (V)
3.4
3.4
Max. (V)
3.9
3.9
Forward Voltages are tested using a current pulse of 1 ms and has an accuracy of ± 0.1 V.
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current (tp<=10ms, Duty cycle=0.10)
Reverse voltage
ESD threshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
Thermal resistance
- Junction / ambient, R
th JA
- Junction / solder point, R
th JS
(Mounted on dual-sided FR4 in-house PCB; total
Cu area >900mm
2
)
125
45
K/W
K/W
180
350
Not designed for reverse bias
2000
125
-40 … +100
-40 … +100
Unit
mA
mA
V
V
˚C
˚C
˚C
2
25/11/2013 V5.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
Characteristics
150 InGaN: NAx-FSG
Symbol
TC
dom (typ)
Part Number
NAB-FSG
NAT-FSG
Value
0.04
0.03
Unit
nm / K
Temperature coefficient of
dom (typ)
I
F
= 150mA; 0
˚C <= T <= 100 ˚C
Temperature coefficient of V
F (typ)
I
F
= 150mA; 0
˚C <= T <= 100 ˚C
TC
V
NAB-FSG
NAT-FSG
-2.3
-1.6
mV / K
Temperature coefficient of I
V (typ)
I
F
= 150mA; 0
˚C <= T <= 100 ˚C
TC
IV
NAB-FSG
NAT-FSG
0.02
-0.08
%/K
Wavelength Grouping at Tj=25
0
C
Color
NAT; True Green
Group
Full
A
B
C
Wavelength distribution (nm)
520 - 535
520 - 525
525 - 530
530 - 535
460 - 470
460 - 465
465 - 470
NAB; Blue
Full
A
B
Dominant wavelength is measured with an accuracy of ± 1 nm at a drive current of 150mA
Luminous Flux at Tj=25
0
C
Brightness Group
H2
H3
J2
J3
K2
K3
N2
N3
P2
P3
Luminous flux is measured with an accuracy of ± 11%.
Luminous Flux
(lm)
4.90...5.50
5.50...6.30
6.30...7.15
7.15...8.20
8.20...9.35
9.35...10.70
18.10...20.60
20.60...23.50
23.50...26.80
26.80...30.60
3
25/11/2013 V5.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
150 InGaN: NAx-FSG

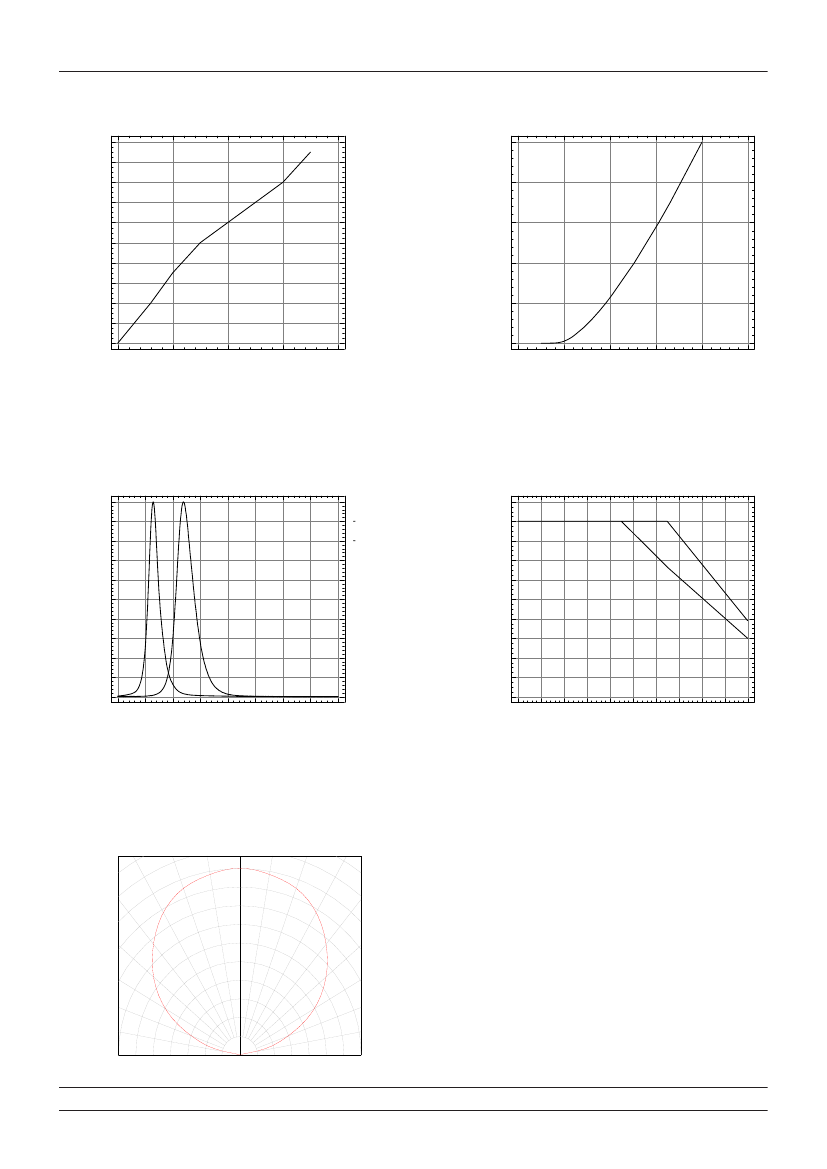

Relative Intensity Vs Forward Current
Relative Intensity; Normalized at 150mA
2
1.8
Forward Current vs Forward Voltage
500
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
100
200
300
400
Forward Current; mA
1.6
400
300
200
100
0
2
2.5
3
3.5
4
4.5
Forward Current; mA
Forward Voltage; V
Relative Intensity Vs Wavelength
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
400
450
500
550
600
650
700
750
800
Blue
True Green
Forward Current Vs Ambient Temperature
200
180
160
140
120
100
80
60
40
20
0
0
10
20
30
40
50
60
70
80
90 100
Rja=125K/W
Rja=90K/W
Variables
Forward Current; mA
Wavelength; nm
Ambient Temperature
Radiation Pattern
30°
20°
10°
0°
1.0
40°
0.8
50°
0.6
60°
70°
80°
90°
0.4
0.2
0
4
25/11/2013 V5.0
DOMINANT
Innovating Illumination
TM
Opto Technologies
150 InGaN: NAx-FSG
Primax
• 150 InGaN : NAx-FSG Package Outlines
TM
Material
Material
Lead-frame
Package
Encapsulant
Soldering Leads
Note: This product is Pb free
Cu Alloy With Ag Plating
High Temperature Resistant Plastic, PPA
Silicone Resin
Sn-Sn Plating
5
25/11/2013 V5.0
