SS2-062-H70/1-55/11E datasheet, PDF

Datasheet> All Categories > The connector> The connector> SS2-062-H70/1-55/11E

SS2-062-H70/1-55/11E: DescriptionBoard Connector, 62 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size229KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

SS2-062-H70/1-55/11E Overview

Board Connector, 62 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle

SS2-062-H70/1-55/11E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	306833761
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.134 inch
subject depth	0.059 inch
body length	3.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	SS2
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9116 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	62

Preview

Download Datasheet

View All

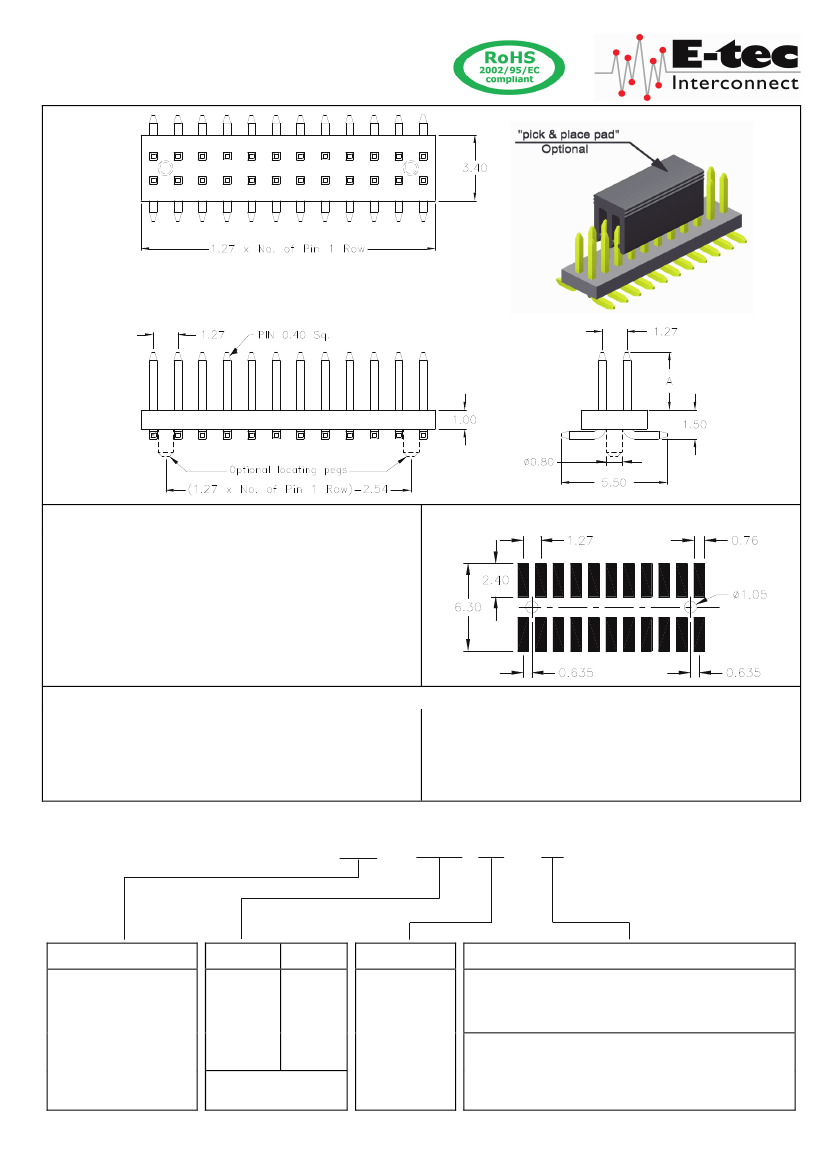

1.27mm pitch

- SMT -

Pin Header

dual row

low profile

APPLICATION

Standard:

AND

FEATURES

PCB

Surface Mount Layout

tube packing and

without “locating pegs”

Assures reliable PC Board connections

Low profile insulator

Mates with 1.27mm pitch Female Headers

SPECIFICATIONS

Current rating

Insulator resistance

Withstanding voltage

1000 MΩ min.

500 V AC

Operating temperature

Processing temperature

Contact material

Insulator material

(RoHS compliant)

- 40°C to +105°C

+250°C

+0/-5°C

for 10sec.

Copper alloy

Nylon UL 94 V-0

How to order

SS2 - xxx – H xx/x -

/11

Nbr of pins

without locating pegs:

Pin code

70/0

70/1

70/2

DIM “A”

3.00 mm

10.00 mm

6.50 mm

Plating

gold

Packing and “pick & place pad” Option

without “locating pegs”

tube packing; with pick & place pad

reel packing; with pick & place pad

with “locating pegs”

(available only from 008 to 100 pins)

tube packing; without pick & place pad

tube packing; with pick & place pad

reel packing; with pick & place pad

006

100

with locating pegs:

Other platings on

request

008

100

Other dimensions on

request
