Flavus GSM Snap-In Antenna
Product Specification
1 Features
•
•
•
Designed for GSM applications [800/900/1800/1900 MHz]
Intended for Snap-In mounting
Supplied in trays
2 Description
The Flavus antenna is intended for use with all GSM applications. The antenna is a quarterwave type. The
antenna uses plastic snap ins to attach to the PCB, no need for soldering.
3 Application
•
•
•
GSM modules
Cell phones
Vehicle tracking
Integrated Antenna Solutions
Product Specification AE030090-A
Flavus GSM Snap-In Antenna
Contents
1 Features
2 Description
3 Application
4 Model name
5 General data
6 Electrical characteristics

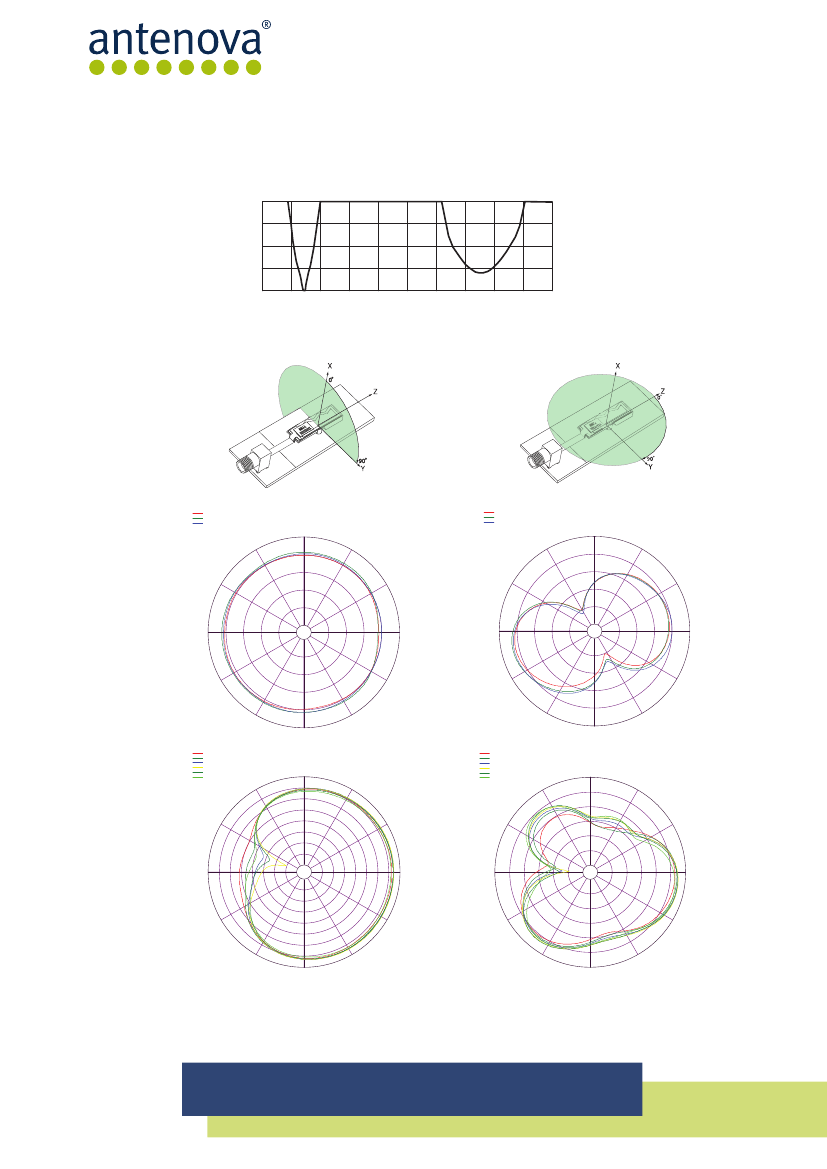

7 Electrical performance
7.1 Voltage Standing Wave Ratio
7.2 Radiation patterns
8 Antenna Dimensions
9 Antenna Footprint
10 Electrical interface
10.1 Transmission line and matching
10.2 Test board dimensions
10.3 Test board matching
11 Reliability
11.1 Temperature and Humidity
11.2 Mechanical
11.3 Miscellaneous
11.4 Judgement standard
12 Hazardous Material Regulation Conformance
13 Application example
14 Packaging
14.1 Shelf storage recommendation
14.2 Packaging characteristics
14.3 Tray dimension
14.4 Box dimension
14.5 Label information
3
3
3
4
4
4
5
5
6
6
6
7
7
7
7
8
8
8
9
10
10
10
10
10
10
Integrated Antenna Solutions
Product Specification AE030090-A
Flavus GSM Snap-In Antenna
4 Model name
10 20 B5812 - XX
PCB Thickness
01 = 0.8 mm
02 = 1.0 mm
03 = 1.2 mm
04 = 1.6 mm
05 = 1.8 mm
Drawing No.
Technology
-Plastic Carrier
Antenna Family
-Snap-In
5 General data
Product Name
Article No.
Frequency
Polarization
Operating temperature
Impedance
Weight
Antenna type
Flavus GSM
1020B5812-01..05
880-960 MHz, 1710-1990 MHz
Linear
-40 to + 85 degC
50 Ohm
0.6 gram
Snap-in
6 Electrical characteristics
Characteristics
GSM
Efficiency
VSWR
> 65%
< 1:2.3
DCS
> 68 %
< 1:2.7
PCS
> 77%
< 1:1.9
Conditions*
Measured in 3D chamber ( near field)
Measured in Network Analyzer
*Note all data provided in this table are based on the Antenova reference board
Integrated Antenna Solutions
3
Product Specification AE030090-A
Flavus GSM Snap-In Antenna
7 Electrical performance
7.1 Voltage Standing Wave Ratio
VSWR
3:1
* HP9770 Network Analyzer
:
:
700
1500
2300 M
Hz
7.2 Radiation patterns
XZ- Plane
880(MHz)
920(MHz)
960(MHz)
90deg
5.00dB
880(MHz)
920(MHz)
960(MHz)
YZ- Plane
90deg
5.00
0.00dB
0.00
-5.00dB
-5.00
-10.00dB
-10.00
-15.00dB
-15.00
GSM
180deg
-20.00dB
0deg
180deg
-20.00
0deg
270deg
1710(MHz)
1795(MHz)
1850(MHz)
1880(MHz)
1920(MHz)
1990(MHz)
1710(MHz)
1795(MHz)
1850(MHz)
1880(MHz)
1920(MHz)
1990(MHz)
270deg
Theta
90deg
5.00dB
0.00dB
-5.00dB
-10.00dB
-15.00dB
-20.00dB
-25.00dB
-30.00dB
Theta
90deg
5.00dB
0.00dB
-5.00dB
-10.00dB
-15.00dB
-20.00dB
DCS/PCS
180deg
-35.00dB
0deg
180deg
-25.00dB
0deg
270deg
270deg
Theta
Theta
Integrated Antenna Solutions
4
Product Specification AE030090-A
Flavus GSM Snap-In Antenna

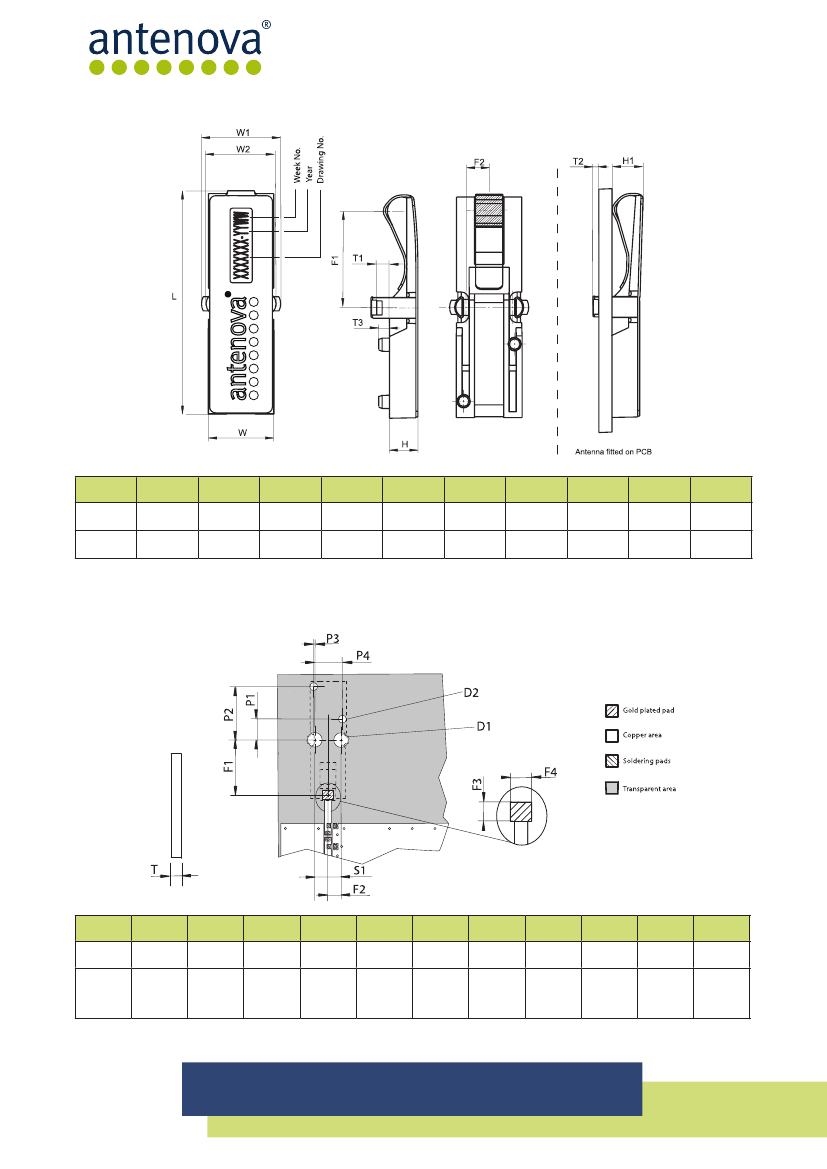

8 Antenna Dimensions
L
Length
27.3 ±0.2
W
Width
7.9 ±0.2
W1
Width
9.6±0.2
W2
Width
8.5±0.2
H
Height
3.45±0.1
H1
Height
3.85±0.1
F1
Feed
11.85±0.2
F2
Feed
2.8±0.1
T1
PCB
T1±0.05
T2
T3
1.35±0.2
1.3±0.1
Dimensions in millimeters
9 Antenna Footprint
F1
Feed
11.85±0.1
F2
Feed
2.8±0.1
F3
Feed
2±0.05
F4
Feed
2.25±0.05
S1
P1
P2
P3
P4
D1
D2
T*
PCB
0.8, 1.0,
1.2, 1.6,
1.8
Snap-In Position Position Position Position Diameter Diameter
5.6±0.1
4.5±0.1
11.5±0.1
0.3±0.1
5.9±0.1
3.05±0.1
1.75±0.1
Dimensions in millimeters
Integrated Antenna Solutions
5
Product Specification AE030090-A
