Picea 2.4 GHz Swivel Antenna
Product Specification
1 Features
•
•
•
Designed for 2.4 GHz applications [Bluetooth™, WiFi™ (802.11b/g), Zigbee™, WiMedia™ etc.]
Intended for snap-in mounting
Supplied in bulk
2 Description
The Picea antenna is intended for use with all 2.4 GHz applications. The antenna is intended for snap-in
mounting. The blade is made of a flexible material and can be rotated 360 degrees.
3 Application
•
•
•
•
•
Development tools
Test equipment
Instruments
Access points and gateways
Printers
Integrated Antenna Solutions
Product Specification AE020033-C
Picea 2.4 GHz Swivel Antenna
Contents
1 Features
2 Description
3 Application
4 Model name
5 General data
6 Electrical characteristics

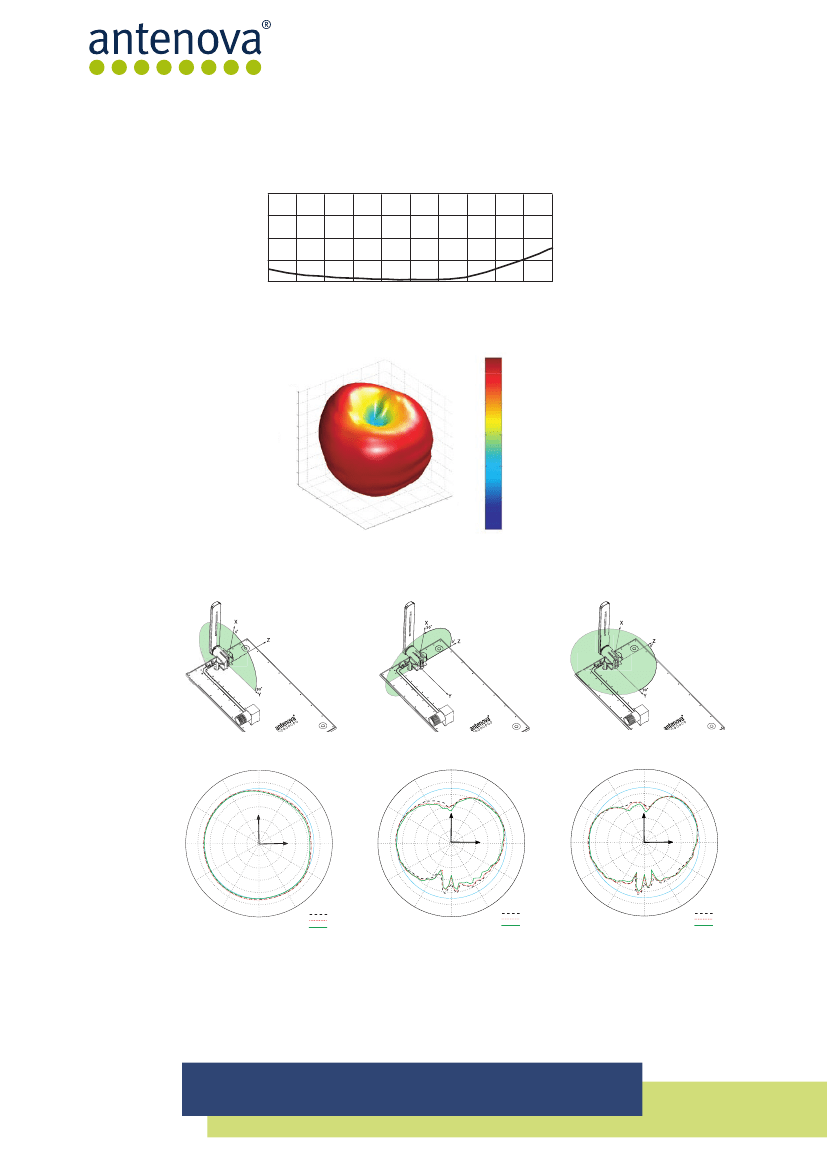

7 Electrical performance
7.1 Voltage Standing Wave Ratio
7.2 3D-Radiation
7.3 Radiation patterns
8 Antenna Dimensions
9 Antenna Foot print
10 Electrical interface
10.1 Transmission line and matching
10.2 Test board dimensions
10.3 Test board matching
11 Reliability
11.1 Temperature and Humidity
11.2 Judgement standard
12 Hazardous Material Regulation Conformance
13 Application example
14 Packaging
14.1 Shelf storage recommendation
14.2 Packaging characteristics
14.3 Bag label information
3
3
3
4
4
4
4
5
5
6
6
6
7
7
7
7
7
8
9
9
9
9
Integrated Antenna Solutions
2
Product Specification AE020033-C
Picea 2.4 GHz Swivel Antenna
4 Model name
20 10 B5771 - XX
PCB Thickness
01 = 0.8 mm
02 = 1.0 mm
03 = 1.2 mm
04 = 1.6 mm
05 = 1.8 mm
Drawing No.
Technology
-Metal
Antenna Family
-Swivel
5 General data
Product Name
Article No.
Frequency
Polarization
Operating temperature
Impedance
Weight
Antenna type
Picea 2.4 GHz
2010B5771-01..05
2.4-2.5 GHz
Linear
-40 to + 85 degC
50 Ohm
3.2 gram
Swivel
6 Electrical characteristics
Characteristics
Min
Peak Gain
Efficiency
VSWR
Typ
4.1 dBi
60%
<2:1
Max
Conditions*
Frequency 2.4-2.5 GHz, Measured in 3D chamber ( near field)
Frequency 2.4-2.5 GHz, Measured in Network Analyzer
*Note all data provided in this table are based on the Antenova reference board
Integrated Antenna Solutions
3
Product Specification AE020033-C
Picea 2.4 GHz Swivel Antenna
7 Electrical performance
7.1 Voltage Standing Wave Ratio
VSWR
3:1
* HP9770 Network Analyzer
2:1
1:1
2.4
2.45
2.5
GHz
7.2 3D-Radiation
2.9
20
15
10
5
-2.54
Z
0
-5
-10
-15
-20
-7.99
-13.44
20
10
0
Y
-10
-20
-20
0
-10
X
dBi
10
20
-18.89
-24.33
7.3 Radiation patterns
XY- Plane
90
120
15 dBi
5 dBi
60
XZ- Plane
330
0
15 dBi
5 dBi
- 5 dBi
30
330
YZ- Plane
0
15 dBi
5 dBi
-5 dBi
60
300
Z
-15 dBi
-25 dBi
-35 dBi
60
30
-5 dBi
150
30
300
Z
-15 dBi
-25 dBi
-35 dBi
Y
-15 dBi
Total
polarization
-25 dBi
-35 dBi
180
X
0
270
X
90
270
Y
90
210
330
240
120
240
120
240
270
300
2.40 GHz
2.45 GHz
2.50 GHz
210
180
150
2.40 GHz
2.45 GHz
2.50 GHz
210
180
150
2.40 GHz
2.45 GHz
2.50 GHz
Integrated Antenna Solutions
4
Product Specification AE020033-C
Picea 2.4 GHz Swivel Antenna

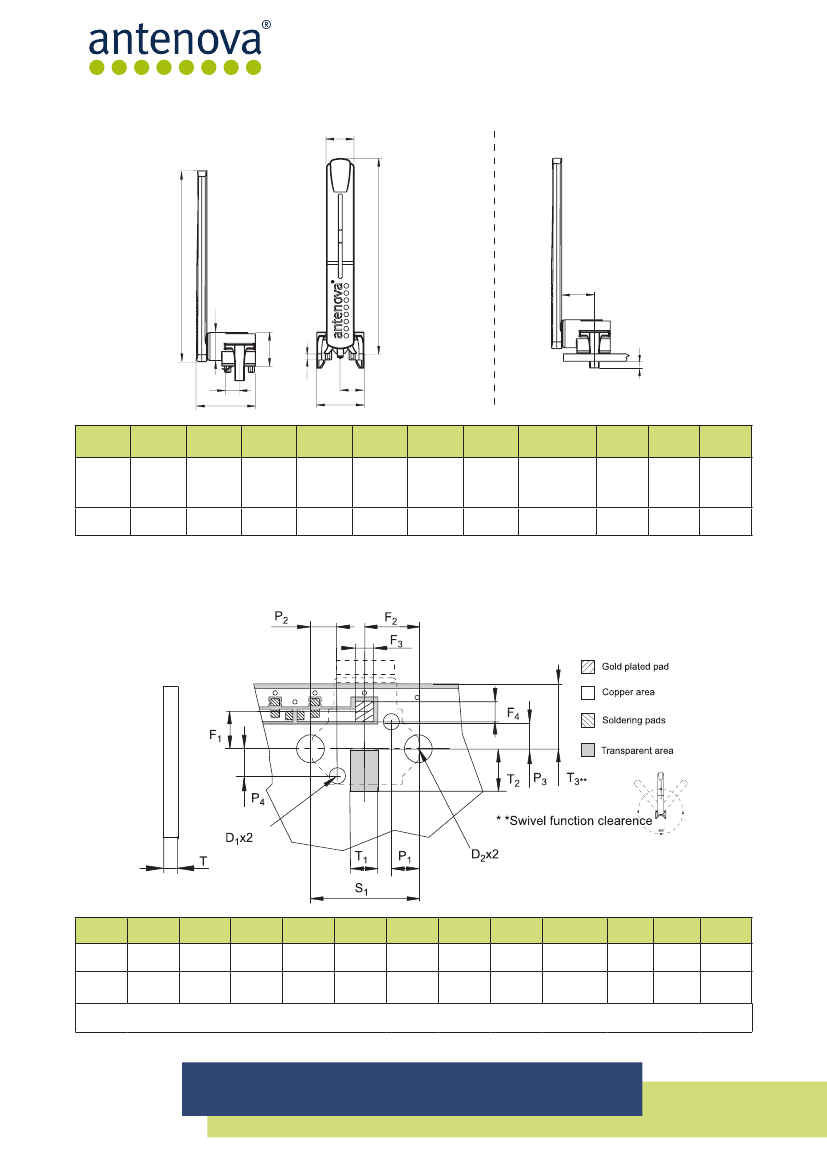

8 Antenna Dimensions
W
2
L
L
2
T
3
H
2
H
T
F
B
W
F
2
Antenna fitted on PCB
T
2
L1
L2
W1
Width
12±0.2
W2
Width
7.0±0.2
H1
Height
8.55±0.2
H2
Height
7.1±0.2
F1
Feed
3.55±0.2
F2
Feed
6.0±0.2
T1
PCB
Thickness*
T1±0.05
T2
T3
B
Length Length
48.3 ±0.3 49.5 ±0.3
2.1±0.2
8.0±0.2
14.9±0.2
Dimensions in millimeters
*PCB Thickness (T) : 0.8, 1.0, 1.2, 1.6, 1.8 mm
9 Antenna Foot print
F1
Feed
4.0±0.1
F2
Feed
6.0 ±0.1
F3
Feed
2.0±0.1
F4
Feed
S1
Snap-In
P1/P2
Position
P3/P4
Position
3.0±0.1
D1
Diam.
1.8+0.1
D2
Diam.
3.1+0.1
T
Thickness*
T
T1
T2
T3
2.25±0.1 12.5±0.1 3.25±0.1
3.0±0.1 4.5±0.1 Max 7.2
Dimensions in millimeters
Integrated Antenna Solutions
5
Product Specification AE020033-C
