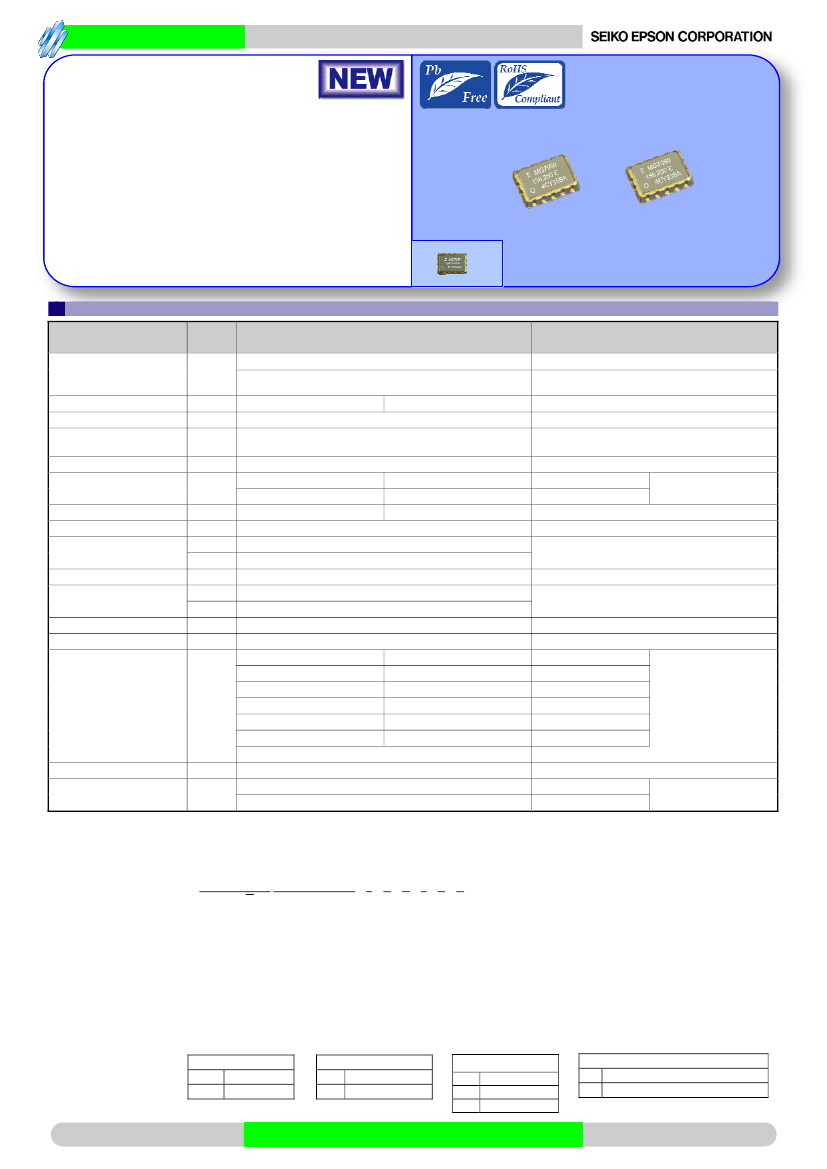

Crystal oscillator
Multi output SAW Oscillator (MOSO)
OUTPUT : LV-PECL
Product Number (please contact us)
X1M000411xxxx00
MG7050EAN
Feature
Ultra
Low jitter
:
0.3 ps Max.
2
or 4 outputs and it is able to reduce fan-out buffers
Frequency
range
:
100 MHz to 700 MHz
Supply
voltage
:
2.5 V / 3.3 V
External
dimensions
:
7.0 × 5.0 × 1.6 mm
Output
:
LV-PECL (2 or 4 outputs)
Application
GbE, Fiber Channel, SAS, PCI express
Server, Storage, Router/Switch, Networking, OTN
Actual size
Specifications (characteristics)
Item
Output frequency range
Symbol
f
0
Specifications
Conditions / Remarks
100 MHz to 700 MHz
Please contact us about available frequencies.
100MHz, 106.25MHz, 125MHz, 150MHz, 156.25MHz,
Standard frequency
200MHz, 212.5MHz, 250MHz, 300MHz, 312.5MHz
Supply voltage
V
CC
D: 2.5 V ± 0.125 V
C: 3.3 V ± 0.33 V
V
CC
, V
CC
1 and V
CC
2 need same voltage
Storage temperature
T_stg
-55 ºC to +125 ºC
Store as bare product after packing
A: 0 ºC to +70 ºC,
B: -20 ºC to +70 ºC
Operating temperature
T_use
D: -5 ºC to +85 ºC
-6
-6
Frequency tolerance *1
f_tol
J: ±50 × 10 , L: ±100 × 10
75 mA Typ., 94 mA Max.
80 mA Typ., 102 mA Max. 2-outputs
OE=V
CC
L_ECL=50
Ω
Current consumption
I
CC
125 mA Typ., 170 mA Max. 130 mA Typ., 184 mA Max. 4-outputs
Disable current
I_dis
7 mA Typ., 18 mA Max.
8 mA Typ., 20 mA Max.
OE=GND
Symmetry
SYM
45 % to 55 %
At outputs crossing point
V
CC
-1.025 V to V
CC
-0.88 V
V
OH
DC characteristics
Output voltage
V
OL
V
CC
-1.81 V to V
CC
-1.62 V
Output load condition
L_ECL
50
Ω
Termination to V
CC
-2.0 V
70% V
CC
Min.
V
IH
Input voltage
OE and FSEL terminals
V
IL
30% V
CC
Max.
Rise time / Fall time
t
r
/t
f
200 ps Typ., 400 ps Max.
Between 20% and 80% of (V
OH
-V
OL
)
Start-up time
t_str
5 ms Typ., 10 ms Max.
Time at minimum supply voltage to be 0 s
0.17 ps Typ.
0.14 ps Typ.
f
0
=100 MHz
0.16 ps Typ.
0.13 ps Typ.
f
0
=125 MHz
0.15 ps Typ.
0.12 ps Typ.
f
0
=156.25 MHz
Offset frequency:
Phase Jitter
t
PJ
0.13 ps Typ.
0.11 ps Typ.
f
0
=212.5 MHz
12 kHz to 20 MHz
0.11 ps Typ.
0.10 ps Typ.
f
0
=312.5 MHz
0.05 ps Typ.
0.05 ps Typ.
f
0
=700 MHz
0.3 ps Max.
Skew
t_skew
20 ps Typ., 50 ps Max.
FSEL=H
-6
First year
N: ±10 × 10 / year Max.
+25
C,
V
CC
=2.5 V, 3.3 V
Aging
f_age
A: Included in Frequency tolerance *2
10 years
*1 Frequency tolerance includes initial frequency tolerance, temperature variation, supply voltage change and reflow drift.
*2 “A” is not acceptable when Frequency tolerance is “J” and Operating temperature is “B” or “D”.
Product Name
(Standard form)
MG7050 E AN 156.250000MHz
①
②
③
4 A C J A N
④ ⑤ ⑥ ⑦ ⑧ ⑨
(⑦⑧⑨:JDA, JBA are not available)
①Model
②Output
(E: LV-PECL)
③Frequency
④Number
of outputs（2: 2outputs, 4: 4outputs）
⑤"A":
Fixed
⑥Supply
voltage
⑦Frequency
tolerance
⑧Operating
temperature
⑨Frequency
aging
⑥Supply
voltage
⑦Frequency
tolerance
C
D
3.3 V Typ.
2.5 V Typ.
J
L
±50 × 10
-6
±100 × 10
-6
⑧Operating
temp.
A
B
D
0 to +70°C
-20 to +70°C
-5 to +85°C
⑨Frequency
aging
A
Frequency tolerance include aging
N
Frequency tolerance exclude aging
