760227454 | N-288-CN-RB-F24YL/8W/99G
Indoor, All-Dielectric, Low Smoke Zero Halogen (LSZH), Riser-Rated,
Gel-Free, Central Tube Ribbon Cable
Product Classification
Regional Availability
Portfolio
Product Type
Asia | Australia/New Zealand | EMEA | Latin America | North America
CommScope®
Fiber indoor cable
General Specifications
Cable Type
Construction Type
Fiber Type, quantity
Fibers per Ribbon, quantity
Jacket Color
Subunit Type
Total Fiber Count
Ribbon central tube
Non-armored
288
24
Yellow
Gel-free
288
Dimensions
Buffer Tube/Subunit Diameter
Diameter Over Jacket
12 mm | 0.472 in
17 mm | 0.669 in

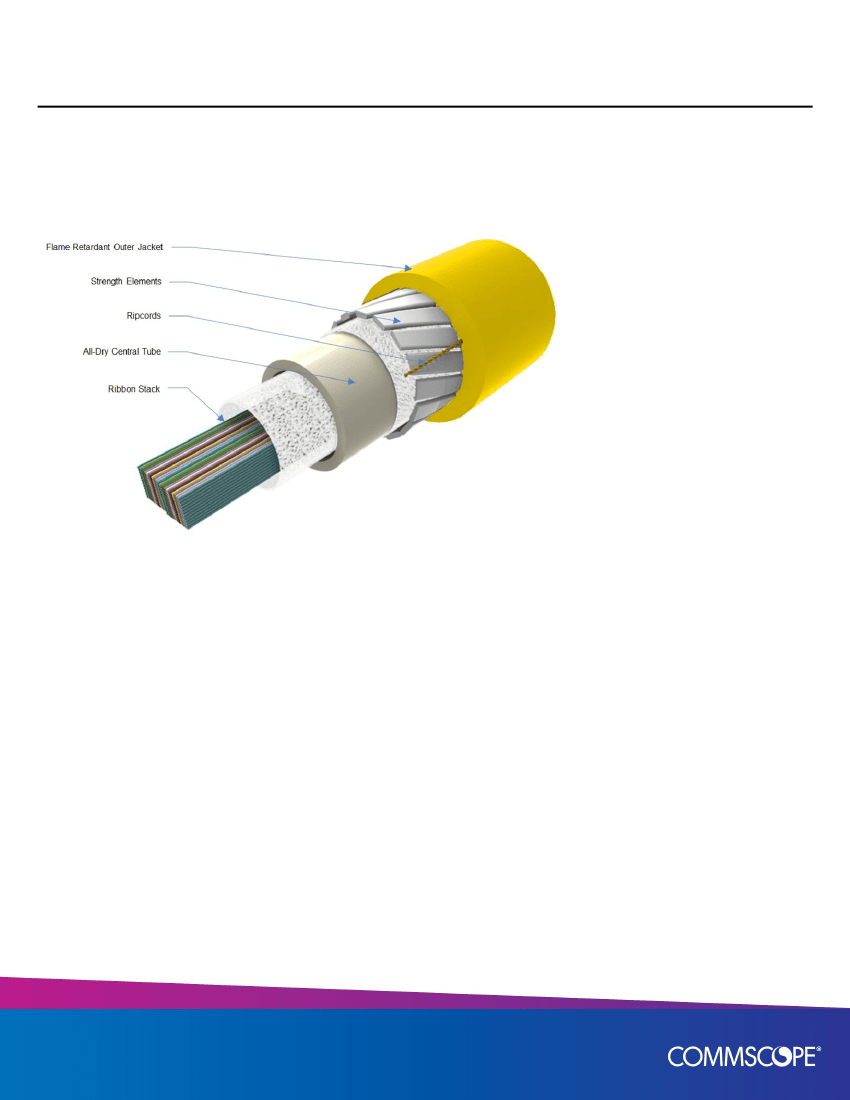

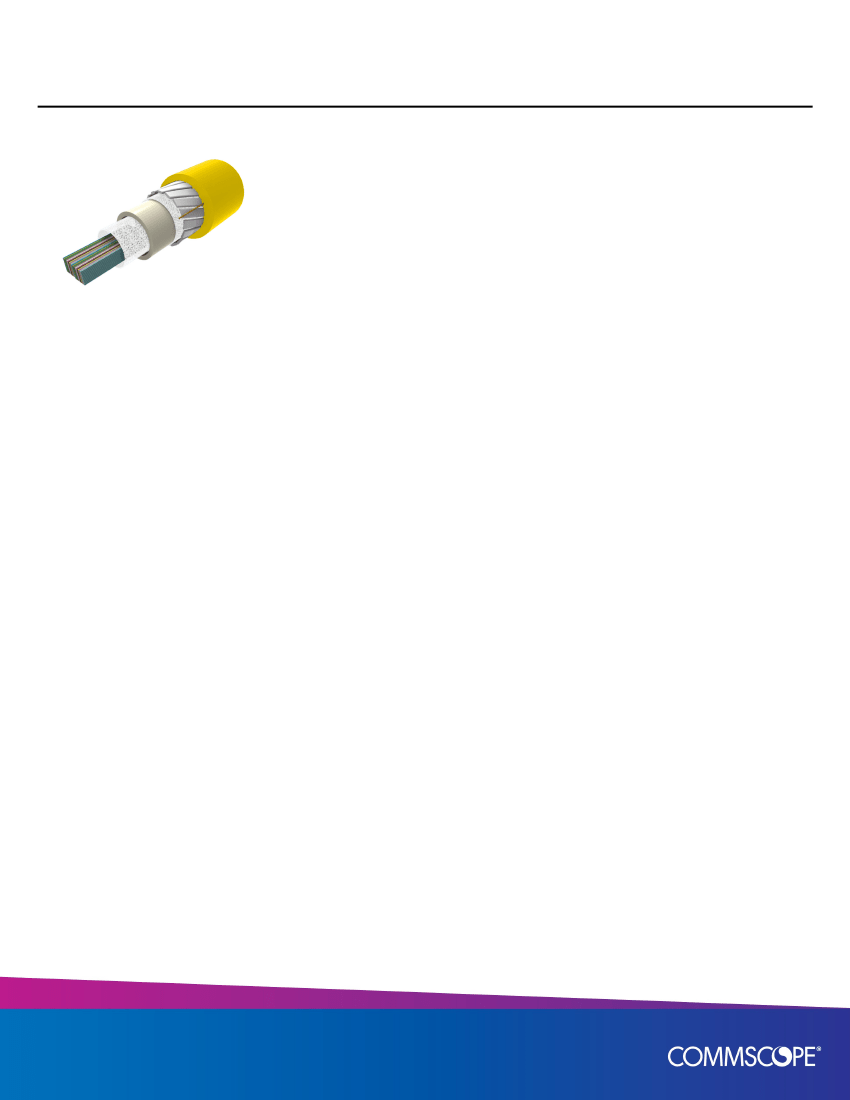

Representative Image
Page 1 of 4
©2020 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: April 27, 2020
760227454 | N-288-CN-RB-F24YL/8W/99G
Mechanical Specifications
Minimum Bend Radius, loaded
Minimum Bend Radius, unloaded
Tensile Load, long term, maximum
Tensile Load, short term, maximum
Compression
Compression Test Method
Flex
Flex Test Method
Impact
Impact Test Method
Strain
340 mm | 13.386 in
170 mm | 6.693 in
800 N | 179.847 lbf
2700 N | 606.984 lbf
22 N/mm | 125.623 lb/in
FOTP-41 | IEC 60794-1 E3
25 cycles
FOTP-104 | IEC 60794-1 E6
5.15 N-m | 45.581 in lb
FOTP-25 | IEC 60794-1 E4
See long and short term tensile loads
Page 2 of 4
©2020 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: April 27, 2020
760227454 | N-288-CN-RB-F24YL/8W/99G
Strain Test Method
Twist
Twist Test Method
FOTP-33 | IEC 60794-1 E1
10 cycles
FOTP-85 | IEC 60794-1 E7
Optical Specifications
Fiber Type
G.652.D and G.657.A1 | G.652.D and G.657.A1
Environmental Specifications
Installation temperature
Operating Temperature
Storage Temperature
Cable Qualification Standards
Environmental Space
Flame Test Listing
Flame Test Method
-20 °C to +70 °C (-4 °F to +158 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
-40 °C to +70 °C (-40 °F to +158 °F)
ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-409
Low Smoke Zero Halogen (LSZH) | Riser
NEC OFNR-LS (ETL) and c(ETL)
CSA FT4 | IEC 60332-3 | IEC 60754-2 | IEC 61034-2 | IEEE 1202 | IEEE
383 | NES 713 | UL 1666 | UL 1685
Environmental Test Specifications
Cable Freeze
Cable Freeze Test Method
Heat Age
Heat Age Test Method
Low High Bend
Low High Bend Test Method
Temperature Cycle
Temperature Cycle Test Method
-2 °C | 28.4 °F
FOTP-98 | IEC 60794-1 F15
-40 °C to +85 °C (-40 °F to +185 °F)
IEC 60794-1 F9
-20 °C to +60 °C (-4 °F to +140 °F)
FOTP-37 | IEC 60794-1 E11
-20 °C to +70 °C (-4 °F to +158 °F)
FOTP-3 | IEC 60794-1 F1
Packaging and Weights
Cable weight
167 kg/km | 112.219 lb/kft
Regulatory Compliance/Certifications
Agency
ISO 9001:2015
Classification
Designed, manufactured and/or distributed under this quality management system
Page 3 of 4
©2020 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: April 27, 2020
760227454 | N-288-CN-RB-F24YL/8W/99G
* Footnotes
Operating Temperature
Specification applicable to non-terminated bulk fiber cable
