MMS1208: DescriptionSLIDE SWITCH, DPDT, LATCHED, 0.3A, 30VDC, THROUGH HOLE-RIGHT ANGLE; Categoryunclassified; File Size132KB，2 Pages; ManufacturerETC2

Download Datasheet Parametric Compare View All

MMS1208 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MMS1208	-	-	View	Buy Now

MMS1208 Overview

SLIDE SWITCH, DPDT, LATCHED, 0.3A, 30VDC, THROUGH HOLE-RIGHT ANGLE

MMS1208 Parametric

Parameter Name	Attribute value
Maximum DC contact current	0.3000 A
Maximum DC contact voltage	30 V
Maximum operating temperature	70 Cel
Minimum operating temperature	-20 Cel
state	ACTIVE
seal	Epoxy resinTERMINAL SEALED
Electrical life	10000 Cycle(s)
switch function	Double Knife Double Throw
terminal coating	silver
Manufacturer Series	MMS
width	7 mm
high	5.5 mm
length or diameter	11 mm
Installation features	right angle through hole
Switch action	locking
Switch type	Slide switch
Terminal type	welding

Preview

Download Datasheet

View All

MMS Series

Microminiature Slide Switches

SPECIFICATIONS

Contact ratings:

300 mA at 30 VDC

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

FEATURES

Bifurcated wiping contact design.

Low Profile.

Epoxy sealed terminals.

Cosmetic molded case.

Initial contact resistance:

25 milliohms max.

Insulation resistance:

100 megohms min. at 500 VDC

Dielectric strength:

500 volts RMS for 1 minute

Electrical life:

10,000 cycles min.

Operating temperature range:

-20°C to +70°C

Solder heat resistance:

255°C max. for 5 seconds max.

Washing not recommended

MATERIALS

Contacts & terminals:

Silver plated

Case:

Polyacetal

Actuator:

PBT

Base:

Glass filled PBT

Terminal seal:

Epoxy or phenol resin

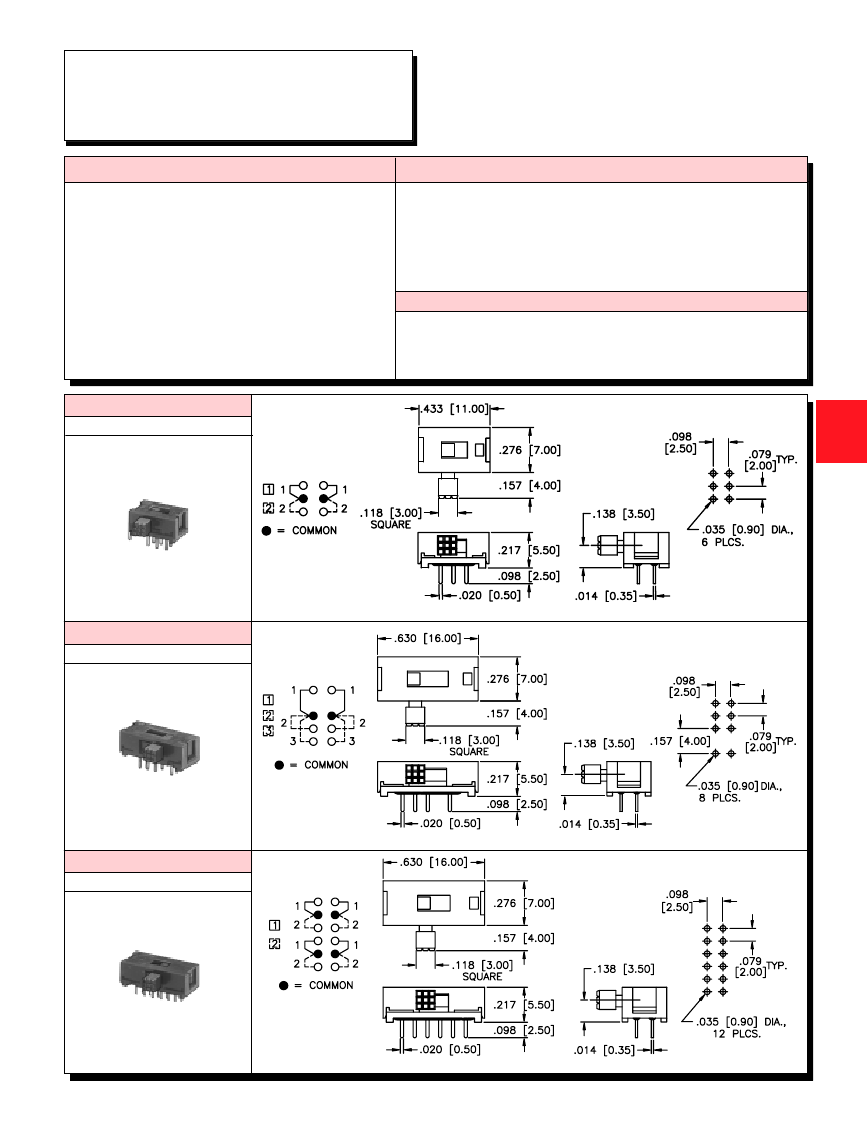

.079 (2.00) TRAVEL/THROW

MODEL NO.

MMS22R

2P2T

O

RIGHT ANGLE ACTUATOR

MODEL NO.

MMS23R

SCHEMATIC

MECHANICAL OUTLINE

.079 (2.00) TRAVEL/THROW

P.C. BOARD LAYOUT

2P3T

RIGHT ANGLE ACTUATOR

MODEL NO.

MMS42R

SCHEMATIC

MECHANICAL OUTLINE

.079 (2.00) TRAVEL/THROW

P.C. BOARD LAYOUT

4P2T

RIGHT ANGLE ACTUATOR

SCHEMATIC

MECHANICAL OUTLINE

P.C. BOARD LAYOUT

O11

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com

MMS1208 Related Products

	MMS1208	MMS2214	MMS22R	MMS23R	MMS42	MMS42R	MMS6202
Description	SLIDE SWITCH, DPDT, LATCHED, 0.3A, 30VDC, THROUGH HOLE-RIGHT ANGLE	SLIDE SWITCH, DPDT, LATCHED, 0.3A, 30VDC, THROUGH HOLE-RIGHT ANGLE	SLIDE SWITCH, DPDT, LATCHED, 0.3A, 30VDC, THROUGH HOLE-RIGHT ANGLE	SLIDE SWITCH, DP3T, LATCHED, 0.1A, 30VDC, THROUGH HOLE-RIGHT ANGLE	SLIDE SWITCH, 4PDT, LATCHED, 0.3A, 30VDC, THROUGH HOLE-STRAIGHT	SLIDE SWITCH, 4PDT, LATCHED, 0.3A, 30VDC, THROUGH HOLE-RIGHT ANGLE	SLIDE SWITCH, DPDT, LATCHED, 0.3A, 30VDC, THROUGH HOLE-RIGHT ANGLE
Maximum DC contact current	0.3000 A	0.3000 A	0.3000 A	0.1000 A	0.3000 A	0.3000 A	0.3000 A
Maximum DC contact voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Maximum operating temperature	70 Cel	70 Cel	70 Cel	60 Cel	70 Cel	70 Cel	70 Cel
Minimum operating temperature	-20 Cel	-20 Cel	-20 Cel	-10 Cel	-20 Cel	-20 Cel	-20 Cel
state	ACTIVE	ACTIVE	ACTIVE	Active	ACTIVE	ACTIVE	ACTIVE
seal	Epoxy resinTERMINAL SEALED	Epoxy resinTERMINAL SEALED	Epoxy resinTERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	Epoxy resinTERMINAL SEALED
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
switch function	Double Knife Double Throw	Double Knife Double Throw	Double Knife Double Throw	DP3T	4PDT	4PDT	Double Knife Double Throw
terminal coating	silver	silver	silver	SILVER	SILVER	SILVER	silver
Manufacturer Series	MMS	MMS	MMS	MMS	MMS	MMS	MMS
width	7 mm	7 mm	7 mm	6.6 mm	7 mm	7 mm	7 mm
high	5.5 mm	5.5 mm	5.5 mm	6 mm	5.5 mm	5.5 mm	5.5 mm
length or diameter	11 mm	11 mm	11 mm	16.2 mm	16 mm	16 mm	11 mm
Installation features	right angle through hole	right angle through hole	right angle through hole	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	right angle through hole
Switch action	locking	locking	locking	LATCHED	LATCHED	LATCHED	locking
Switch type	Slide switch	Slide switch	Slide switch	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH	Slide switch
Terminal type	welding	welding	welding	SOLDER	SOLDER	SOLDER	welding
