WENSHING®©

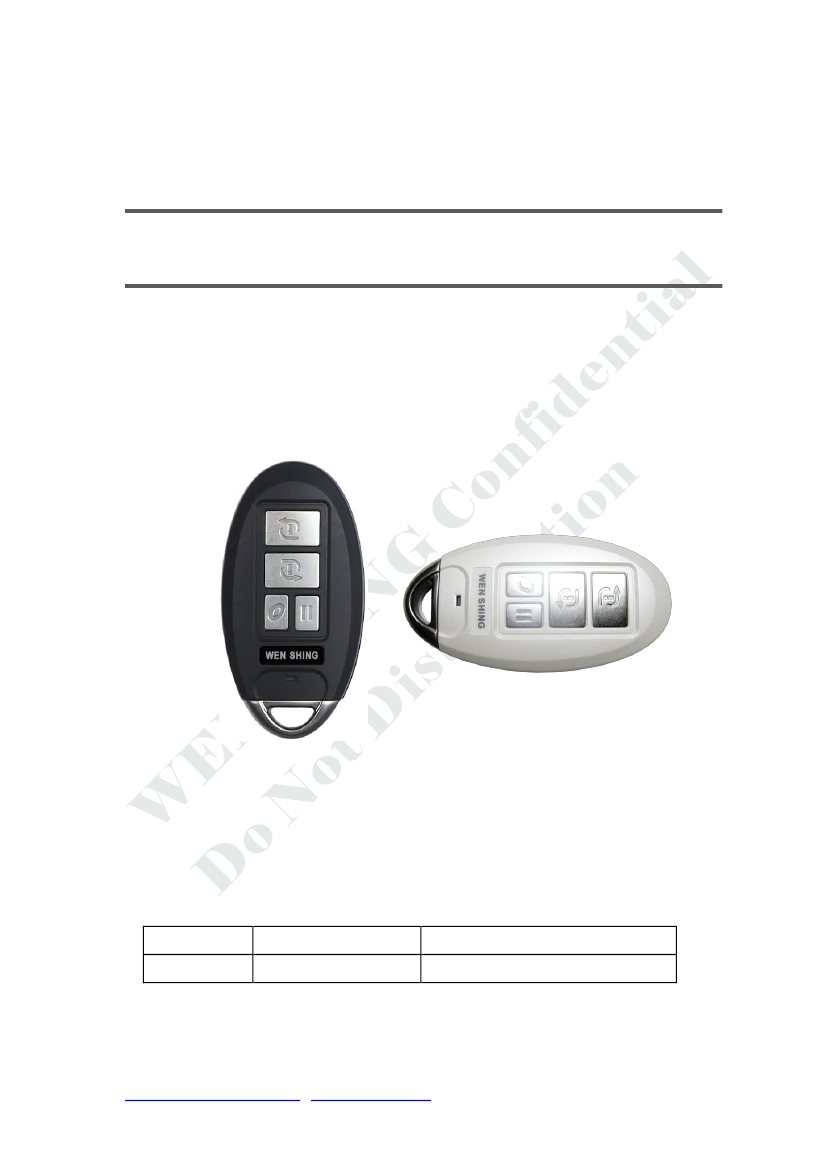

TX-900
925MHz ~ 928MHz RFID Two-Way Remote Controller
Version History
Version
V1.01
Date
July. 1, 2010
1
st
Edition
Changes
http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-900 Instruction Manual P.1
Content
Important Event……………………………………………….……………………3
Declaration …………………………………………………………………………3
Warranty……………………………………………………………………………3
Un-warranty Scope Description…………………………………………………3
Contact Us…………………………………………………………………………3
Products Instruction
………………………………………………………………4
Feature
………………………………………………………………………………4
Application……………………………………………………………………………4
Family Garage Door Control……………………………………………………. 4
Auto-Door Control…………………………………………………………………4
Building, Store Rolling Door Control……………………………………………5
Place of Parking Lot Remote Control…………………………………………. 5
Community Access Into/Out Management……………………………………. 5
Motorcycle Anti-Thief Device……………………………………………………. 5
Industry System Control…………………………………………………………. 5
Specification Parameter………………………………………...
…. ……………6
Dimension Diagram……………………………………………....
……………6
Top View……………………………………………………………………………6
Side View……………………………………………………………………………6
Button View ………………………………………………………………………6
CE Caution Note (European Union)……………………………....
……………7
FCC Consistent Declaration( U.S.A. Only)…………………....
………………7
http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-900 Instruction Manual P.2
Important Event
This product is in general us e for the equipment on the premise of the development, design,
manufacture. Do not use that require high security purposes, such as machinery or medical,
aviation equipment, machinery and transport-related deaths are directly or indirectly related
to the system.
This product should be in this brochure by the instructions of the types and rated voltage
power under the current proper use. If violation of this statement by the safety records of the
supply operation, I am afraid our company cannot afford any of the responsibility.
Do not self-decomposition, alteration, repair of the products also will cause fire, electric shock,
fault, and dangerous. In addition, their decomposition, alteration, repair the product, failure is
not within the scope of warranty.
The products are not waterproof, so please do not use and touch water. Take off and on also
please note. Rain, spray, drinks, steam, sweat may be a failure.
Use of this product, please be sure to use according to the statement recorded by the use of
methods to operate. Please do not violate particular attention to the matter reminded to use.
Please respect this statement recorded by the note. When consumers in contravention of this
statement recorded note of the operation, I am afraid our company could not shoulder any
responsibility.
Products are defective, the Company will be res ponsible for free to amend the flaws, or to the
same flawless product or its equivalent products in exchange. However, the Company does
not assume based on the requirements of the flaw and loss responsibility.
The Company res erves the right to retain without notice to users of the cases, the product of
hardware / software (version upgrade) is with the right to edit.
Declaration
This product provides different frequency for user selection to meet different telecommunication
regulation and FCC/CE on different countries.
Warranty
The warranty time is within one year from purchased date. The warranty scope are used in
normal situation and none vandalism. (Some function harmful out of warranty scope and
Vandalism are Un-warranty).
Un-warranty Scope Description
Because the natural disaster, accident or human factor to cause the bad damage.
Violate the product instruction manual to cause the damage of the products.
The improper assemble causes damage.
The products used the unsanctioned accessory to cause damaged.
Overstep the allowed used environment to cause the products damaged.
Contact Us
WENSHING ELECTRONICS CO., LTD.
No.82, Chong De St. 11054 Shin Yi Dist, Taipei, Taiwan
Tel: +886-2-27353055
Fax: +886-2-27328813
http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-900 Instruction Manual P.3
Product Instruction
TX-900 wireless remote control is a two-way RFID remote control and wide
applications; it can collocate with many types of host for different application.
Use in family garage door control, RFID auto-door, building, rolling door control,
place of parking lot control, access into/out of community management, industry
system control. You can set various function and let it to be humanized facilities.
Feature
Two-way communication
Automatically feedback system
Low voltage search
Long standby time
Waterproof design
Application
Family Garage Door Control
TX-900 wireless remote control pair with RD-747 active RFID garage door
control can use in family garage door control. There are two ways for your
best choices: one is touch and another is sensor. You can select one of them
and start to step up according to our manual. It is not only can control garage
door open and close, also can control garage door and light on/off
automatically during effective distance which you set. When the distance is
over effective distance, it will close garage door and light to save your times
for key finding also save the electronic power to achieve energy and carbon
saving for environmental protection.
Auto-Door Control
TX-900 wireless remote control collocates with RD-747 active RFID garage
door control.
Use in auto-door control, it can set distance of TX-900 to automatically open
and close.
Building, Store Rolling Door Control
TX-900 wireless remote control pair with RD-747 active RFID garage door
control can use in building, store and rolling door of store control.
Place of Parking Lot Remote Control
TX-900 wireless remote control pair with RD-747 active RFID garage door
control and use in parking lot under underground parking lot control.
It can reach the floor from elevator during the effective distance which you set
so that you can save much times.
http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-900 Instruction Manual P.4
Community Access Into/Out Management
TX-900 wireless remote control pair collocate with RD-485 wireless modem
controller system, it can use in communicate access into/out management.
It can automatically open and close door during effective distance or use the
key to open and close the door.
Motorcycle Anti-Thief Device
TX-900 wireless remote control pair with RD-747 can two-way communicates.
When person touch the anti-thief device, TX-900 wireless remote control will
get the news back to RD-747 active RFID garage door control to notice
motorcycle owner.
Industry System Control
TX-900 wireless remote control pair with RD-485 wireless modem controller
system can combine with PLC( programmable logic control) as factory
automatically control system. TX-900 wireless remote control has four keys to
control four machines and identify function for every key. It also has strong
detected function; it can open or close the machine during effective distance.
Specification Parameter
Frequency
Battery
Key
Modulation mode
Transmitting power
Current work
Standby current
Operating temperature
925MHz ~ 928MHz
DC 3V CR2032
4
GFSK
≦
+10dBm
22mA
10uA
-10~+70℃
http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-900 Instruction Manual P.5
