Surface Mount Fuse with Clip, 11.1 x 4.2 mm, Time-Lag T, UMZ 250 = UMT 250 (Au) + UMC 250
UMZ 250
IEC 60127-4 · 250 VAC · 125 VDC · Time-Lag T
Description
- VDE/UL Approvals UMT 250, UMT 250 (Au), UMC 250 , see variants
- High breaking capacity of 200 A @ 250 VAC (IEC)
- UL approval for 0.08 A - 4 A 277 VAC and 250 VDC
Applications
References
Weblinks
- Primary protection on SMD PCBs
- Industrial electronic
Packaging Details
pdf-datasheet, html-datasheet, General Product Information,
Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, e-Shop,
SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for
product
Standards
- IEC 60127-4/6
- UL 248-14 / 4248-1
- CSA C22.2 no. 248.14 / no. 4248.1
Approvals
- VDE Certificate Number: 40013121
- UL File Number: E39328
Technical Data
Rated Voltage
Rated current
Breaking Capacity
Characteristic
Mounting
Admissible Ambient Air Temp.
Climatic Category
Material: Housing
Material: Terminals
Storage Conditions
Product Marking
250 VAC, 125 VDC
0.08 - 4 A
200 A
Time-Lag T
PCB,SMT
-40 °C to 85 °C
40/085/21 acc. to IEC 60068-1
Ceramic
Gold-Plated Copper Alloy
0 °C to 60 °C, max. 70% r.h.
, Current, Dielectric strength, Cha-
racteristic, Breaking Capacity
Soldering Methods
Solderability
Resistance to Soldering Heat
Life Test
Moisture Resistance Test
Terminal Strength
Mechanical Shock
Resistance to Solvents
Flammability
Reflow
245 °C / 3 sec acc. to IEC 60068-2-58
260 °C / 10 sec acc. to IEC 60068-2-58
MIL-STD-202, Method 108A
(1000h @ 0.42*In @ 70°C)
MIL-STD-202, Method 106E
(50 cycles in a temp./mister chamber)
MIL-STD-202, Method 211A
Deflection of board 1 mm for 1 minute
MIL-STD-202, Method 213B
(Shock 50g, half sine wave, 11 ms)
Cleaning with common solvents
min. UL 94V-1
(acc. to EIA/IS-722, Test 4.12)
Dimension
11.3 mm
10.7
11.3
3
5.5
3
3.6
2
6.7
4.2
Soldering pads

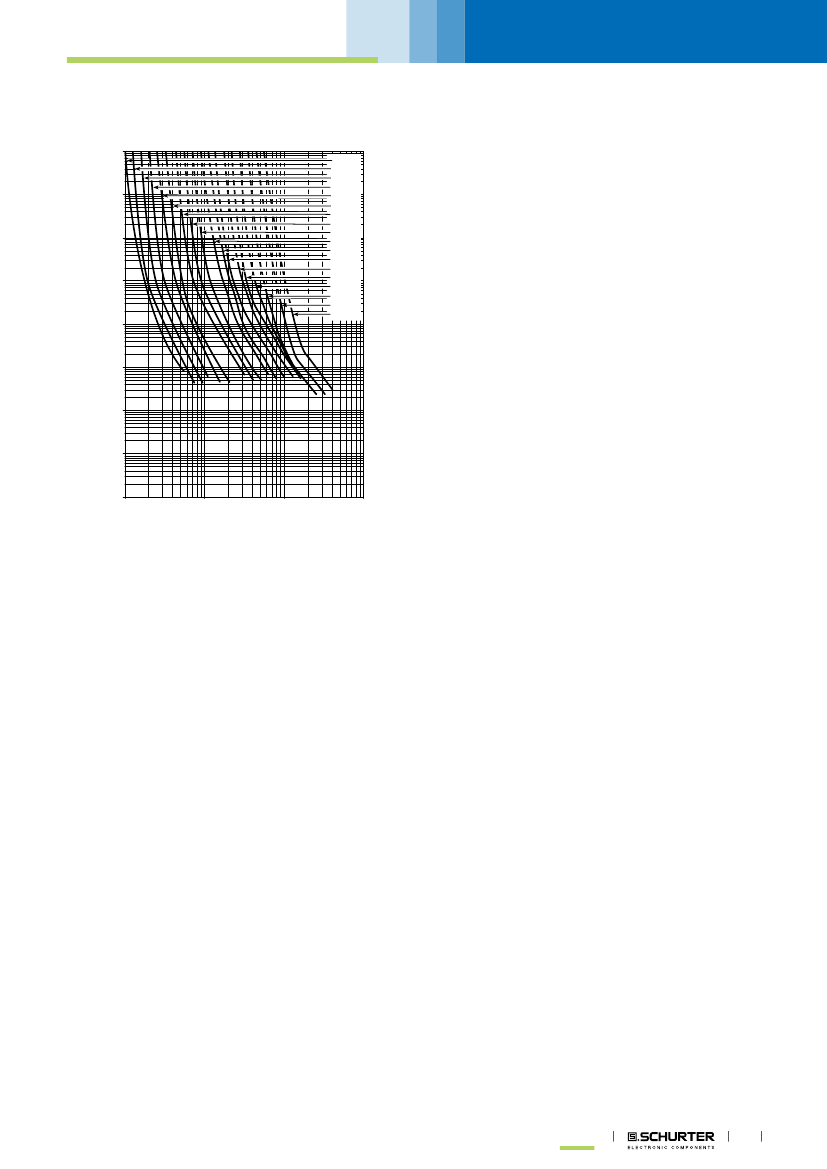

Pre-Arcing Time
Rated Current In
0.08 A - 4.0 A
1.25 x In min.
60 min
2.0 x In max.
120 s
10.0 x In min. 10.0 x In max.
10 ms
100 ms
Fuses
4.75
10.1
+0.2
0
4
1
UMZ 250
Variants
Rated Cur-
rent [A]
Rated Vol-
tage [VAC]
Rated Vol-
tage [VDC]
Breaking
Capacity
Voltage Drop
1.0 In max.
[mV]
-
1300
1000
1000
1000
800
750
700
600
500
400
300
300
300
300
300
300
300
Voltage Drop
1.0 In typ.
[mV]
1030
850
700
540
460
395
344
320
264
216
174
174
140
130
103
90
95
83
Power Dissi-
pation 1.25 In
max [mW]
-
200
200
240
500
500
500
500
500
500
500
500
1000
1000
1000
1200
1500
2000
Melting I²t Order Number
10.0 Intyp.
[A²s]
0.022 3404.2405.xx
0.04 3404.2406.xx
0.055 3404.2407.xx
0.057 3404.2408.xx
0.092 3404.2409.xx
0.2 3404.2410.xx
0.27 3404.2411.xx
0.4 3404.2412.xx
0.54 3404.2413.xx
1.1 3404.2414.xx
1.4 3404.2415.xx
2.8 3404.2416.xx
4.5 3404.2417.xx
6.9 3404.2418.xx
7.3 3404.2419.xx
7.5 3404.2420.xx
14 3404.2421.xx
26 3404.2422.xx
Non resettable fuses
www.schurter.com/PG01_2
0.08
0.1
0.125
0.16
0.2
0.25
0.315
0.4
0.5
0.63
0.8
1
1.25
1.6
2
2.5
3.15
4
█
Most Popular.
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
2)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) IEC: 200 A @ 250 VAC, p.f.
≥
0.95 / 100 A @ 125 VDC
1) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC
2) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC
Approval Overview
UMT 250 -> Fuse with tin-plated caps, Approval Status: VDE, UL LISTED, cURus, Free of CCC, PSE JET, KTL
UMT 250 (Au) -> Fuse with gold-plated caps, Approval Status: VDE Mark and cURus
UMC 250 -> Clip, Approval Status: VDE UG Mark and cURus
UMZ 250 = UMT 250 (Au) + UMC 250
There is no approval existing for the combination fuse and clip UMZ 250, but the fuse and the clip are fully approved independently at
VDE/UL. See details above.
In the reflow soldering process, the fuse must have gold-plated caps, otherwise fuse and clip would be soldered together. For fuse repla-
cement in the field, a standard UMT 250 fuse with tin-plated caps can be used. This is not allowed for the 80 mA version. This must be
replaced with an original UMZ with gold caps.
It is not allowed to replace higher rated current than 4 A in the clip.
Packaging Unit
.xx = .11 Plastic Bag (100 pcs.)
.xx = .22 Blister Tape 33 cm Reel (1000 pcs.)
