1. Ripple and noise measured at 20 MHz bandwidth with a 10 µF tantalum and 0.1
µF ceramic cap connected at the measurement point.
2. Total regulation includes initial set accuracy, line and load regulation.
3. For class II versions, add ‘ C2’ to model number e.g. AMM90PS24C2.
4. For optional Barrel Jack Connector, add ‘ B1’ to model number e.g.
AMM90PS24C2B1 (not available on 5 V or 6 V models).
5. Not CEC2008 or EISA2007 compliant.

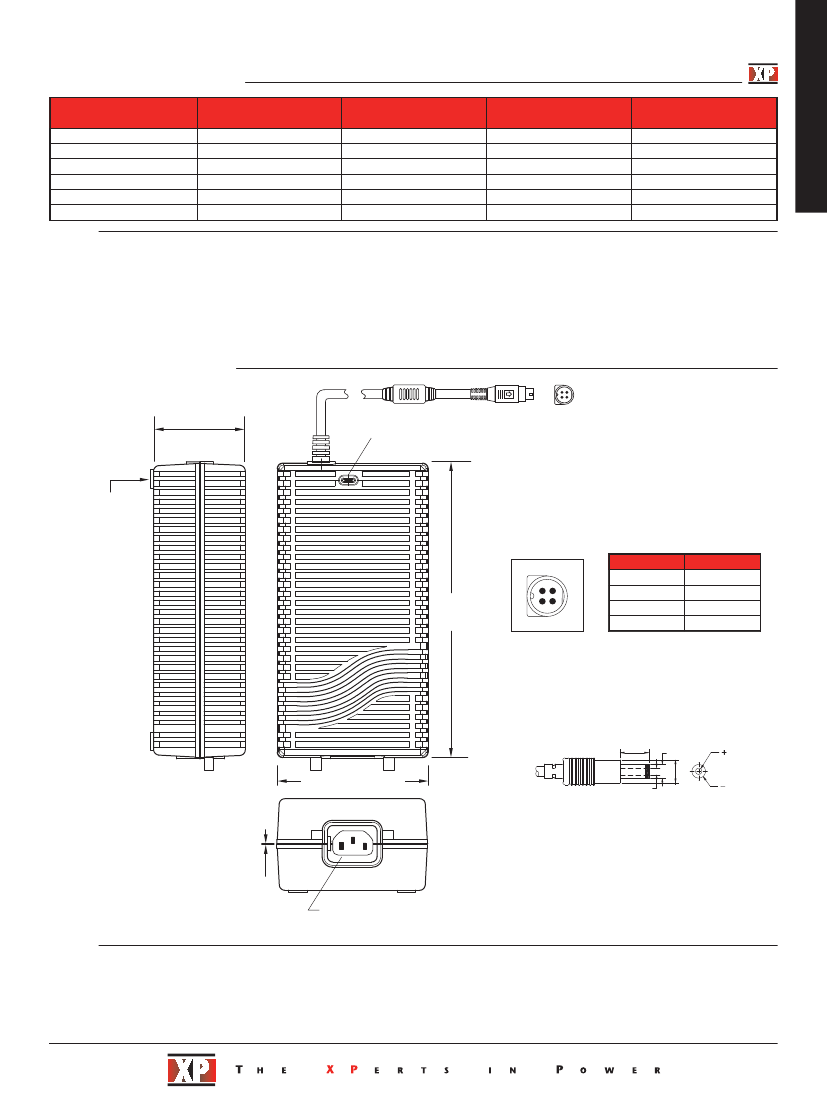

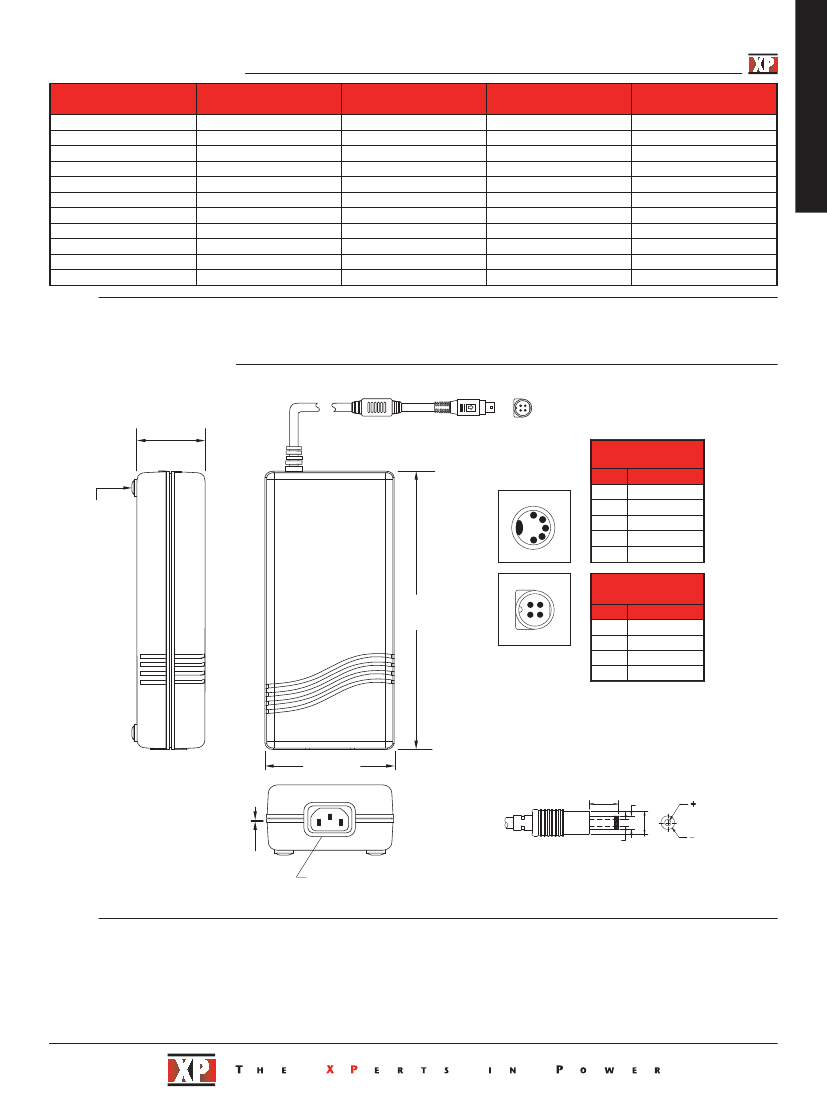

Mechanical Details
1 3
Cable length approx 48” (1219mm)
2
4
1.72
(43.7)
PIN CONNECTIONS
PS05 - PS06
Pin
Function
1
Return
2
Return
3
Output+
4
Return
5
Output+
PIN CONNECTIONS
PS09 - PS48
Pin
Function
1
Return
2
Output+
3
Return
4
Output+
3
Rubber foot
(4 places.)
1
1
5
2
4
3
5.12
(130.0)
2
4
3.00 (76.2)
Optional Barrel Jack Connector
0.433 (11.0)
0.217
(5.5)
0.02
(0.5)
0.083 (2.1)
0.413
(10.5)
AC Input
IEC 320-C14 Inlet - For Class I version
IEC 320-C18 Inlet - For Class II version
Notes
1. Dimensions shown in inches (mm). Tolerance is 0.02 (0.5) maximum,
except output cable length.
2. Weight: 1.46 lb (660 g).
3. Maximum load per pin on output connector is 7.5 A.
4. Output connector for AMM90PS05 and PS06 is 5 pin 180° DIN.
5. Output connector for AMM90PS09-PS13 is 4 Pin DC Power Plug non locking
type. For mating half, use KYCON KPJ-4S-S or equivalent.
6. Output connector for AMM90PS15-PS48 is 4 Pin DC Power Plug locking type.
For mating half, use KYCON KPJ-4S-S or equivalent.
7. For Class I versions shell is connected to ground. For Class II versions shell is
capacitively coupled to input.
8. For European mains lead order part: EU-MAINS-IEC
9. For UK mains lead order part: UK-MAINS-IEC
10. For US mains lead order part: US-MAINS-IEC
11. Mains lead length is 76“ (1930 mm) approx
AC DC
Models and Ratings
Output
Power
96 W
105 W
120 W
120 W
120 W
120 W
120 W
120 W
120 W
1.
2.
3.
4.
AMM120
Output
Voltage
12 V
15 V
18 V
19 V
20 V
24 V
30 V
36 V
48 V
Output
Current
8.00 A
7.00 A
6.67 A
6.32 A
6.00 A
5.00 A
4.00 A
3.34 A
2.50 A
Total
Regulation
(2)
5%
5%
5%
5%
5%
5%
5%
5%
5%
Model
Number
(3, 4)
AMM120PS12
AMM120PS15
AMM120PS18
AMM120PS19
AMM120PS20
AMM120PS24
AMM120PS30
AMM120PS36
AMM120PS48
Notes
Ripple and noise measured at 20 MHz bandwidth with a 10 µF tantalum and 0.1 µF ceramic cap connected at the measurement point.
Total regulation includes initial set accuracy, line and load regulation.
For Class II versions, add ‘ C2’ to model number e.g. AMM120PS24C2.
For optional barrel jack connector add suffix ‘ B1’ to model number e.g. AMM120PS24C2B1.
Mechanical Details
1 3
Cable length approx 48” (1220mm)
2
4
1.72
(43.7)
Power On Indicator
Rubber foot
(4 places.)
Pin
1
2
3
4
Function
Return
Output+
Return
Output+
1
3
6.30
(160.0)
2
4
Optional Barrel Jack Connector
0.433 (11.0)
0.217
(5.5)
3.00 (76.2)
0.083 (2.1)
0.413
(10.5)
0.02
(0.5)
AC Input
IEC 320-C14 Inlet - For Class I version
IEC 320-C18 Inlet - For Class II version
Notes
1. Dimensions shown in inches (mm). Tolerance is 0.02 (0.5) maximum,
except output cable length.
2. Weight 1.72 lbs (780 g).
3. Maximum load per pin on output connector is 5 A.
4. Output connector for AMM120PS12 & PS15 is 4 Pin DC Power Plug,
non-locking type. For mating half, use KYCON KPJ-4S-S or equivalent.
5. Output connector for AMM120PS18-PS48 is 4 Pin DC Power Plug, locking
type. For mating half, use KYCON KPJ-4S-S or equivalent.
6. For Class I versions shell is connected to ground. For Class II versions shell is
capacitively coupled to input.
7. For European mains lead order part: EU-MAINS-IEC
8. For UK mains lead order part: UK-MAINS-IEC
9. For US mains lead order part: US-MAINS-IEC
10. Mains lead length is 76“ (1930 mm) approx
AC DC
Models and Ratings
Output
Power
132 W
144 W
150 W
150 W
150 W
150 W
Notes
Output
Voltage
12 V
15 V
19 V
24 V
27 V
48 V
Output
Current
11.00 A
9.60 A
7.90 A
6.25 A
5.56 A
3.13 A
Total
Regulation
(2)
5%
5%
5%
5%
5%
5%
AMM150
Model
Number
(4,5)
AMM150PS12
AMM150PS15
AMM150PS19
(6)
AMM150PS24
(3,6)
AMM150PS27
(3,6)
AMM150PS48
(3,6)
1. Ripple and noise measured at 20 MHz bandwidth with a 10 µF tantalum and 0.1 µF ceramic capacitor connected at the measurement point.
2. Total regulation includes set accuracy, line and load regulation.
3. For optional barrel jack connector, add suffix ‘ B1’ to the model number e.g. AMM150PS24B1 (not available on 12 V models)
4. For optional AC cable restraint on the Class I Version, add suffix ‘ A’ to the model number e.g. AMM150PS24A or AMM150PS24B1A. AC mains lead must be
Interpower Corporation, part number: 70006020300. Optional AC cable restraint is not available on the Class II Version.
5. For Class II Versions, and ‘ C2’ to model number, eg. AMM150PS24C2.
6. Energy Star Level V.
Mechanical Details
1 3
Cable length approx 48” (1219 mm)
2 4
1.96
(49.7)
Power On Indicator
Rubber foot
(4 places.)
Pin
1
2
3
4
Function
Return
Output+
Return
Output+
1
3
8.17
(207.6)
2
4
Optional Barrel Jack Connector
0.433 (11.0)
0.217
(5.5)
3.23 (82.0)
0.083 (2.1)
0.413
(10.5)
0.02
(0.5)
Notes
AC Input
IEC 320/C14 Inlet - For Class I Version
IEC 320/C18 Inlet - For Class II Version
5.
6.
7.
8.
For European mains lead order part: EU-MAINS-IEC
For UK mains lead order part: UK-MAINS-IEC
For US mains lead order part: US-MAINS-IEC
Mains lead length is 78“ (2000 mm) approx
1. Dimensions shown in inches (mm).
Tolerance is 0.02 (0.5) maximum, except output cable length.
2. Weight: 2.16 lbs (980 g).
3. Output connector is 4 Pin DC Power Plug, locking type.
For mating half, use KYCON KPJX-4S-S or equivalent.
4. For Class I versions shell is connected to ground. For Class II Versions shell is
