TPSPU150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > TPSPU150

Preview

TPSPU150: Description150W Desk Top Type I.T.E. Power Supplies; File Size357KB，2 Pages; ManufacturerTotal Power International; Websitehttp://www.total-power.com/

Download Datasheet Compare View All

TPSPU150 Overview

150W Desk Top Type I.T.E. Power Supplies

Preview

Download Datasheet

View All

Tota Power International, Inc.

Total

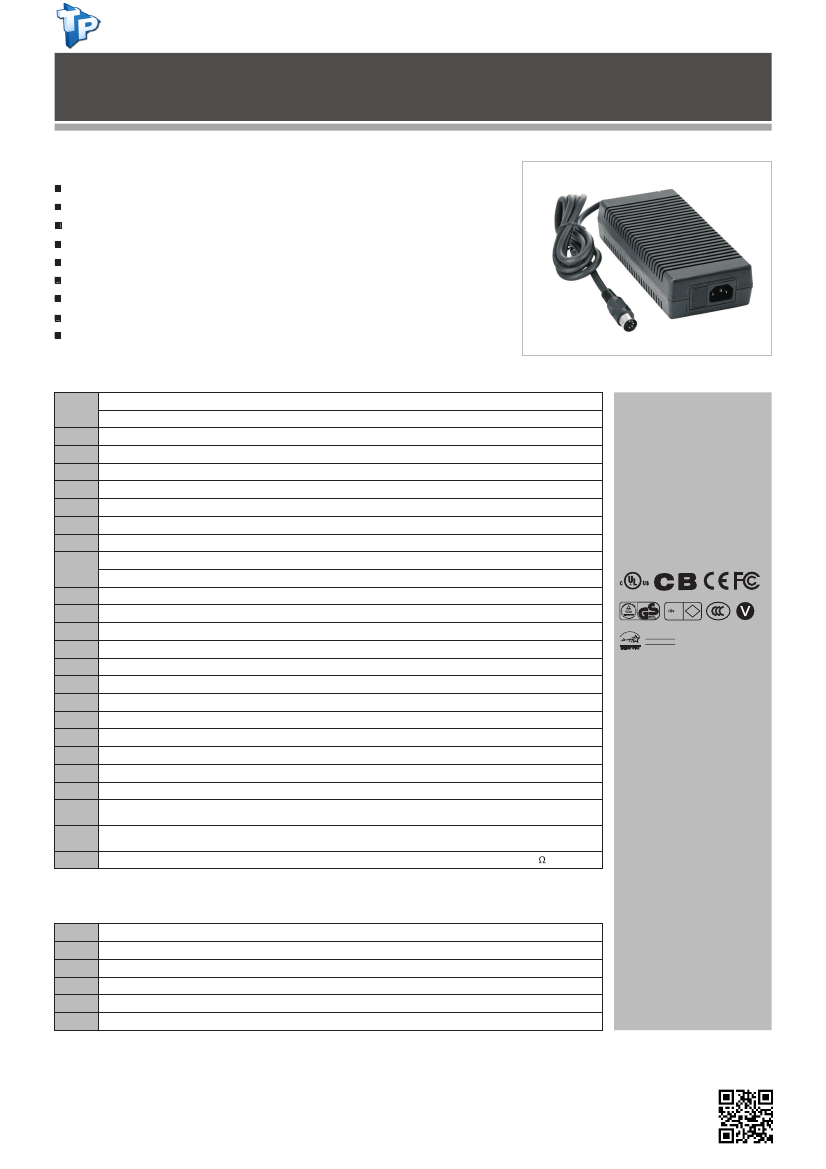

TPSPU150 SERIES

Features:

Wide Operating Voltage 90 to 260 VAC,47 to 63 Hz

IEC-320-C14 Input Inlet

Active Power Factor Correction

Single Output

ON/OFF SWITCH (Optional)

Output Voltage Protection (Crowbar Design)

Energy Star 2.0, Efficiency level V

Class I

2 year warranty

150W Desk Top Type

I.T.E. Power Supplies

Electrical Characteristics:

Vin

fin

Iil

Iih

Eff

REG-i

OVP

OCP

Ttr

Vp-p

Ilk

Pno

Vps

Vpg

Ris

Safety Approvals Input Voltage Range

Operate Voltage Range

Input Frequency

Power Factor Correction

Output Power Range

Output Voltage Range

Output Current Range

Input Current (Low Line)

Input Current (High Line)

Low Line Inrush Current

High Line Inrush Current

Efficiency

Line Regulation

Over Voltage Protection

Over Current Protection

Time of Transient Response

Hold-Up Time

Start Up Time

Ripple & Noise(Peak to Peak)

Safety Ground Leakage Current

Temperature Coefficient

No-Load Power Consumption

Dielectric Withstanding Voltage

for Primary to secondary

Dielectric Withstanding Voltage

for Primary to PE

Isolation Resistance

Io=Full Load to Half Load, Vin=100VAC

Io=Full Load, Vin=110VAC

Io=Full Load, Vin=100VAC

Full Load, Vin=90VAC

Vin=240VAC/60Hz

All output

No load, Vin=230VAC

Primary to secondary

Primary to PE

Io=Full load, Vin=230VAC

Io=Full load, Vin=100VAC

Io=Full load, Vin=240VAC

Io=Full load, 25°C, Cool start, Vin=115VAC

Io=Full load, 25°C, Cool start, Vin=230VAC

Io=Full Load, Vin=230VAC

Io=Full Load

Vin=230VAC

Io=Full load, Vin=240VAC

100~240VAC

90~260VAC

47~63Hz

0.95~1

See rating chart

Application:

- Printer

- Industrial PC

- Power Tools

- DC Motor

- AV Equipment

- LED Lighting

24V

6.25V

1.89A

0.65A

30A (max.)

50A (max.)

87~89%

0.5~1%

5% (typ.)

112~132%

110~150%

4mS (max.)

20mS (min.)

2S (max.)

1% (max.)

0.75mA (max.)

±0.04%/°C

See rating chart

4242VDC (min.)

2799VDC (min.)

50M

(min.)

Safety Approvals:

S&E

REG-o Load Regulation

RoHS

2002/95/EC

COMPLIANT

UL/c-UL(UL 60950-1:2nd Edition)

TUV/GS(EN 60950-1:2nd Edition)

Environmental

MTBF

Operating Temperature

Storage Temperature

Operating Humidity

Storage Humidity

Operating Temperature at 25°C

Calculated per MIL-HDBK-217F

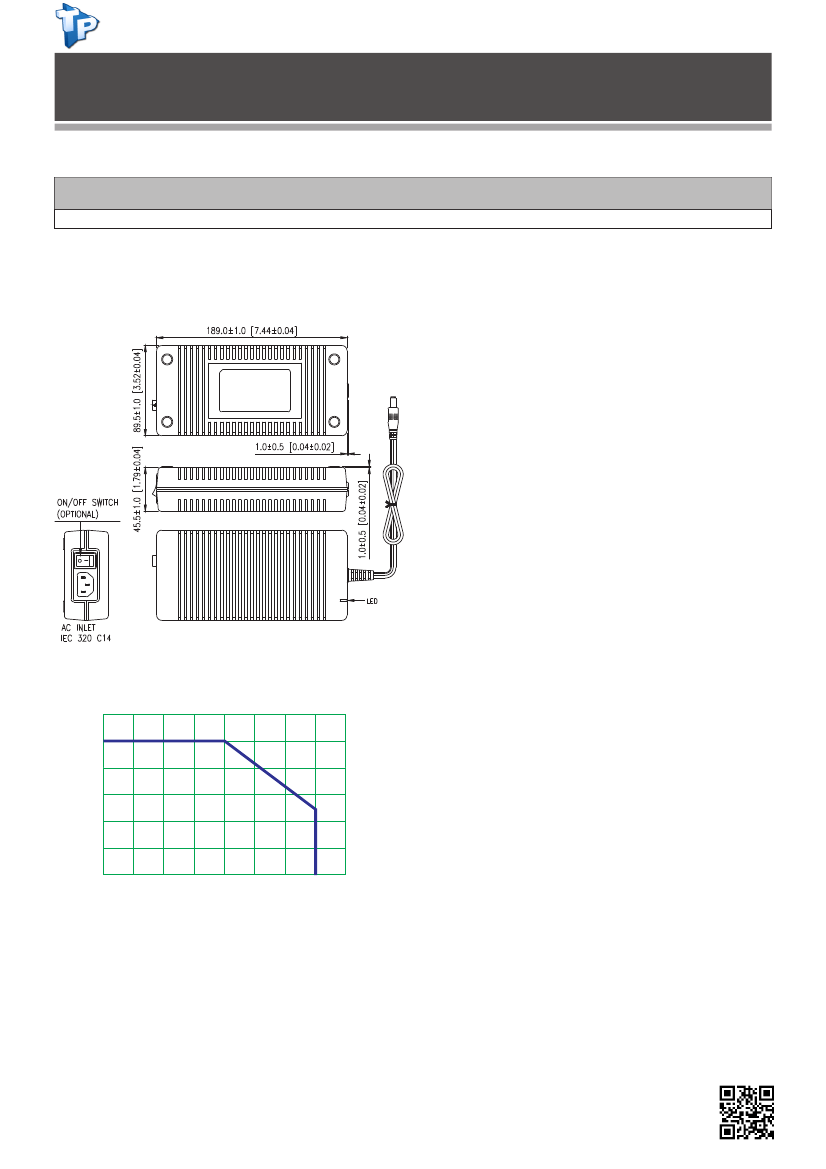

Derate linearly from 100% load at 40°C to 50% load at 70°C

See derating curve

-40~85°C

0~95%

0.1M Hrs (min.)

Total Power In

International, Inc

Toll Free: 877-646-0900

www.total-power.com

TPSPU150 Related Products

	TPSPU150	TPSPU150-108
Description	150W Desk Top Type I.T.E. Power Supplies	150W Desk Top Type I.T.E. Power Supplies
