Tota Power International, Inc.

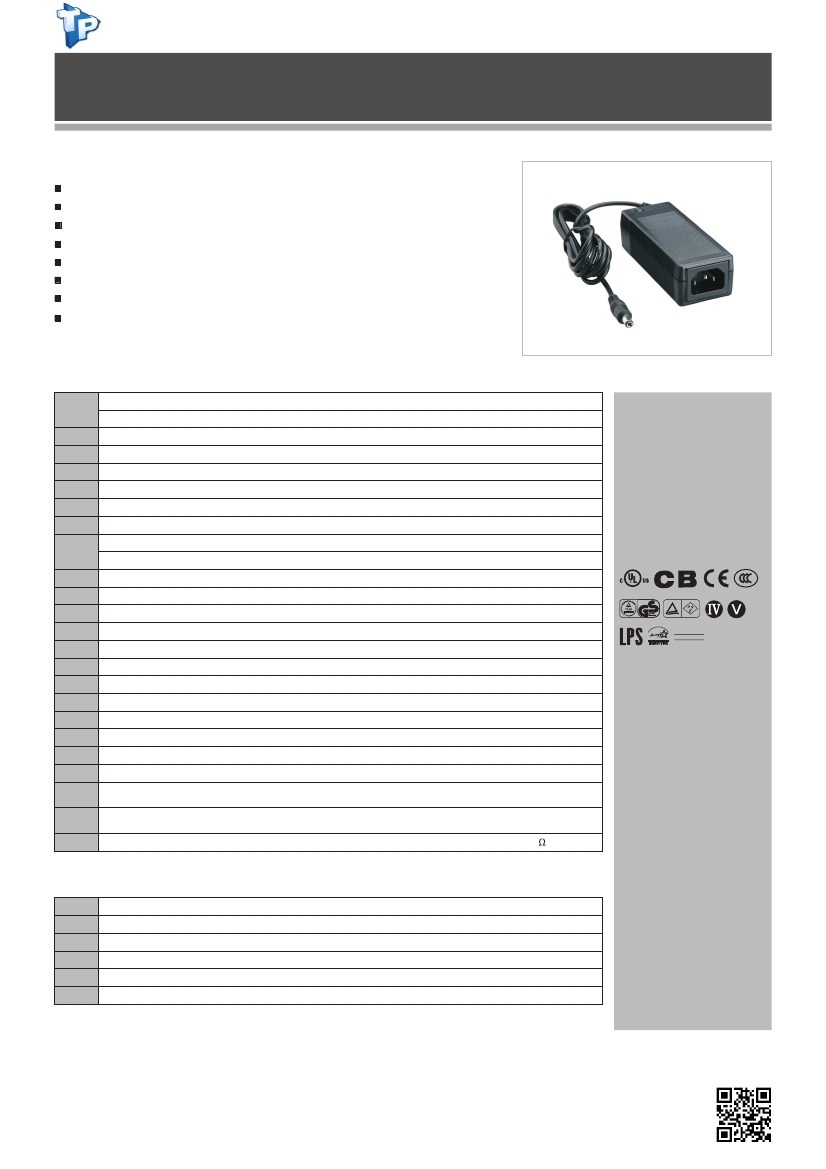

TPSPU25A SERIES
Features:
Wide Operating Voltage 90 to 264 VAC,47 to 63 Hz
IEC-320-C14 Input Inlet
Optional Output Connector (See page appendix)
Single Output
Approved as Limited Power Source (LPS)
Energy Star 2.0, Efficiency level V
Class I
2 year warranty
25W Desk Top Type
I.T.E. Power Supplies
Electrical Characteristics:
Vin
fin
Po
Vo
Io
Iil
Iih
Ir
Eff
REG-i
OVP
OCP
Ttr
Th
Ts
Vp-p
Ilk
TC
Pno
Vps
Vpg
Ris
Safety Approvals Input Voltage Range
Operate Voltage Range
Input Frequency
Output Power Range
Output Voltage Range
Output Current Range
Input Current (Low Line)
Input Current (High Line)
Low Line Inrush Current
High Line Inrush Current
Efficiency
Line Regulation
Over Voltage Protection
Over Current Protection
Time of Transient Response
Hold-Up Time
Start Up Time
Ripple & Noise(Peak to Peak)
Safety Ground Leakage Current
Temperature Coefficient
No-Load Power Consumption
Dielectric Withstanding Voltage
for Primary to secondary
Dielectric Withstanding Voltage
for Primary to PE
Isolation Resistance
Io=Full Load to Half Load, Vin=100VAC
Io=Full Load, Vin=110VAC
Io=Full Load, Vin=100VAC
Full Load, Vin=90VAC
Vin=240VAC/60Hz
All output
No load, Vin=230VAC
Primary to secondary
Primary to PE
Test Voltage=500VDC
Io=Full load, Vin=100VAC
Io=Full load, Vin=240VAC
Io=Full load, 25°C, Cool start, Vin=115VAC
Io=Full load, 25°C, Cool start, Vin=230VAC
Io=Full Load, Vin=230VAC
Io=Full Load
Vin=230VAC
100~240VAC
90~264VAC
47~63Hz
See rating chart
See rating chart
See rating chart
Application:
- POS System
- AV Equipment
- Industrial PC
- Note PC
- Charger
- LED Lighting
0.55A
0.30A
25A (max.)
50A (max.)
75~95%
0.5~1%
1~5%
Nil
110~150%
4mS (max.)
12~16mS
2S (max.)
2% (max.)
0.75mA (max.)
±0.04%/°C
See rating chart
4242VDC (min.)
2837VDC (min.)
50M
(min.)
Safety Approvals:
S&E
REG-o Load Regulation
RoHS
2002/95/EC
COMPLIANT
UL/c-UL(UL 60950-1:2nd Edition)
TUV/GS(EN 60950-1:2nd Edition)
Environmental
To
Ts
Ho
Hr
MTBF
Pd
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Temperature at 25°C
,
Calculated per MIL-HDBK-217F
Derate linearly from 100% load at 40°C to 50% load at 70°C
See derating curve
-40~85°C
0~95%
0~95%
0.3M Hrs (min.)
Total Power In
International, Inc
Toll Free: 877-646-0900
www.total-power.com
Tota Power International, Inc.
Total
TPSPU25A SERIES

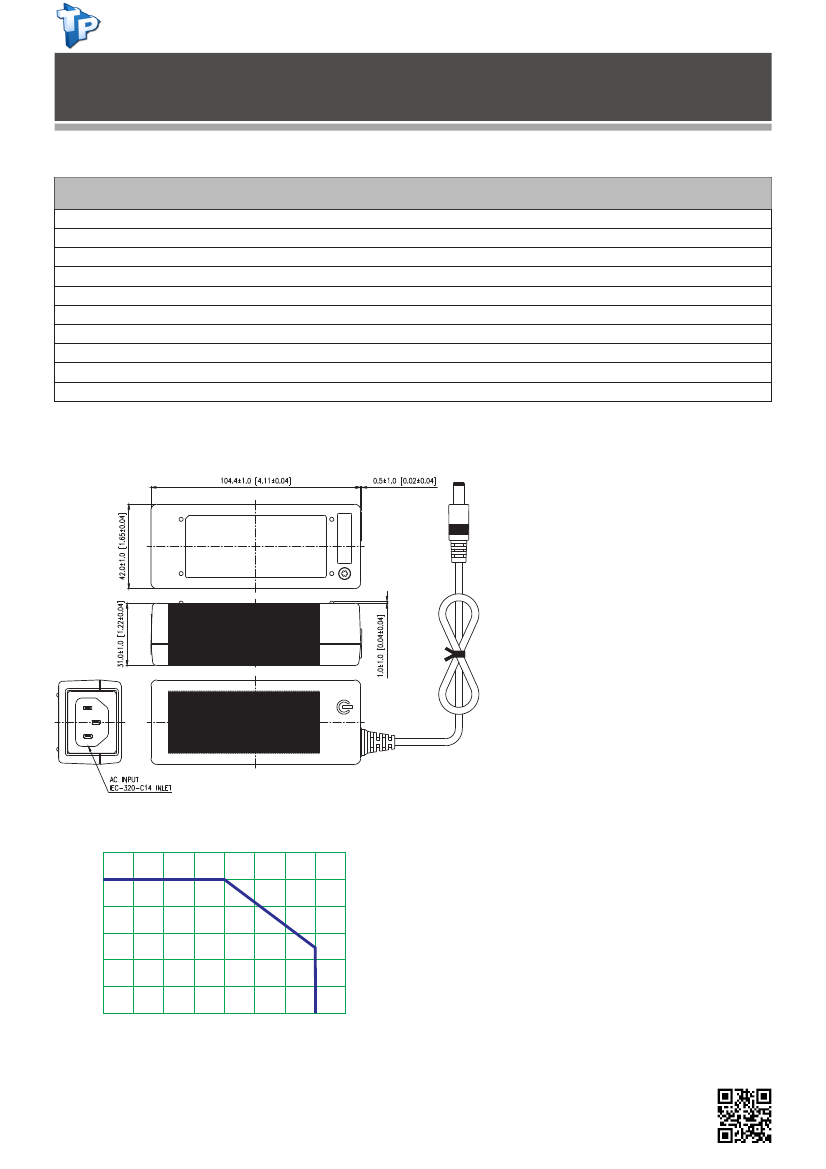

Output Voltage And Current Rating Chart ( Single Output ) :
Model Number
TPSPU25A-102
TPSPU25A-103
TPSPU25A-104
TPSPU25A-105
TPSPU25A-106
TPSPU25A-107
TPSPU25A-108
TPSPU25A-109
TPSPU25A-110
TPSPU25A-111
25W Desk Top Type
I.T.E. Power Supplies
Output Voltage
5 ~ 6 VDC
6 ~ 8 VDC
8 ~ 11 VDC
11 ~ 13 VDC
13 ~ 16 VDC
16 ~ 21 VDC
21 ~ 27 VDC
27 ~ 33 VDC
33 ~ 40 VDC
40 ~ 48 VDC
Output Current
3.30 ~ 2.75 A
3.33 ~ 2.50 A
2.75 ~ 2.00 A
2.27 ~ 1.92 A
1.92 ~ 1.56 A
1.56 ~ 1.19 A
1.19 ~ 0.92 A
0.92 ~ 0.75 A
0.75 ~ 0.62 A
0.62 ~ 0.52 A
Total
Regulation
5%
5%
5%
5%
5%
5%
3%
3%
3%
3%
Max
.
Output Power
16.5W
20W
22W
25W
25W
25W
25W
25W
25W
25W
Pno
(max.)
0.5W
0.5W
0.5W
0.3W
0.3W
0.3W
0.3W
0.3W
0.3W
0.3W
Mechanical Specifications:
Note:
1. Dimensions are shown in mm.
2. Weight: 170gs approx.
3. Optional output connector:
See page Appendix.
Derating Curve :
120%
100%
Output Watts (%)
1. Operating Temperature: 0 to 70°C
2. Derate linearly from 100% load at 40°C to 50%
load at 70°C
80%
60%
40%
20%
0%
0
10
20
30
40
50
60
70
80
Temperature (deg c)
