Photoelectric sensors
G10, Photoelectric proximity sensor, Background suppression
Type
Part No.
> GTB10-N1411S02
> 1066853
At a glance
• Long sensing ranges: up to 1,200 mm with background suppression
• PinPoint LED with bright and precise light spot or infrared LED
• Immunity to ambient light
• 10 V DC ... 30 V DC or 24 V AC/DC … 240 V AC/DC power supply with
PNP/NPN or relay output
• Small housing design
• Rugged sensor housing with metal-reinforced holes for assembly
• Q-Lock assembly system for mounting and aligning the sensor within a few
seconds
Your benefits
• Long sensing ranges for maximum operating reserves
• Powerful background suppression ensures precise detection, regardless of
reflective surfaces and objects
• Efficient installation: the GTB10 and the Q-Lock assembly system save valuable
hours when mounting and commissioning multiple sensors
• Universal DC or AC/DC power supply for even greater application flexibility
• Highly reliable and durable despite optical interference and mechanical loads
• Wide range of accessories simplifies sensor integration: aids for assembly and
connectors

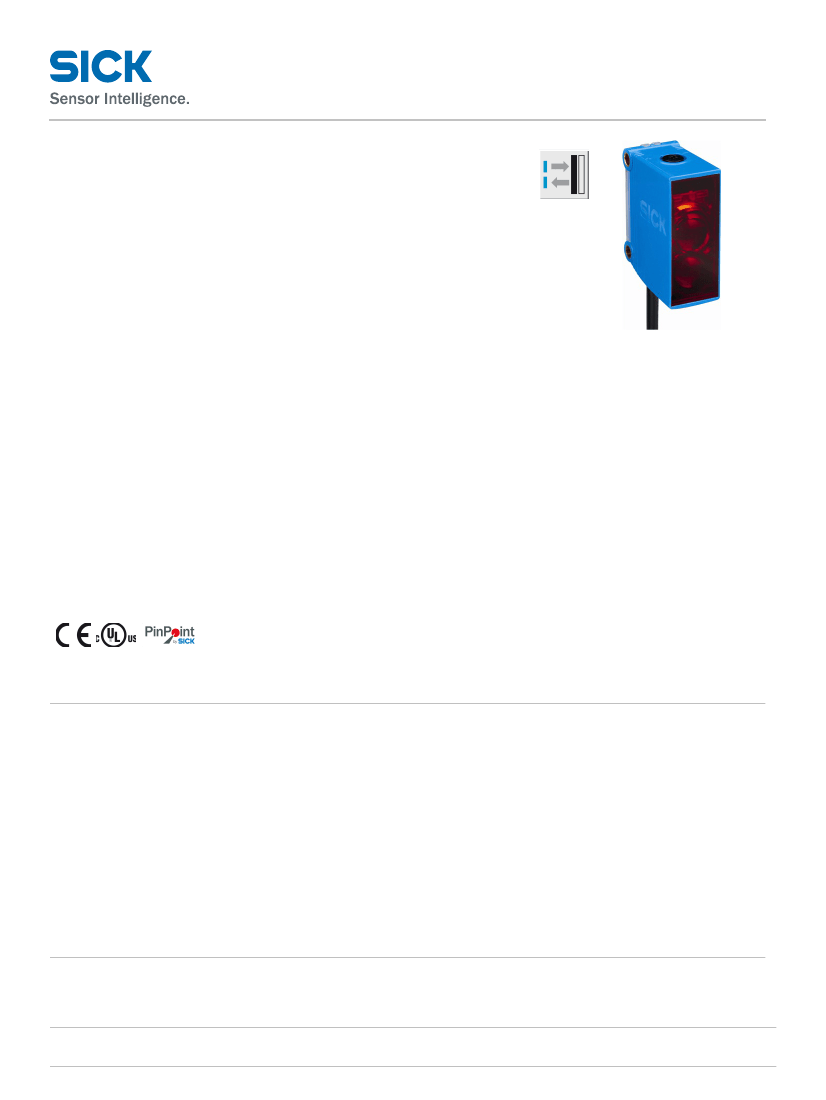

Illustration may differ
Features
Sensor/detection principle:

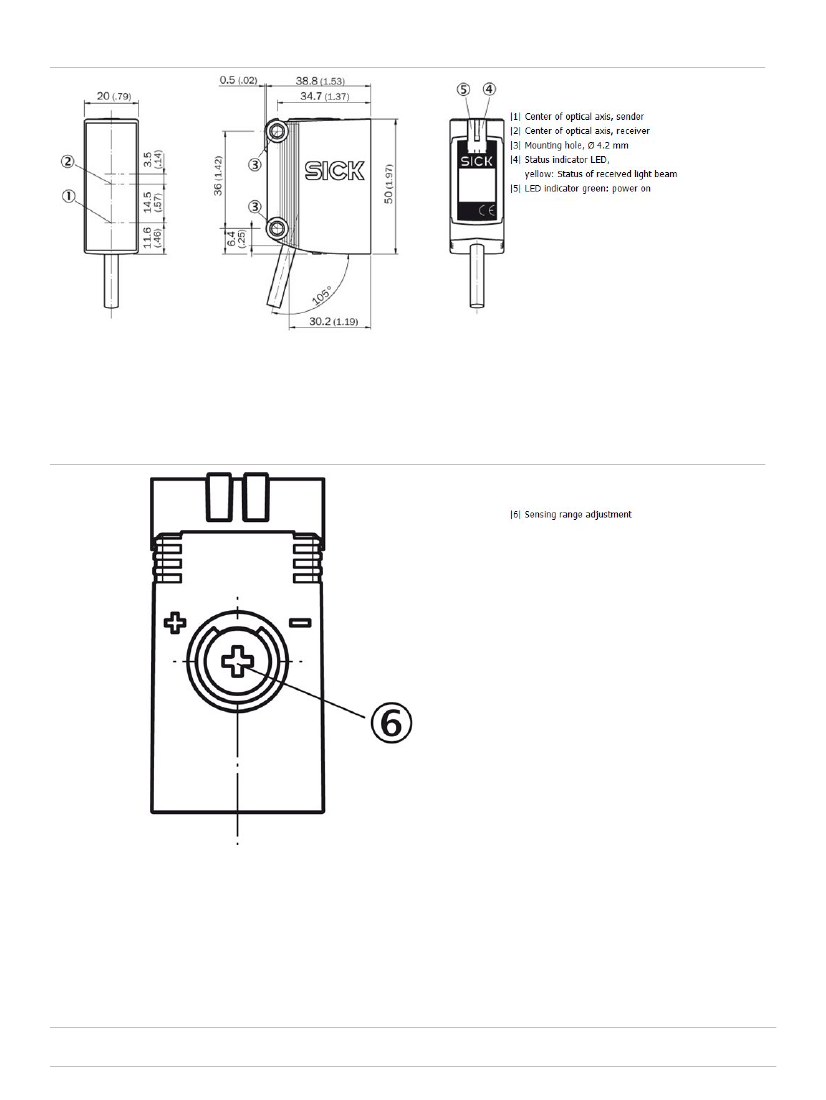

Dimensions (W x H x D):
Housing design (light emission):
Sensing range max.:
Type of light:
Light source:
Wave length:
Special features:
Adjustment:
Light spot size (distance):
1)
Object with 90 % reflectance (referred to standard white, DIN 5033)
Photoelectric proximity sensor, Background suppression
20 mm x 50 mm x 39 mm
Rectangular
1)
20 mm ... 950 mm
Visible red light
2)
PinPoint LED
625 nm
High functional reliability on foil-wrapped objects
Potentiometer, 5 turns
Ø 8 mm (700 mm)
2)
Average service life: 100,000 h at T = +25 °C
U
Mechanics/electronics
Photoelectric sensorsAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA2/18/2016 2:16:14 AM
Supply voltage:
Ripple:
Power consumption:
Output type:
Switching mode:
Output current Imax.:
Response time:

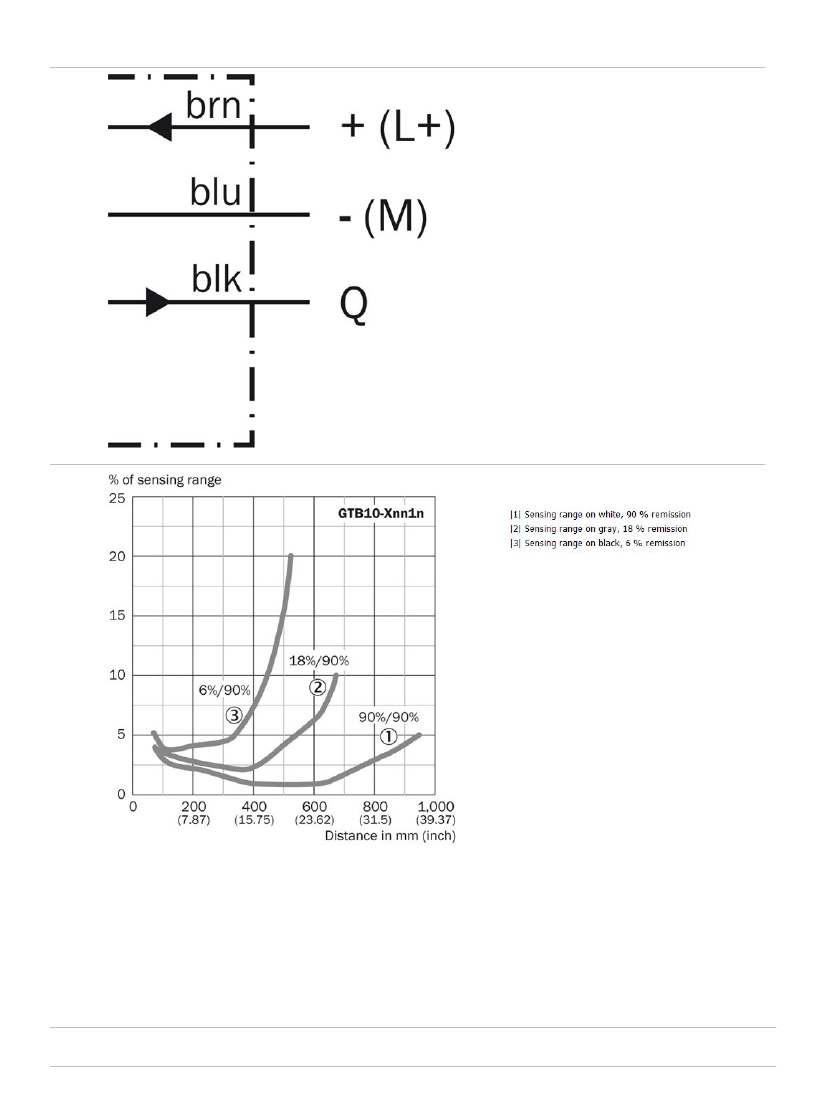

Connection type:
Cable material:
Conductor cross-section:
Circuit protection::::
Protection class:
Weight:
Polarisation filter:
Special device:
Enclosure rating:
EMC:
Ambient operating temperature:
Ambient storage temperature:
UL File No.:
Further standards:
Switching frequency max.:
Housing material:
1)
10 V DC ... 30 V DC
2)
± 5 Vpp
≤ 20 mA
NPN, open collector
Light switching
≤ 100 mA
3)
≤ 1 ms
4)
Cable, 3-wire, 2 m
PVC
0.14 mm²
5) 6) 7) 8)
A, B, C, D
III
90 g
-
-
IP 67
EN 60947-5-2
-30 °C ... +60 °C
-40 °C ... +70 °C
NRKH.E348498 & NRKH7.E348498
9)
UL325
10)
500 Hz
PVC ∕ PMMA, Plastic
1)
2)
3)
4)
Limit values: operation in short-circuit protected network max. 8 A
May not exceed or fall below U tolerances
Signal transit time with resistive load
Do not
v
5)
6)
7)
8)
bend below 0 °C
A = V connections reverse-polarity protected
B = inputs and output reverse-polarity protected
C = interference suppression
D = outputs
S
9)
10)
overcurrent and short-circuit protected
Complies with the UL325 standard when used with sturdy protection hood (e.g. BEF-G10WSG, 2071960).
With light/dark
ratio 1:1
Photoelectric sensorsAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA2/18/2016 2:16:14 AM
