SFH310FA-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SFH310FA-2

SFH310FA-2: DescriptionPHOTO TRANSISTOR DETECTOR; CategoryLED optoelectronic/LED photoelectric; File Size123KB，5 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

SFH310FA-2 Overview

PHOTO TRANSISTOR DETECTOR

SFH310FA-2 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknow
Configuration	SINGLE
Maximum dark power	100 nA
Infrared range	YES
Nominal photocurrent	0.63 mA
Number of functions	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	PHOTO TRANSISTOR
peak wavelength	880 nm
shape	ROUND
size	3 mm

Preview

Download Datasheet

View All

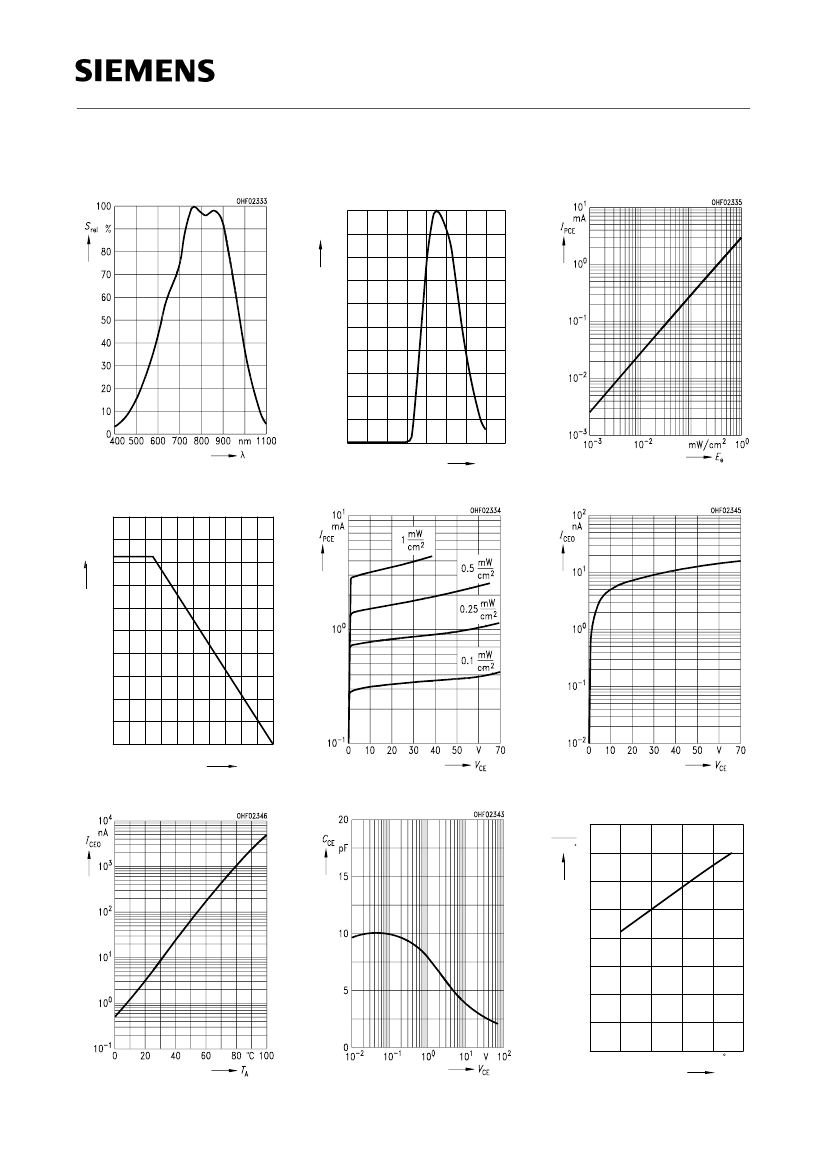

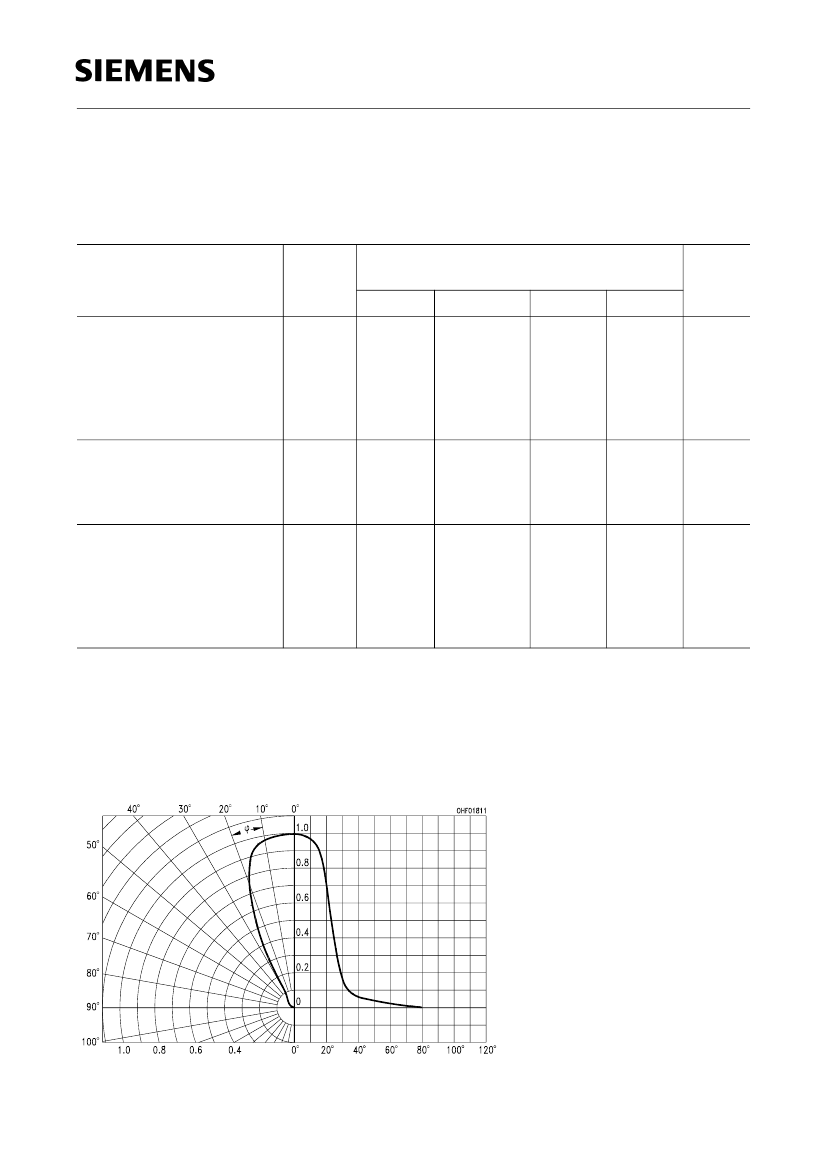

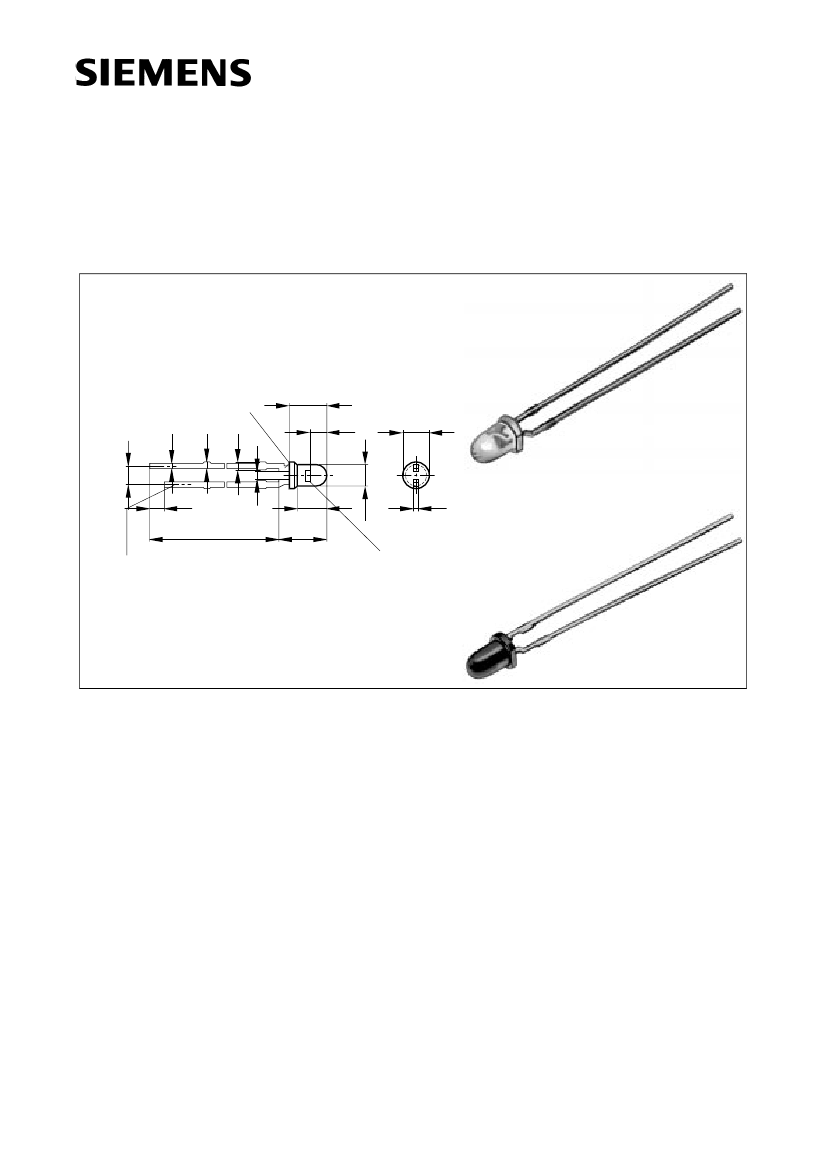

SFH 310

SFH 310 FA

Neu: NPN-Silizium-Fototransistor

New: Silicon NPN Phototransistor

SFH 310

SFH 310 FA

Area not flat

0.6

0.4

0.7

0.4

0.8

0.4

4.8

4.4

2.7

2.1

3.4

3.1

2.54 mm

spacing

1.1

0.9

1.8

1.2

29.0

27.0

3.7

3.5

6.1

5.7

0.6

0.4

Collector/

Cathode

Chip position

GEX06710

ø2.9

ø2.7

Maße in mm, wenn nicht anders angegeben/Dimensions in mm, unless otherwise specified

Wesentliche Merkmale

Speziell geeignet für Anwendungen im

Features

Especially suitable for applications from

Bereich von 400 nm bis 1100 nm

(SFH 310) und bei 880 nm (SFH 310 FA)

Hohe Linearität

3 mm-Plastikbauform

Anwendungen

Lichtschranken für Gleich- und

400 nm to 1100 nm (SFH 310) and of

880 nm (SFH 310 FA)

High linearity

3 mm plastic package

Applications

Photointerrupters

Industrial electronics

For control and drive circuits

Wechsellichtbetrieb

Industrieelektronik

“Messen/Steuern/Regeln”

Semiconductor Group

03.96

1998-07-13

feof6653

feo06653

SFH310FA-2 Related Products

	SFH310FA-2	SFH310FA-3	SFH310FA	SFH310-2	SFH310-3	SFH310	Q62702-P874	Q62702-P1673
Description	PHOTO TRANSISTOR DETECTOR	PHOTO TRANSISTOR DETECTOR	PHOTO TRANSISTOR DETECTOR	PHOTO TRANSISTOR DETECTOR	PHOTO TRANSISTOR DETECTOR	PHOTO TRANSISTOR DETECTOR	PHOTO TRANSISTOR DETECTOR	PHOTO TRANSISTOR DETECTOR
Number of functions	1	1	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 Cel	100 Cel
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 Cel	-40 Cel
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	2.8 mm	2.8 mm
Maker	SIEMENS	SIEMENS	SIEMENS	-	SIEMENS	SIEMENS	-	-
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	-	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-	-
Maximum dark power	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	-	-
Infrared range	YES	YES	YES	YES	YES	YES	-	-
Nominal photocurrent	0.63 mA	1 mA	0.4 mA	3.4 mA	5.4 mA	4 mA	-	-
Optoelectronic device types	PHOTO TRANSISTOR	PHOTO TRANSISTOR	PHOTO TRANSISTOR	PHOTO TRANSISTOR	PHOTO TRANSISTOR	PHOTO TRANSISTOR	-	-
peak wavelength	880 nm	880 nm	880 nm	780 nm	780 nm	780 nm	-	-
