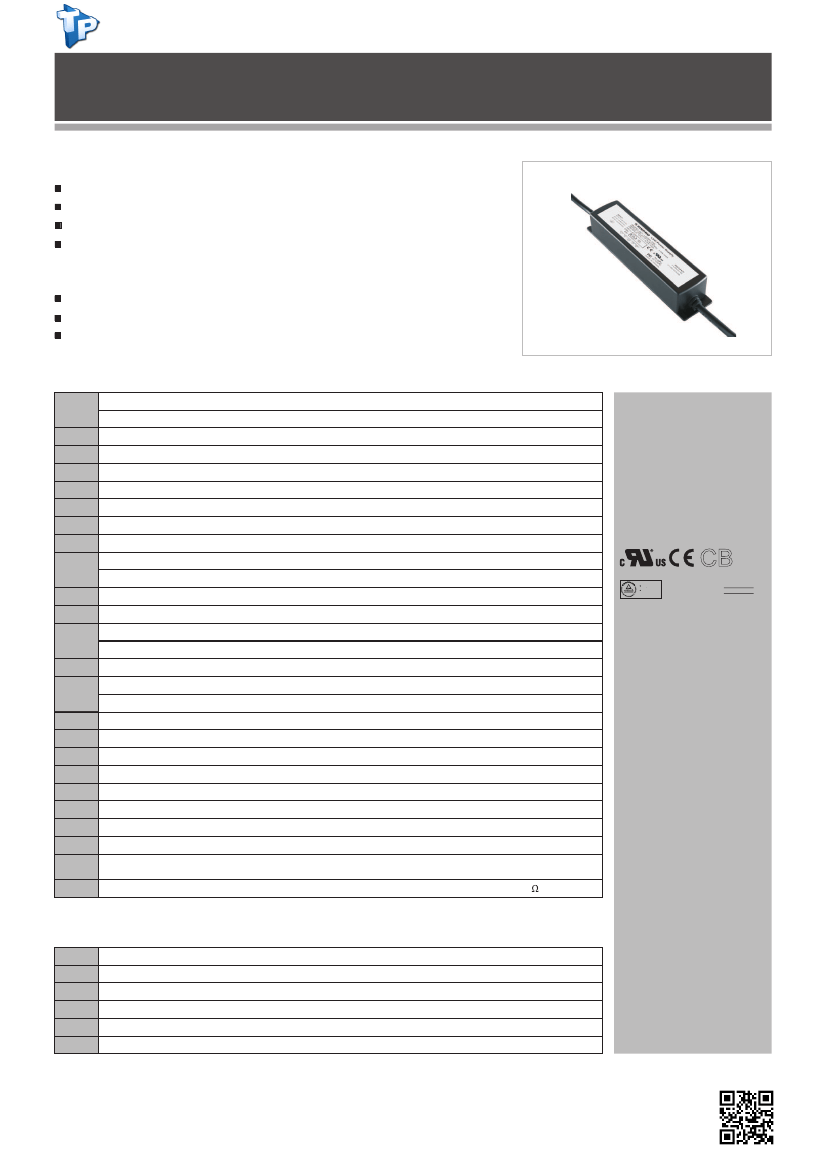

TPLSU60-110-40V: Description60W LED Power Supply; File Size167KB，2 Pages; ManufacturerTotal Power International; Websitehttp://www.total-power.com/

Download Datasheet View All

TPLSU60-110-40V Overview

60W LED Power Supply

Preview

Download Datasheet

View All

Total

Tota Power International, Inc.

TPLSU60 SERIES

Features:

Wide Operating Voltage 90 to 264 VAC,47 to 63 Hz

Internal EMI filter

Active Power Factor Correction

C.C. Mode + C.V. Mode

Constant Current: 0.84~5.45A

Constant Voltage: 11~58V

Over Voltage, Over Current, Over Over Temperature (optional)

Class I

3 year warranty

60W LED Power Supply

Electrical Characteristics:

Vin

fin

Iil

Iih

Eff

REG-i

REG-o

OVP

OCP

Ttr

Vp-p

Ilk

Pno

Vps

Vpg

Ris

Safety Approvals Input Voltage Range

Operate Voltage Range

Input Frequency

Power Factor Correction

Output Power Range

Output Voltage Range

Output Current Range

Input Current (Low Line)

Input Current (High Line)

Low Line Inrush Current

High Line Inrush Current

Efficiency

Line Regulation

Load Regulation

Over Voltage Protection

Over Current Protection

Time of Transient Response

Hold-Up Time (C.V.)

Start Up Time

Ripple & Noise (Peak to Peak)

Safety Ground Leakage Current

Temperature Coefficient

No-Load Power Consumption

Dielectric Withstanding Voltage

for Primary to PE

Isolation Resistance

C.C.

C.V.

Io=Full Load to Half Load, Vin=100VAC

Io=Full Load, Vin=110VAC

Io=Full Load, Vin=100VAC

Full Load, Vin=90VAC

Vin=240VAC/60Hz

All output

No load, Vin=230VAC

Primary to secondary

Primary to PE

Test Voltage=500VDC

Io=Full load, Vin=100VAC

Io=Full load, Vin=240VAC

Io=Full load, 25°C, Cool start, Vin=115VAC

Io=Full load, 25°C, Cool start, Vin=230VAC

Io=Full Load, Vin=230VAC

Io=Full Load

Vin=230VAC (C.C.)

Vin=230VAC (C.V.)

Io=Full load, Vin=90~264VAC

100~277VAC

90~264VAC

47~63Hz

0.90~1.0

See rating chart

1.0A

0.4A

35A (max.)

70A (max.)

84~90%

0.5~1%

103~105%

140~180%

4mS (max.)

8mS (min.)

1S (max.)

1% (max.)

0.75mA (max.)

±0.04%/°C

See rating chart

4242VDC (min.)

2121VDC (min.)

50M

(min.)

UL/c-UL(UL8750:1st edition)

TUV(EN/IEC61347-1:2008,

EN/IEC61347-2-13:2006)

CE-EMC(EN55015:2006 &

EN61547:1995+A1:2000)

BAUART

GEPRUFT

TYPE

APPROVED

Application:

- Outdoor installations

Safety Approvals:

IP67

RoHS

2002/95/EC

COMPLIANT

Environmental

MTBF

Operating Temperature

Storage Temperature

Operating Humidity

Storage Humidity

Operating Temperature at 25°C

Calculated per MIL-HDBK-217F

Derate linearly from 100% load at 50°C to 50% load at 70°C

See derating curve

-40~85°C

0~95%

0.1M Hrs (min.)

Total Power In

International, Inc

Toll Free: 877-646-0900

www.total-power.com
