TPMBU61-404-3: Description63W Open Frame Type Medical Power Supplies; File Size321KB，2 Pages; ManufacturerTotal Power International; Websitehttp://www.total-power.com/

Download Datasheet View All

TPMBU61-404-3 Overview

63W Open Frame Type Medical Power Supplies

Preview

Download Datasheet

View All

Tota Power International, Inc.

Total

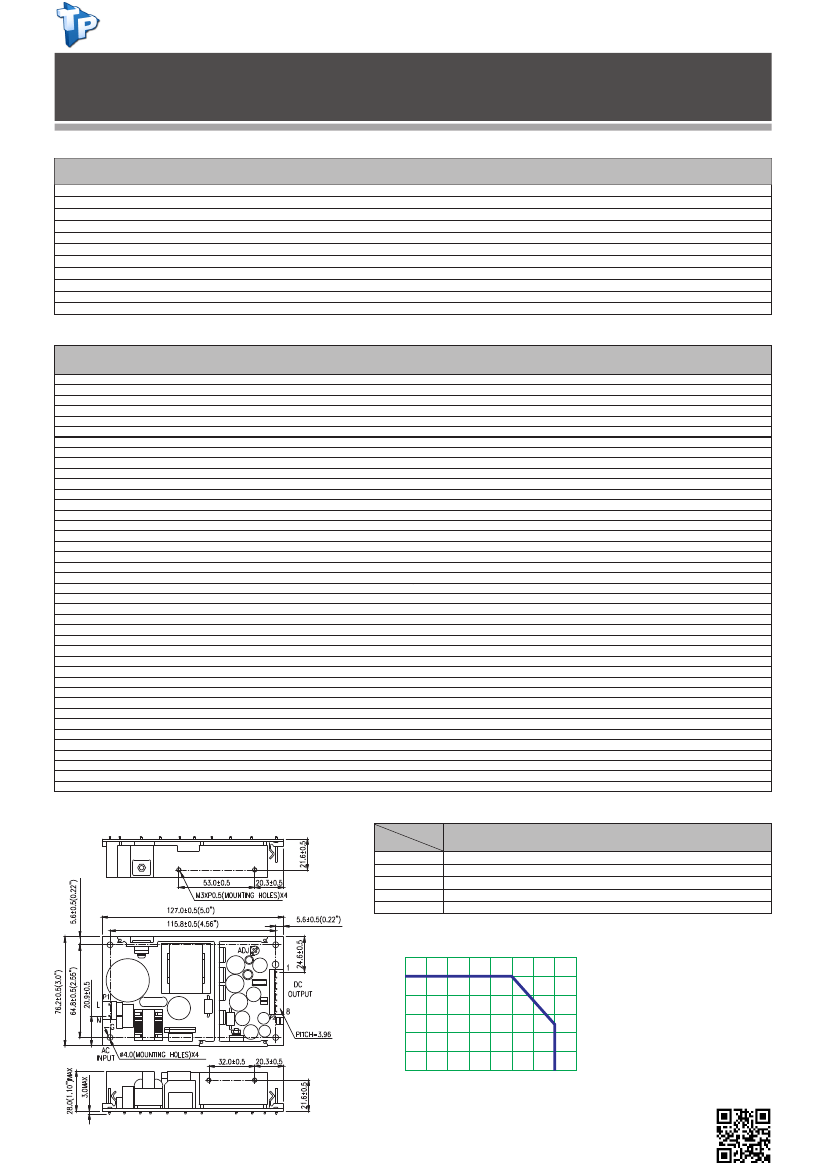

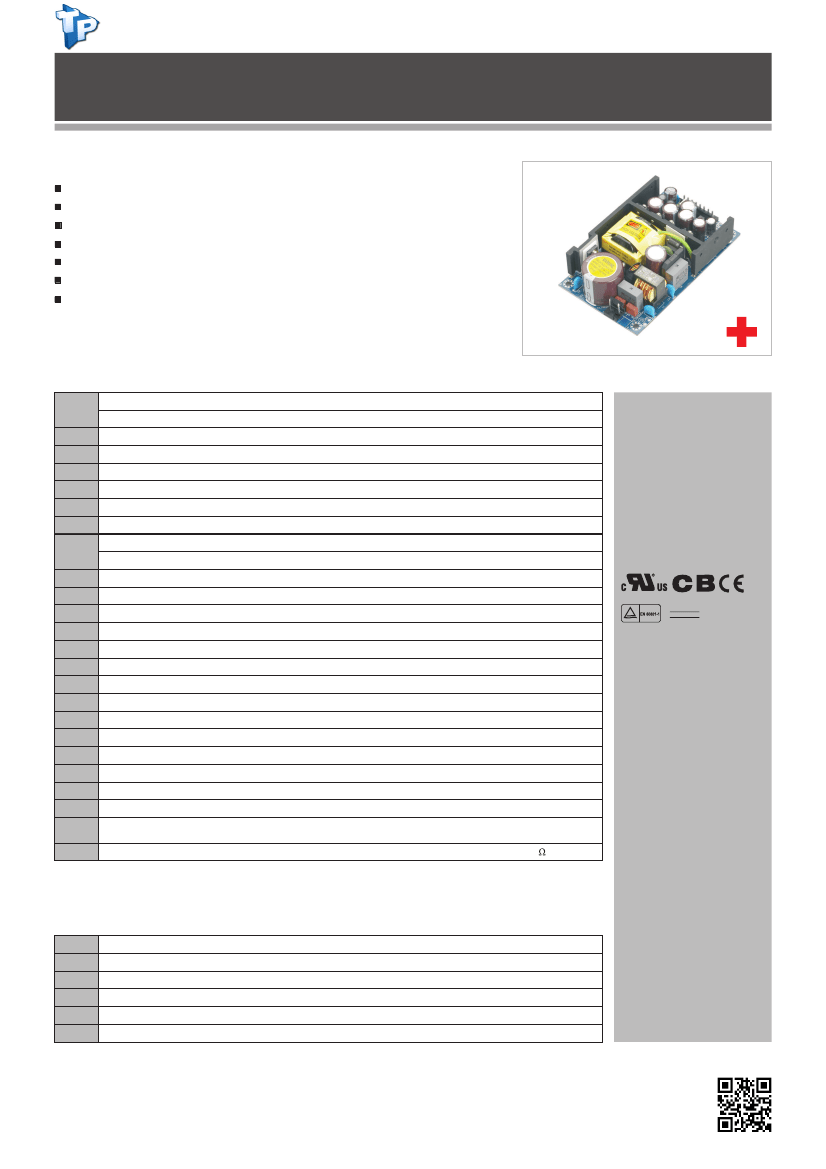

TPMBU61 SERIES

Features:

Wide Operating Voltage 90 to 264 VAC,47 to 63 Hz

Internal EMI filter

Single to Quad Output

Size: 3"x5"x1.1"

Power Fail Detect (Optional)

Class I

3 year warranty

63W Open Frame Type

Medical Power Supplies

Electrical Characteristics:

Vin

fin

Iil

Iih

Eff

REG-i

OVP

OCP

Ttr

Vp-p

Ilk

Pno

Vps

Vpg

Ris

Safety Approvals Input Voltage Range

Operate Voltage Range

Input Frequency

Output Power Range

Output Voltage Range

Output Current Range

Input Current (Low Line)

Input Current (High Line)

Low Line Inrush Current

High Line Inrush Current

Efficiency

Line Regulation

Over Voltage Protection

Over Current Protection

Time of Transient Response

Hold-Up Time

Start Up Time

Ripple & Noise(Peak to Peak)

Safety Ground Leakage Current

Temperature Coefficient

Operating Altitude

No-Load Power Consumption

Dielectric Withstanding Voltage

for Primary to PE

Isolation Resistance

No load, Vin=230VAC

Primary to secondary

Primary to PE

Test Voltage=500VDC

Io=Full Load to Half Load, Vin=100VAC

Io=Full Load, Vin=110VAC

Io=Full Load, Vin=100VAC

Full Load, Vin=90VAC

Vin=240VAC/60Hz

All output

Io=Full load, Vin=100VAC

Io=Full load, Vin=240VAC

Io=Full load, 25°C, Cool start, Vin=115VAC

Io=Full load, 25°C, Cool start, Vin=230VAC

Io=Full Load, Vin=230VAC

Io=Full Load

Vin=230VAC

100~240VAC

90~264VAC

47~63Hz

See rating chart

1.6A

0.8A

35A (max.)

70A (max.)

70~85%

0.5~1%

3~6%

112~132%

110~150%

4mS (max.)

16mS (min.)

0.3~2S

1% (max.)

0.25mA (typ.)

±0.04%/°C

Up to 3000m

See rating chart

6290VDC (min.)

2121VDC (min.)

50M

(min.)

RoHS

2002/95/EC

COMPLIANT

Application:

- Medical Touch Panel PC

- Patient Monitoring System

- Ultrasound System

Safety Approvals:

REG-o Load Regulation

Note:

The Ripple & Noise which is under 3.3VDC at 2% max

The range of OCP is set between 110-150% of total output power .

Environmental

MTBF

Operating Temperature

Storage Temperature

Operating Humidity

Storage Humidity

Operating Temperature at 25°C

Calculated per MIL-HDBK-217F

Derate linearly from 100% load at 50°C to 50% load at 70°C

See derating curve

-40~85°C

0~95%

0.1M Hrs (min.)

Total Power In

International, Inc

Toll Free: 877-646-0900

www.total-power.com
