A165E-R-24D-02 Overview

SWITCH, E-STOP, NON-LIGHTED SOCKET, 30 DIA., 1NC CONTACT

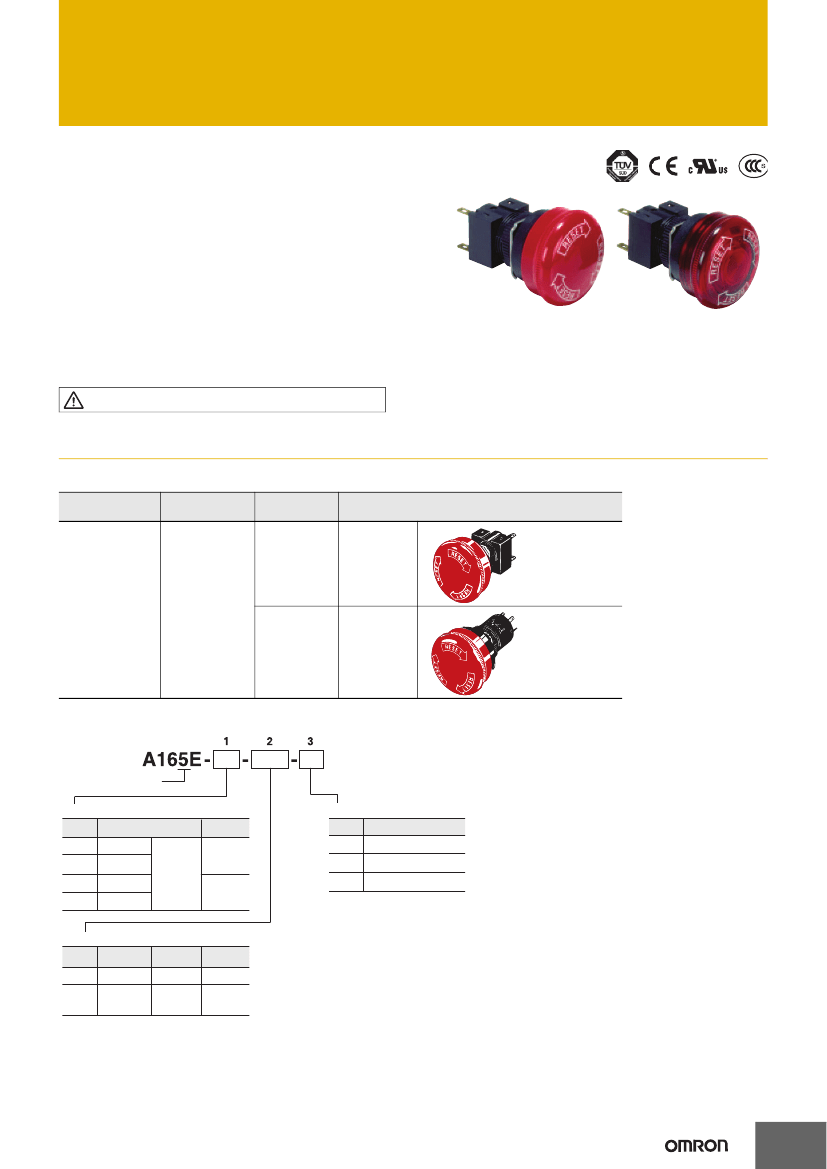

Emergency Stop Switch (16-dia.)
A165E
C64I-E-01
Separate Construction with Smallest
Class of Depth in the World
• Direct opening mechanism to open contacts in emergencies,
such as when they are welded.
• Conforms to EN 60947-5-5.
• Includes a safety lock to prevent misuse.
• Features separate construction that allows the Switch to be
separated for easier wiring and one-piece construction that
allows easier handling.
• Models available with 3 contacts built into a single block
(A165E-U).
Be sure to read the
“Safety Precautions”
on page 9.
Model Number Structure
List of Models
Diameter of
Operation Unit
Function
Model
Shape
A165E
Separate
construction
(30-mm model)
30-mm models
40-mm models
Push-Lock,
turn-reset
A165E-@-03U
One-piece
construction
(30-mm model)
Model Number Legend (Completely Assembled)
.........................Shipped as a set that includes the Operation Unit
and light source.
LS 24D 02
IP65 (Oil-resistant)
1. Operation Unit Shape and Functions
Code
S
LS
M
LM
Functions
Non-lighted
Lighted
30 dia.
Push-lock,
Non-lighted turn-reset
Lighted
Pushbutton
3. Contacts
Code
01
02
03U
Description
SPST-NC
DPST-NC
TPST-NC
*
40 dia.
2. Light Source
Code
Type
Operation
voltage
Rated
voltage
---
24 VAC/
VDC
*
TPST-NC models have
one-piece construction with
the contact unit. Only
non-lighted models are
available.
None Non-lighted ---
24D
LED
24 VAC/
VDC±5%
Note:
Models with separate construction
(SPST-NC and DPST-NC) are for
normal loads only. One-piece models
(TPST-NC) are for either normal loads
or microloads.
1

A165E-R-24D-02 Related Products

A165E-R-24D-02 A165E-SGR-02 A165E-SGR-03U A165E-SY-02 A165E-SY-03U
Description SWITCH, E-STOP, NON-LIGHTED SOCKET, 30 DIA., 1NC CONTACT SWITCH, E-STOP, NON-LIGHTED SOCKET, 30 DIA., 1NC CONTACT SWITCH, E-STOP, NON-LIGHTED SOCKET, 30 DIA., 1NC CONTACT PUSHBUTTON SWITCH, DPST, MOMENTARY, 3A, 30VDC, PANEL MOUNT-THREADED SWITCH, E-STOP, NON-LIGHTED SOCKET, 30 DIA., 1NC CONTACT
Maker - OMRON OMRON OMRON OMRON
Reach Compliance Code - unknow unknow unknow unknow
ECCN code - EAR99 EAR99 EAR99 EAR99
body height - 11.2 mm 21.5 mm 11.2 mm 21.5 mm
Body length or diameter - 18 mm 16 mm 18 mm 16 mm
Contact (AC) maximum rated R load - 5A@125VAC 1A@125VAC 5A@125VAC 1A@125VAC
Maximum contact current (AC) - 5 A 1 A 5 A 1 A
Maximum contact current (DC) - 3 A 1 A 3 A 1 A
Contact (DC) maximum rated R load - 3A@30VDC 1A@30VDC 3A@30VDC 1A@30VDC
Maximum contact voltage (AC) - 125 V 125 V 125 V 125 V
Maximum contact voltage (DC) - 30 V 30 V 30 V 30 V
Electrical life - 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s) 100000 Cycle(s)
Manufacturer's serial number - A165E A165E A165E A165E
Installation features - PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED PANEL MOUNT-THREADED
Maximum operating force - 14.7 N 14.7 N 14.7 N 14.7 N
Maximum operating temperature - 55 °C 55 °C 55 °C 55 °C
Minimum operating temperature - -10 °C -10 °C -10 °C -10 °C
seal - IP65 IP65 IP65 IP65
surface mount - NO NO NO NO
Switch action - MOMENTARY MOMENTARY MOMENTARY MOMENTARY
switch function - DPST 3PST DPST 3PST
Switch type - PUSHBUTTON SWITCH PUSHBUTTON SWITCH PUSHBUTTON SWITCH PUSHBUTTON SWITCH
Termination type - SOLDER SOLDER SOLDER SOLDER
Base Number Matches - 1 1 1 1
