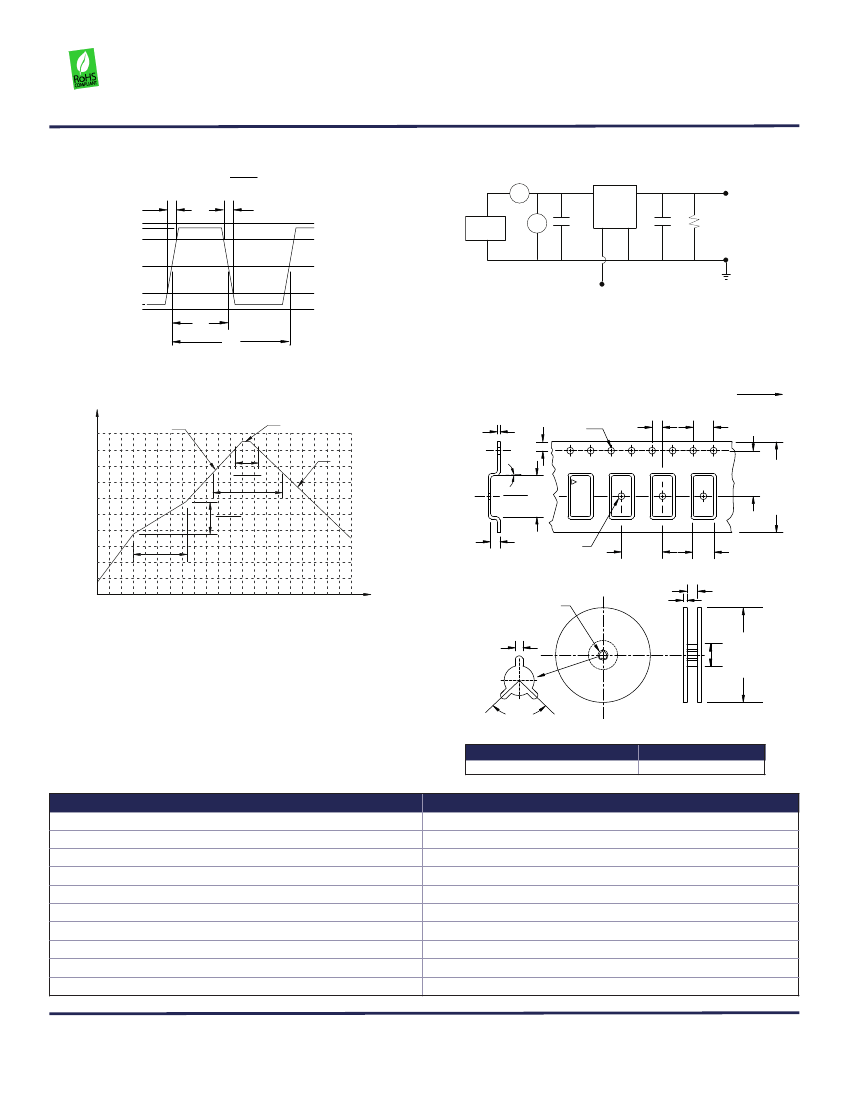

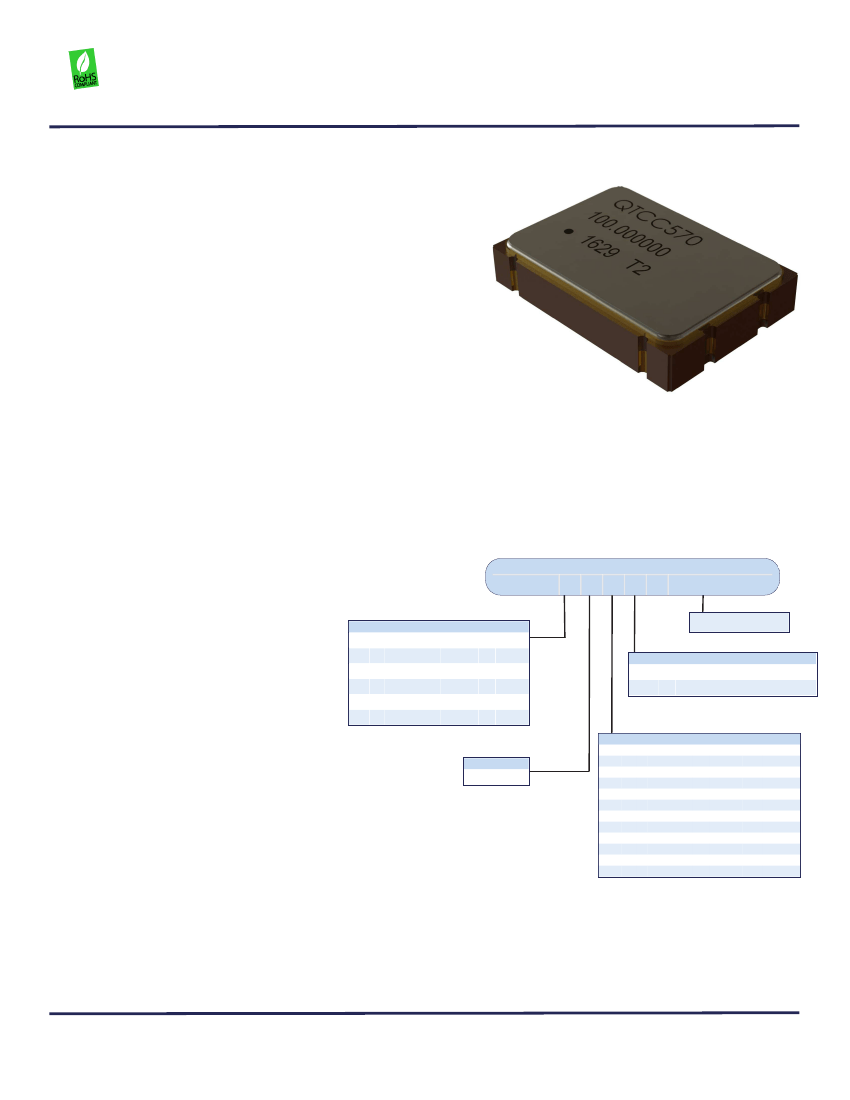

QTCC570 SERIES
Q-TECH
Description
CORPORATION
LOW PROFILE 5 x 7mm MINIATURE SMD CRYSTAL OSCILLATORS
1.8, 2.5, 3.3 and 5.0Vdc - 1.544MHz to 190.000MHz
Q-Tech’s surface-mount QTCC570 oscillators consist of an
IC 5Vdc, 3.3Vdc, 2.5Vdc, and 1.8Vdc clock square wave
generator and a miniature strip AT quartz crystal built in a low
profile ceramic package with gold plated contact pads.
Features
•
•
•
•
•
•
•
•
•
•
•
•
ECCN: EAR99
Broad frequency range from 1.544MHz to 190.000MHz
Small footprint
HCMOS logic
5.0Vdc, 3.3Vdc, 2.5Vdc, and 1.8Vdc supply
Operating temperature -55ºC to +125ºC available
Tri-State Output Standard
Hermetically sealed ceramic package
Fundamental and 3rd Overtone designs
Military screening tests per MIL-PRF-55310 available
Tape and reel packaging
Lead Free, RoHS Compliant
Applications
Ordering Information
Sample part number
Q TCC5 7 0LD 1 2 - 5 0. 00 0 M H z
• Designed to meet today’s requirements for low voltage
QTCC570 L D 12
-
50.000MHz
applications
• Gun launched munitions and systems
Output Frequency
Logic & Supply Voltage:
• Smart munitions
AC = HCMOS
+5.0V at 50pF
• Instrumentation
HC = HCMOS
+5.0V at 15pF
Screening
• Navigation
LA = LVHCMOS +3.3V at 50pF
Blank = Unscreened
• Avionics
L = LVHCMOS +3.3V at 15pF
M = Per MIL-PRF-55310, Level B
N = LVHCMOS +2.5V at 15pF
• Ethernet/SynchE
R = LVHCMOS +1.8V at 15pF
• SONET
• Microprocessor clock
Frequency vs. Temperature Code:
Tristate
D = Tristate
16
12
17
10
18
11
20
6
9
5
15
14
=
=
=
=
=
=
=
=
=
=
=
=
±
±
±
±
±
±
±
±
±
±
±
±
100ppm
100ppm
100ppm
100ppm
50ppm
50ppm
50ppm
50ppm
50ppm
25ppm
25ppm
20ppm
at
at
at
at
at
at
at
at
at
at
at
at
-20ºC
-40ºC
-40ºC
-55ºC
-20ºC
-40ºC
-40ºC
-55ºC
-55ºC
-20ºC
-40ºC
-20ºC
to
to
to
to
to
to
to
to
to
to
to
to
+70ºC
+85ºC
+125ºC
+125ºC
+70ºC
+85ºC
+125ºC
+105ºC
+125ºC
+70ºC
+85ºC
+70ºC
Other Options Available For An Additional Charge
• Hot Solder Dip
Sn60/Pb40
per MIL-PRF 55310
Specifications subject to change without prior notice.
Frequency stability vs. temperature codes may not be available in all frequencies.
For Non-Standard requirements, contact Q-Tech Corporation at Sales@Q-Tech.com
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0201 (Revision B, April 2017)
1
QTCC570 SERIES

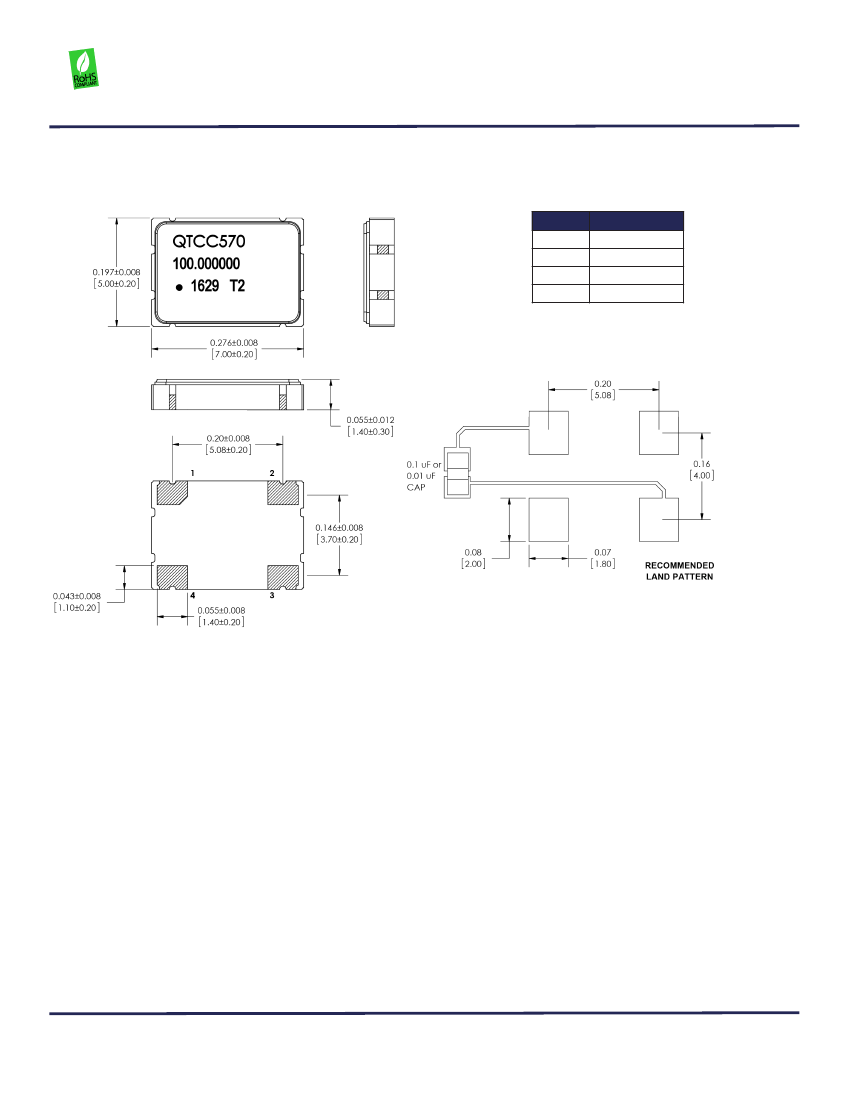

Package
Outline and Pin Connections
CORPORATION
Q-TECH
LOW PROFILE 5 x 7mm MINIATURE SMD CRYSTAL OSCILLATORS
1.8, 2.5, 3.3 and 5.0Vdc - 1.544MHz to 190.000MHz
Dimensions are in inches (mm)
Pin No.
1
2
3
4
Function
GND/CASE
OUTPUT
VDD
TRISTATE
An external bypass capacitor 0.01µF is
required between Vdd and GND
Line 1: QTCC570
(First 7 Characters of Description)
Line 2: XXX.XXXXXX
(9 or 10 Characters of Frequency in MHz including decimal)
Line 3: Dot (Pin 1 Indicator) + Date code (YY/WW), Internal Traceability Code
Marking
Package Information
• Termination pads (4x), Electro nickel plating 1.27µm ~ 8.89µm typ.,
with gold 0.3µm ~ 1.0µm flash plate
• Weight: 0.15g typ., 2.0g max.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0201 (Revision B, April 2017)
2
QTCC570 SERIES
Q-TECH
Electrical Characteristics
Supply voltage (Vdd)
Maximum Applied Voltage
(Vdd max.)
Frequency stability (∆F/∆T)
Operating supply current
(No Load)
Storage temperature (Tsto)
Parameters
Output frequency range (Fo)
CORPORATION
LOW PROFILE 5 x 7mm MINIATURE SMD CRYSTAL OSCILLATORS
1.8, 2.5, 3.3 and 5.0Vdc - 1.544MHz to 190.000MHz
QTCC570LA
QTCC570L
QTCC570N
1.544MHz — 190.000MHz
-0.5 to +5.0Vdc
QTCC570R
1.544MHz — 172.000MHz
-0.5 to +3.6Vdc
1.8Vdc ± 10%
QTCC570AC
QTCC570HC
1.544MHz — 125.000MHz
-0.7 to +7.0Vdc
5.0Vdc ± 10%
3.3Vdc ± 10%
2.5Vdc ± 10%
Operating temperature (Topr)
10 mA max. -
< 20MHz
30 mA max. - 20MHz ~ < 50MHz
50 mA max. - 50MHz ~ < 85MHz
60 mA max. - 85MHz ~ 125MHz
8 ns max. -
< 20MHz
5 ns max. - 20MHz ~ < 50MHz
2 ns max. - 50MHz ~ 125MHz
See Part Number on Page 1
7 mA max. -
< 20MHz
20 mA max. - 20MHz ~ < 50MHz
30 mA max. - 50MHz ~ < 85MHz
50 mA max. - 85MHz ~ 190MHz
-62ºC to + 125ºC
See Part Number on Page 1
7 mA max. -
< 20MHz
15 mA max. - 20MHz ~ < 50MHz
20 mA max. - 50MHz ~ < 110MHz
30 mA max. - 110MHz ~ 190MHz
10 ns max. -
< 20MHz
6 ns max. - 20MHz ~ < 50MHz
3 ns max. - 50MHz ~ < 90MHz
2 ns max. - 90MHz ~ 190MHz
5 mA max. -
< 20MHz
15 mA max. - 20MHz ~ < 70MHz
25 mA max. - 70MHz ~ < 96MHz
30 mA max. - 96MHz ~ 172MHz
4 ns max. -
< 20MHz
4 ns max. - 20MHz ~ < 50MHz
3 ns max. - 50MHz ~ < 90MHz
2 ns max. - 90MHz ~ 172MHz
Symmetry
(50% of ouput waveform)
Rise and Fall times
Output voltage (Voh/Vol)
Output Current (Ioh/Iol)
Enable/Disable function Pin
1
Start-up time (Tstup)
Output Load (Note 1)
6 ns max. -
< 20MHz
4 ns max. - 20MHz ~ < 50MHz
3 ns max. - 50MHz ~ < 90MHz
2 ns max. - 90MHz ~ 190MHz
7 ns max. -
50pF Load
(20 ~ 50MHz) 7 ns max. -
50pF Load
(<50MHz)
50pF max.
50pF max.
15pF max.
± 16mA max.
45/55%
0.9Vdd min. / 0.1Vdd max.
VIH ≥ 2.0V Active
10ms max.
15pF max.
VIL ≤ 0.8V High Z
VIH ≥ 4.0V Active
Phase noise typ. @
44.736MHz
Aging
Note 1: 50pF Load is only available up to 50MHz
VIL ≤ 0.5V High Z
10Hz
-83 dBc/Hz
100Hz
-120 dBc/Hz
1kHz
-150 dBc/Hz
10kHz
-157 dBc/Hz
100kHz -162 dBc/Hz
1MHz
-164 dBc/Hz
10MHz -165 dBc/Hz
10 years aging included in Frequency Stability
±5ppm max. First Year
±2ppm max. Each Year Thereafter
VIH ≥ 1.75V Active
± 8mA max.
VIH ≥ 1.26V Active
QPDS-0201 (Revision B, April 2017)
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
3
QTCC570 SERIES
Q-TECH
Output Waveform (Typical)
SYMMETRY =
TH
T
Tr
VOH
Tf
Vdd
0.9xVdd
x 100%
CORPORATION
LOW PROFILE 5 x 7mm MINIATURE SMD CRYSTAL OSCILLATORS
1.8, 2.5, 3.3 and 5.0Vdc - 1.544MHz to 190.000MHz
Test Circuit
Typical test circuit for CMOS logic
4
+
Vdc
-
3
Output
+ mA
+
Power
supply
-
QTCC
0.1µF
or
1
2
0.01µF
15pF
(*)
10k
Ground
0.5xVdd
Tristate Function
0.1xVdd
VOL
TH
GND
Reflow Profile
TEMP(*C)
T
The Tristate function on pin 1 has a built-in pull-up resistor so it can be left
floating or tied to Vdd without deteriorating the electrical performance.
(*) CL includes probe and jig capacitance
Embossed Tape and Reel Information
2.0±0.1
1.75±0.1
0.3±.005
ø1.5
TYPICAL REFLOW PROFILE FOR Sn-Pb ASSEMBLY
FEEDING (PULL) DIRECTION
Ramp up (3ºC/s Max)
250
225
200
175
150
240º
4.0±0.1
Ramp down (6ºC/s Max)
225º min.
240º max.
7.5±0.1
8±0.1
5.4±0.1
17.5
2.0
5º MAX
P/N
FREQUENCY
D/C S/N
125
100
75
50
25
0
0
20
40
60
60s min.
120s max.
7.4
±0.1
60s min.
150s max.
60s min.
120s max.
ø1.5
1.9±0.1
80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420
Time (s)
ø13.0±0.5
2.5
ø178±1
ø80±1
Dimensions are in mm. Tape is compliant to EIA-481-A.
120º
Environmental and Mechanical Specifications
Temperature cycling
Constant acceleration
Seal: Fine and Gross Leak
Vibration sinusoidal
Shock, non operating
Resistance to solder heat
Resistance to solvents
Solderability
ESD Classification
Moisture Sensitivity Level
Environmental Test
Reel size (Diameter in mm)
178
Qty per reel (pcs)
1,000
Test Conditions
MIL-STD-883, Method 1010, Cond. B
MIL-STD-883, Method 2001, Cond. A, Y1
MIL-STD-883, Method 1014, Cond. A and C
MIL-STD-202, Method 204, Cond. D
MIL-STD-202, Method 213, Cond. I
MIL-STD-202, Method 210, Cond. B
MIL-STD-202, Method 215
MIL-STD-202, Method 208
MIL-STD-883, Method 3015, Class 1
J-STD-020, MSL=1
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0201 (Revision B, April 2017)
4
16.0±0.3
QTCC570 SERIES
Q-TECH
CORPORATION
LOW PROFILE 5 x 7mm MINIATURE SMD CRYSTAL OSCILLATORS
1.8, 2.5, 3.3 and 5.0Vdc - 1.544MHz to 190.000MHz
REV
A
Add N and R logic options
REVISION SUMMARY
PAGE
1
3
3
3
4
3
3
DATE
3/6/17
DCO
6160
6727
B
Add frequency vs temp code 14
Storage temp changed -55C to -62C
Period jitter changed from 40ps max. to the values now seen in table
Add N and R Electrical Characteristics
Revise Rise and Fall times for 50pF load
Fix Tape/Reel dimensions
Revise Aging
Removed jitter information and add phase noise data
4/24/17
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0201 (Revision B, April 2017)
5
