Space Oven Controlled Crystal Oscillator
TE400
OCXO series 400
For this product, full detailed specifications can be delivered on request.
Specific request can be addressed to RAKON
info@rakon.fr
Product Description
OCXO Space Flat Pack is designed for space clocks, signal generation applications,
transponders, GPS receivers, digital cards, board calculators, down and up converters,
and synthesizers. This frequency source is a good trade off between overall frequency
stability and power consumption of 0,5W.
OCXOs Space Flat Pack (25x25x17mm) are manufactured in accordance with
MIL-PRF-55310 (Class 1, type 4, level S).
Features
•
•
•
•
•
•
Frequency Range : 35 MHz to 130 MHz
Low consumption
Supply Voltage : +9V or +12V
Warm up Consumption : 2 Watt
Maximum Steady state Consumption under
vacuum : 0.65 Watt
Overall Frequency Stability vs. Operating
Temperature Range +/– 0.5ppm under
vacuum
•
•
•
•
•
•
•
Ageing :+/– 0.8 ppm over 15 years typical
Output Wave Form : sine 50 Ohms
Output Level : from 4 to 7 dBm
Compatible with Flat pack TCXO pin-out
Component selected as per ECSS-Q-ST-60C
Materials selected as per ECSS-Q-70
Manufacturing in accordance with:
o
MIL-PRF-55310 (Class 1, type 4, level S,B)
o
ECSS-Q-ST-70-08C and ECSS-Q-ST-70-38C
Applications
•
•
•
•
Transponders
GPS receivers
Digital cards
Converters
•
•
•
Board calculators
Synthesizers
FGU
Specifications
1.0
Line
Environmental conditions
Parameters
Conditions/remarks
Temperature option A
1.1
Operating Temperature
Temperature option B
Temperature option C
1.2
1.3
1.4
1.5
1.6
Switch-on Temperature
Non-Operating
Temperature
Random Vibration
Sine Vibration
Shocks
TSo
TNOp
Min
0
-20
-40
-40
- 55
Nom
25
25
25
Max
70
70
70
85
130
Unit
°C
°C
°C
°C
°C
Level as per MIL-STD-202), Method 214, Condition I-K
(46,30 Grms)
Level as per MIL-STD-202), Method 204, Condition D (20G)
Mechanical shock as per MIL-STD-202, Method 213,
Condition E (half sine with a peak acceleration of 1500g for
duration of 0.5 msec)
TID : 100 kRad, low dose rate
No SEL up to LET=60 MeV/mg/cm²
1.7
Radiation
July 27, 2012
Shortform, 51000653.110, Issue A4
1/5
www.rakon.com
Space Oven Controlled Crystal Oscillator
TE400
OCXO series 400
2.0
Line
2.1
Electrical interface
Parameters
Power supply
Load Impedance
Reference voltage
Ref voltage current
Control voltage
Input impedance
Vc
Calibration option 2
0
10
Conditions/remarks
Supply option 1
Supply option 2
Min
8.5
11.4
45
5.4
Nom
9.0
12.0
50
6.0
Max
9.5
12.6
55
6.6
1
6
Unit
V
V
Ω
V
mA
V
kΩ
2.2
2.3
2.4
2.5
2.6
3.0
Line
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.10
3.11
3.12
3.13
3.14
3.15
3.16
3.17
3.18
3.19
3.20
3.21
3.22
3.23
3.24
Performances
Parameters
Nominal Frequency
Steady state input current power
Warm up supply power
Initial frequency accuracy
Frequency adjustment
Frequency stability vs temperature
Under vacuum
Frequency variation vs. supply voltage
Frequency variation vs. load
Frequency variation vs pressure
Frequency ageing
Calibration option 1
Calibration option 2
Positive slope
Temperature option A
Temperature option B
Temperature option C
Over Operating Temperature
Over Operating Temperature
Atm to vacuum
Over 1 years
Over 15 years
Allan variance
Output waveform
Output level
Harmonics level
Non harmonics level
Phase noise (40MHz)
1 Hz
10 Hz
100 Hz
1kHz
10 kHz and above
- 155
EOL
4
1s
Sine
7.5
-30
- 100
-65
-95
-125
-145
dBm
dBc
dBc
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
± 1.2
± 0.05
± 0.1
± 0.25
± 0.01
± 0.01
± 0.2
± 0.3
± 0.8
0.05
ppm
ppm
ppm
ppm
ppm
ppb
Vacuum @ -20°C
Conditions/Remarks
Min
35
Typ
Max
130
0.65
2
± 0.4
± 0.1
Unit
MHz
W
W
ppm
ppm
ppm
ppm
- 150 dBc/Hz
July 27, 2012
Shortform, 51000653.110, Issue A4
2/5
www.rakon.com
Space Oven Controlled Crystal Oscillator
TE400
OCXO series 400
4.0
Mechanical features
Weight 25 grams
5.0
Line
5.1
5.2
5.3
5.4
5.5
5.6

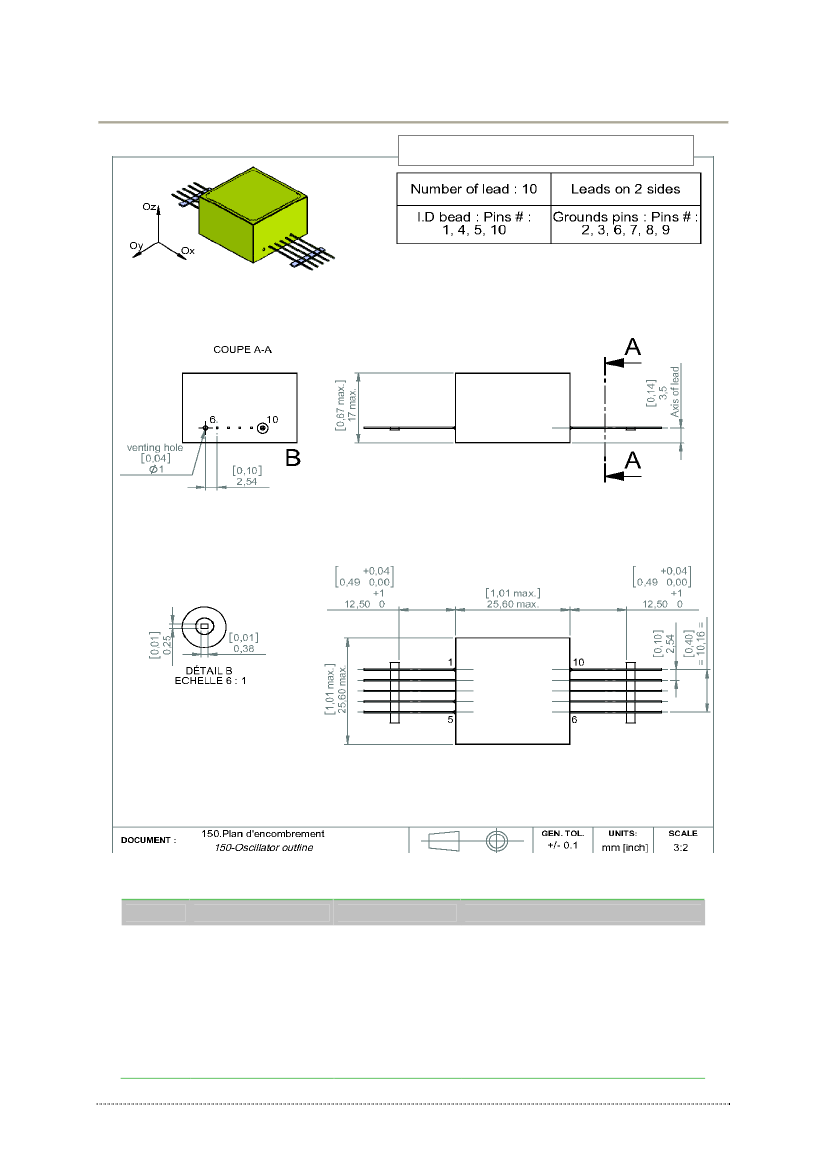

Pin description
Pin number
1
2,3,6,7,8,9
4
5
10
Name
Vcc
Ground
Vref
NC
Vc
Fout
Function
Supply Voltage input
Electrical & Mechanical Ground
Reference voltage output
Voltage control for Calibration option 1
electric tuning
Calibration option 2
Frequency Output
July 27, 2012
Shortform, 51000653.110, Issue A4
3/5
www.rakon.com
Space Oven Controlled Crystal Oscillator
TE400
OCXO series 400
6.0
Model philosophy
Engineering
Model
Engineering
Qualification
Model
Qualification
Model
Flight
Model
Flight Model +
Lot Acceptance
test
Representativeness
(option A)
(options B, C)
(option D)
(options
F, G, H)
E,
(option I)
Component
Crystal material
Passive
commercial
parts
Active parts
from the same
manufacturer of
HiRel parts
Swept quartz
Stabilized
Mil Grade parts
procured from
the same
manufacturer of
HiRel parts
HiRel Parts
HiRel Parts
HiRel Parts
Swept quartz
Stabilized
Flight
representative in
form-fit-function
Flight
design
Qualification
testing
Swept quartz
ESCC3501
Stabilized
Flight design
Mechanical
interface
Electrical interface
Tests
Flight
representative
in form-fit-
function
Flight
design
Acceptance
testing
Swept
quartz
ESCC3501
Stabilized
Flight design
Swept quartz
ESCC3501
Stabilized
Flight design
Flight design
Qualification
testing
(including
screening)
ECSS-Q-ST-70-08
& 70-38
Flight design
Acceptance
testing
(including
screening)
ECSS-Q-ST-
70-08 & 70-
38
Flight design
Acceptance
testing (including
screening)+ LAT
ECSS-Q-ST-70-08
& 70-38
Workmanship
IPC610
ECSS-Q-ST-70-08
& 70-38
7.0
Flight Model Screening according to MIL-PRF-55310
•
•
•
•
Full Level S (option E)
Level S with combined burn in aging of 480 hours (option F)
Full Level B (option G)
Level B with combined burn in aging of 480 hours (option H)
Lot Acceptance test could be performed on all screening options
8.0
Options for Engineering Qualification Model
•
Production manufacturing, qualification flow including qualification mechanical tests (option B)
•
Production manufacturing, electrical tests only (option C)
9.0
Deliverable documentation
•
Test data
•
Full specification
•
Certificate of Conformity (CoC)
July 27, 2012
Shortform, 51000653.110, Issue A4
4/5
www.rakon.com
Space Oven Controlled Crystal Oscillator
TE400
OCXO series 400
10.0
Ordering part number definition
The part number breakdown is defined as follows:
TE 400 E A 1 1 1 40M000000
RAKON-TEMEX
Series
Model
A = EM
B = EQM full environmental testing
C = EQM reduced environmental testing
D = QM
E = FM level S
F = FM level S with combined BI-aging
G = FM level B
H = FM level B with combined BI-aging
I = FM + group C
Temperature range/Stability
A = 0° to +70° ± 0.05 ppm
C
C,
B = –20° to +70° ± 0.1 ppm
C
C,
C = –40° to +70° ± 0.25 ppm
C
C,
Supply voltage
1 = 9V
2 = 12V
Wave form
1 = Sine
Frequency adjustment
1 = internal calibration
2 = voltage controlled
Frequency,
fnom
July 27, 2012
Shortform, 51000653.110, Issue A4
5/5
www.rakon.com
