8D011M22BC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8D011M22BC

Preview

8D011M22BC: DescriptionMIL Series Connector, 4 Contact(s), Composite, Female, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size336KB，2 Pages; ManufacturerEsterline Technologies Corporation; Environmental Compliance

Download Datasheet Parametric View All

8D011M22BC Overview

MIL Series Connector, 4 Contact(s), Composite, Female, Crimp Terminal, Receptacle,

8D011M22BC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8315685238
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-38999, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	COMPOSITE
Housing size	11
Termination type	CRIMP
Total number of contacts	4

Preview

Download Datasheet

View All

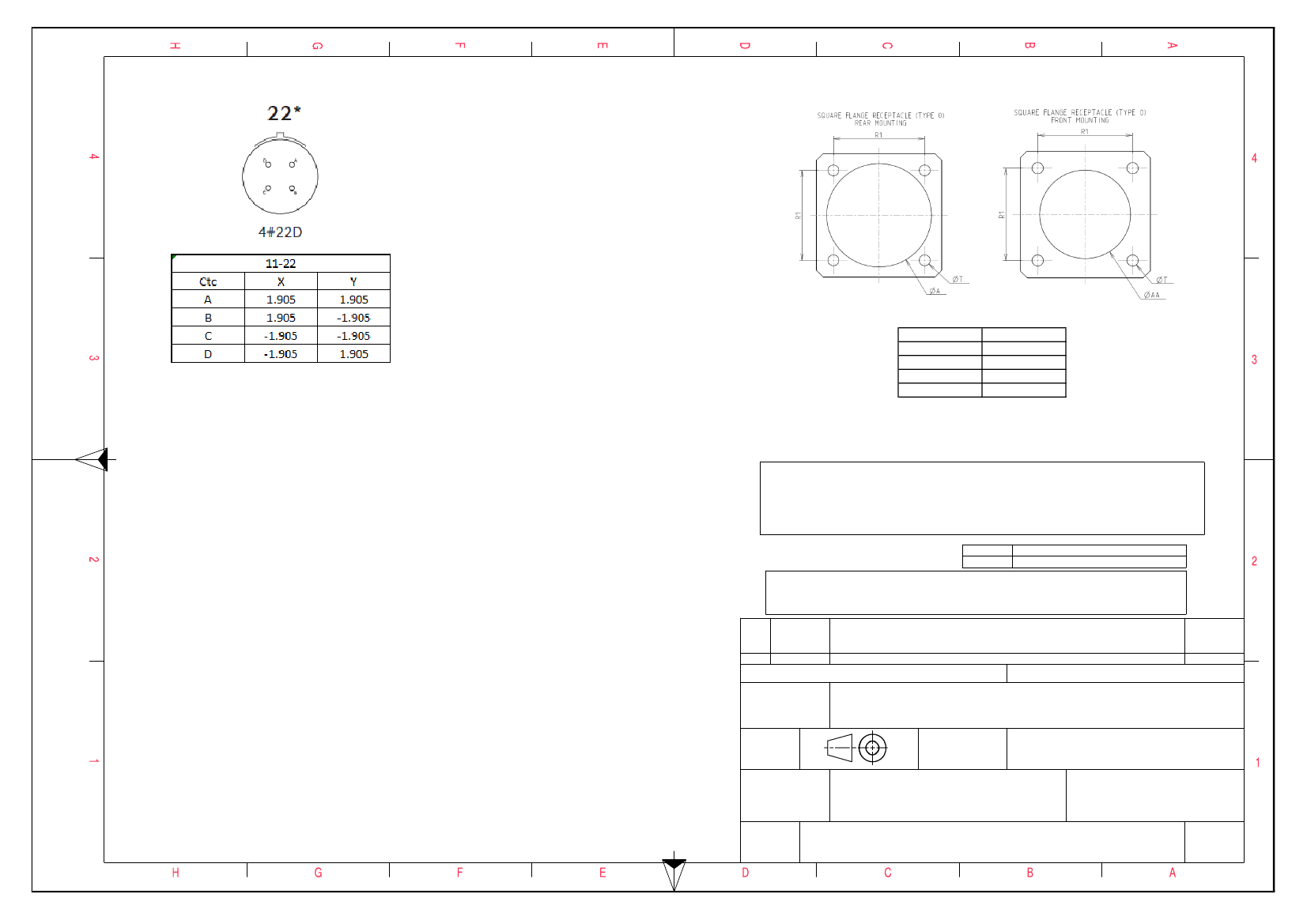

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Composite

: Nickel

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

P

3.25±0.2

PP

4.93±0.2

R1

20.62

R2

18.26

S

26.2±0.3

V'

19.5+1.4/-0

W'

2.1/3.65

Z'

32 Max

VV THREAD

M15x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

FR

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

-Mass

: -65°C to +200°C

: 2000 hours

: 11.6 g ± 10%

PN: 8D011M22BC

A

ISS

07-10-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

CUSTOMER DRAWING

Designed By:

TITLE

BASIC SERIES:

8D

0

-

11

M

22

B

C

SCALE

Composite Receptacle 8D series

General linear

Tolerances:

±--

NPRDS / PROJECT

SHELL TYPE : Square Flange Receptacle

CONTACT TYPE

SHELL SIZE : 11

PLATING

:

M =

Nickel

: Standard Crimp Contact

ORIENTATION : C

CONTACT TYPE : SOCKET(500 Matings)

CONTACT LAYOUT : 11-22

NA

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

FORMAT

WWW.SOURIAU.COM

A3

SOURIAU DRG N°

8D011M22BC-C

SHEET

1/2
